CONCERT-26/36/ 46/56/56M 1. SPECIFICATIONS.......................................................................... 2 2. STRUCTURAL DIAGRAM........................................................... 4 3. BLOCK DIAGRAM.........................................................................21 4. CIRCUIT DIAGRAM........................................ 24 and insertion 5. P.C. BOARD................................................................................. 33 6. DIAGNOSTIC TEST...................................................................... 47 7. HARDWARE SPECIFICATIONS................................................. 83 8. REFERENCE DATA.................................................................... 88 9. PARTS LIST............................................................................... 107 1. SPECIFICATIONS Keyboard 88keys(A0-C8) Voices Piano, Electric Pi

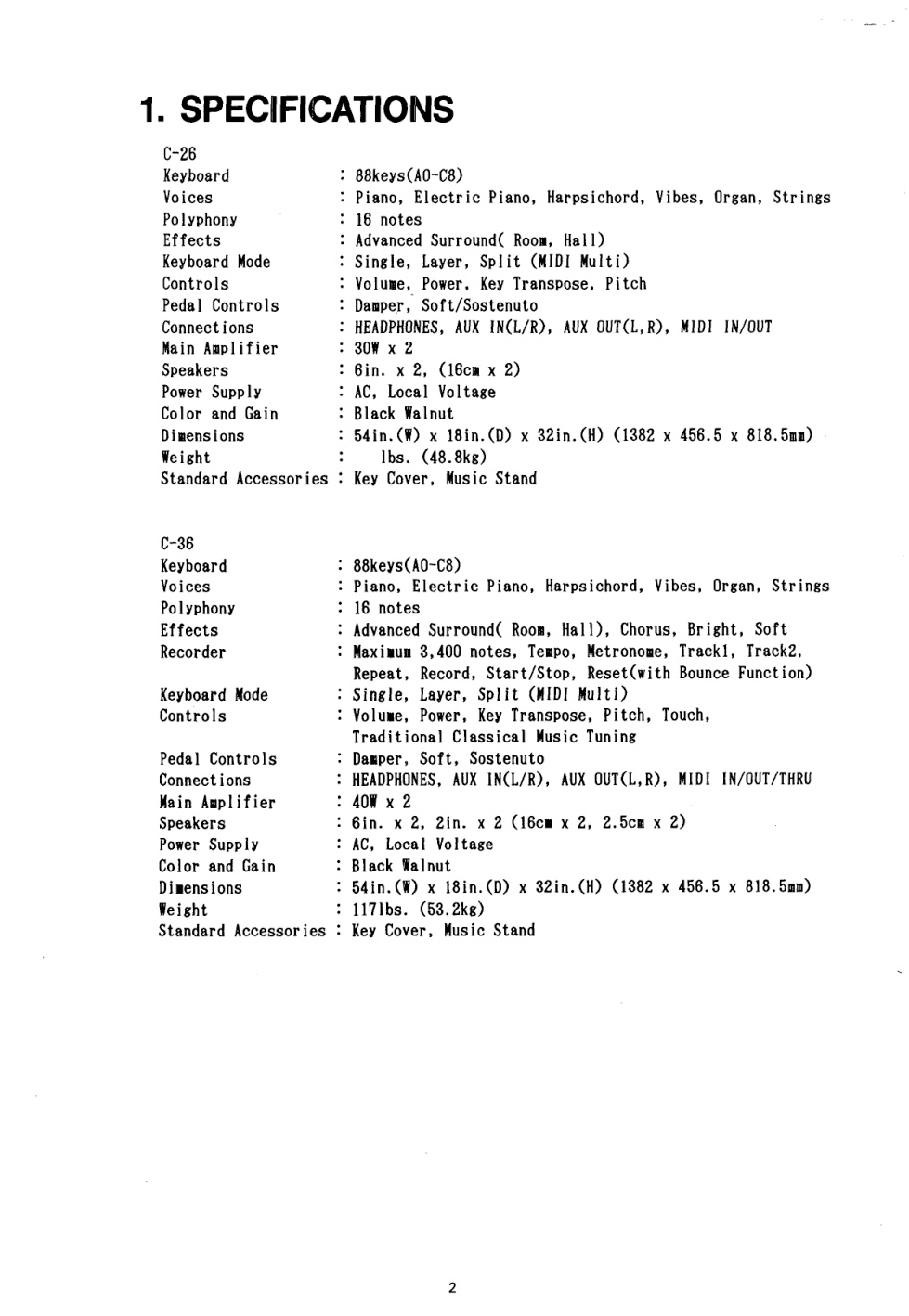

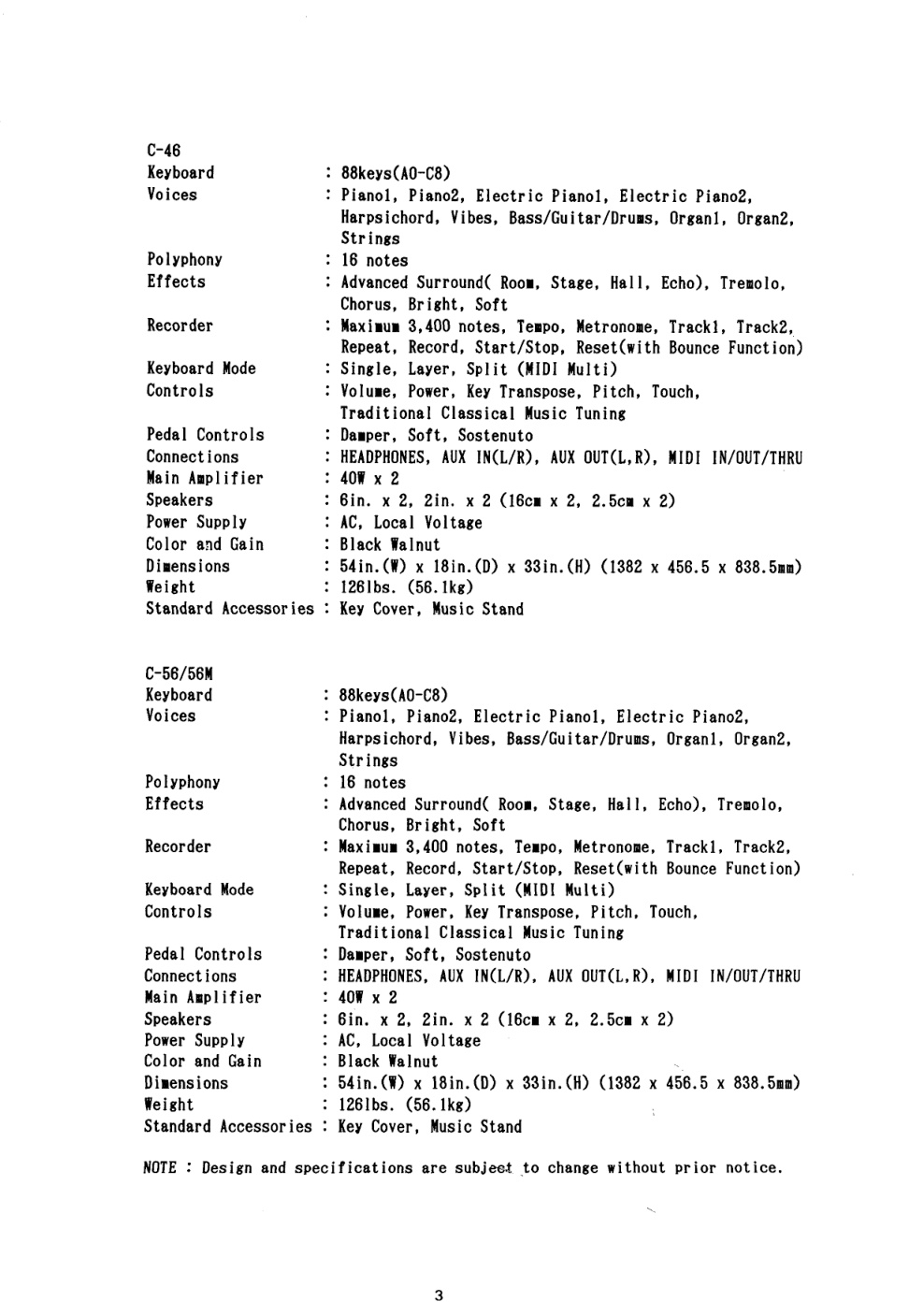

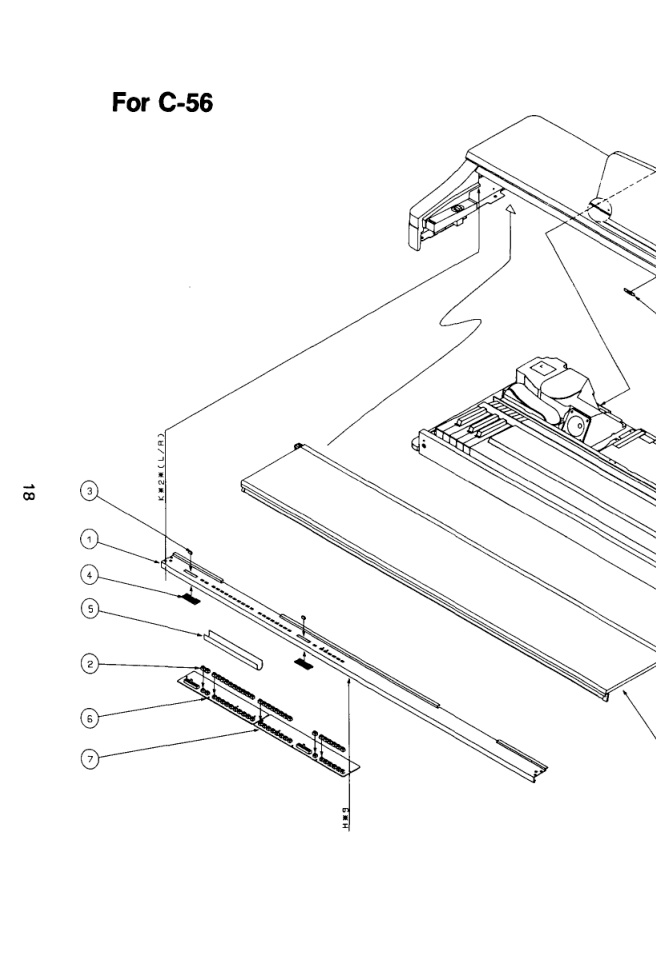

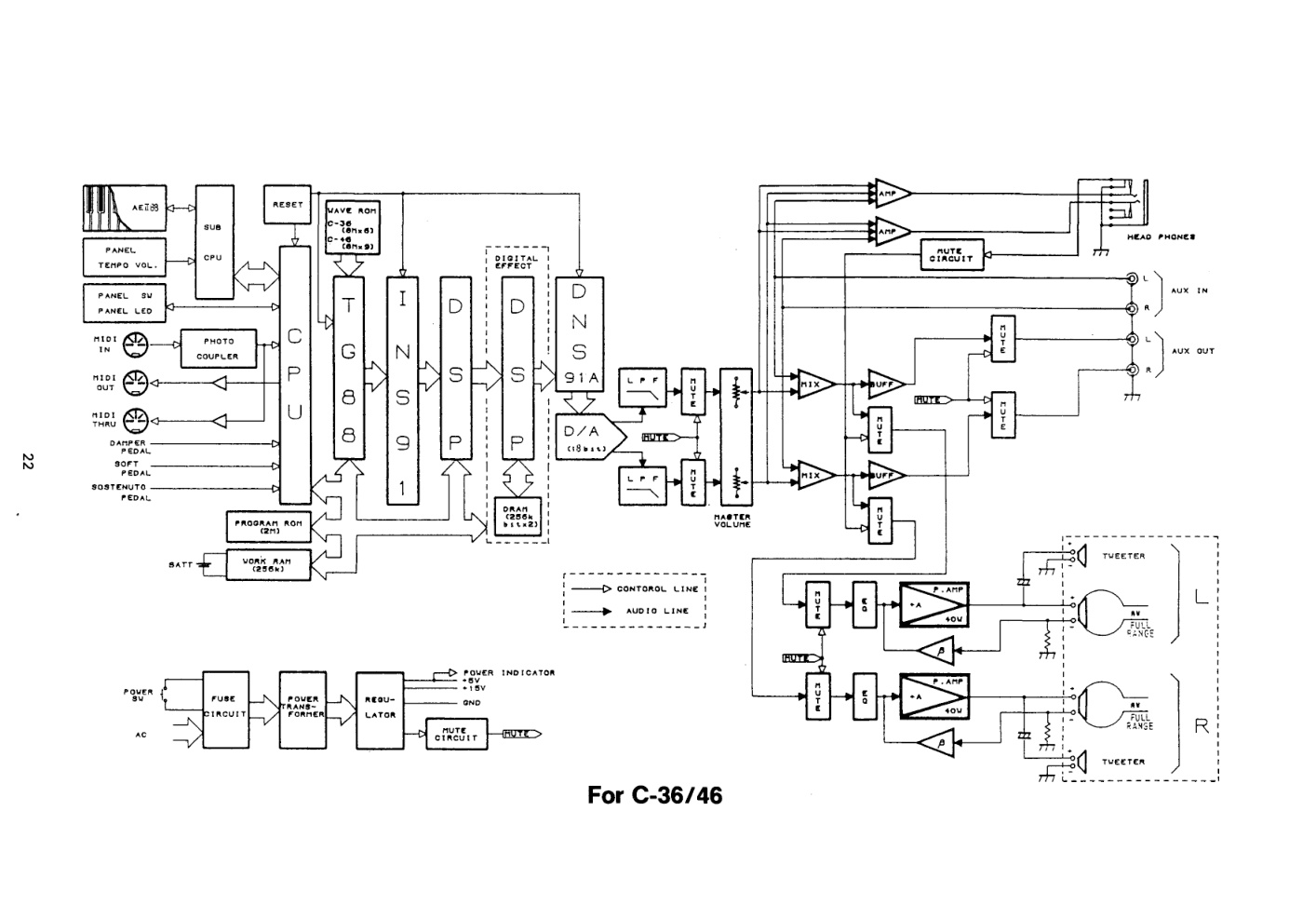

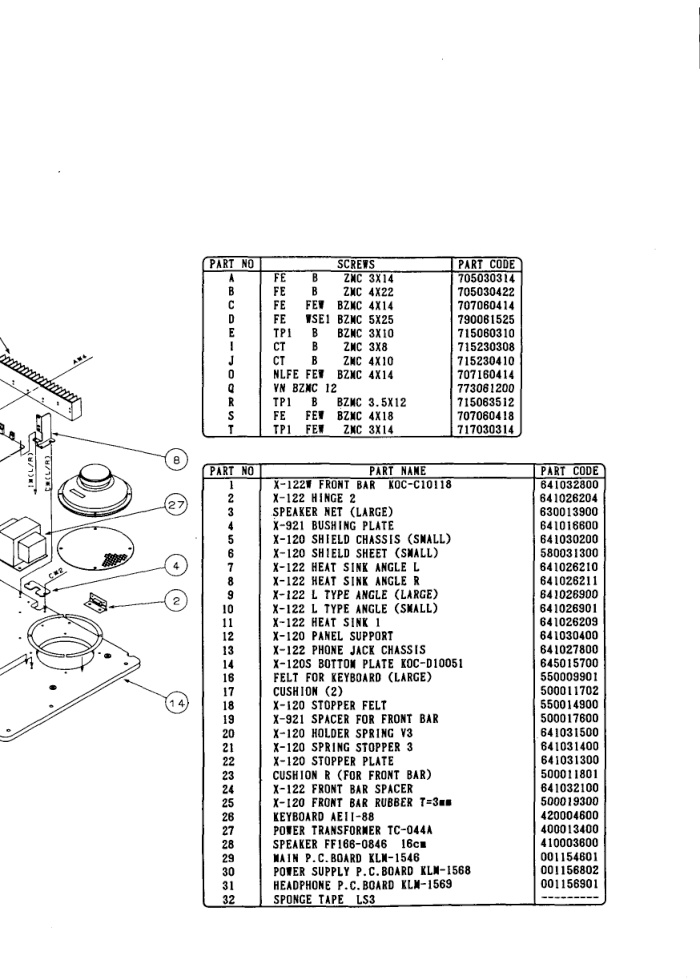

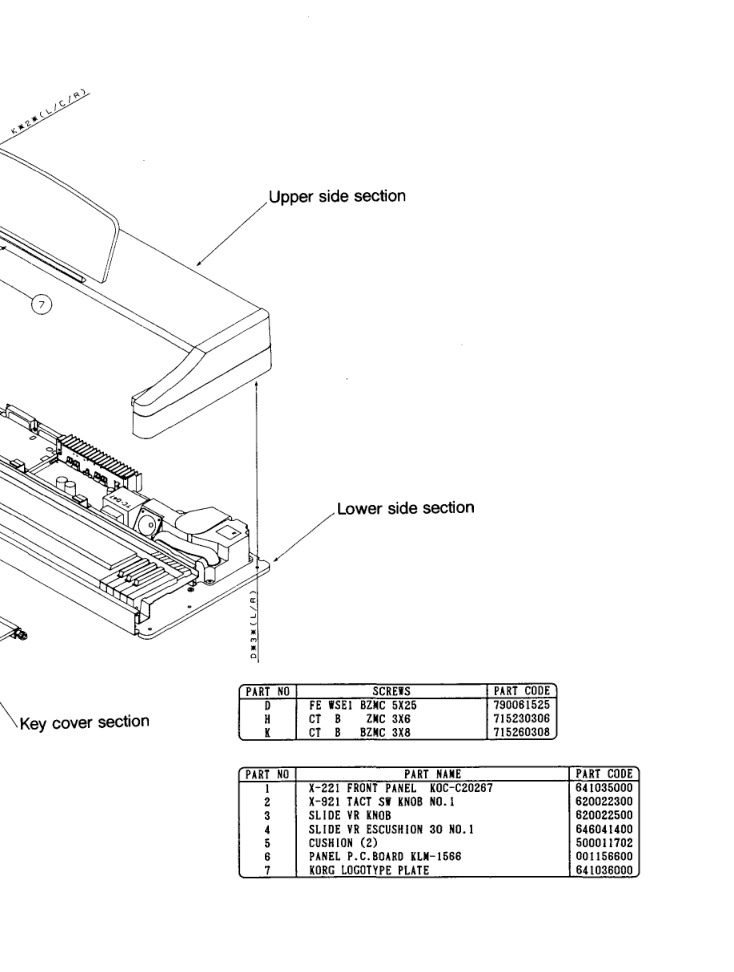

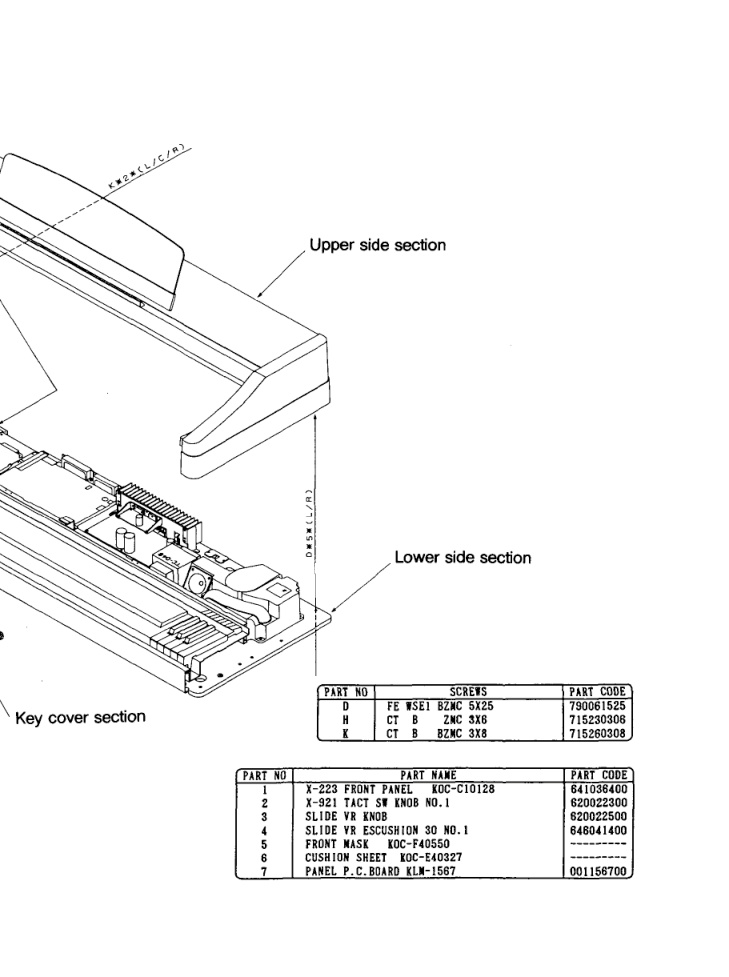

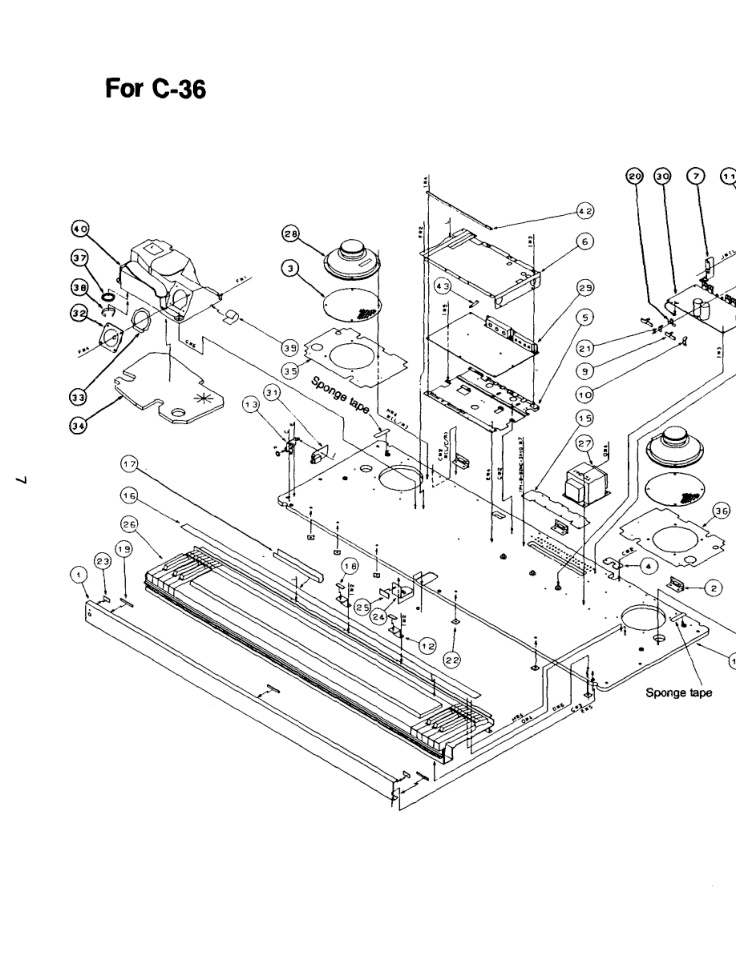

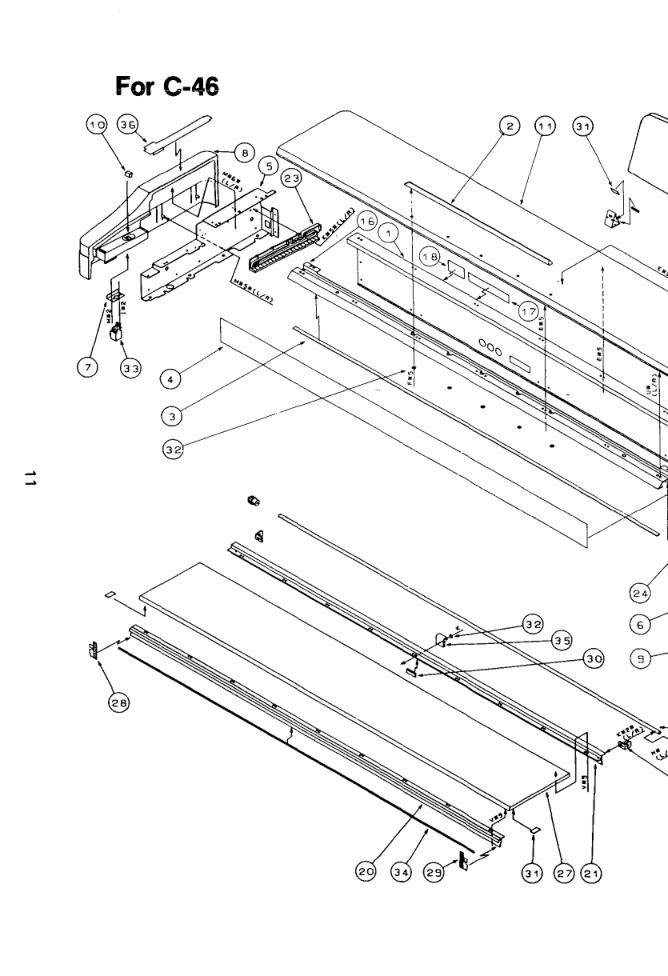

SERVICE MANUAL CONCERT-26/36/ 46/56/56M CONTENTS 1. SPECIFICATIONS .......................................................................... 2 2. STRUCTURAL DIAGRAM ........................................................... 4 3. BLOCK DIAGRAM .........................................................................21 4. CIRCUIT DIAGRAM ........................................ 24 and insertion 5. P.C. BOARD ................................................................................. 33 6. DIAGNOSTIC TEST ...................................................................... 47 7. HARDWARE SPECIFICATIONS ................................................. 83 8. REFERENCE DATA .................................................................... 88 9. PARTS LIST ............................................................................... 107 1. SPECIFICATIONS C-26 Keyboard 88keys(A0-C8) Voices Piano, Electric Piano, Harpsichord, Vibes, Organ, Strings Polyphony 16 notes Effects Advanced Surround( Rooh, Hall) Keyboard Mode Single, Layer, Split (MIDI Multi) Controls Volune, Power, Key Transpose, Pitch Pedal Controls Danper, Soft/Sostenuto Connections HEADPHONES, AUX IN(L/R), AUX…
