Case 325 330 Articulated Dump Trucks Transmission

CNH America LLC © 2004 700 STATE STREET RACINE, WI 53404 U.S.A. Printed in U.S.A. 25 & 30 TON ARTICULATED DUMP TRUCKS

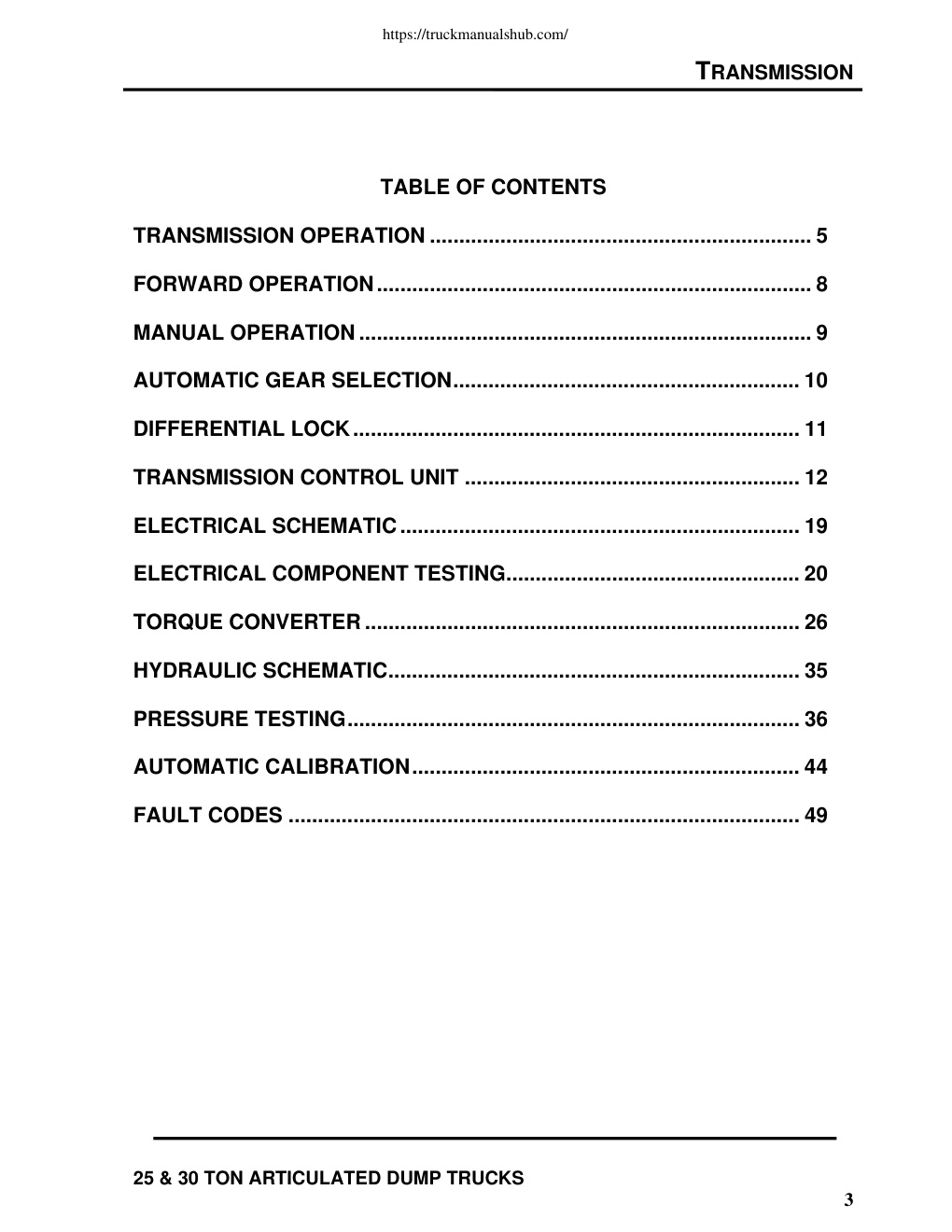

https://truckmanualshub.com/ TRANSMISSION CASE 325 & 330 ARTICULATED DUMP TRUCKS Transmission 25 & 30 TON ARTICULATED DUMP TRUCKS 1 https://truckmanualshub.com/ TRANSMISSION CNH America LLC © 2004 700 STATE STREET RACINE, WI 53404 U.S.A. Printed in U.S.A. 25 & 30 TON ARTICULATED DUMP TRUCKS 2 https://truckmanualshub.com/ TRANSMISSION TABLE OF CONTENTS TRANSMISSION OPERATION ................................................................. 5 FORWARD OPERATION.......................................................................... 8 MANUAL OPERATION ............................................................................. 9 AUTOMATIC GEAR SELECTION........................................................... 10 DIFFERENTIAL LOCK............................................................................ 11 TRANSMISSION CONTROL UNIT ......................................................... 12 ELECTRICAL SCHEMATIC.................................................................... 19 ELECTRICAL COMPONENT TESTING.................................................. 20 TORQUE CONVERTER .......................................................................... 26 HYDRAULIC…
