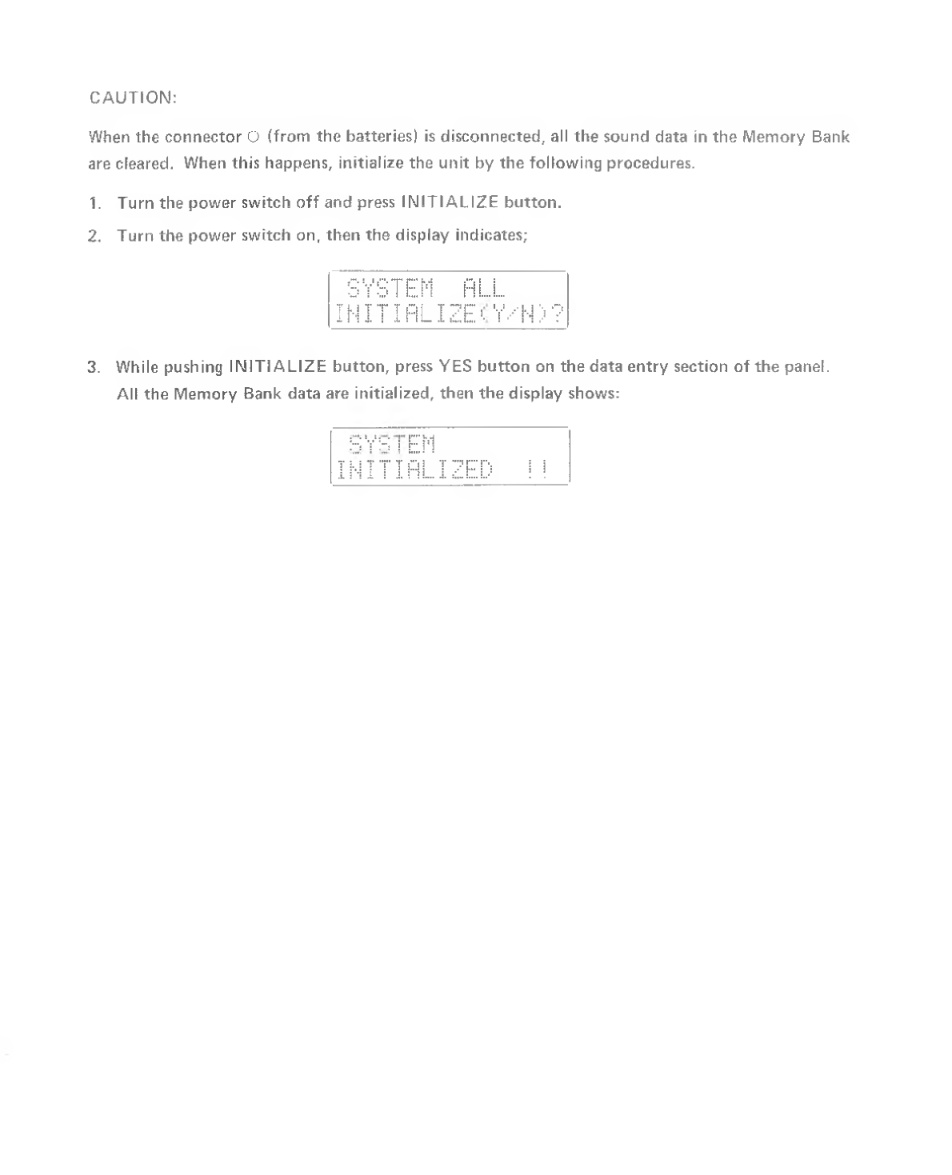

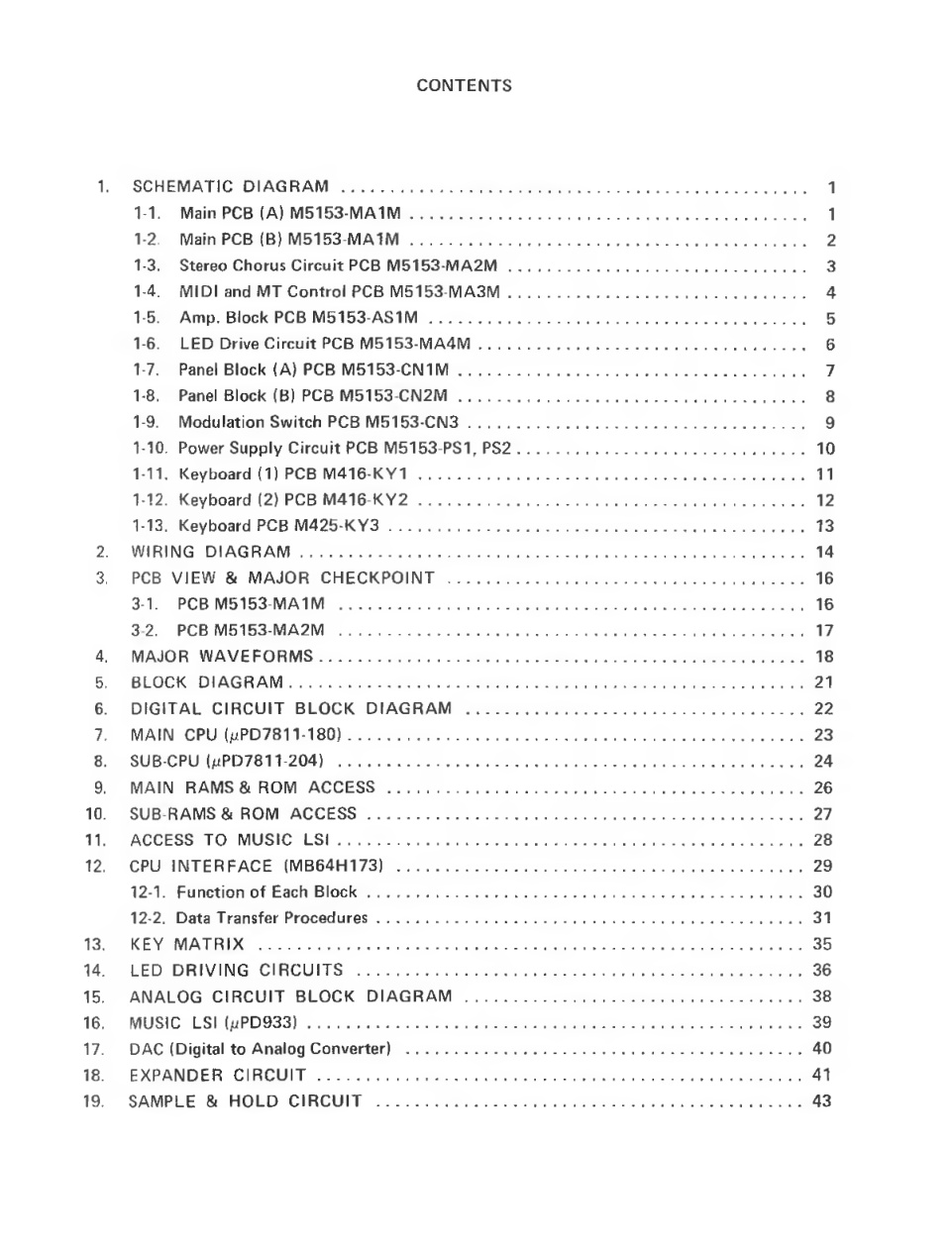

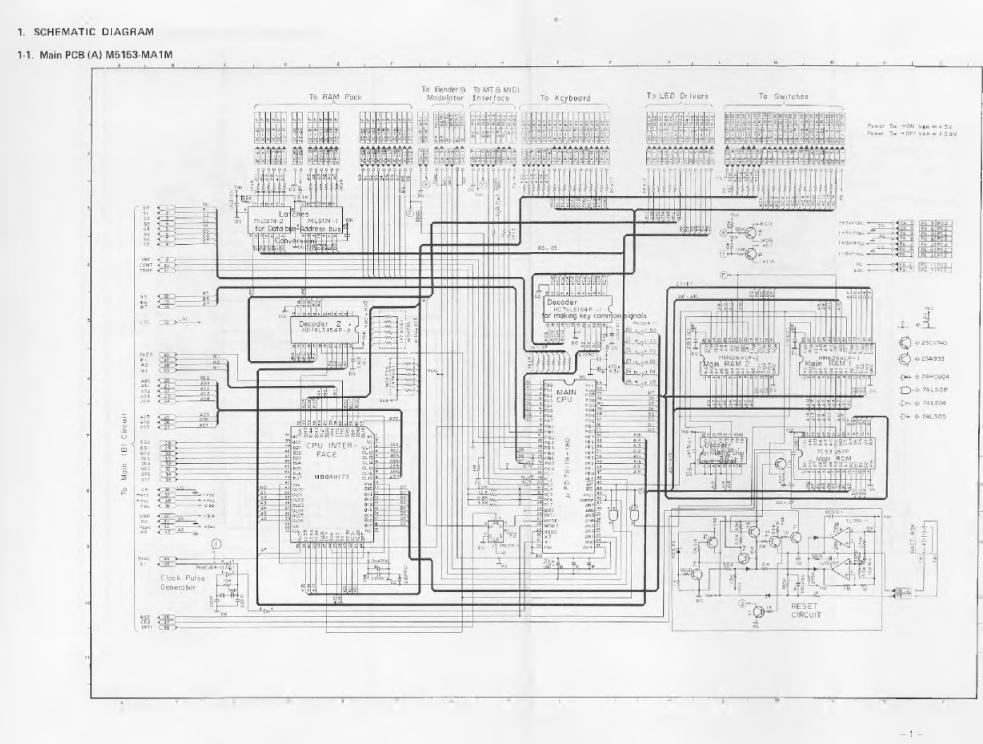

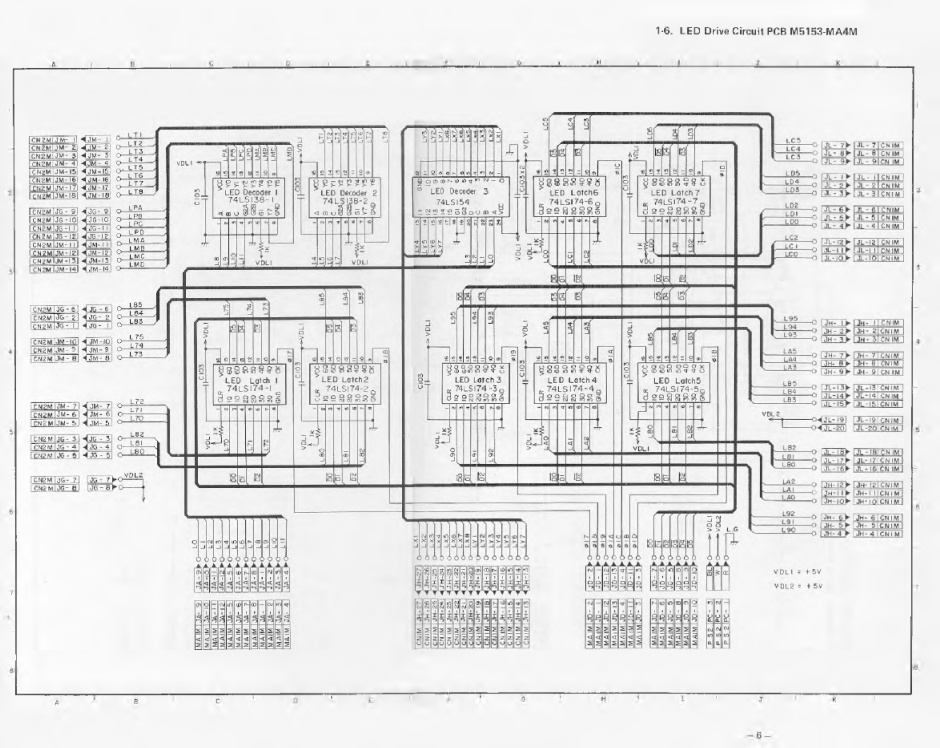

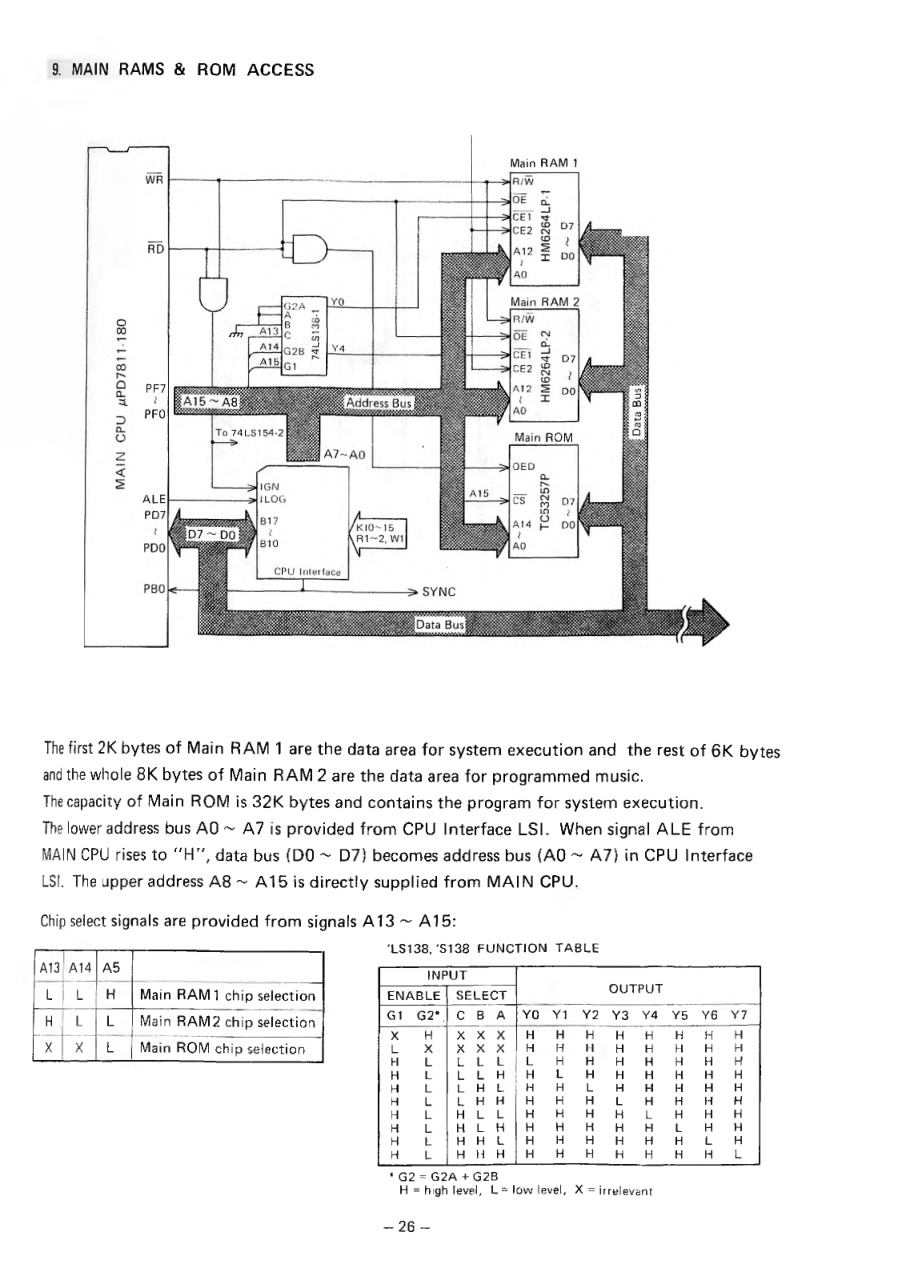

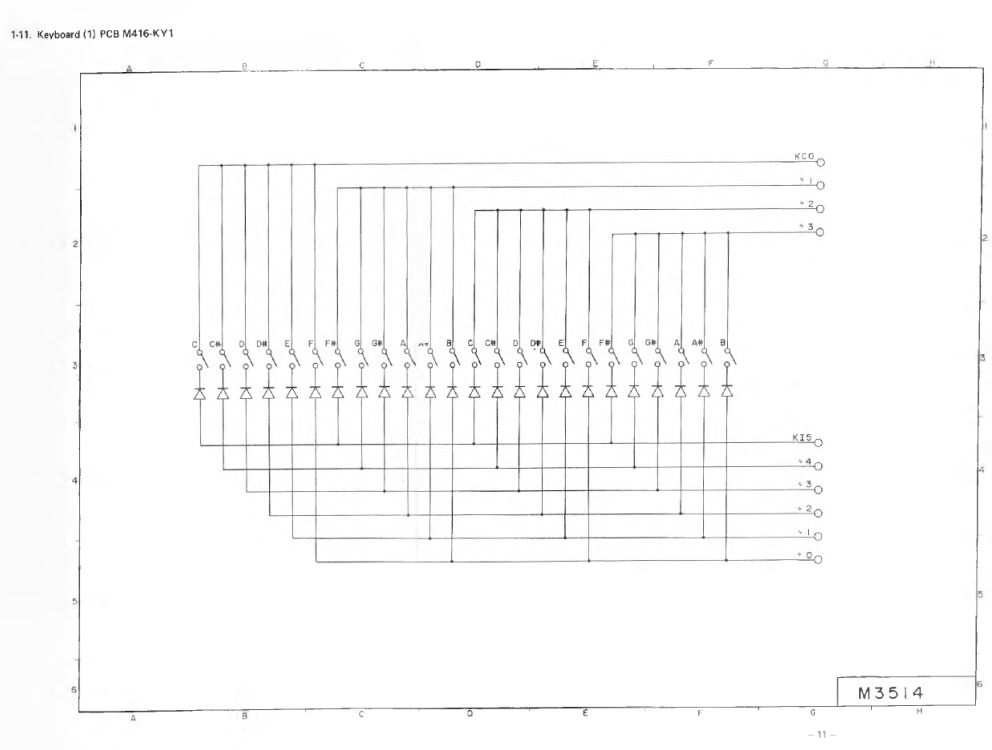

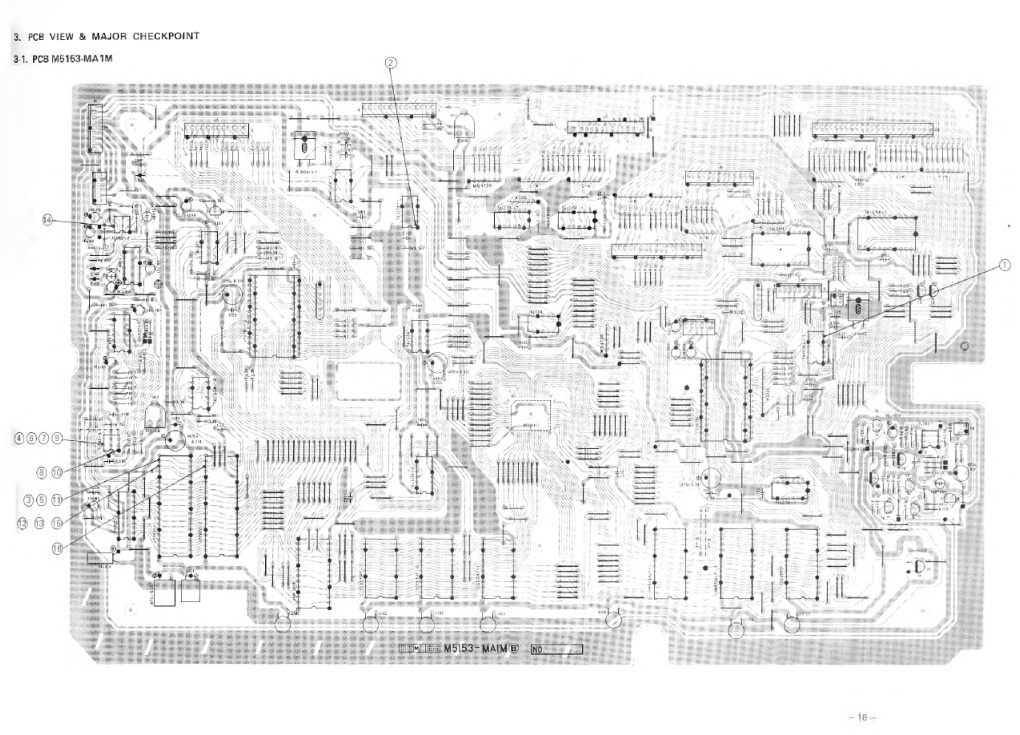

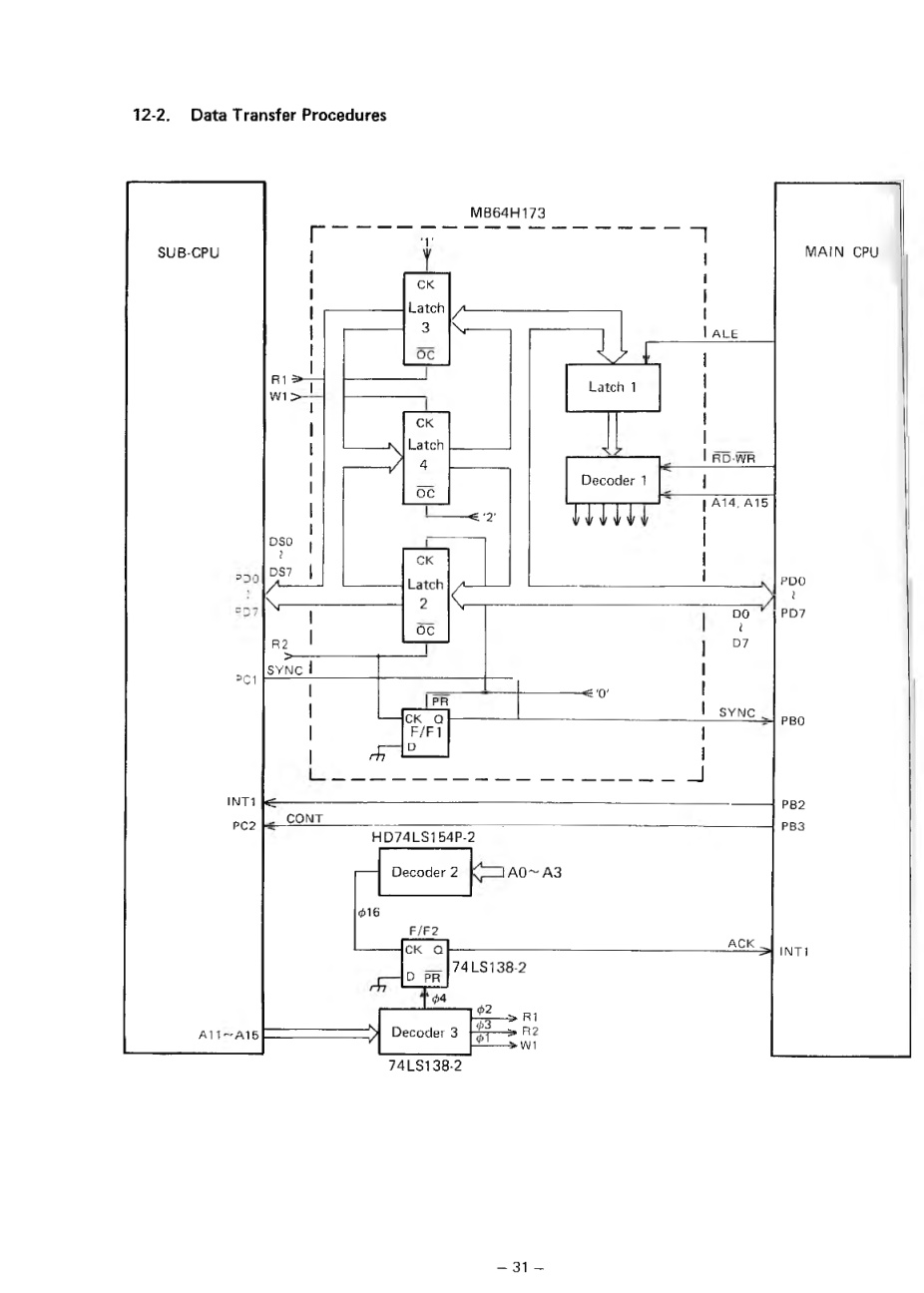

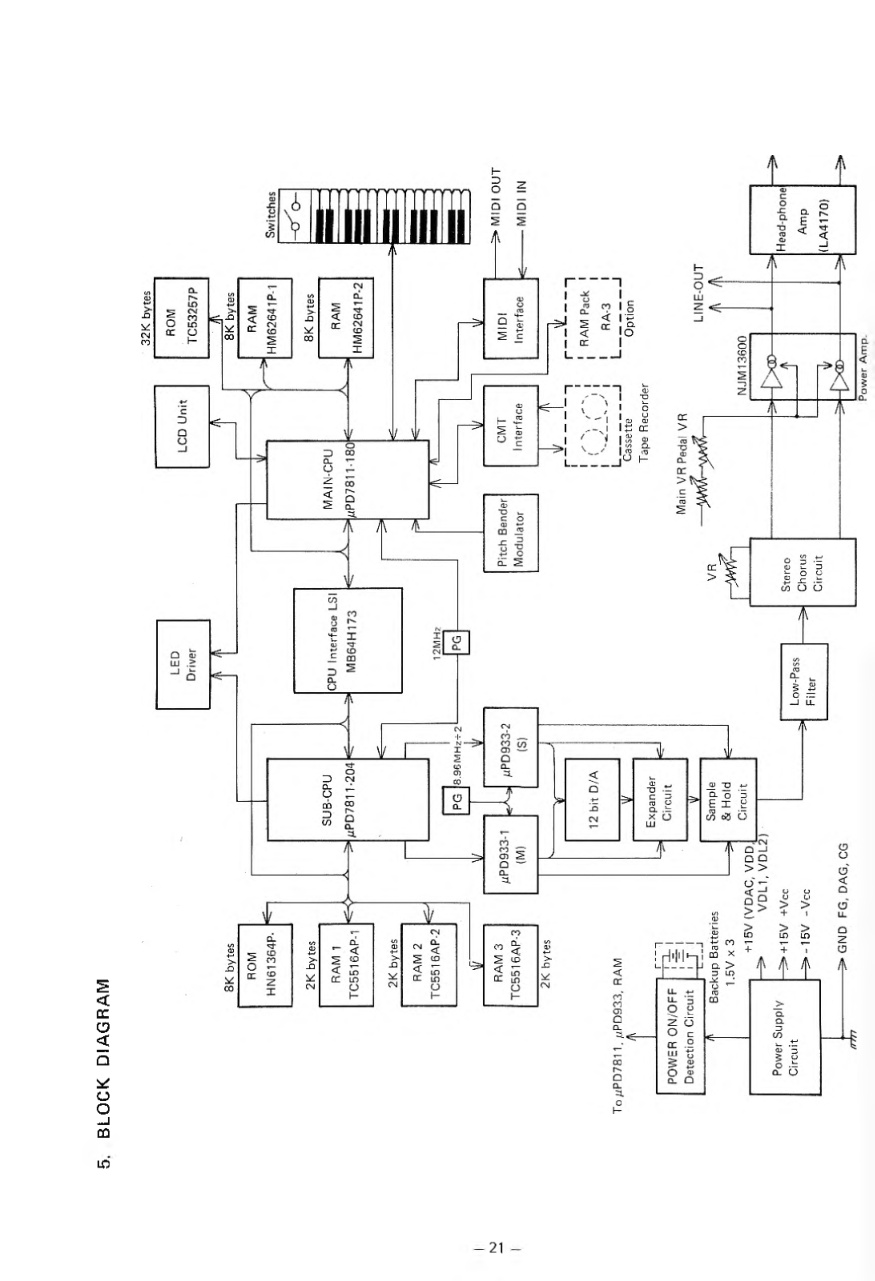

S ervice Manual & PARTS LIST (without price) DIGITALSYNTHEIZER CZ-5000 JUNE 1985 <gj I CAUTION: When the connector O (from the batteries) is disconnected, all the sound data in the Memory Bank are cleared. When this happens, initialize the unit by the following procedures. 1. Turn the power switch o ff and press IN ITIALIZE button. 2. Turn the power switch on, then the display indicates; SYSTEM ALL INITIALIZE(Y/N)? 3. While pushing IN ITIALIZE button, press YES button on the data entry section of the panel. All the Memory Bank data are initialized, then the display shows: SYSTEM INITIALIZED !! CONTENTS 1. SCHEMATIC DIAGRAM ............................................................................................................ 1 1-1. Main PCB (A) M 5153-M A1M ............................................................................................ 1 1-2. Main PCB (B) M 5153-M A 1M ............................................................................................ 2 1-3. Stereo Chorus Circuit PCB M 5153-M A 2M .................................................................... 3 1-4. MIDI and MT Control PCB M 5153-M A3M…
