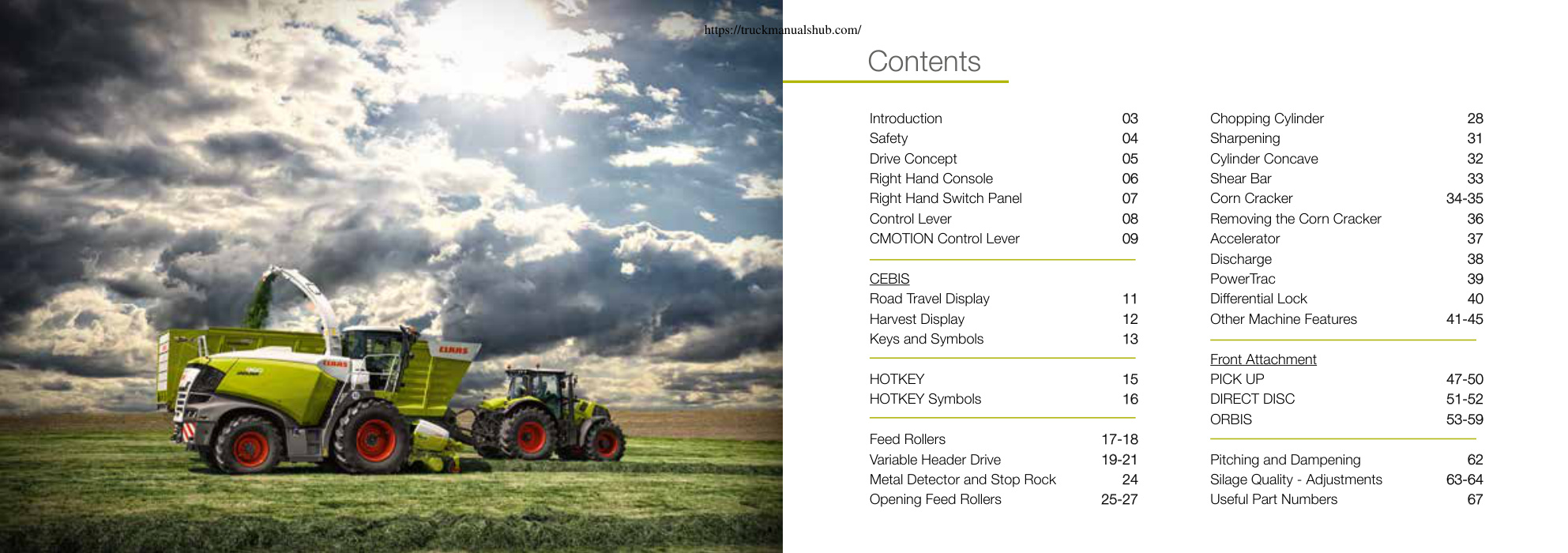

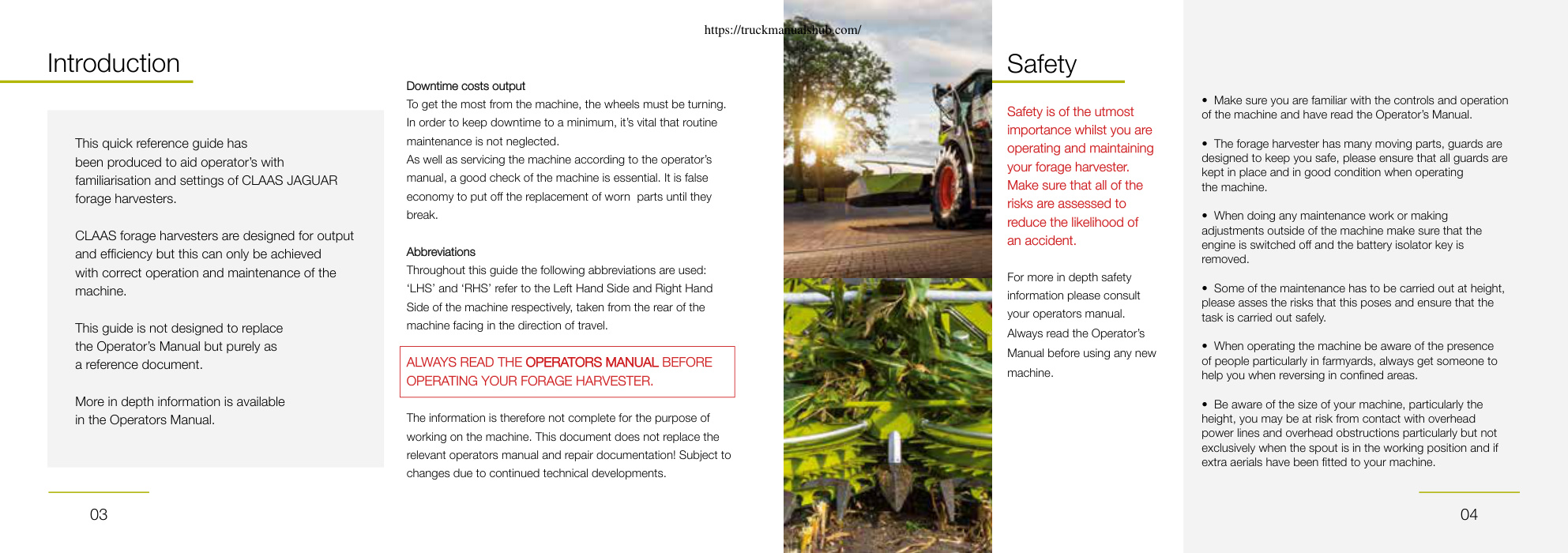

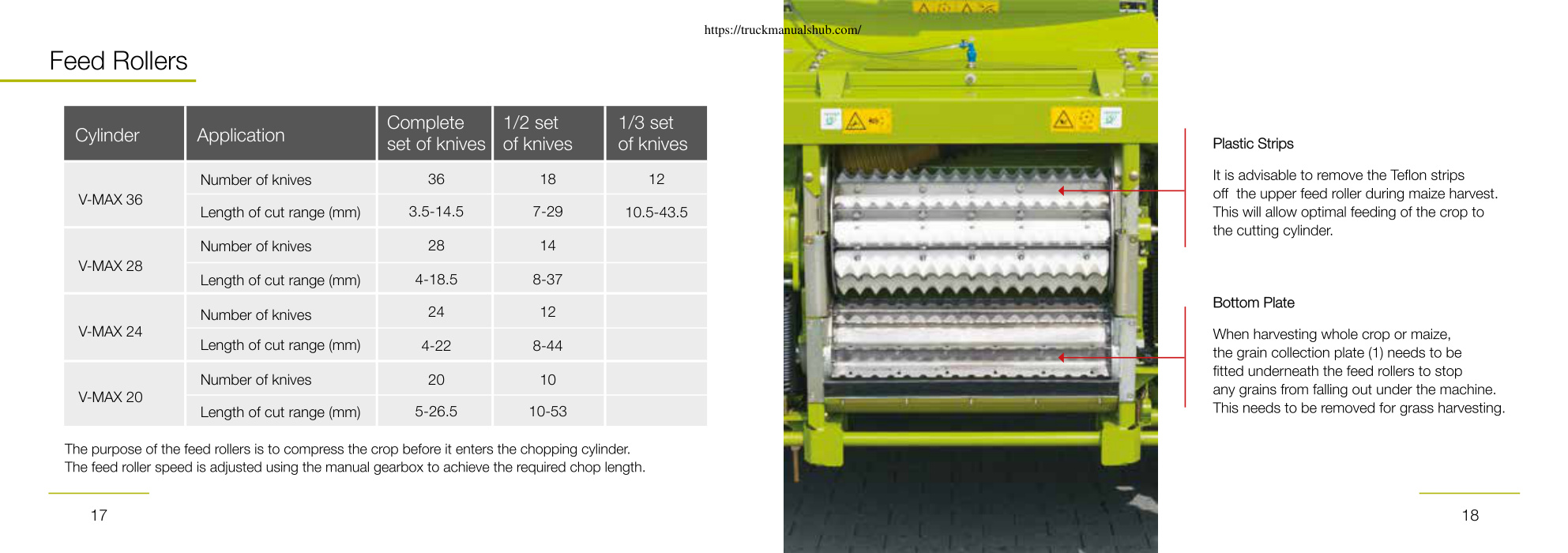

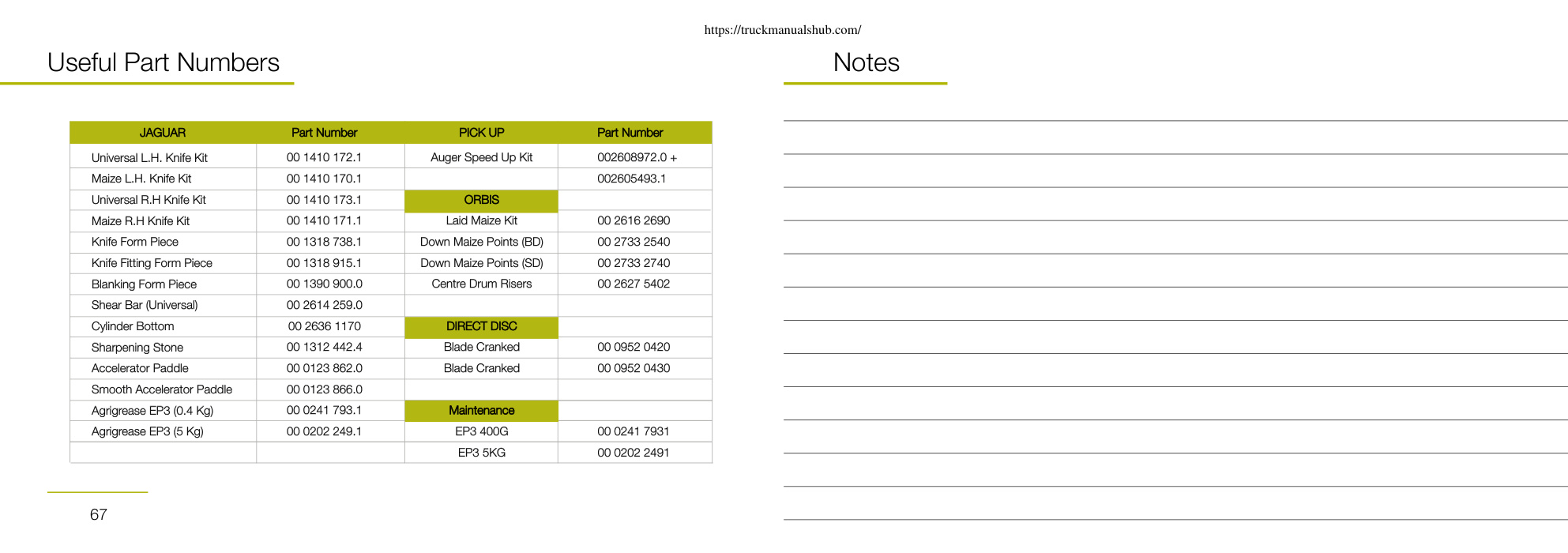

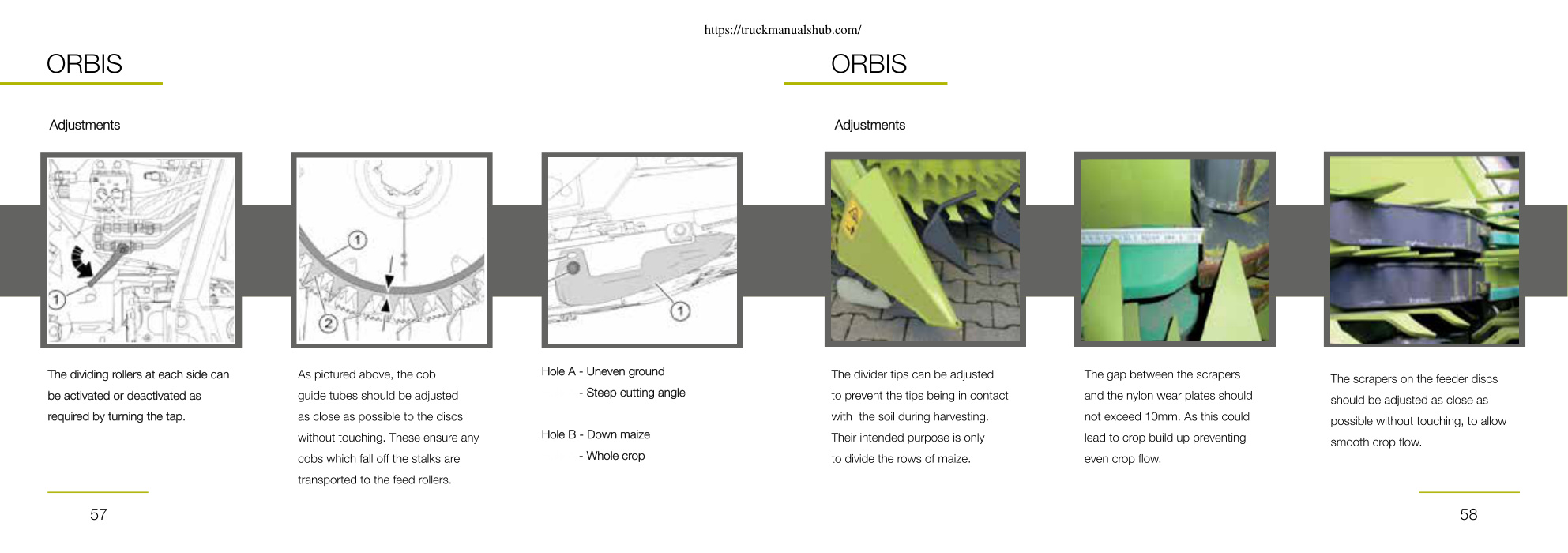

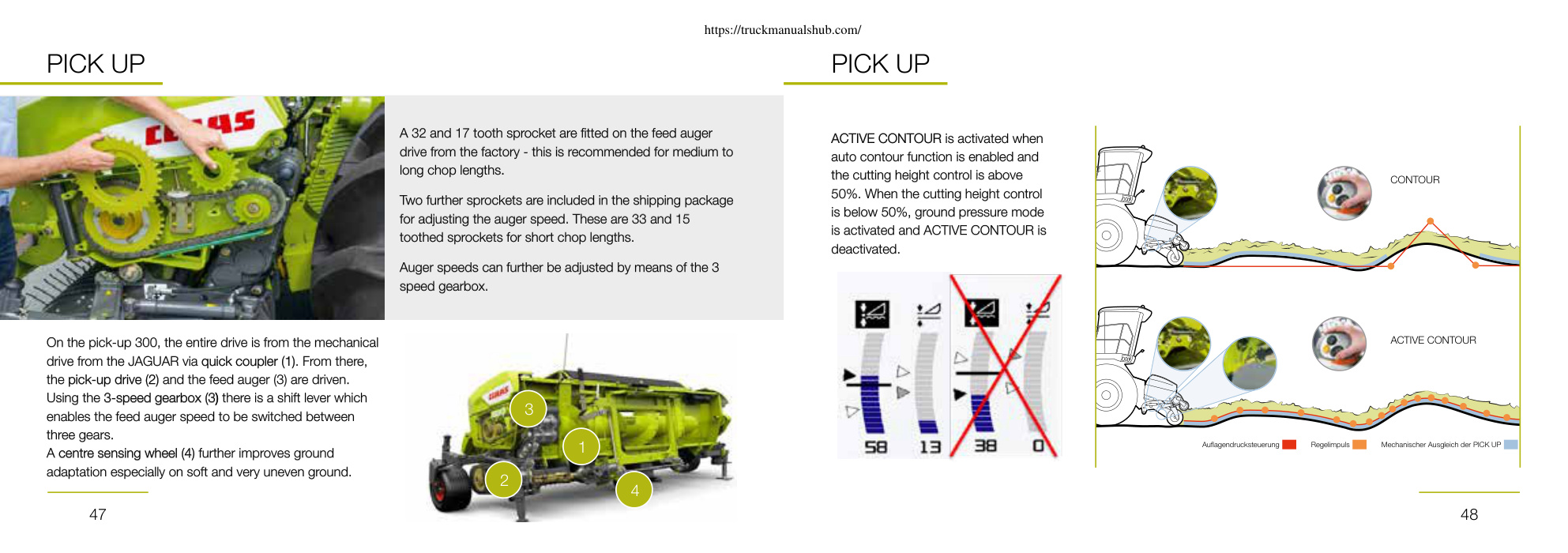

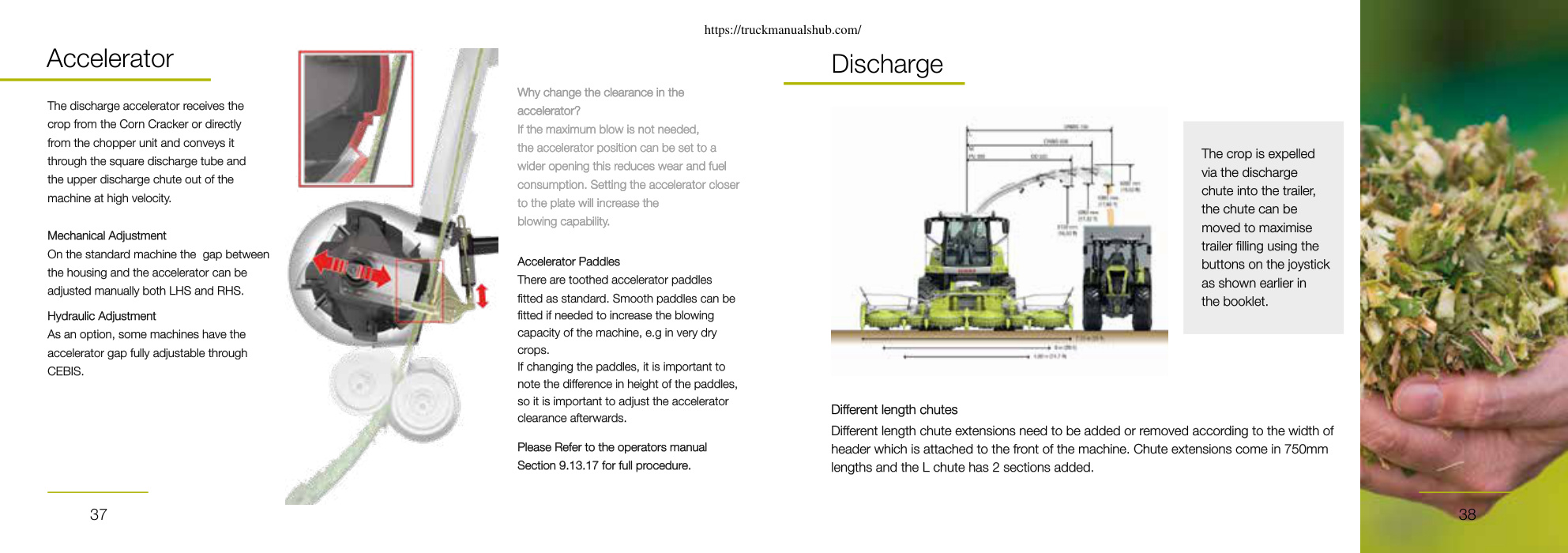

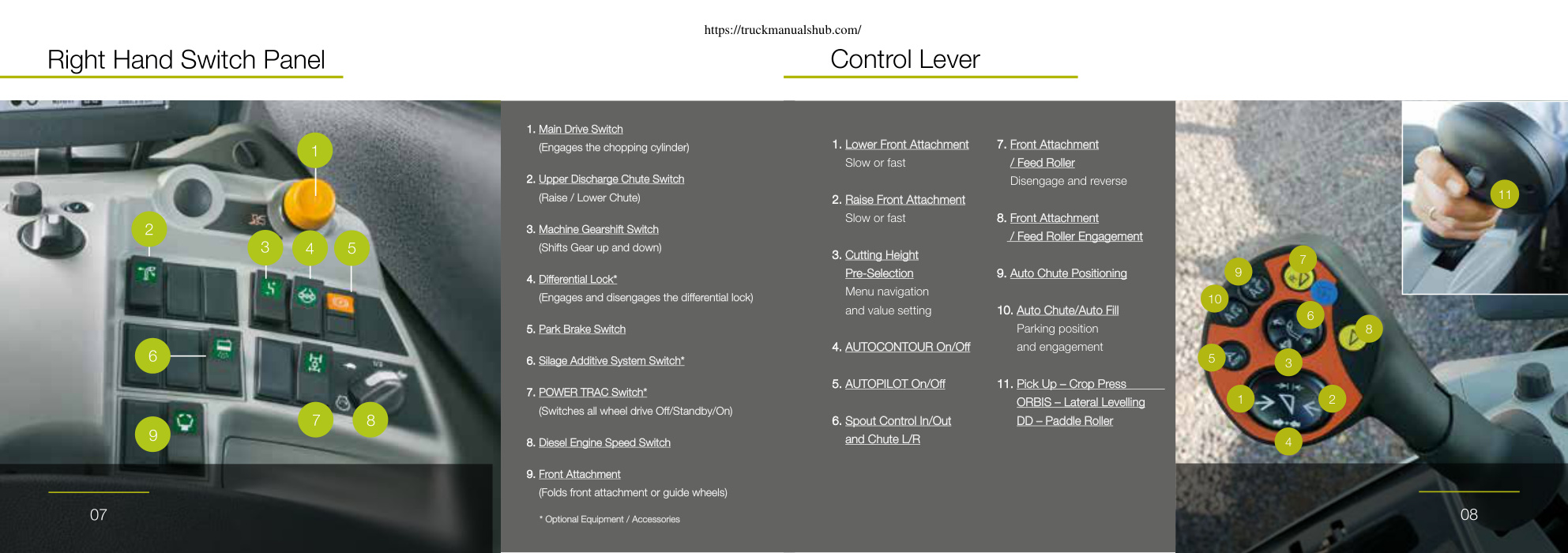

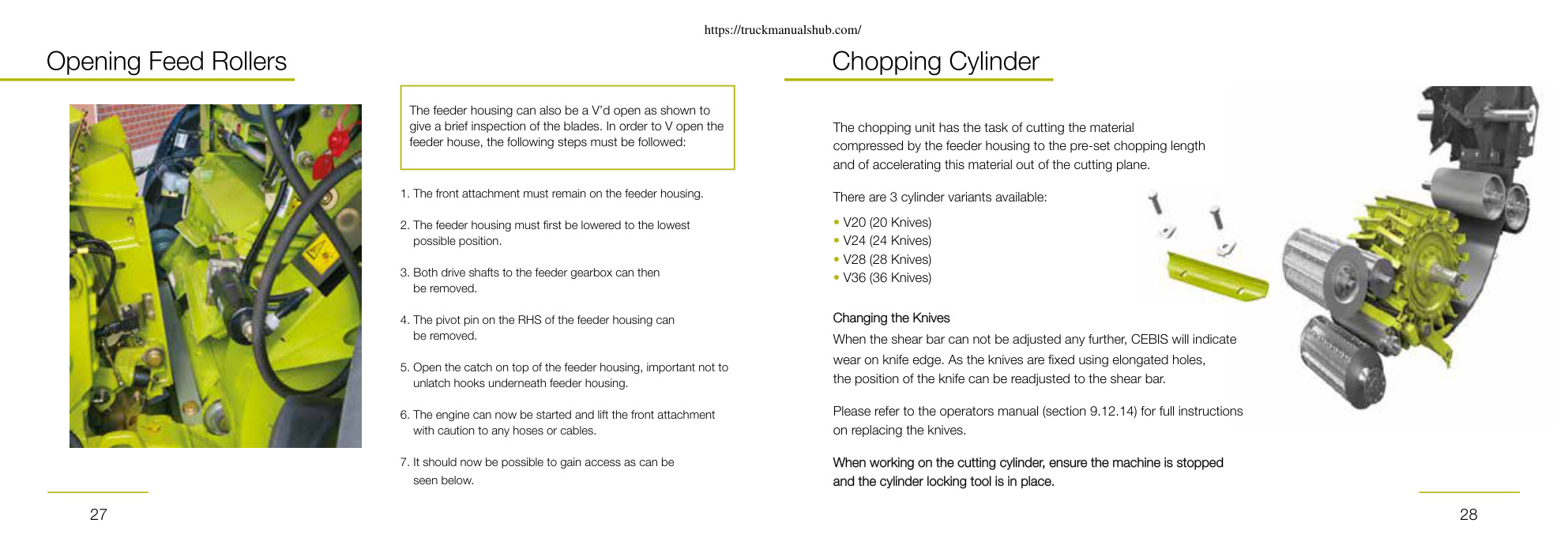

https://truckmanualshub.com/ JAGUAR 930 - 980 (498) Information and Basic Field Settings https://truckmanualshub.com/ Contents Introduction 03 Chopping Cylinder 28 Safety 04 Sharpening 31 Drive Concept 05 Cylinder Concave 32 Right Hand Console 06 Shear Bar 33 Right Hand Switch Panel 07 Corn Cracker 34-35 Control Lever 08 Removing the Corn Cracker 36 CMOTION Control Lever 09 Accelerator 37 Discharge 38 CEBIS PowerTrac 39 Road Travel Display 11 Differential Lock 40 Harvest Display 12 Other Machine Features 41-45 Keys and Symbols 13 Front Attachment HOTKEY 15 PICK UP 47-50 HOTKEY Symbols 16 DIRECT DISC 51-52 ORBIS 53-59 Feed Rollers 17-18 Variable Header Drive 19-21 Pitching and Dampening 62 Metal Detector and Stop Rock 24 Silage Quality - Adjustments 63-64 Opening Feed Rollers 25-27 Useful Part Numbers 67 https://truckmanualshub.com/ Introduction Safety Downtime costs output • Make sure you are familiar with the controls and operation To get the most from the machine, the wheels must be turning. Safety is of the utmost of the machine and have read the Operator’s Manual. In order to keep downtime to a minimum, it’s vital that routine importance whilst you are This quick reference…
