DAF 95 XF series service manual

MASTER SWITCHES CONNECTING ACCESSORIES READING DIAGRAMS 7 LOCATION OF COMPONENTS 8 LOCATION OF CONNECTORS 9 ELECTRICAL INSTALLATION 10 MODIFICATIONS TO THE ELECTRICAL INSTALLATION 11 ELECTRICAL SYSTEM: OPTIONS AND SPECIAL APPLICATIONS 12

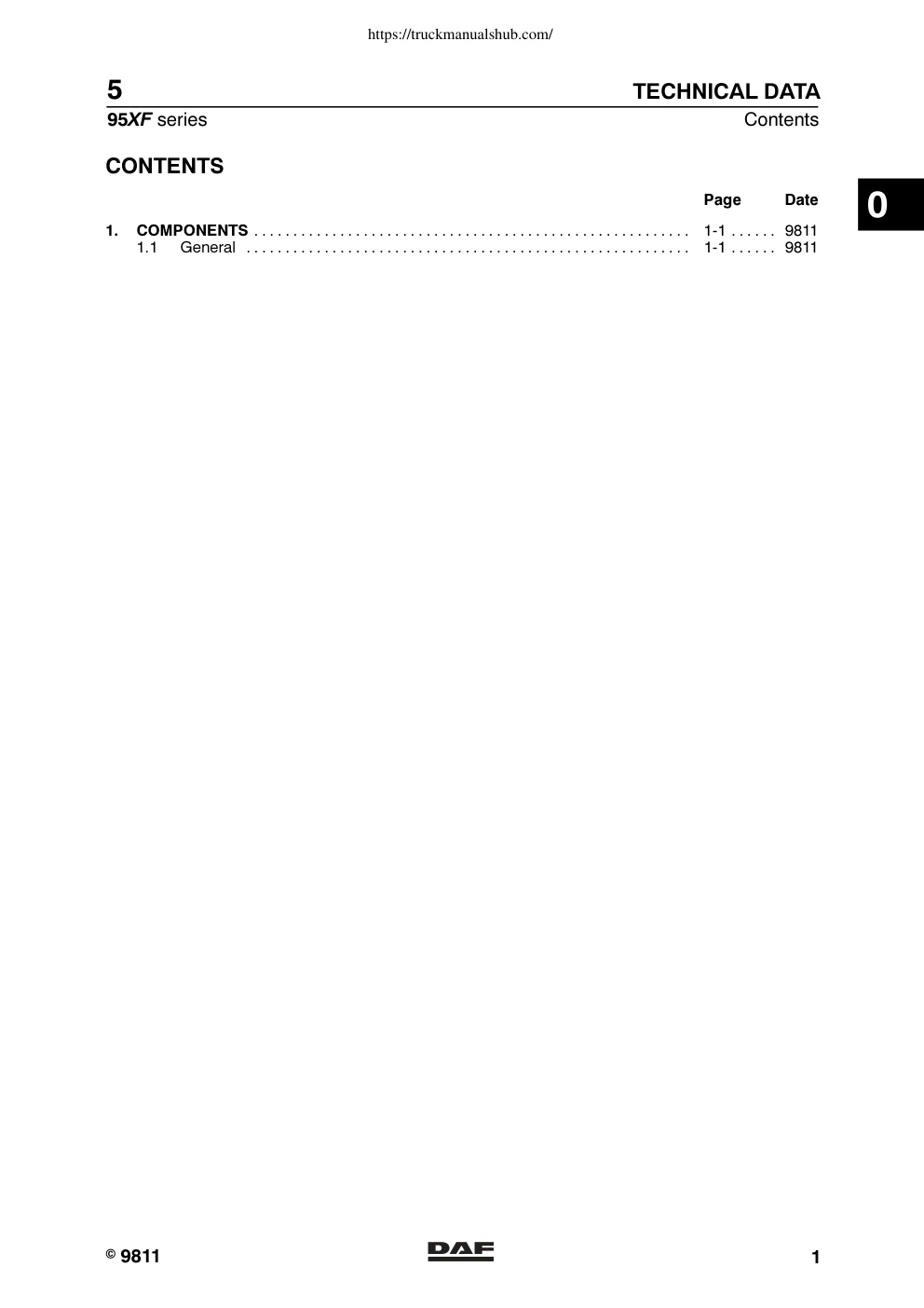

https://truckmanualshub.com/ 5 CONTENTS 95XF series TECHNICAL DATA 0 DIAGNOSIS 1 COMPONENTS 2 3 BATTERIES 4 MASTER SWITCHES 5 CONNECTING ACCESSORIES 6 READING DIAGRAMS 7 LOCATION OF COMPONENTS 8 LOCATION OF CONNECTORS 9 ELECTRICAL INSTALLATION 10 MODIFICATIONS TO THE ELECTRICAL INSTALLATION 11 ELECTRICAL SYSTEM: OPTIONS AND SPECIAL APPLICATIONS 12 0209 https://truckmanualshub.com/ TAB https://truckmanualshub.com/ 5 TECHNICAL DATA 95XF series Contents CONTENTS Page Date 0 1. COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 . . . . . . 9811 1.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 . . . . . . 9811 9811 1 https://truckmanualshub.com/ TECHNICAL DATA 5 Contents 95XF series 0 2 9811 https://truckmanualshub.com/ 5 TECHNICAL DATA 95XF series Components 1. COMPONENTS 1.1 GENERAL 0 Bulbs Headlights 75/70 W Parking light 5 W Tail light 10 W Rear fog light 21 W Back--up light 21 W Stop light 21 W Direction indicator 21 W Side light 3 W Instrument panel lighting 2 W Tachograph 2 W Cab lighting 21 W Bunk reading lamp 10 W Warning…
