DW 8000 SERVICE MANUAL ocr

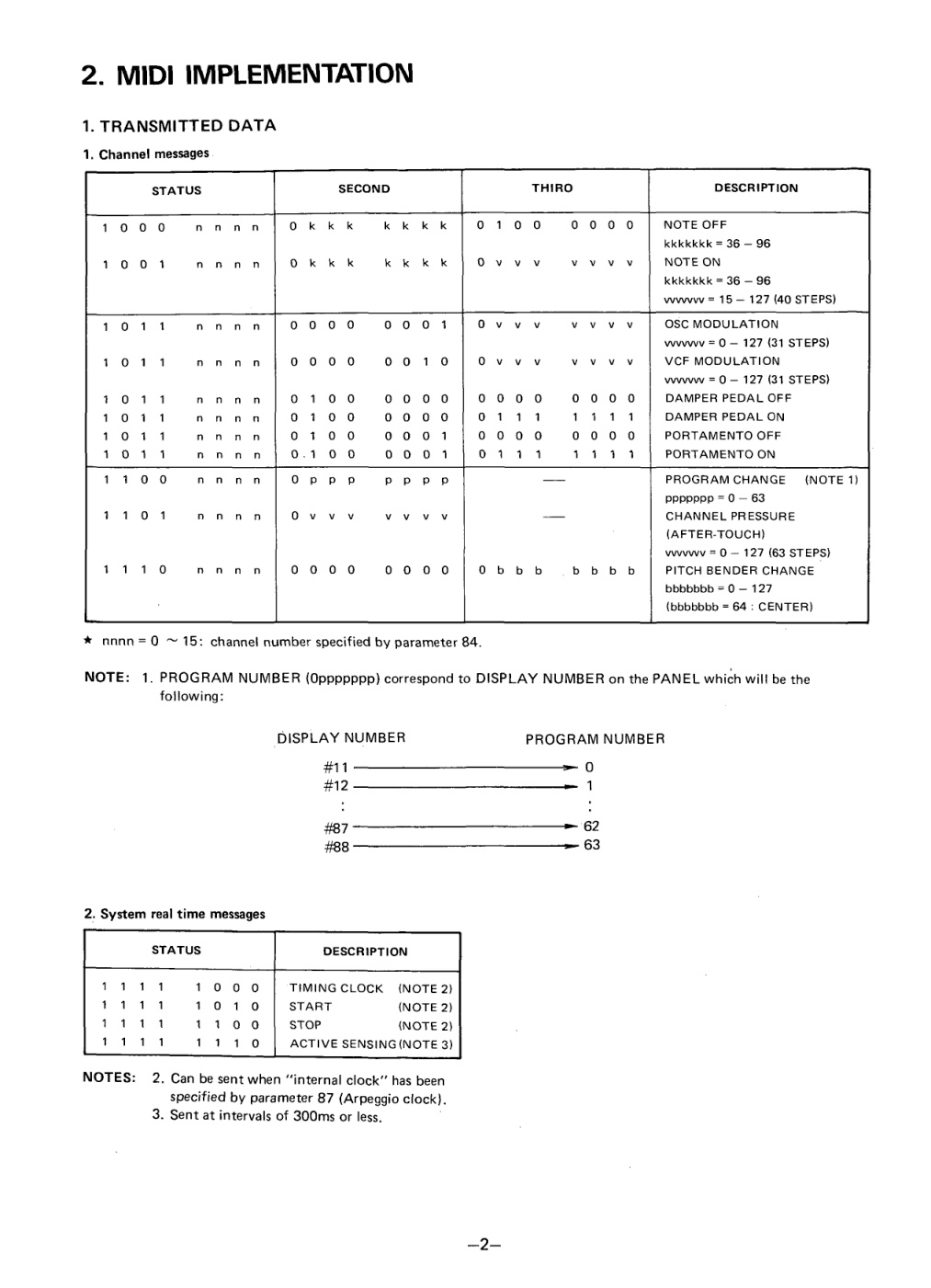

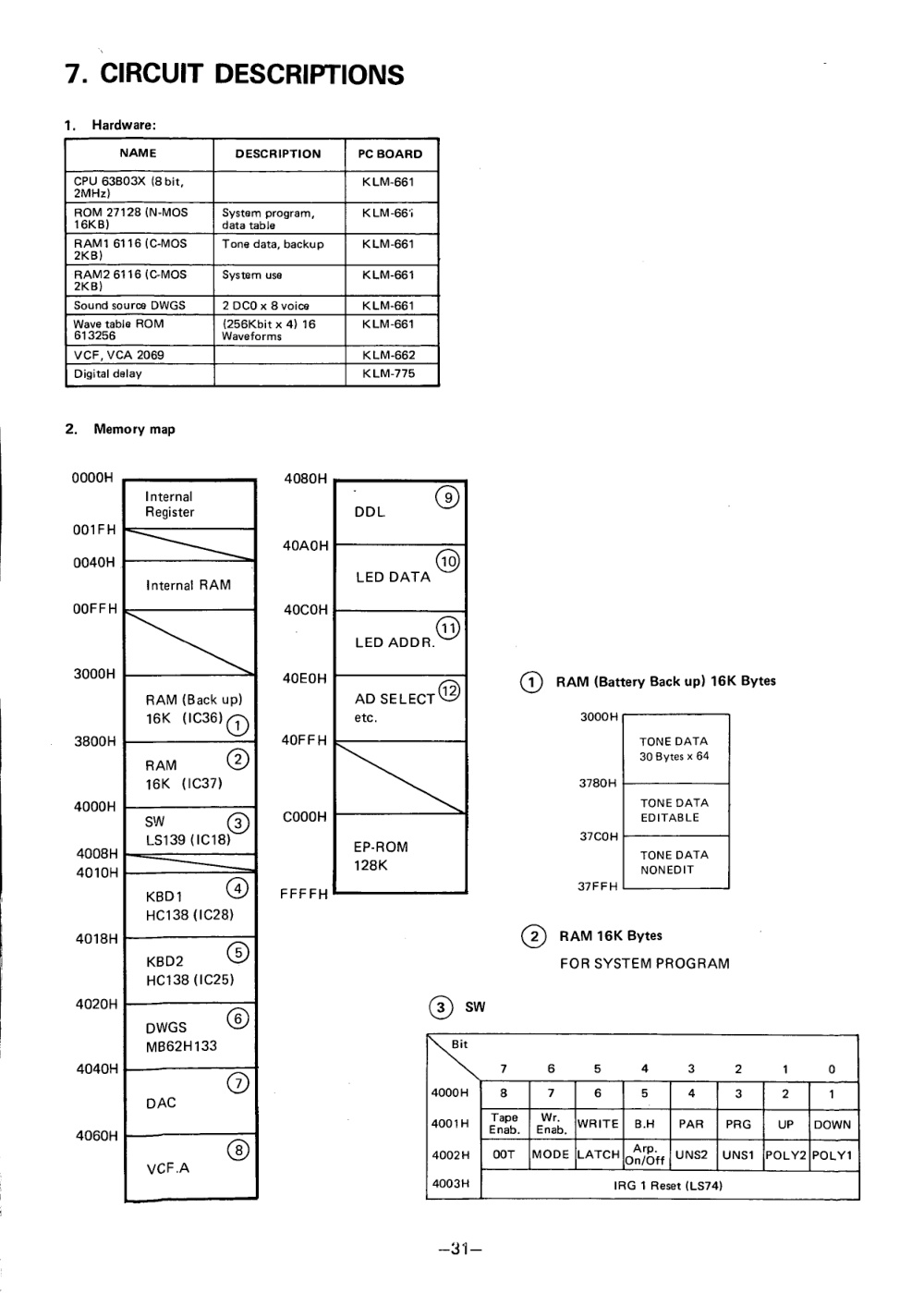

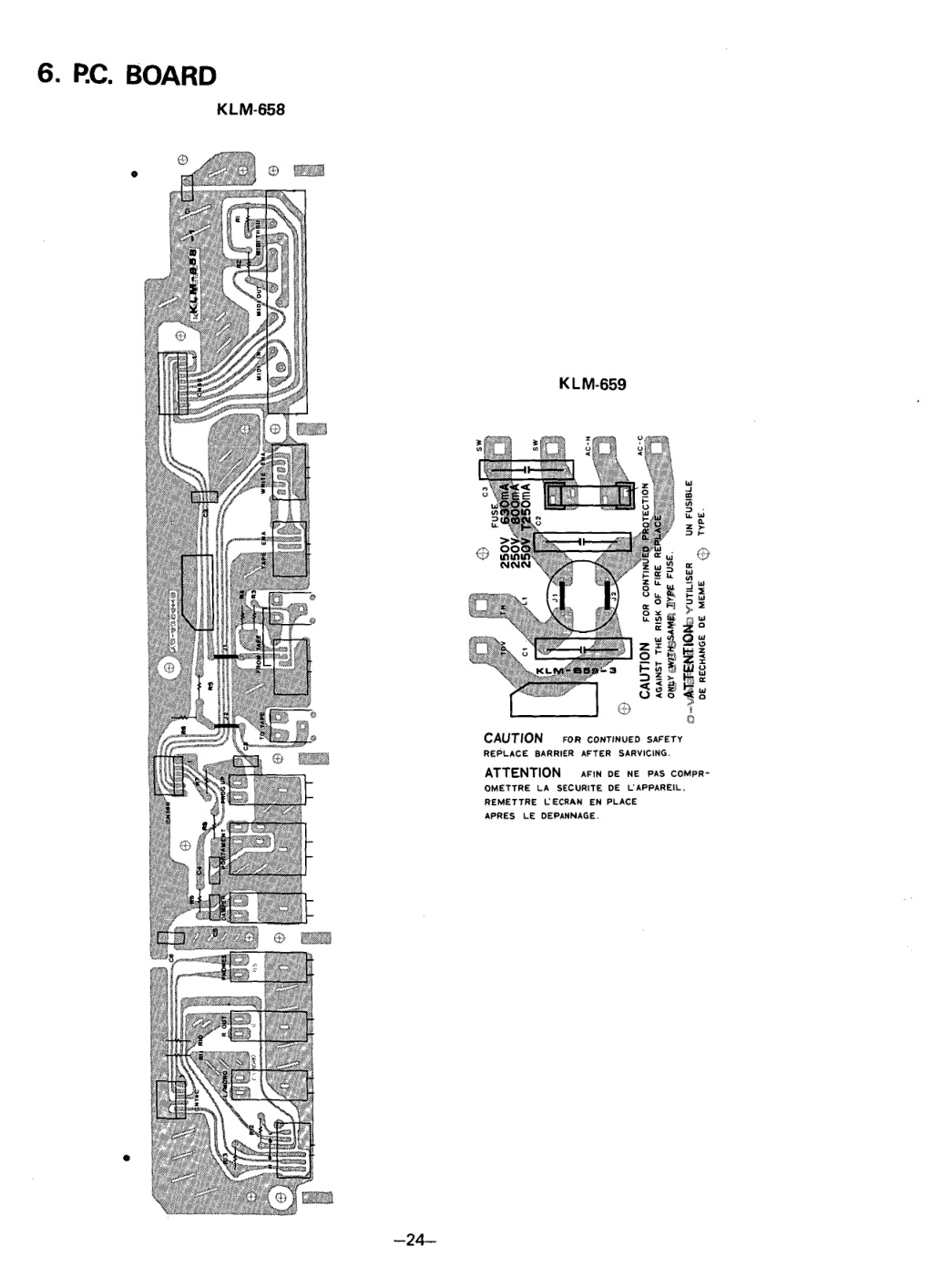

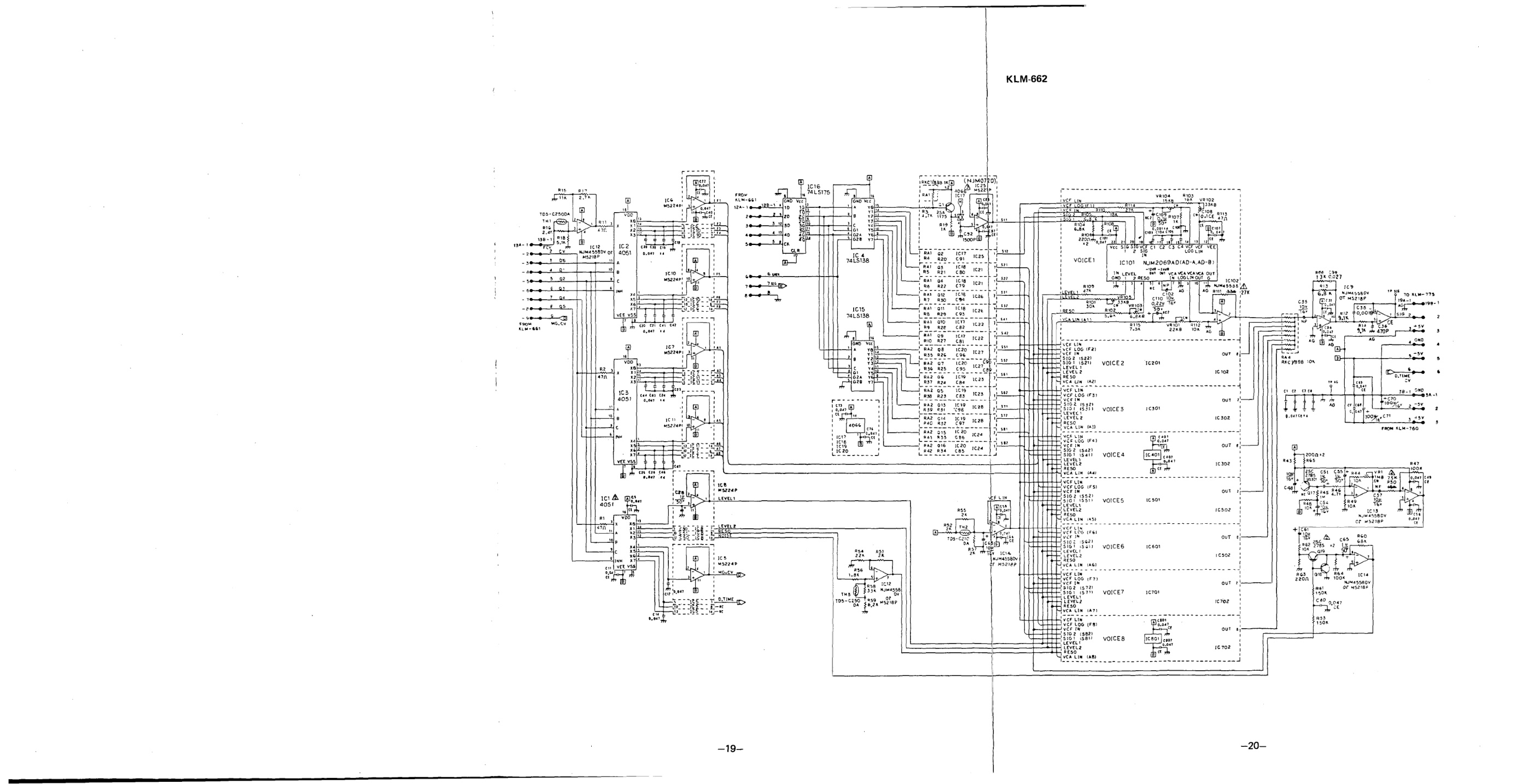

DIGITAL WAVEFORM SYNTHESIZER 1. SPECIFICATIONS................................................................................... 1 2. MIDI IMPLEMENTATION.................................................................... 2 3. STRUCTURAL D IA G R A M........................................................................11 4. BLOCK DIAGRAM............................................................................. 14 5. CIRCUIT D IA G R A M.................................................................................. 15 6. P.C. B O A R D............................................................................................. 24 7. CIRCUIT DESCRIPTIONS...................................................................... 31 8. ADJUSTMENT PROCEDURES............................................................ 39 9. PARTS L IS T...............................................

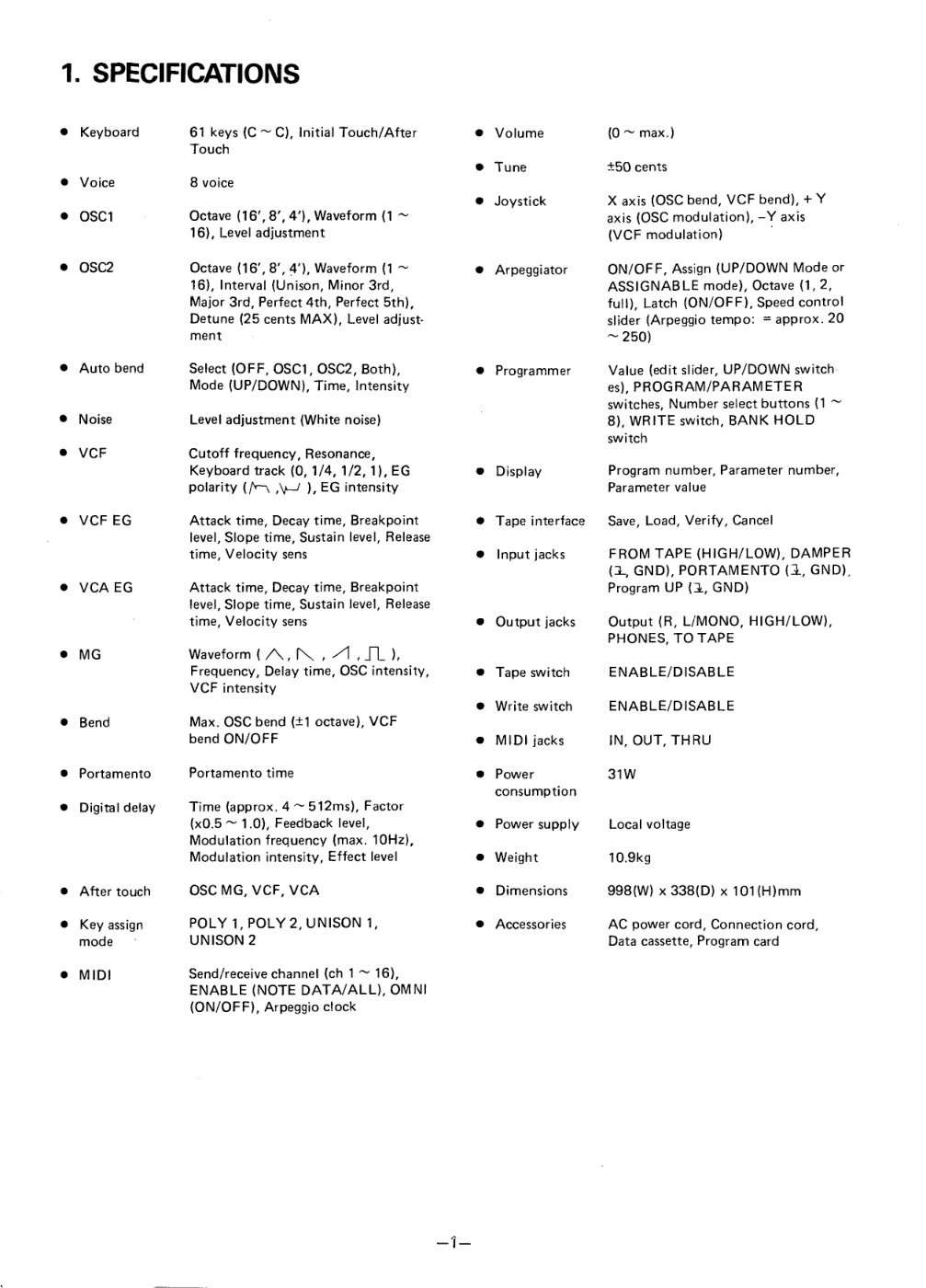

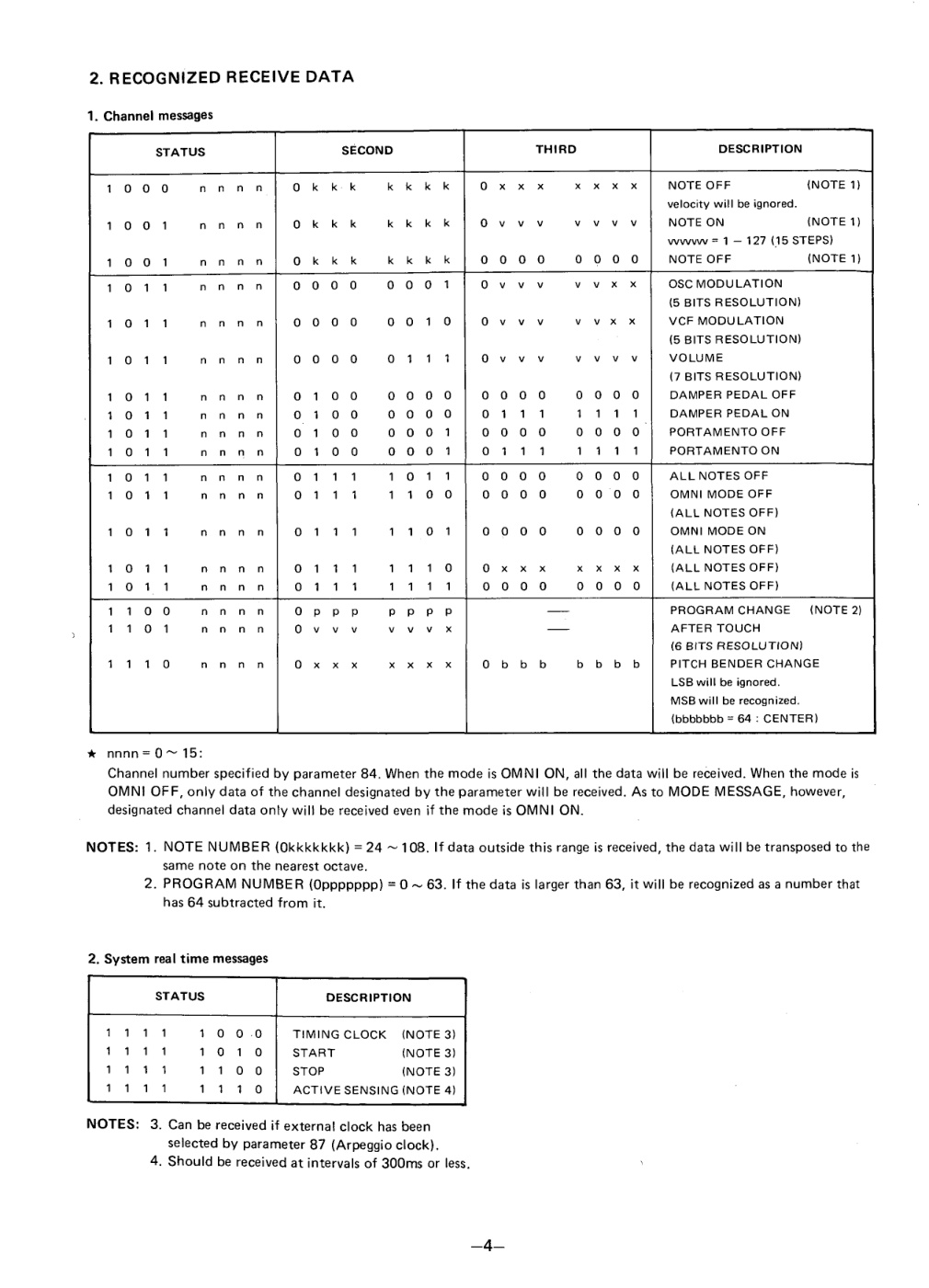

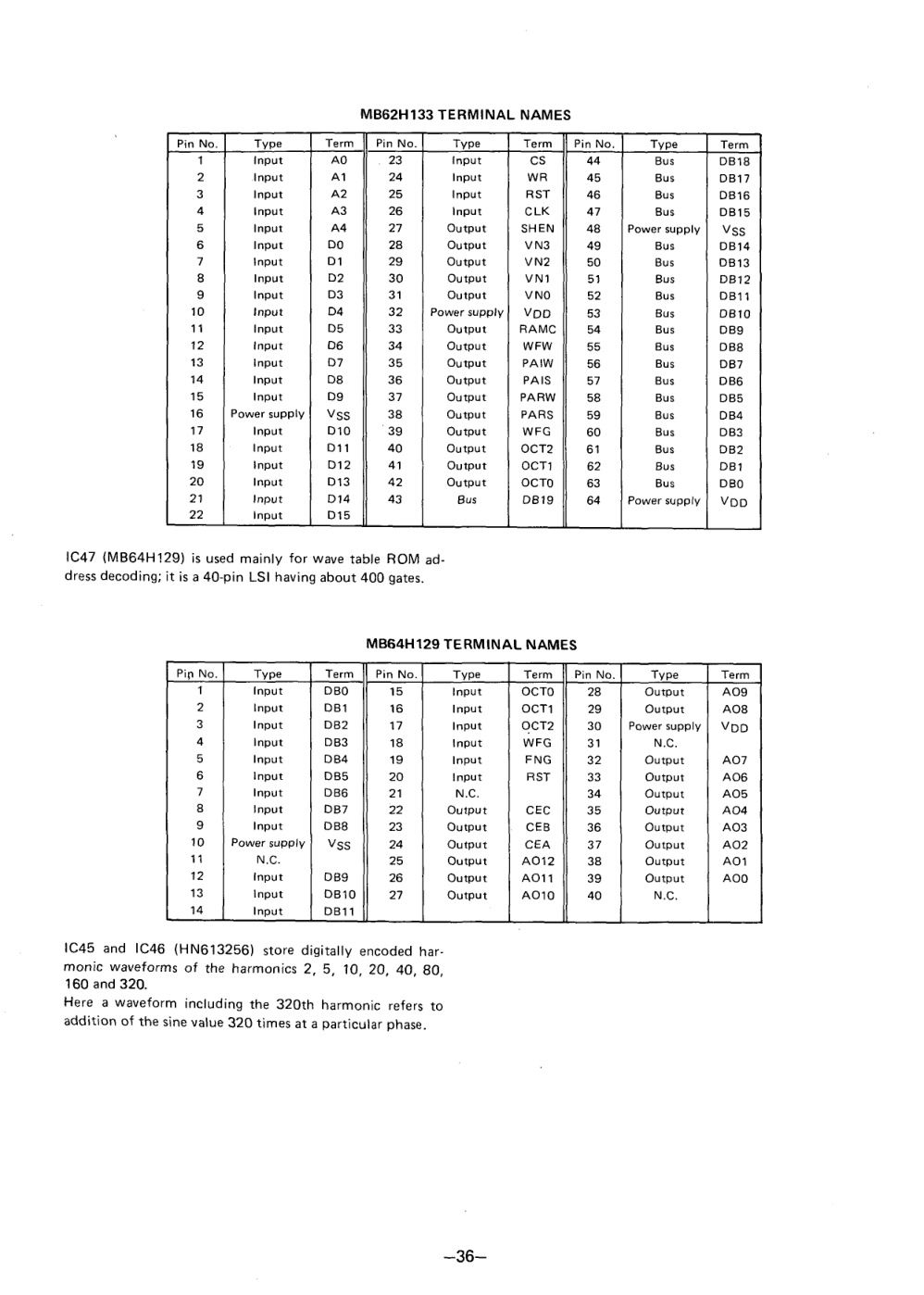

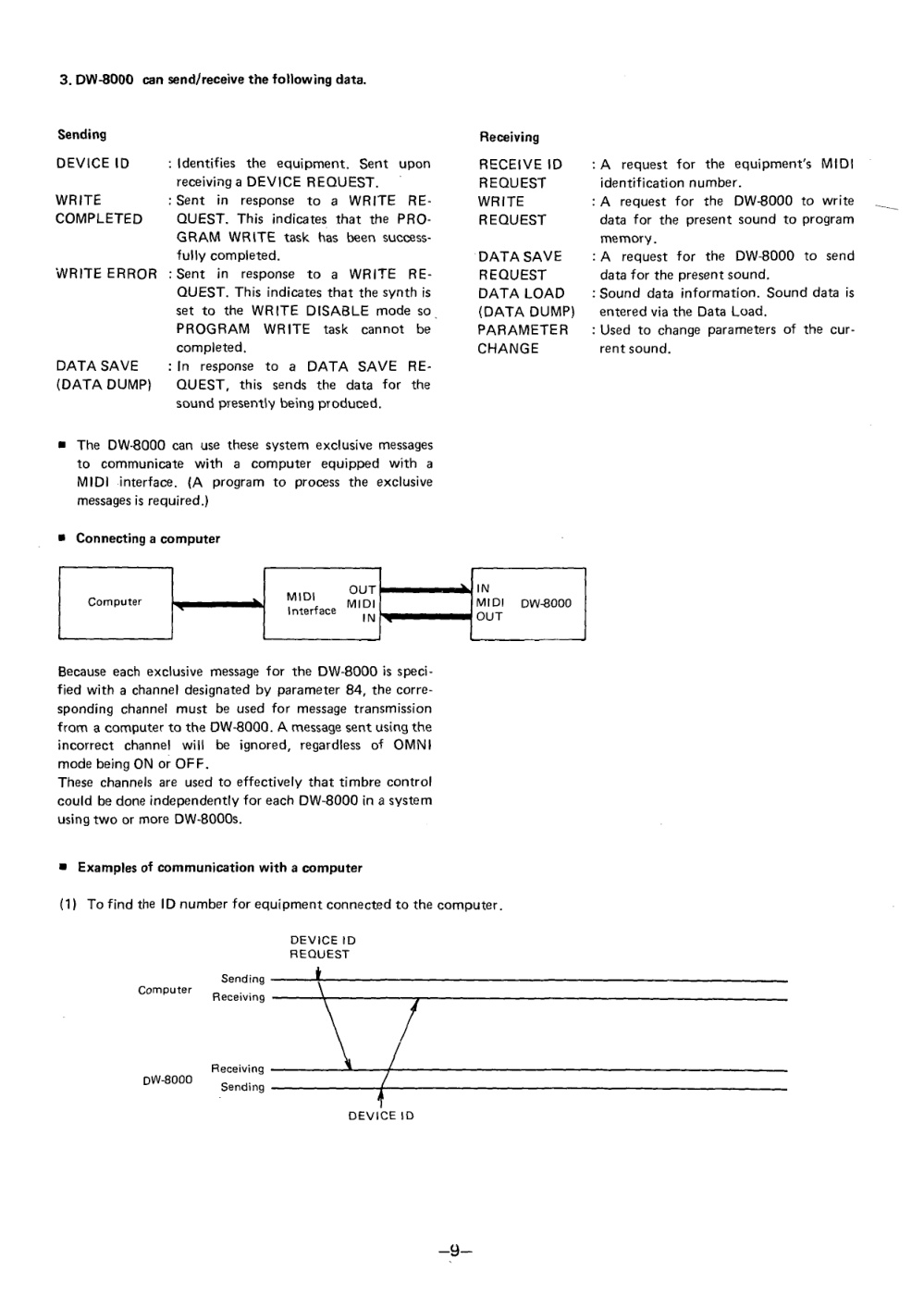

PROGRAMMABLE DIGITAL WAVEFORM SYNTHESIZER DW-8000 SERVICE MANUAL CONTENTS 1 . SPECIFICATIONS................................................................................... 1 2. MIDI IMPLEMENTATION.................................................................... 2 3. STRUCTURAL D IA G R A M ........................................................................11 4. BLOCK DIAGRAM ............................................................................. 14 5. CIRCUIT D IA G R A M .................................................................................. 15 6. P.C. B O A R D ............................................................................................. 24 7. CIRCUIT DESCRIPTIONS...................................................................... 31 8. ADJUSTMENT PROCEDURES ............................................................ 39 9. PARTS L IS T ............................................................................................. 42 KORG INC. TOKYO/JAPAN 1 .SPECIFICATIONS • Keyboard 61 keys <C 〜C), Initial Touch/After • Volume (0 〜max J Touch 拳Tune ±50 cents • Voice 8 voice • Joystick X axis (OSC bend, VCF bend),十 Y • OSC1 Octave…
