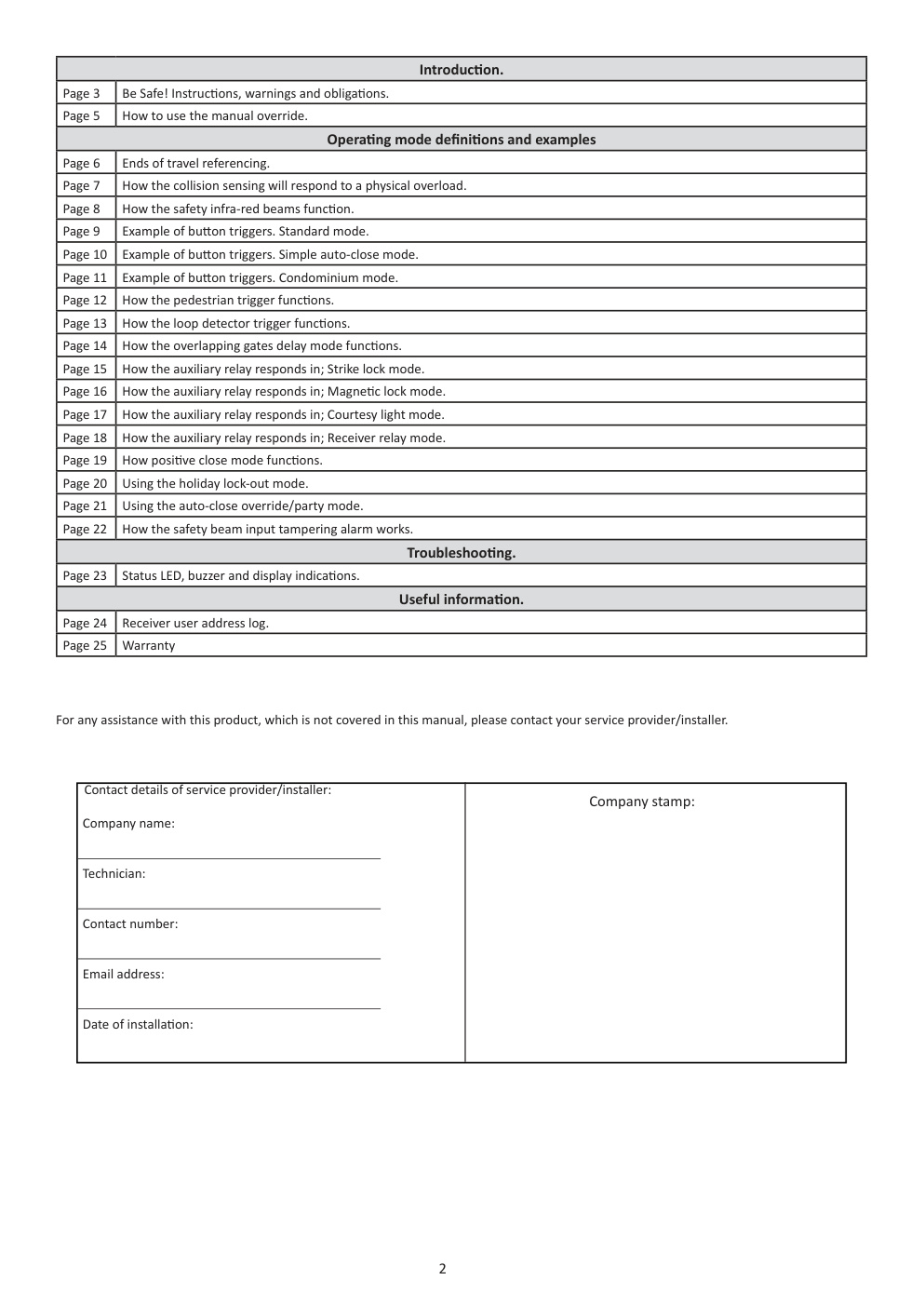

ET WINGO USER 2016.003.001 Swing gate operator a company of TheNiceGroup Page 3 Be Safe! Instructions, warnings and obligations. Page 5 How to use the manual override. Operating mode definitions and examples Page 6 Ends of travel referencing. Page 7 How the collision sensing will respond to a physical overload. Page 8 How the safety infra-red beams function. Page 9 Example of button triggers. Standard mode. Page 10 Example of button triggers. Simple auto-close mode. Page 11 Example of button triggers. Condominium mode. Page 12 How the pedestrian trigger functions. Page 13 How the loop detector trigger functions. Page 14 How the overlapping gates delay mode functions. Page 15 How the auxiliary relay responds in; Strike lock mode. Page 16 How the auxiliary relay responds in; Magnetic lock mode. Page 17 How the auxiliary relay responds in; Courtesy light mode. Page 18 How the auxiliary rela

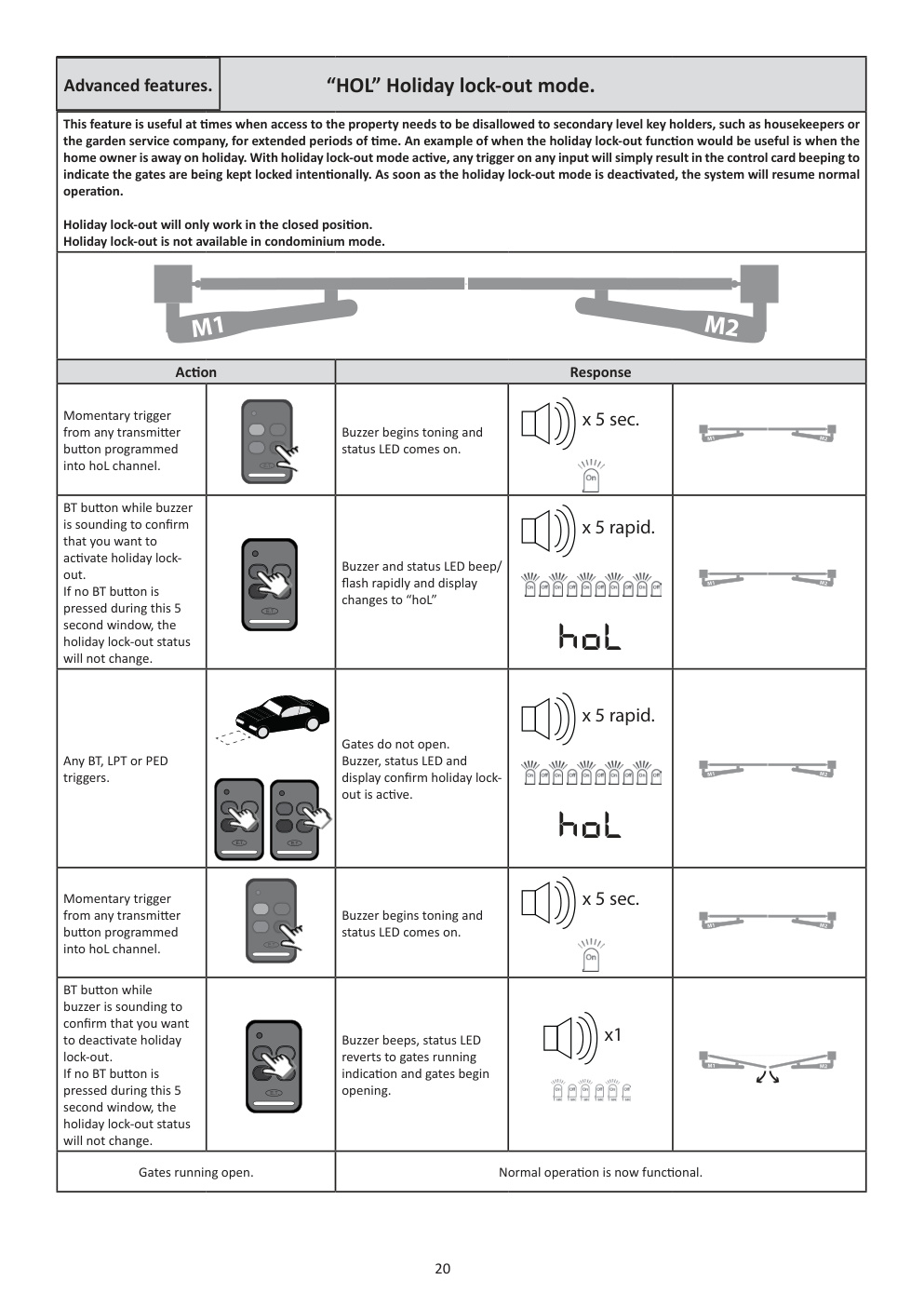

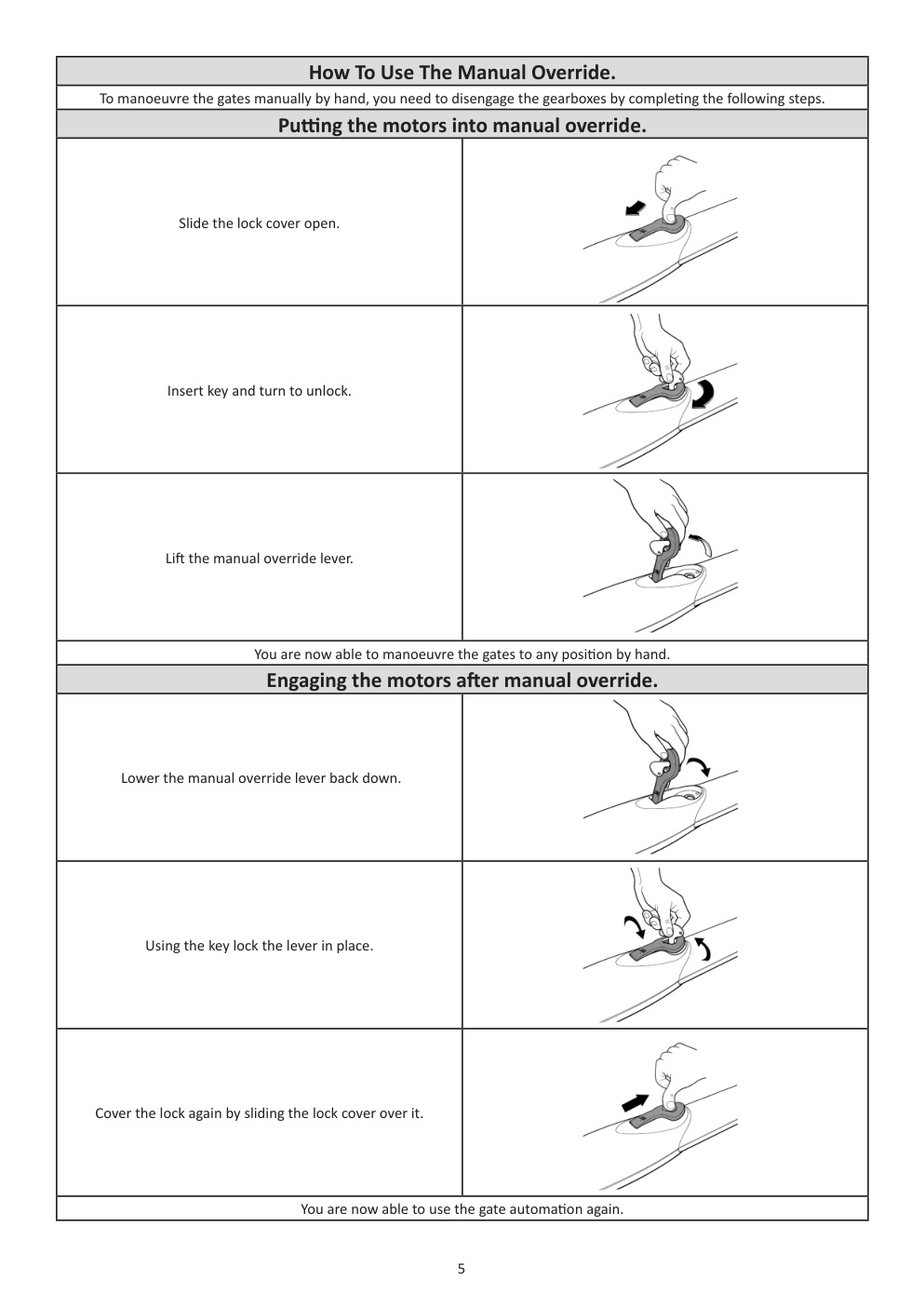

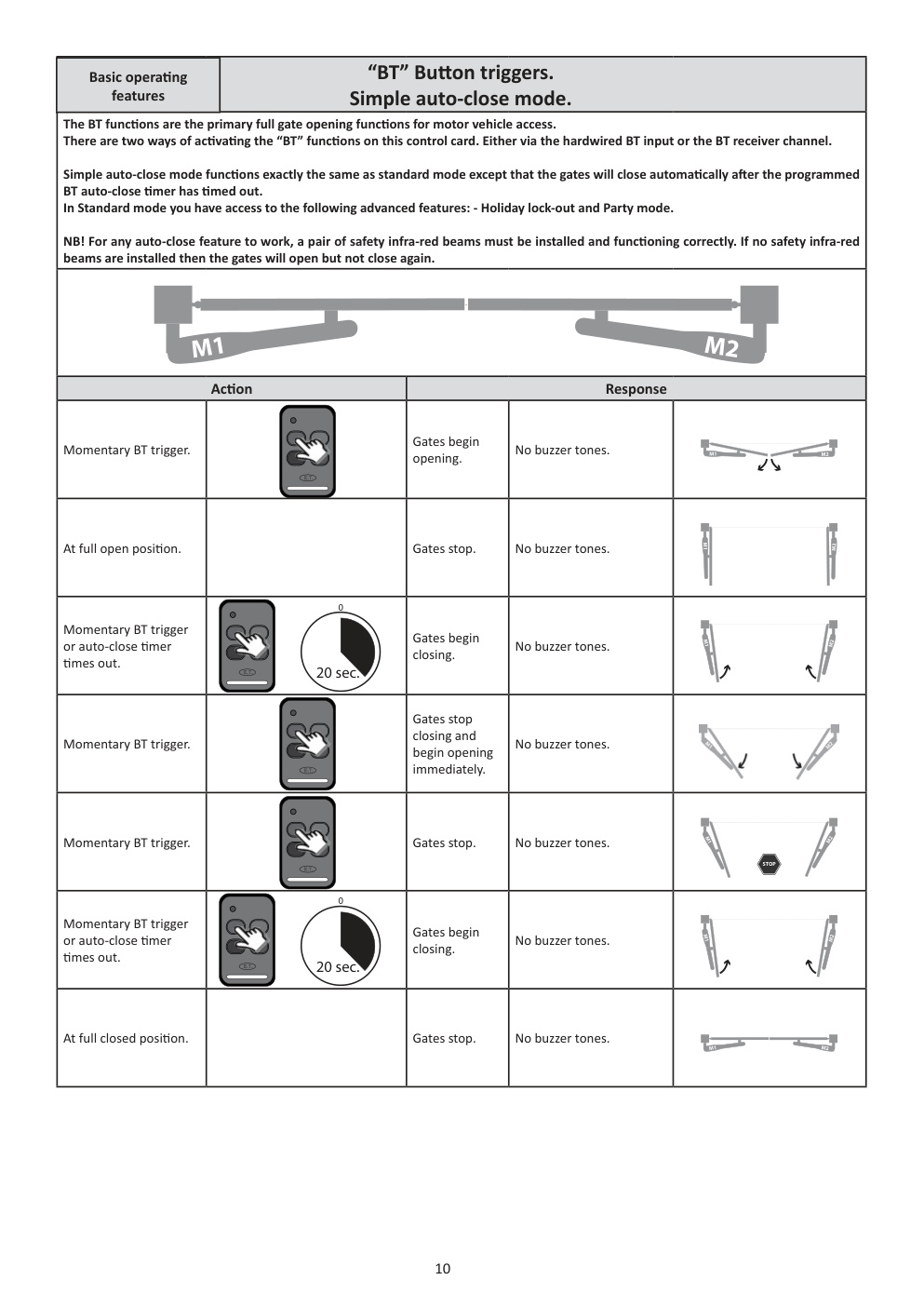

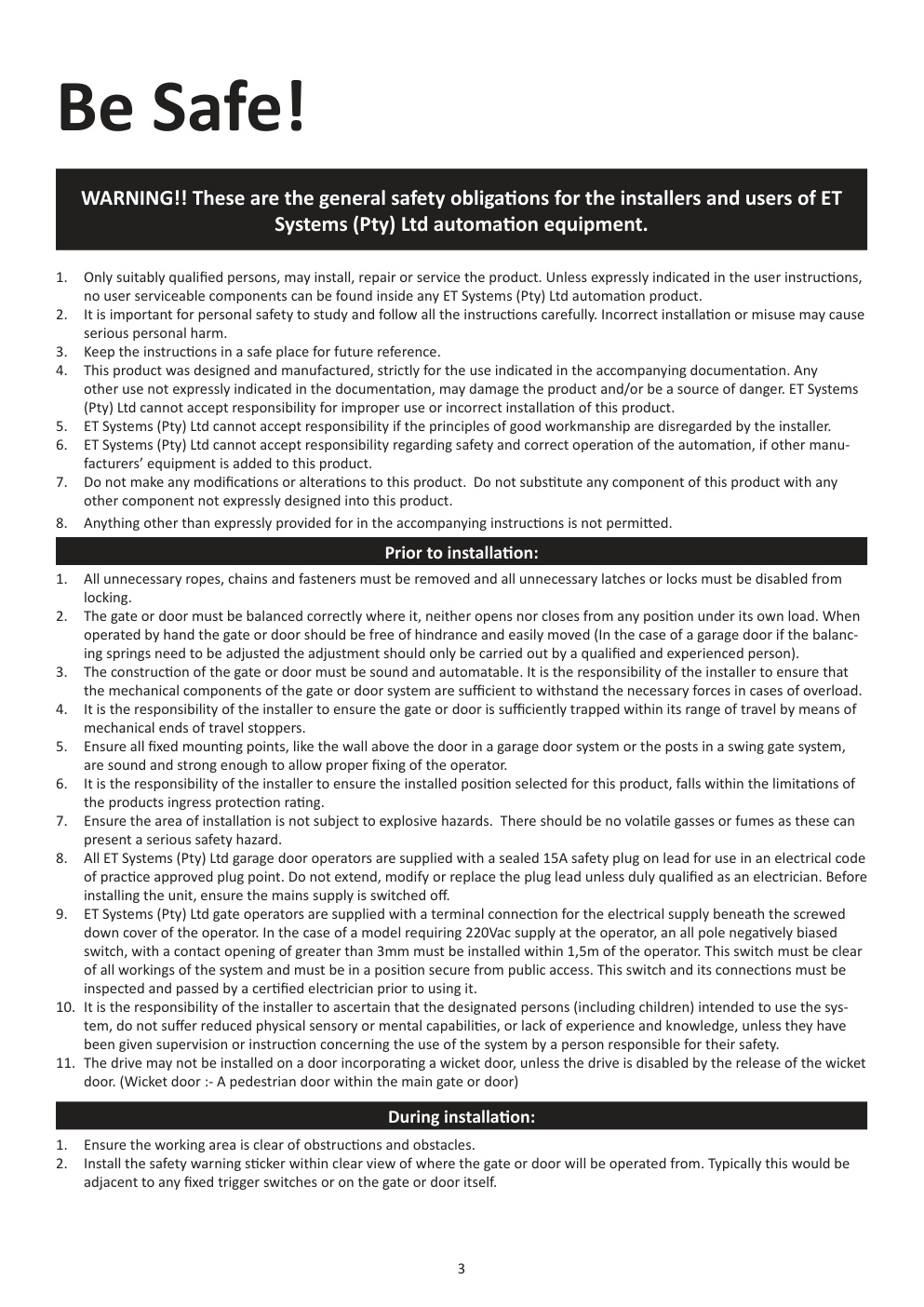

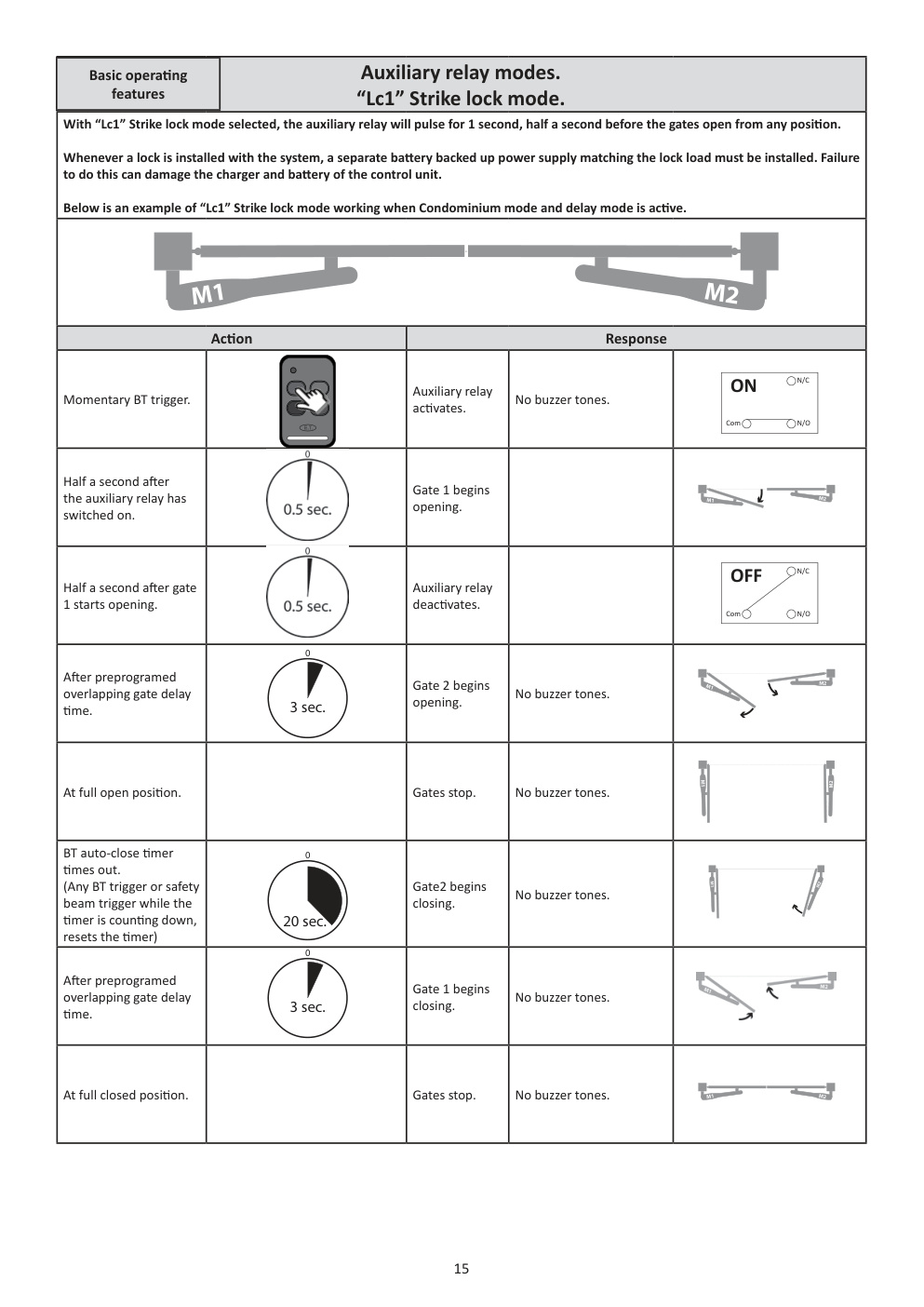

ET WINGO USER 2016.003.001 User instructions Wingo 3524 HS Swing gate operator www.et.co.za Introduction. Page 3 Be Safe! Instructions, warnings and obligations. Page 5 How to use the manual override. Operating mode definitions and examples Page 6 Ends of travel referencing. Page 7 How the collision sensing will respond to a physical overload. Page 8 How the safety infra-red beams function. Page 9 Example of button triggers. Standard mode. Page 10 Example of button triggers. Simple auto-close mode. Page 11 Example of button triggers. Condominium mode. Page 12 How the pedestrian trigger functions. Page 13 How the loop detector trigger functions. Page 14 How the overlapping gates delay mode functions. Page 15 How the auxiliary relay responds in; Strike lock mode. Page 16 How the auxiliary relay responds in; Magnetic lock mode. Page 17 How the auxiliary relay responds in; Courtesy light mode. Page 18 How the auxiliary relay responds in; Receiver relay mode. Page 19 How positive close mode functions. Page 20 Using the holiday lock-out mode. Page 21 Using the auto-close override/party mode. Page 22 How the safety beam input tampering alarm works. Troubleshooting. Page 23 Status LED,…
