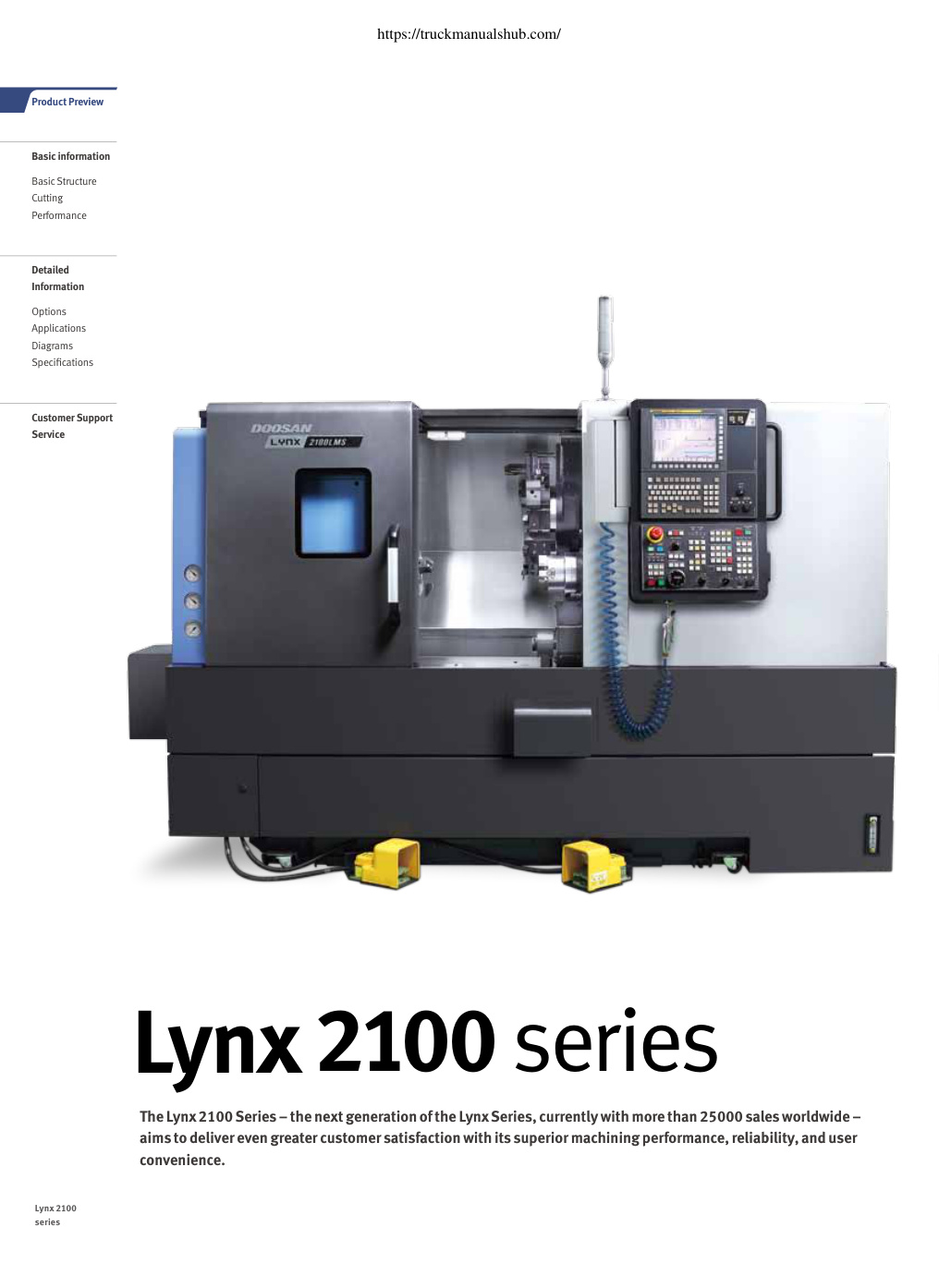

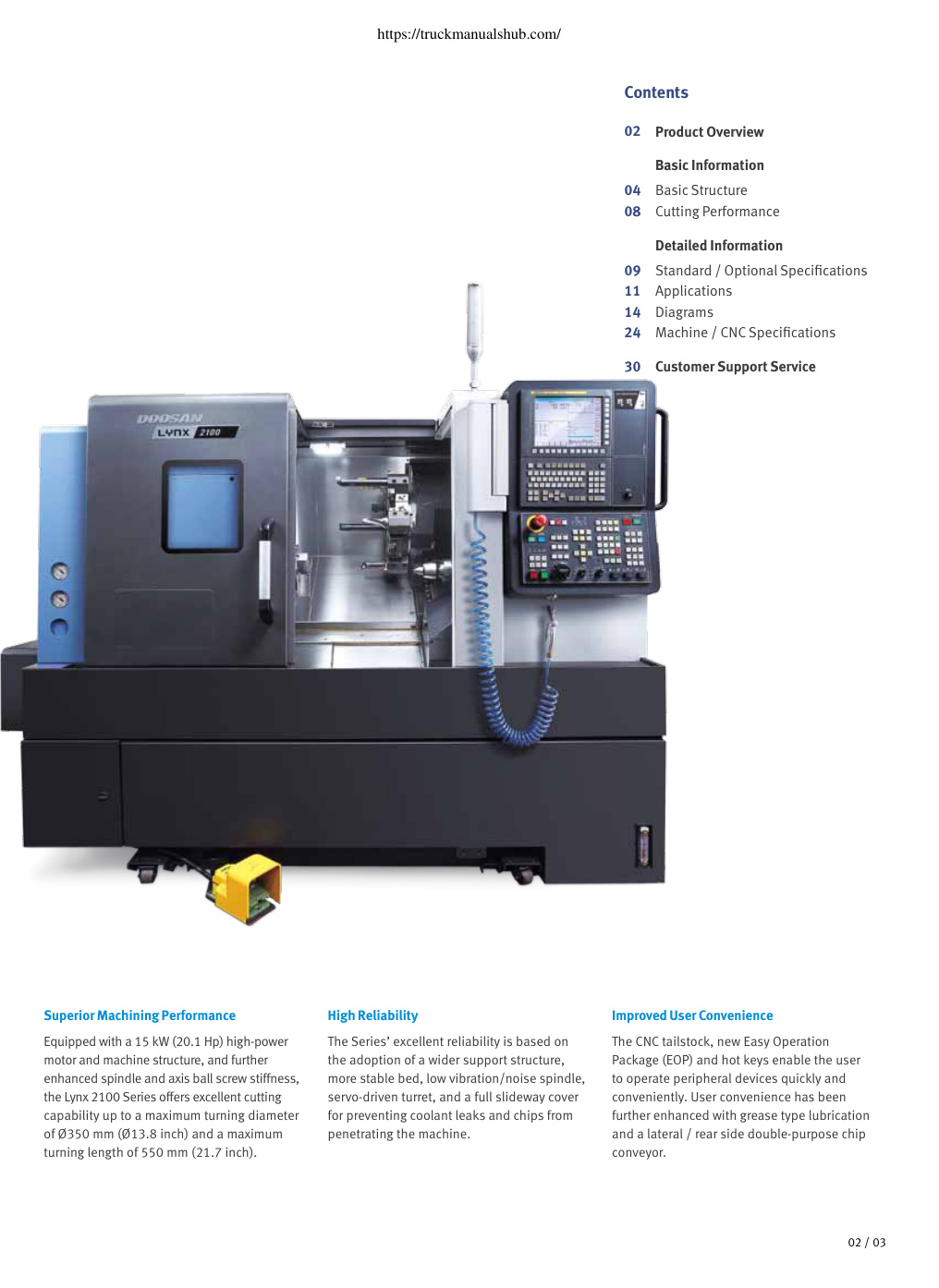

https://truckmanualshub.com/ Lynx 2100 series 6/8/10-Inch Global Compact Turning Center Lynx 2100 series Lynx 2100/M Lynx 2100L/LM/LMS 1 / 1 https://truckmanualshub.com/ Product Preview Basic information Basic Structure Cutting Performance Detailed Information Options Applications Diagrams Specifications Customer Support Service Lynx 2100 series The Lynx 2100 Series – the next generation of the Lynx Series, currently with more than 25000 sales worldwide – aims to deliver even greater customer satisfaction with its superior machining performance, reliability, and user convenience. Lynx 2100 series https://truckmanualshub.com/ Contents 02 Product Overview Basic Information 04 Basic Structure 08 Cutting Performance Detailed Information 09 Standard / Optional Specifications 11 Applications 14 Diagrams 24 Machine / CNC Specifications 30 Customer Support Service Superior Machining Performance High Reliability Improved User Convenience Equipped with a 15 kW (20.1 Hp) high-power The Series’ excellent reliability is based on The CNC tailstock, new Easy Operation motor and machine structure, and further the adoption of a wider support structure, Package (EOP) and hot keys enable the user…
