E mu SP12 Service Manual

Scan by Manual Manor PERCUSSION SYSTEM By Steve Davies 1985 E-mu Svstems. Inc., Scotts Vallev. CA All Riahts Reserved The SP-12 is a powerful and complex instrument. E-mu Systems Inc. intends this manual to be an aid to the experienced service technician only. To service the SP-12 you should know about the 7400 series of digital logic, the Z-80 CPU and its family of peripherals, ADCs and DACs, op-amps, transistors and power supplies. The minimum equipment required to service and repair the SP-12 are, a digital multimeter, a 60Mhz dual trace oscilloscope and basic technician hand tools. The information contained in this manual is proprietary to E-mu Systems Inc. The entire manual is protected under copyright and none of it may be reproduced by any means without written permission from E-mu. This manual is available only to approved service people and is property of E-mu Systems. It is bes

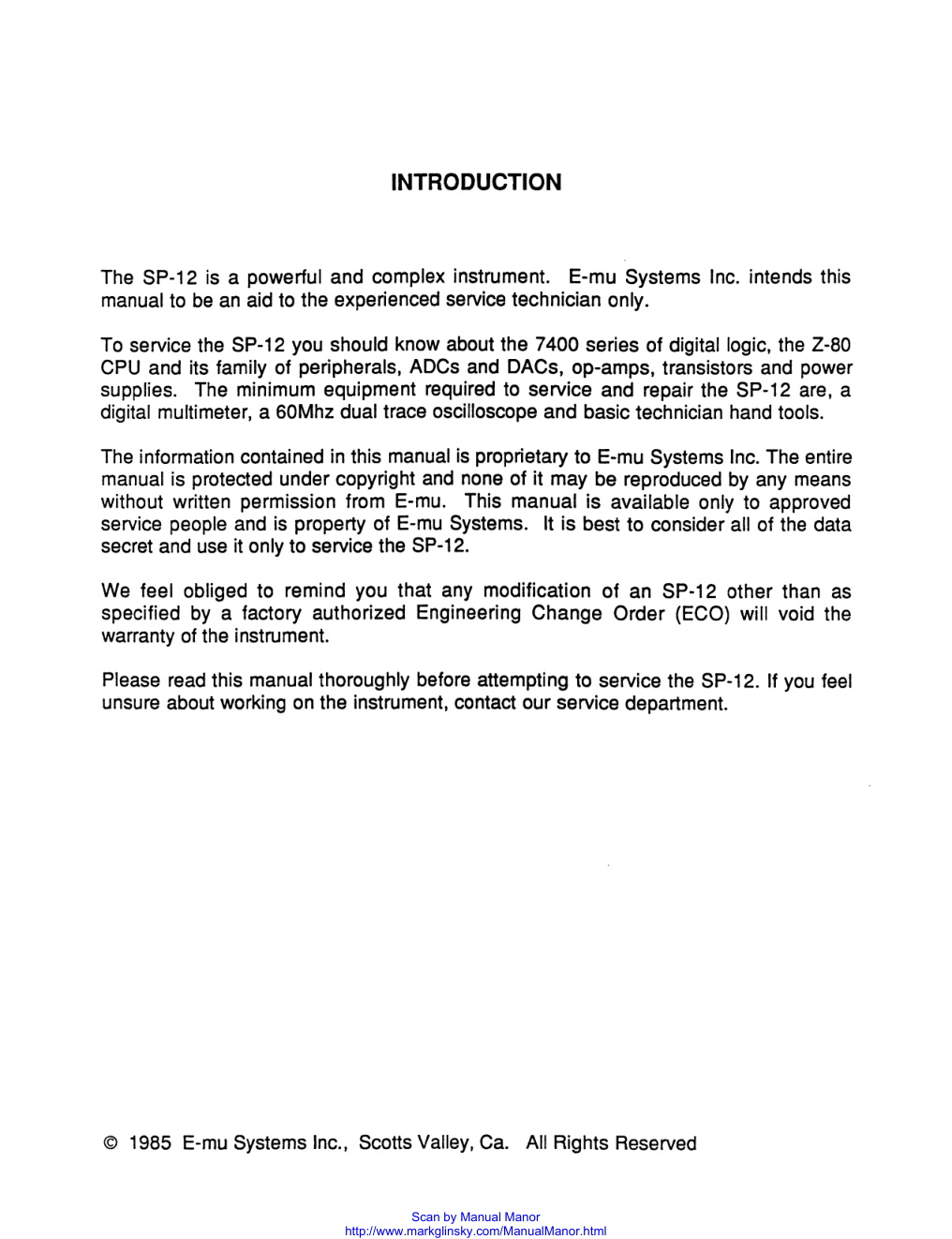

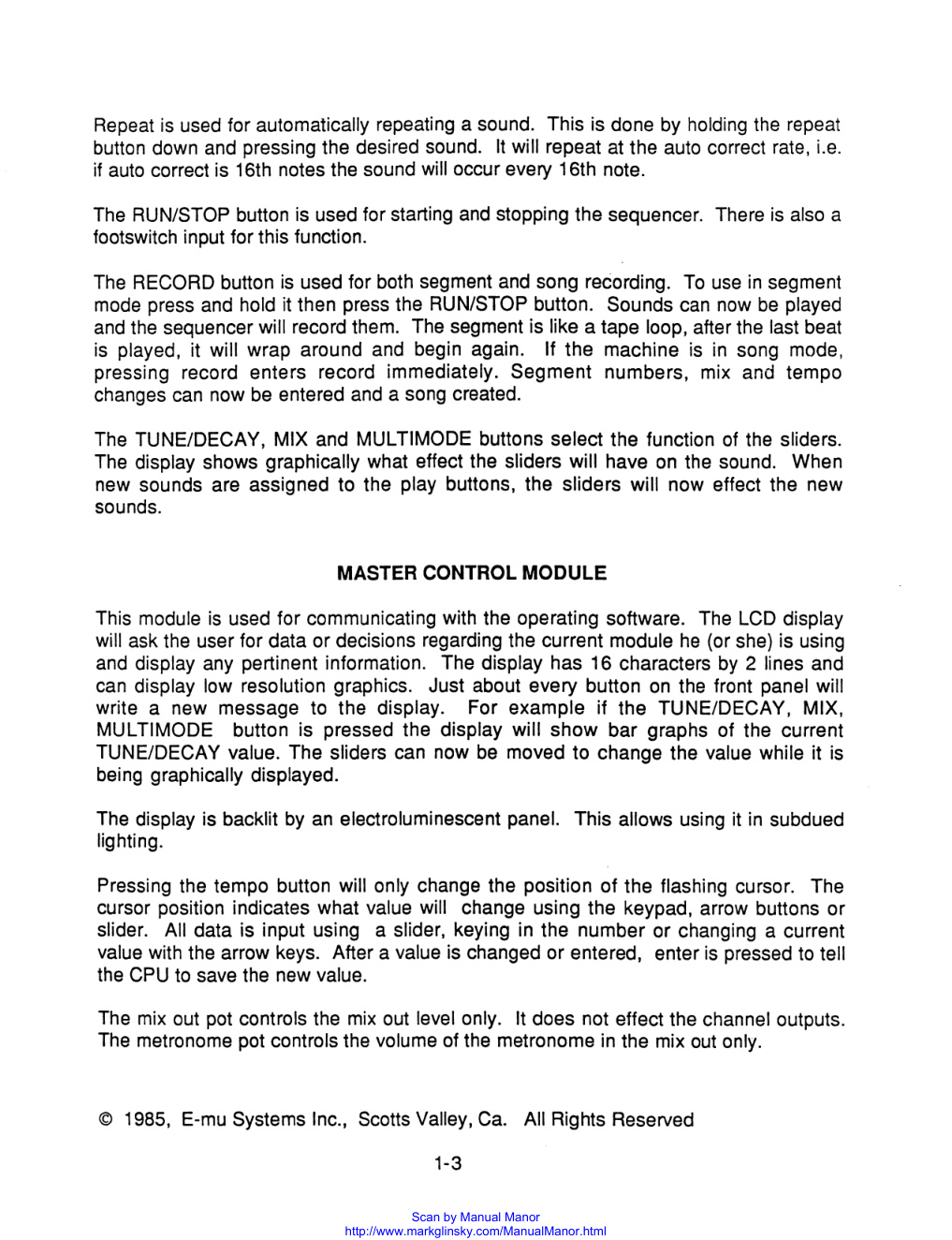

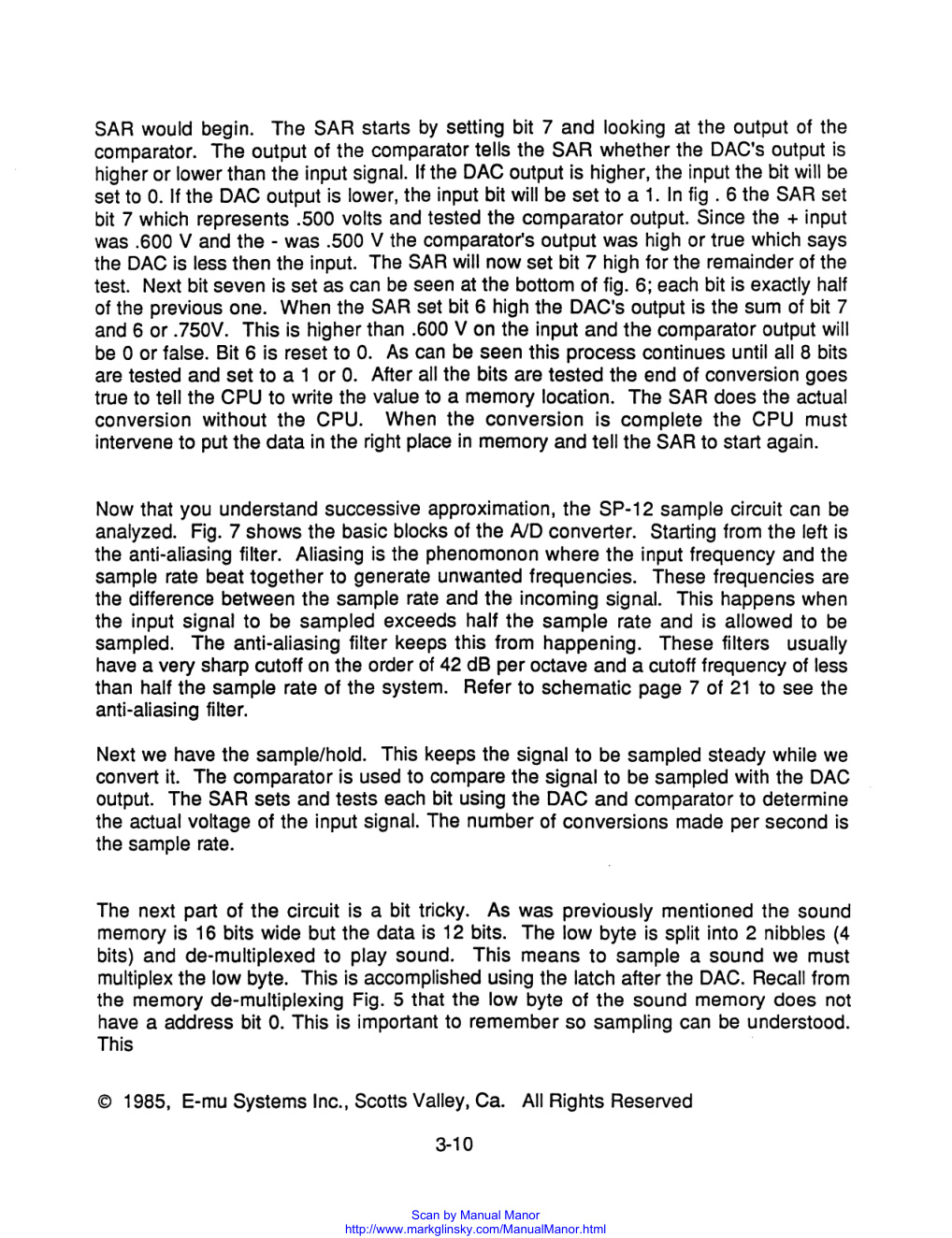

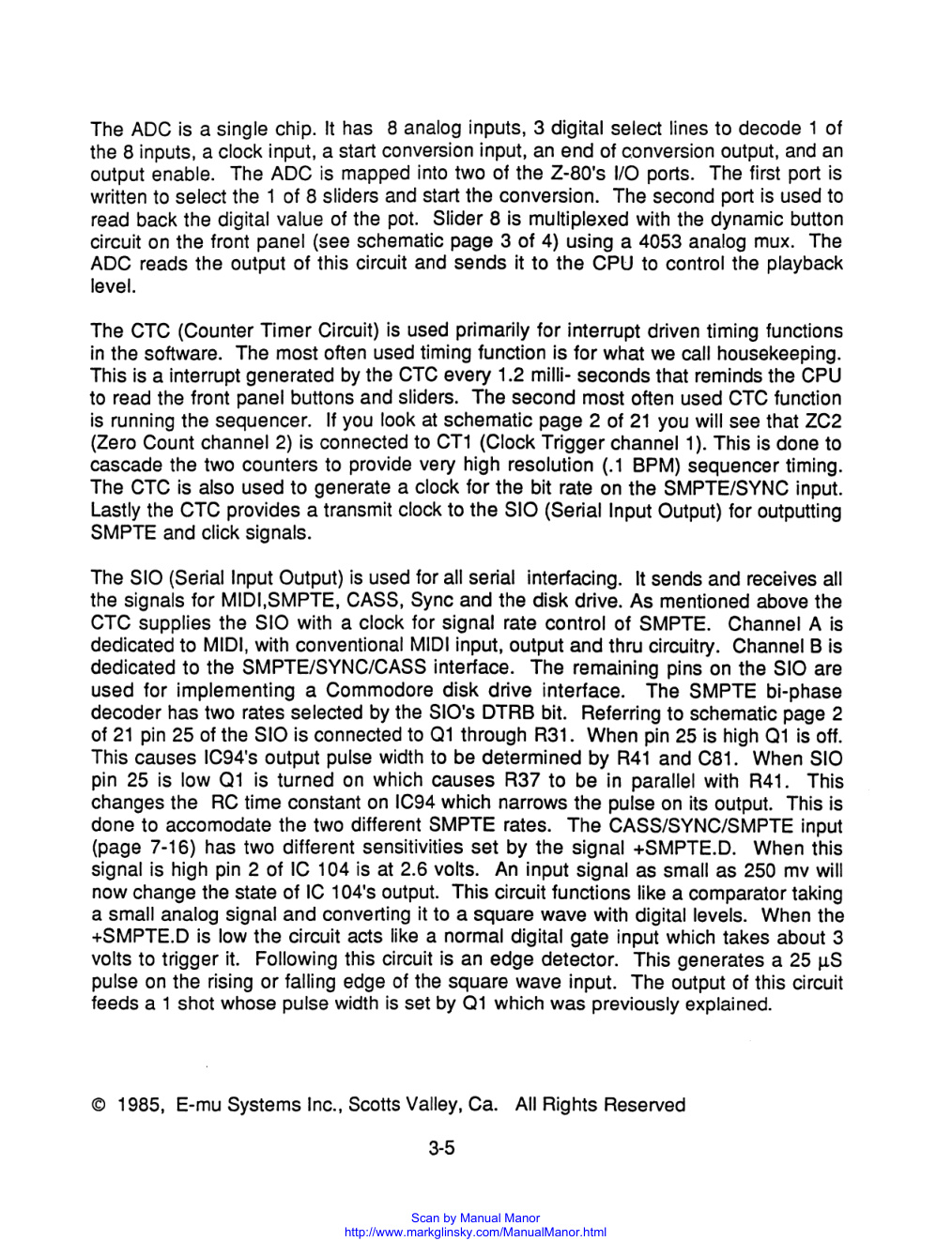

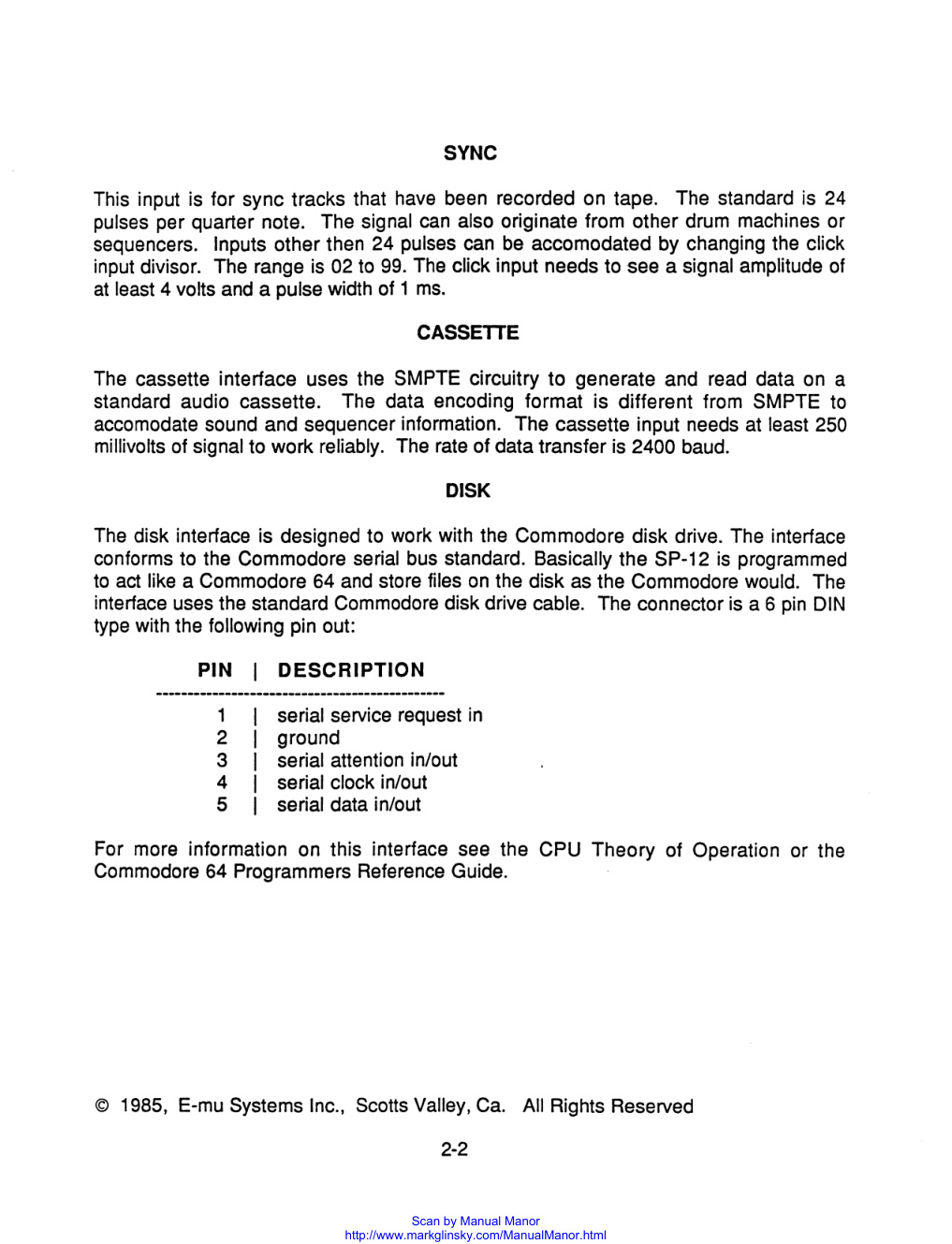

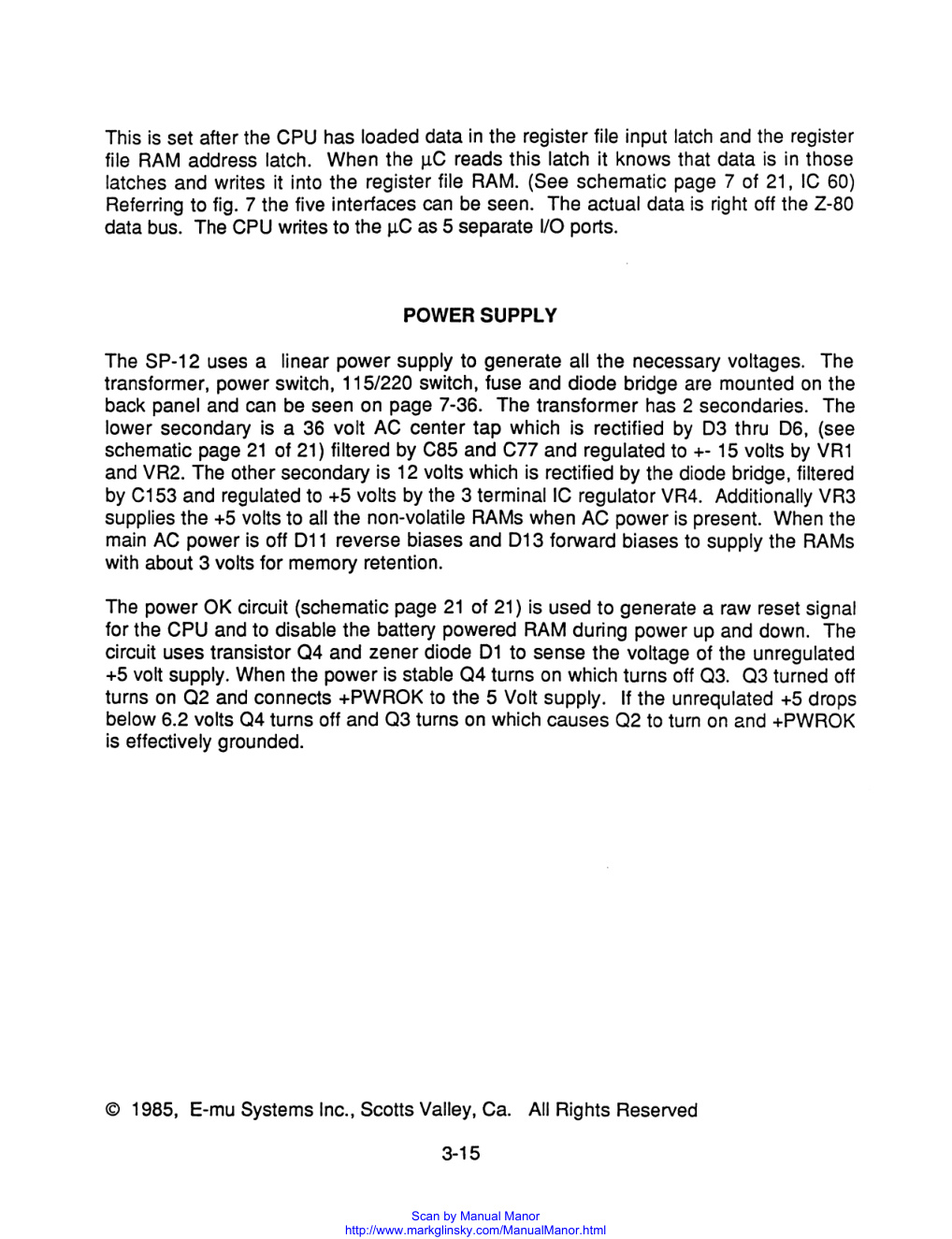

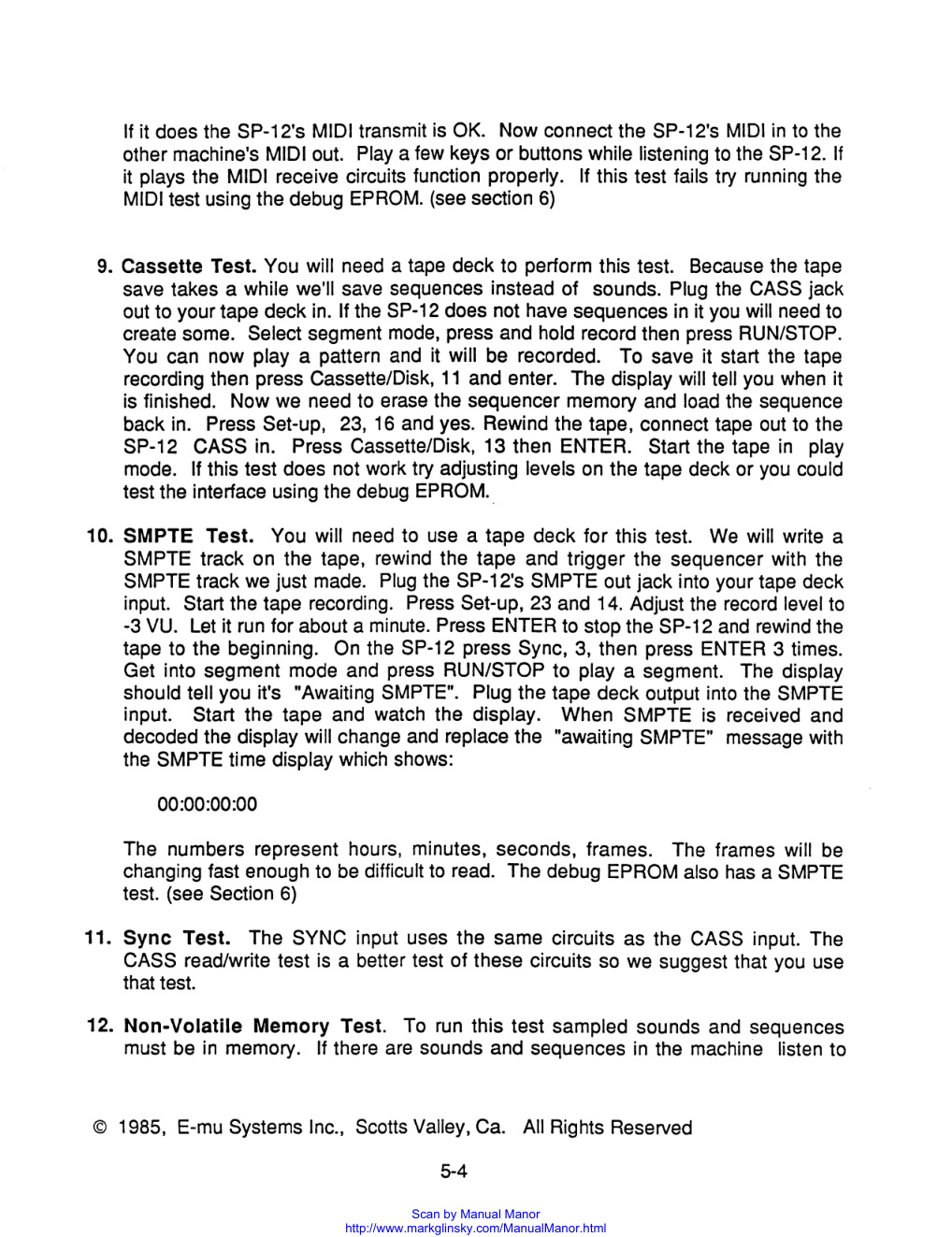

Scan by Manual Manor http://www.markglinsky.com/ManualManor.html SP-12 SAMPLING PERCUSSION SYSTEM SERVICE MANUAL By Steve Davies Version 1.1 1985 E-mu Svstems. Inc., Scotts Vallev. CA All Riahts Reserved INTRODUCTION The SP-12 is a powerful and complex instrument. E-mu Systems Inc. intends this manual to be an aid to the experienced service technician only. To service the SP-12 you should know about the 7400 series of digital logic, the Z-80 CPU and its family of peripherals, ADCs and DACs, op-amps, transistors and power supplies. The minimum equipment required to service and repair the SP-12 are, a digital multimeter, a 60Mhz dual trace oscilloscope and basic technician hand tools. The information contained in this manual is proprietary to E-mu Systems Inc. The entire manual is protected under copyright and none of it may be reproduced by any means without written permission from E-mu. This manual is available only to approved service people and is property of E-mu Systems. It is best to consider all of the data secret and use it only to service the SP-12. We feel obliged to remind you that any modification of an SP-12 other than as specified by a factory authorized Engineering…
