Gleaner Header Settings Guide DynaFlex Command Series

Header Setti Guid DynaFlex & Command Seni + —— 7 a nae ss TES > eee } —- ne. Fa EX r Ad “hn >: k à. *, — an | r # ’. vy i = RUN re Se Ry ie HEC AN RE À - 71 ol ee lly went ne LATE HA TES } et Ties ARS 07 af purnnly À SPE ae 8s, a) FLD V? Pr Gages ter Ae Ls aan” cer PERC Pe NS NET St ree AS TN ae See | alee eee ee ieee... ST. cre NO) | M DORE ee et 5 Be Your Agriculture Company

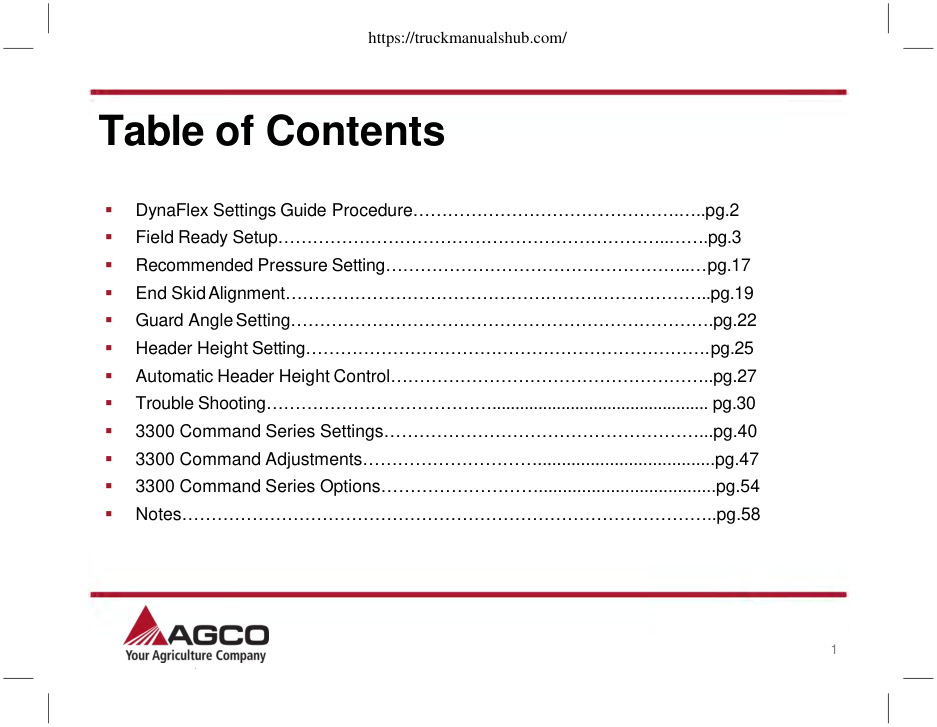

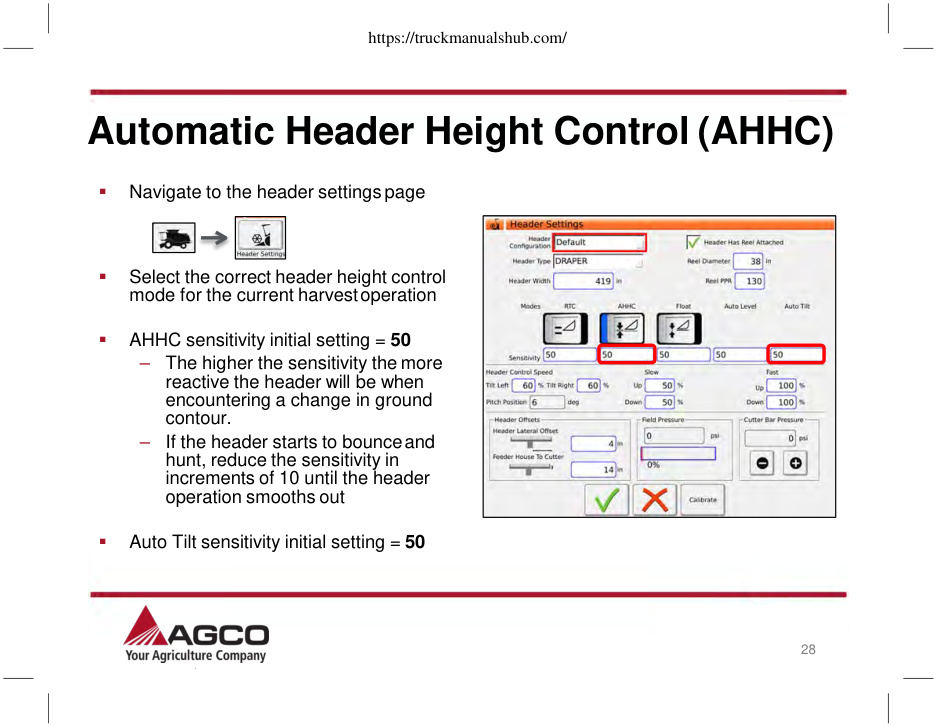

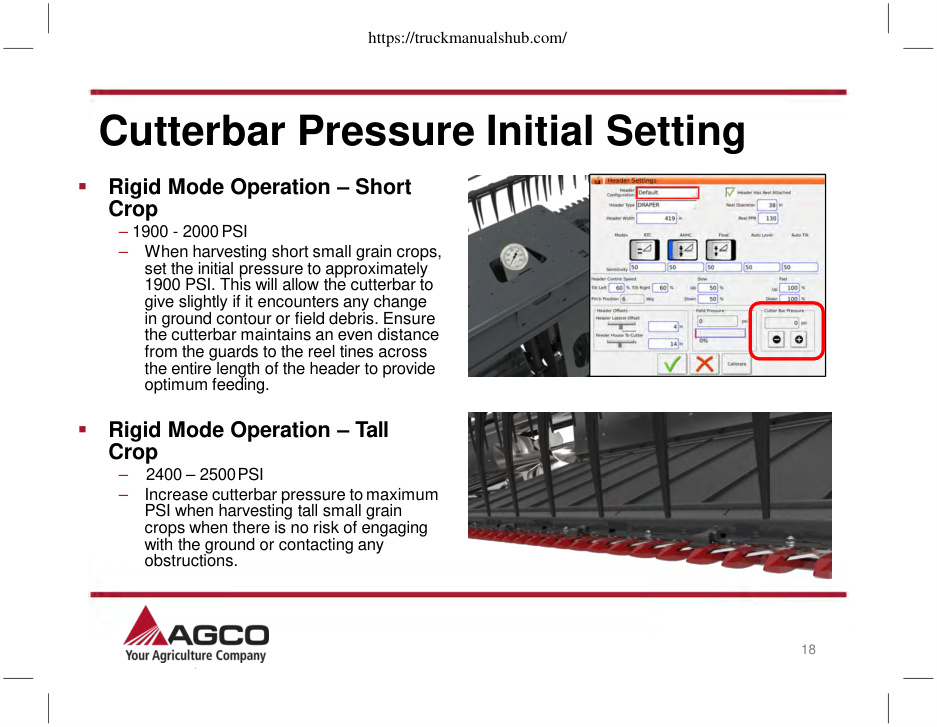

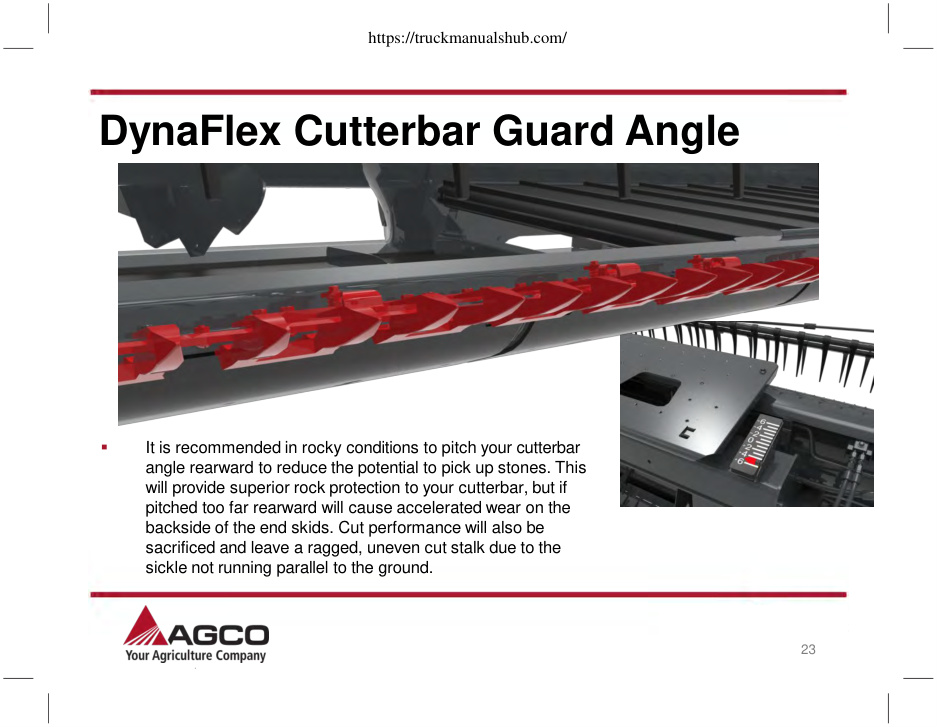

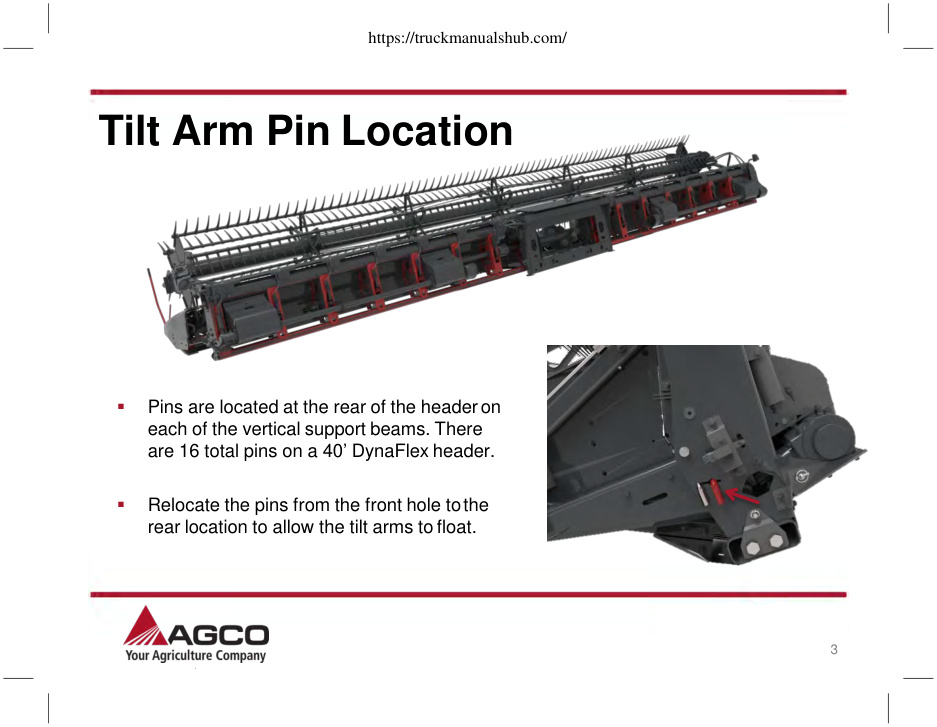

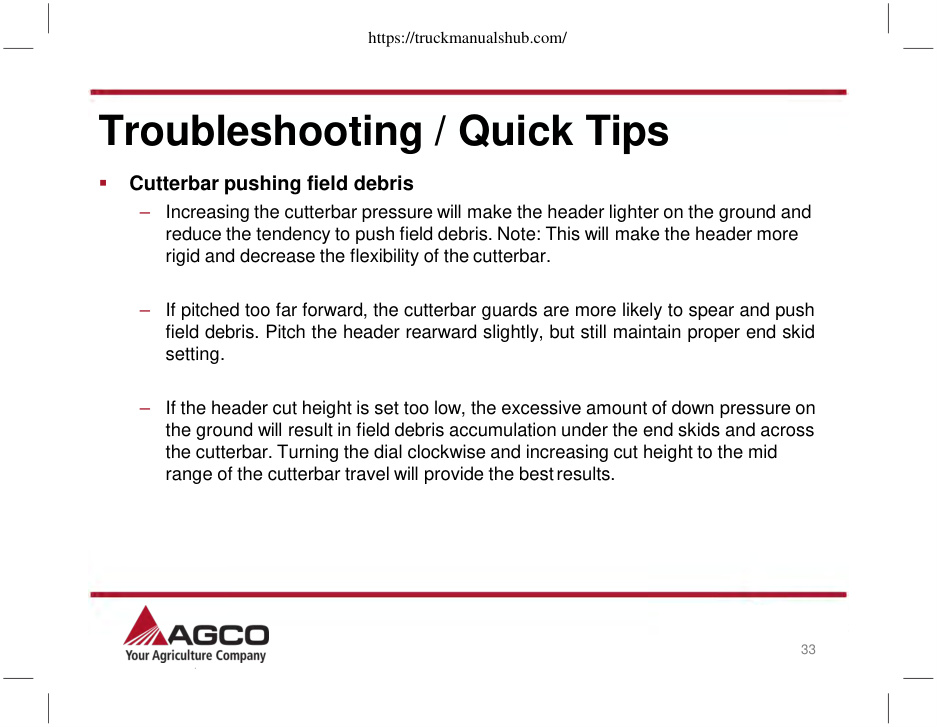

https://truckmanualshub.com/ HeaderSettings Guide DynaFlex& Command Series https://truckmanualshub.com/ https://truckmanualshub.com/ Table of Contents  DynaFlex Settings Guide Procedure……………………………………….…..pg.2  Field Ready Setup…………………………………………………………..…….pg.3  Recommended Pressure Setting……………………………………………..…pg.17  End SkidAlignment………………………………………………………………..pg.19  Guard AngleSetting……………………………………………………………….pg.22  Header Height Setting…………………………………………………………….pg.25  Automatic Header Height Control………………………………………………..pg.27  Trouble Shooting…………………………………............................................... pg.30  3300 Command Series Settings………………………………………………...pg.40  3300 Command Adjustments………………………….....................................pg.47  3300 Command Series Options……………………….....................................pg.54  Notes………………………………………………………………………………..pg.58 1 © 2014 AGCO Corporation https://truckmanualshub.com/ DynaFlex Settings Guide Procedure 1. Ensure DynaFlex is field ready 2. Set to recommended pressure 3. Align end skid parallel to the ground 4. Confirm guard angle is acceptable and adjust if necessary 5. Set header height to recommended targetheight 6. Fine-tune…
