Howo Trucks Parts Catalog New 2005 2007

Nom du fichier : Howo Trucks Parts Catalog New 2005 – 2007.pdf

Par Bluewater

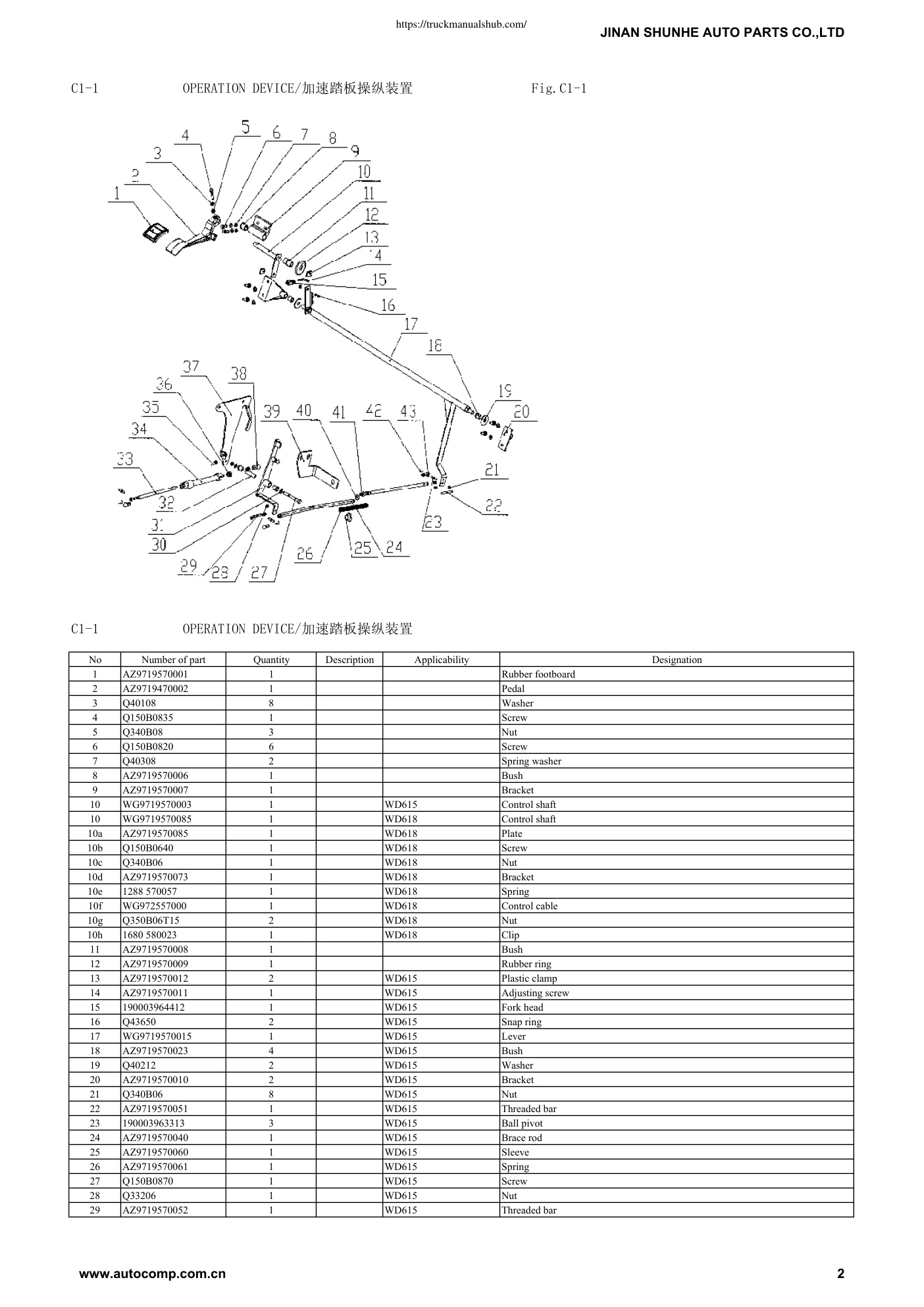

JINAN SHUNHE AUTO PARTS CO.,LTD PRODUCT CATALOG JINAN SHUNHE AUTO PARTS CO.,LTD C1-1 OPERATION DEVICE/加速踏板操纵装置 Fig.C1-1 C1-1 OPERATION DEVICE/加速踏板操纵装置 No Number of part Quantity Description Applicability Designation 1 AZ9719570001 1 Rubber footboard 2 AZ9719470002 1 Pedal 3 Q40108 8 Washer 4 Q150B0835 1 Screw 5 Q340B08 3 Nut 6 Q150B0820 6 Screw 7 Q40308 2 Spring washer 8 AZ9719570006 1 Bush 9 AZ9719570007 1 Bracket 10 WG9719570003 1 WD615 Control shaft 10 WG9719570085 1 WD618 Control shaft 10a AZ9719570085 1 WD618 Plate 10b Q150B0640 1 WD618 Screw 10c Q340B06 1 WD618 Nut 10d AZ9719570073 1 WD618 Bracket 10e 1288 570057 1 WD618 Spring 10f WG972557000 1 WD618 Control cable 10g Q350B06T15 2 WD618 Nut 10h 1680 580023 1 WD618 Clip 11 AZ9719570008 1 Bush 12 AZ9719570009 1 Rubber ring 13 AZ9719570012 2 WD615 Plastic clamp 14 AZ9719570011 1 WD615 Adjusting screw 15 190003964412 1 WD615 Fork head

https://truckmanualshub.com/ https://truckmanualshub.com/ JINAN SHUNHE AUTO PARTS CO.,LTD C1-1 OPERATION DEVICE/加速踏板操纵装置 Fig.C1-1 C1-1 OPERATION DEVICE/加速踏板操纵装置 No Number of part Quantity Description Applicability Designation 1 AZ9719570001 1 Rubber footboard 2 AZ9719470002 1 Pedal 3 Q40108 8 Washer 4 Q150B0835 1 Screw 5 Q340B08 3 Nut 6 Q150B0820 6 Screw 7 Q40308 2 Spring washer 8 AZ9719570006 1 Bush 9 AZ9719570007 1 Bracket 10 WG9719570003 1 WD615 Control shaft 10 WG9719570085 1 WD618 Control shaft 10a AZ9719570085 1 WD618 Plate 10b Q150B0640 1 WD618 Screw 10c Q340B06 1 WD618 Nut 10d AZ9719570073 1 WD618 Bracket 10e 1288 570057 1 WD618 Spring 10f WG972557000 1 WD618 Control cable 10g Q350B06T15 2 WD618 Nut 10h 1680 580023 1 WD618 Clip 11 AZ9719570008 1 Bush 12 AZ9719570009 1 Rubber ring 13 AZ9719570012 2 WD615 Plastic clamp 14 AZ9719570011 1 WD615 Adjusting screw 15 190003964412 1 WD615 Fork head 16 Q43650 2 WD615 Snap ring 17 WG9719570015 1 WD615 Lever 18 AZ9719570023 4 WD615 Bush 19 Q40212 2 WD615 Washer 20 AZ9719570010 2 WD615 Bracket 21 Q340B06 8 WD615 Nut 22 AZ9719570051 1 WD615 Threaded bar 23 190003963313 3 WD615 Ball pivot 24 AZ9719570040 1 WD615 Brace rod 25 AZ9719570060…

176 pages 4,17 Mo PDF créé le 09/01/2008
