ICOM service manual IC T81

This service manual describes the latest service information for the IC-T81A/E at the time of publication. MODEL VERSION SYMBOL IC-T81A Australia AUS IC-T81E U.K. UK To upgrade quality, all electrical or mechanical parts and internal circuits are subject to change without notice or NEVER connect the transceiver to an AC outlet or to a DC power supply that uses more than 16 V. Such a connection could cause a fire hazard and/or electric. DO NOT expose the transceiver to rain, snow or any liquids. DO NOT reverse the polarities of the power supply when connecting the transceiver. DO NOT apply an RF signal of more than 20 dBm (100mW) to the antenna connector. This could damage the trans- ceiver's front end. Be sure to include the following four points when ordering replacement parts: 1. 10-digit order numbers 2. Component part number and name 3. Equipment model name and unit name 4. Quantity

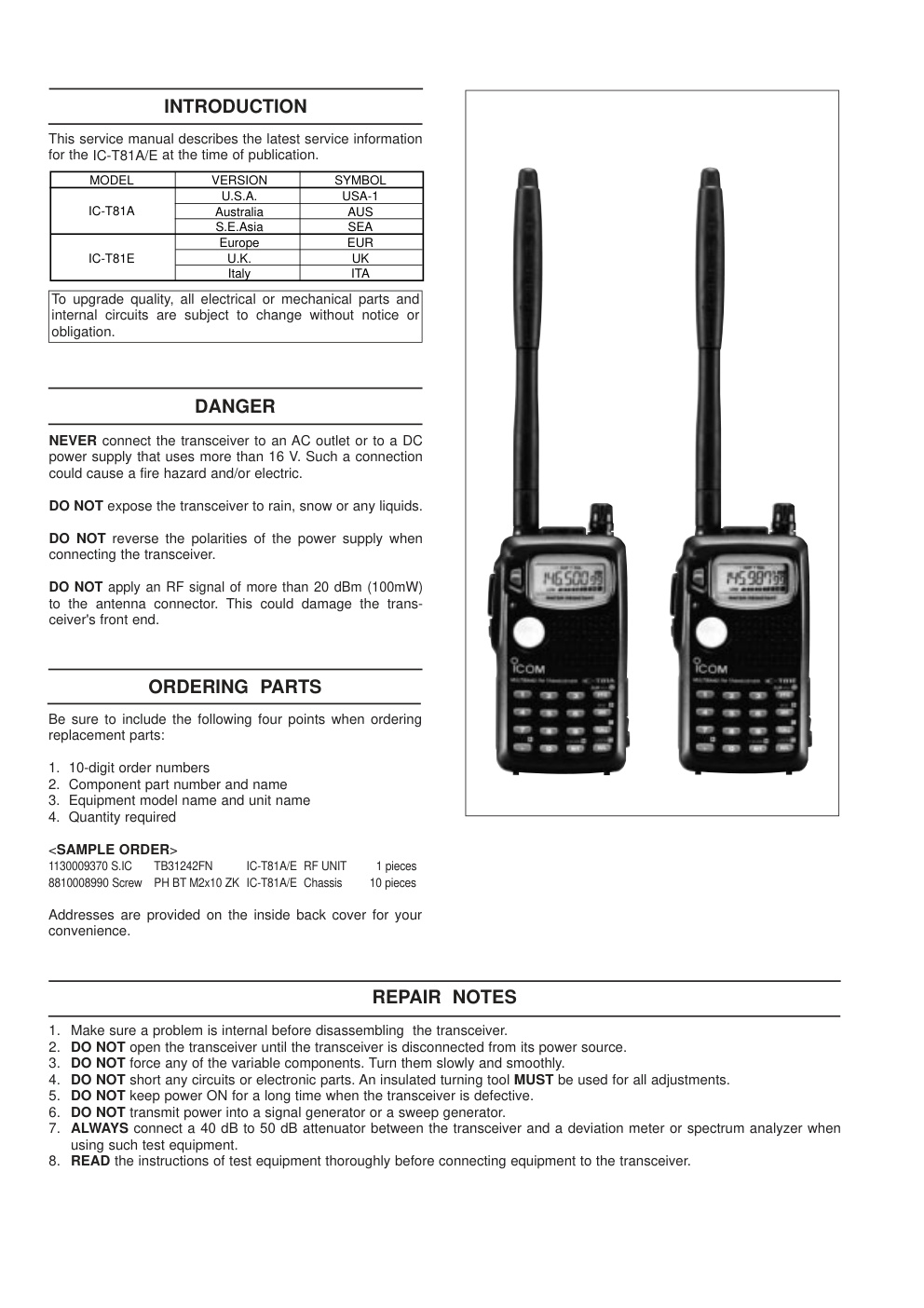

SERVICE MANUAL MULTIBAND FM TRANSCEIVER INTRODUCTION This service manual describes the latest service information for the IC-T81A/E at the time of publication. MODEL VERSION SYMBOL U.S.A. USA-1 IC-T81A Australia AUS S.E.Asia SEA Europe EUR IC-T81E U.K. UK Italy ITA To upgrade quality, all electrical or mechanical parts and internal circuits are subject to change without notice or obligation. DANGER NEVER connect the transceiver to an AC outlet or to a DC power supply that uses more than 16 V. Such a connection could cause a fire hazard and/or electric. DO NOT expose the transceiver to rain, snow or any liquids. DO NOT reverse the polarities of the power supply when connecting the transceiver. DO NOT apply an RF signal of more than 20 dBm (100mW) to the antenna connector. This could damage the trans- ceiver's front end. ORDERING PARTS Be sure to include the following four points when ordering replacement parts: 1. 10-digit order numbers 2. Component part number and name 3. Equipment model name and unit name 4. Quantity required <SAMPLE ORDER> 1130009370 S.IC TB31242FN IC-T81A/E RF UNIT 1 pieces 8810008990 Screw PH BT M2x10 ZK IC-T81A/E Chassis 10 pieces Addresses are provided on…
