INTRODUCTION DANGER This service manual describes the latest service information NEVER connect the transceiver to an AC outlet or to a DC for the IC-706MKIIG HF/VHF/UHF ALL MODE TRANS- power supply that uses more than 16 V. This will ruin the CEIVER at the time of publication. transceiver. VERSION NO. VERSION SYMBOL DO NOT expose the transceiver to rain, snow or any liquids. #02, #12 Europe EUR DO NOT reverse the polarities of the power supply when con- #03, #13 France FRA necting the transceiver. #04, #14 Spain ESP DO NOT apply an RF signal of more than 20 dBm (100 mW) #05, #15 U.S.A. USA to the antenna connector. This could damage the trans- #08, #18 Other OTH ceiver’s front end. To upgrade quality, any electrical or mechanical parts and internal circuits are subject to change without notice or ORDERING PARTS REPAIR NOTES Be sure to include the following four points when ordering 1. Ma

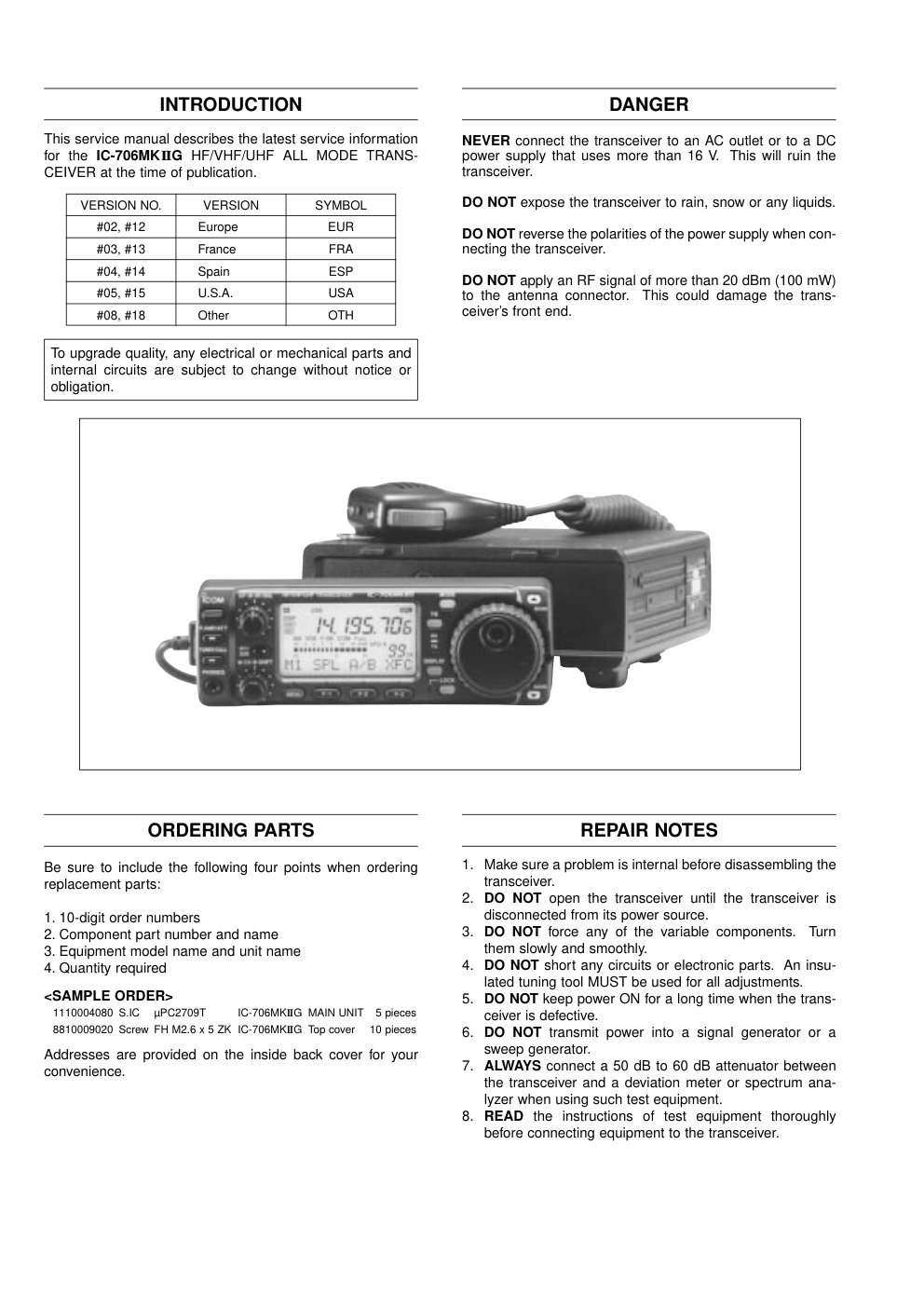

SERVICE MANUAL HF/VHF/UHF ALL MODE TRANSCEIVER i706MK™G INTRODUCTION DANGER This service manual describes the latest service information NEVER connect the transceiver to an AC outlet or to a DC for the IC-706MKIIG HF/VHF/UHF ALL MODE TRANS- power supply that uses more than 16 V. This will ruin the CEIVER at the time of publication. transceiver. VERSION NO. VERSION SYMBOL DO NOT expose the transceiver to rain, snow or any liquids. #02, #12 Europe EUR DO NOT reverse the polarities of the power supply when con- #03, #13 France FRA necting the transceiver. #04, #14 Spain ESP DO NOT apply an RF signal of more than 20 dBm (100 mW) #05, #15 U.S.A. USA to the antenna connector. This could damage the trans- #08, #18 Other OTH ceiver’s front end. To upgrade quality, any electrical or mechanical parts and internal circuits are subject to change without notice or obligation. ORDERING PARTS REPAIR NOTES Be sure to include the following four points when ordering 1. Make sure a problem is internal before disassembling the replacement parts: transceiver. 2. DO NOT open the transceiver until the transceiver is 1. 10-digit order numbers disconnected from its power source. 2. Component part number…
