SERVICE MANUAL SECTION LoneStar® and ProStar® Chassis Built January, 2007 and After — ELECTRICAL CIRCUIT DIAGRAMS Model: LoneStar Start Date: 01/15/2007

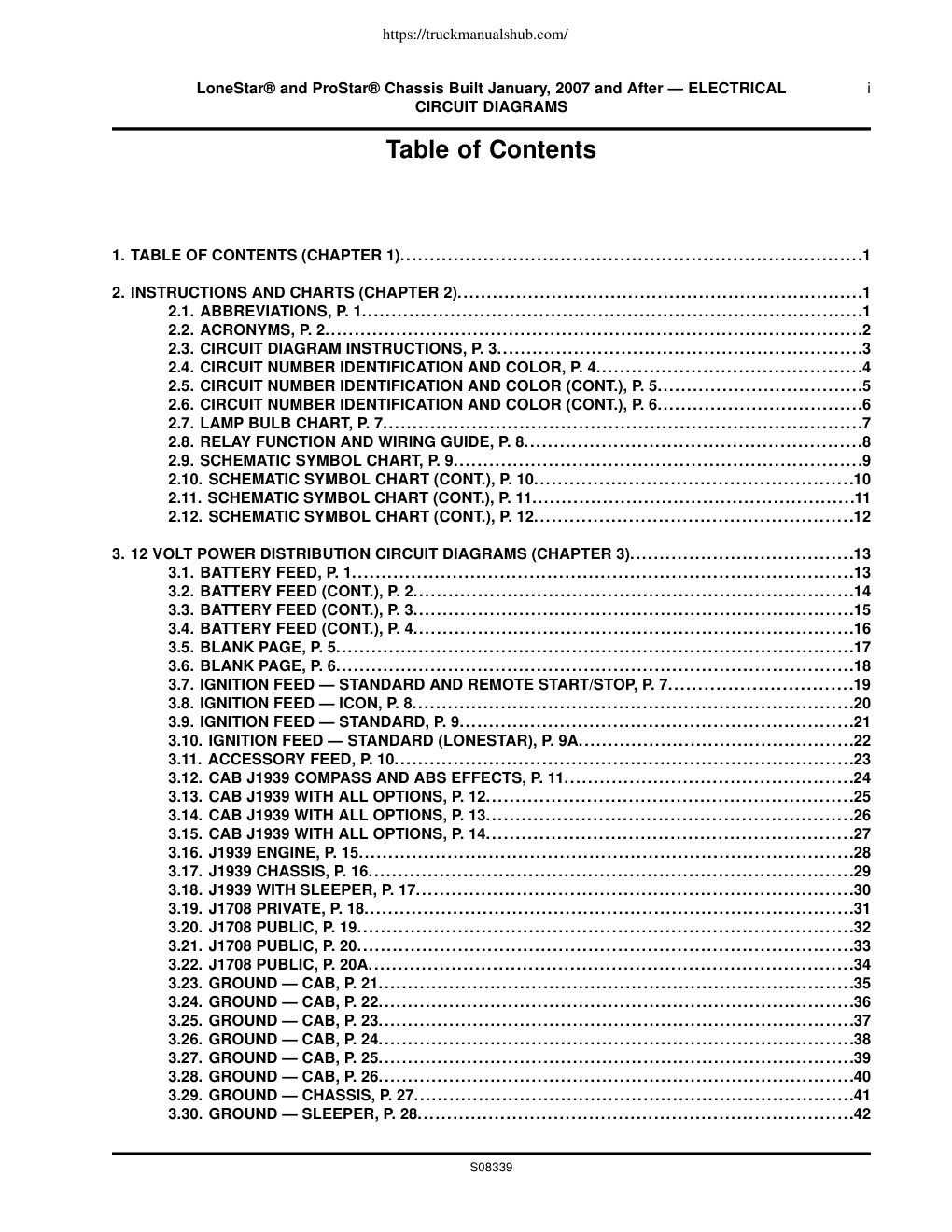

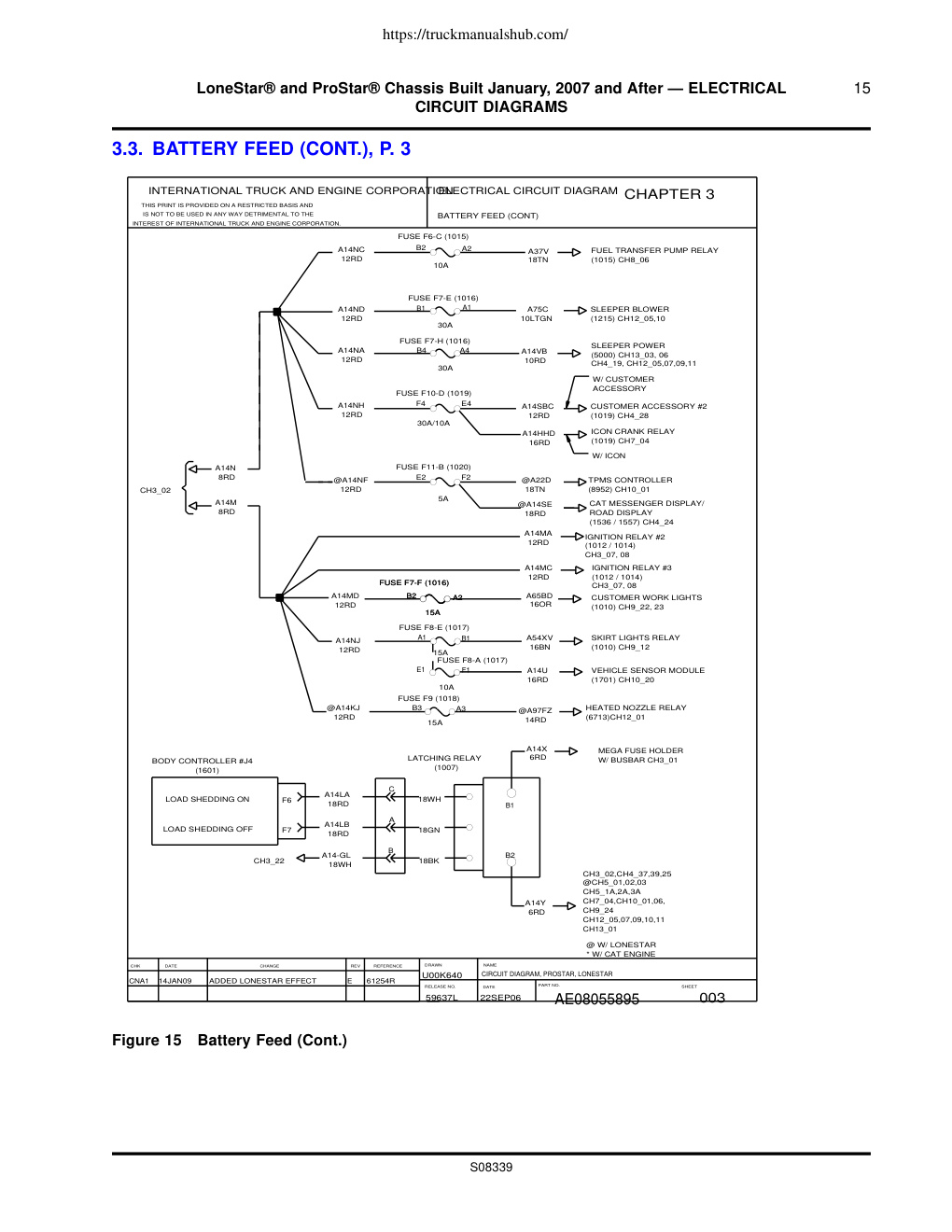

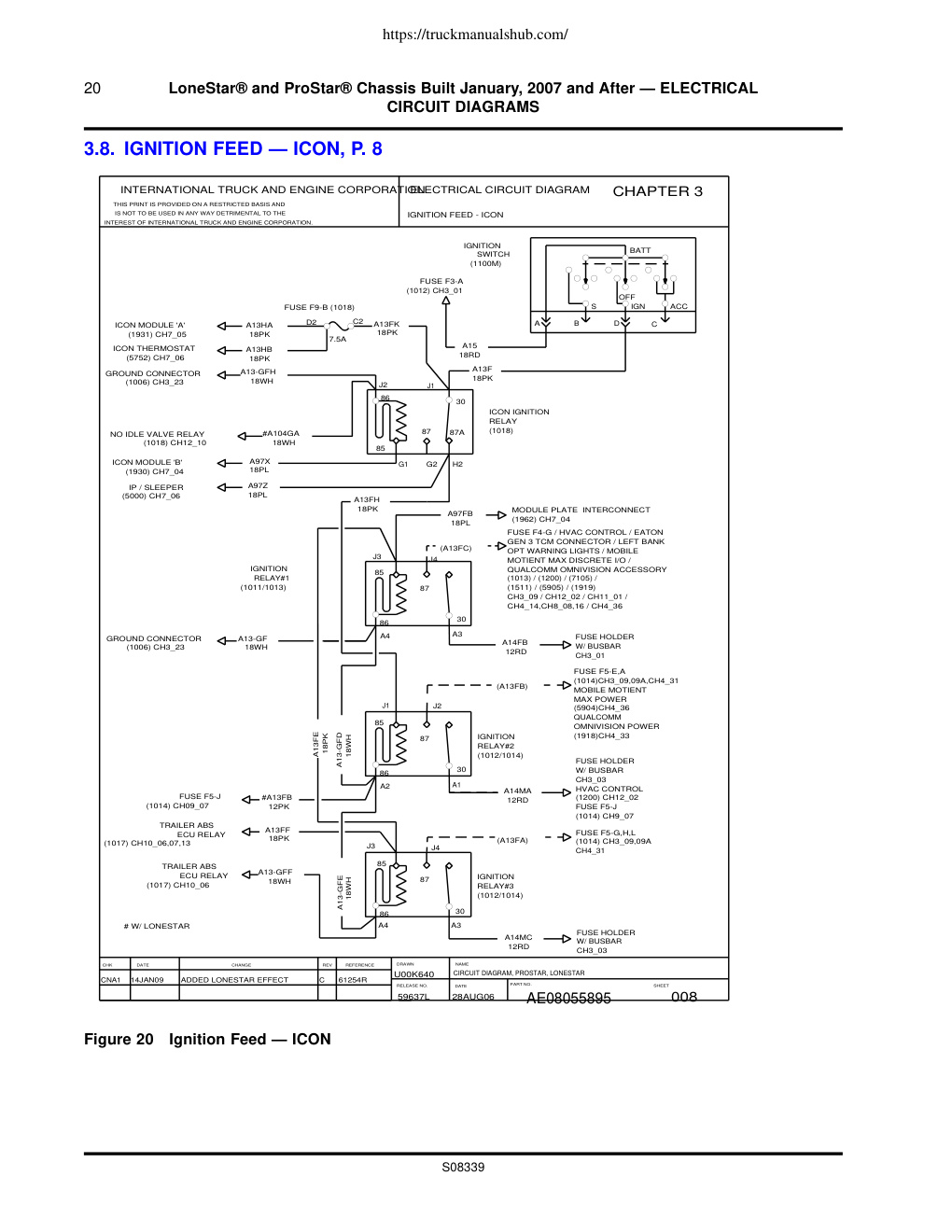

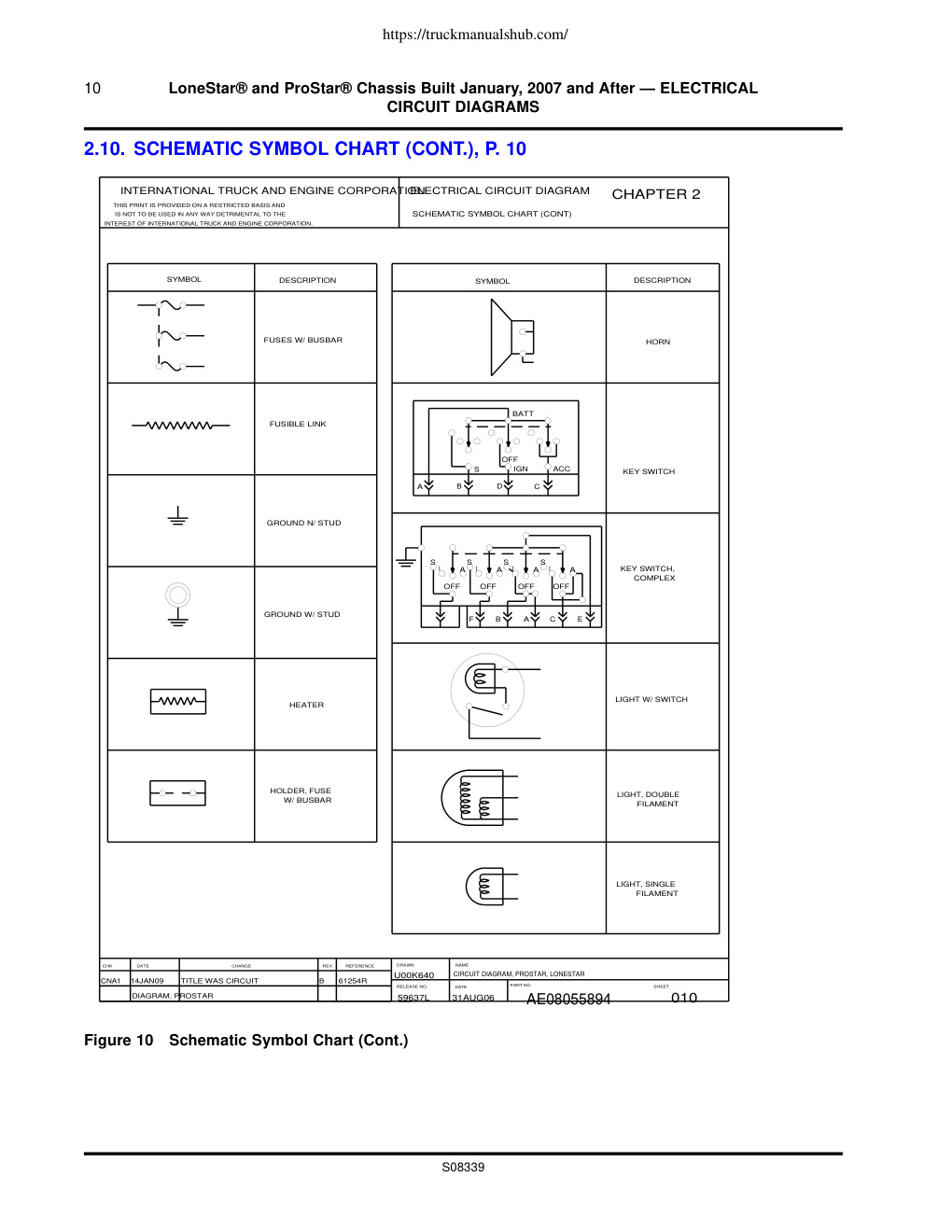

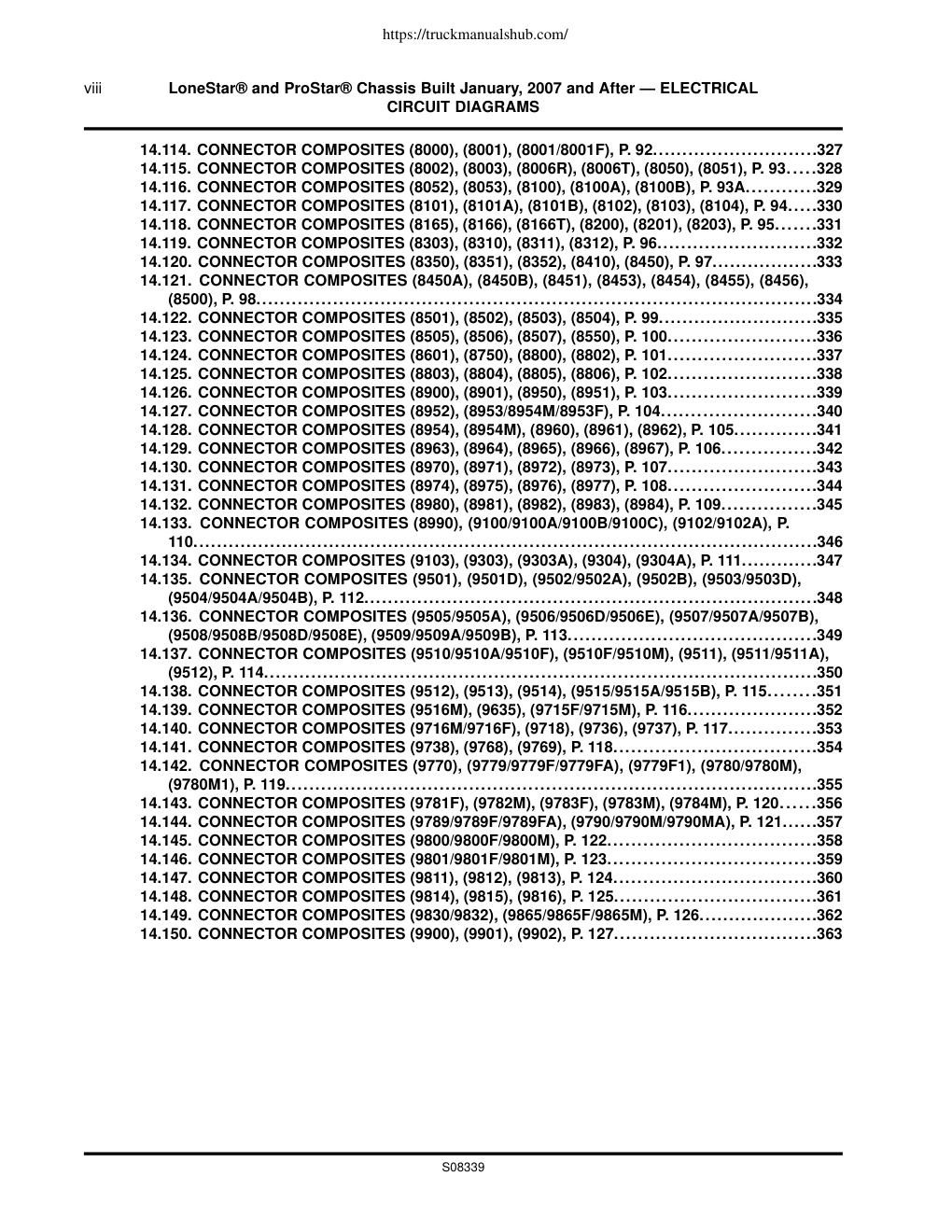

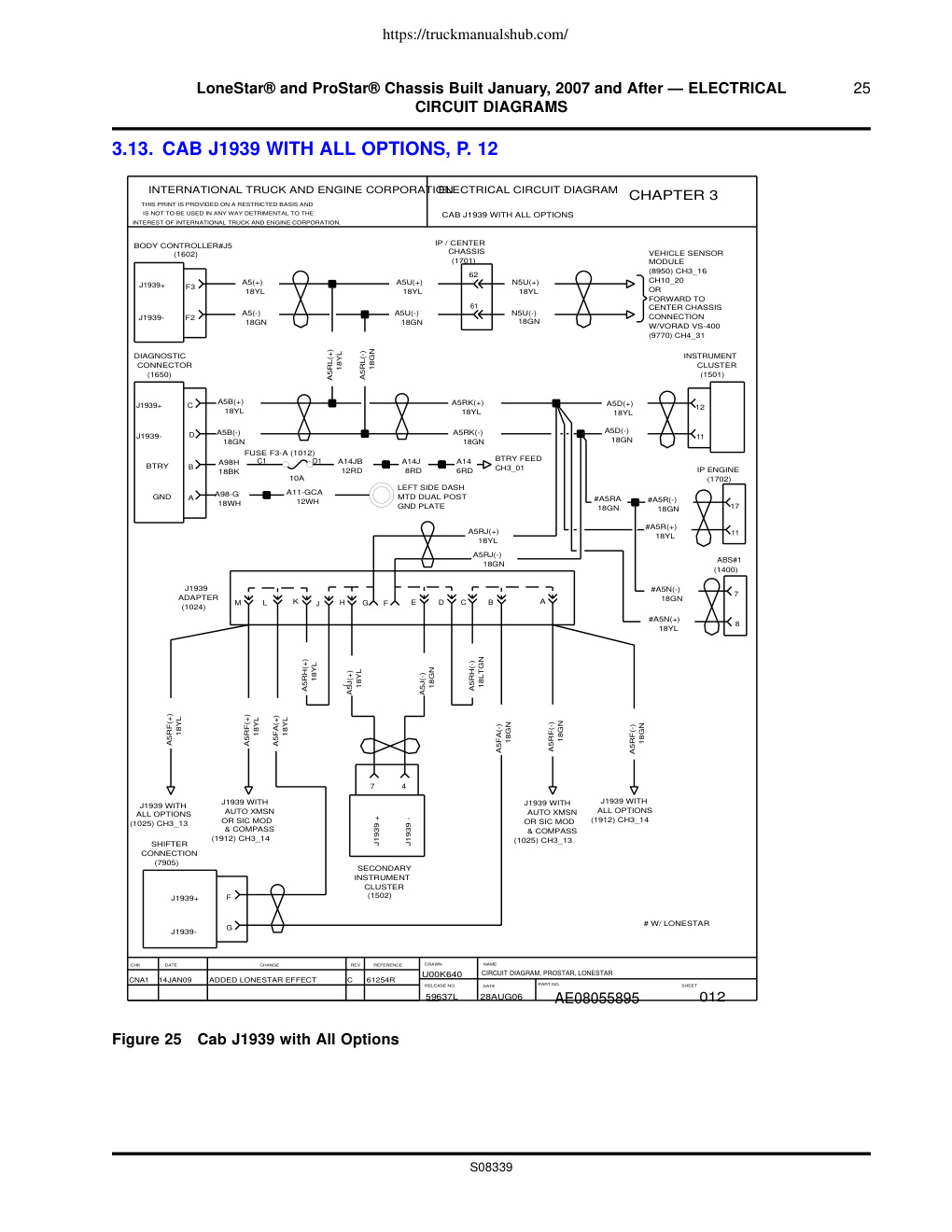

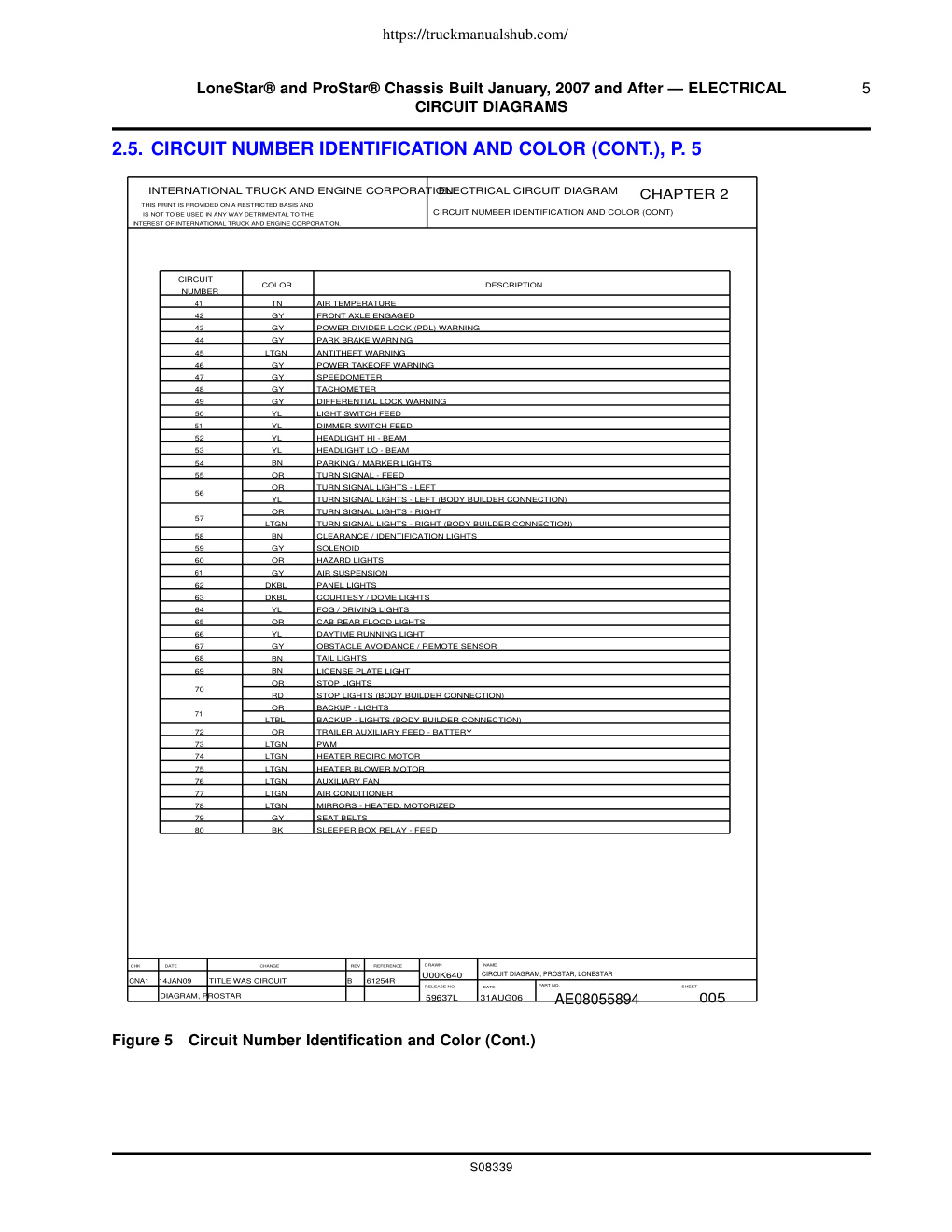

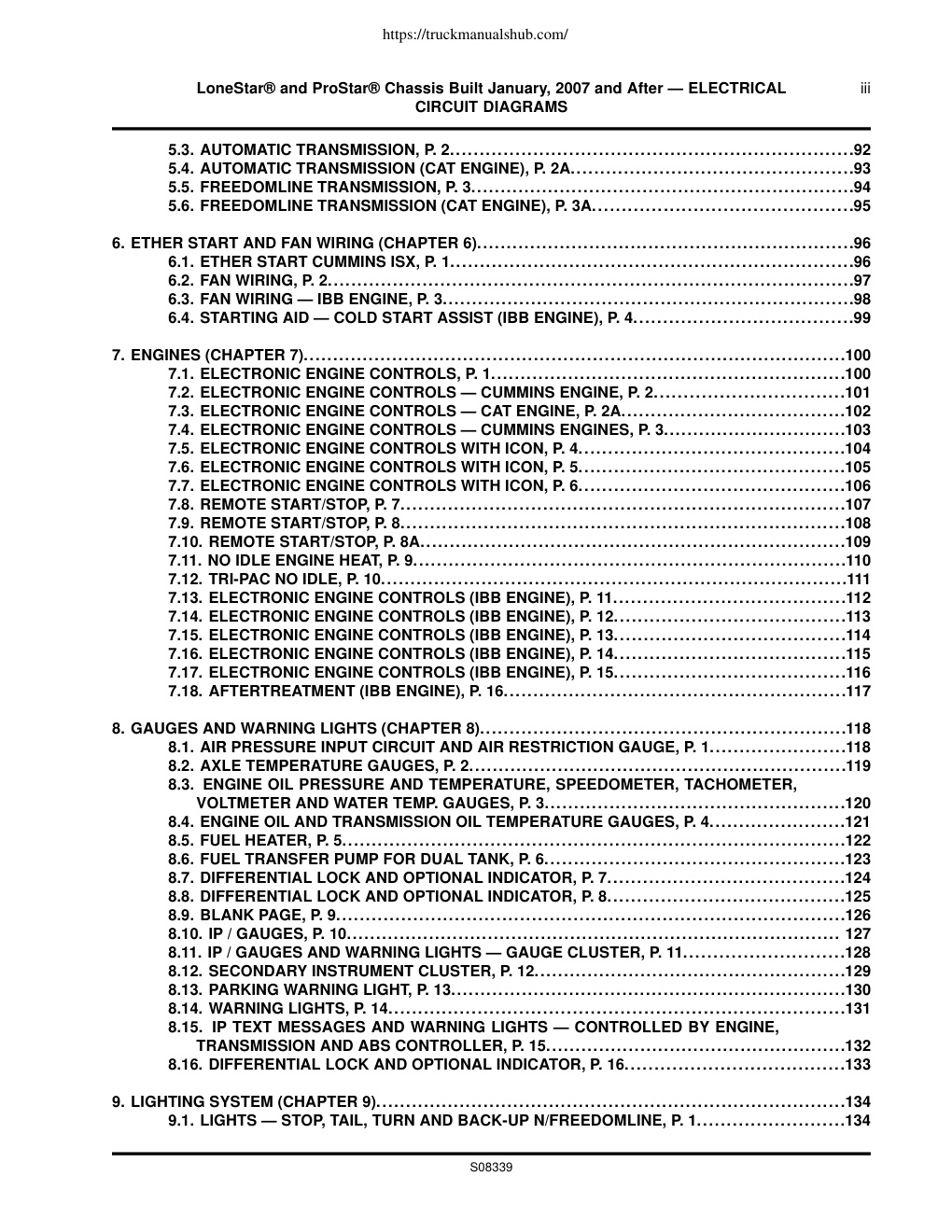

https://truckmanualshub.com/ SERVICE MANUAL SERVICE MANUAL SECTION LoneStar® and ProStar® Chassis Built January, 2007 and After — ELECTRICAL CIRCUIT DIAGRAMS Model: LoneStar Model: ProStar Start Date: 01/15/2007 S08339 01/27/2009 S08339 Copyright©01/27/2009 Navistar, Inc. https://truckmanualshub.com/ https://truckmanualshub.com/ LoneStar® and ProStar® Chassis Built January, 2007 and After — ELECTRICAL i CIRCUIT DIAGRAMS Table of Contents 1. TABLE OF CONTENTS (CHAPTER 1)..............................................................................1 2. INSTRUCTIONS AND CHARTS (CHAPTER 2).....................................................................1 2.1. ABBREVIATIONS, P. 1.....................................................................................1 2.2. ACRONYMS, P. 2...........................................................................................2 2.3. CIRCUIT DIAGRAM INSTRUCTIONS, P. 3..............................................................3 2.4. CIRCUIT NUMBER IDENTIFICATION AND COLOR, P. 4.............................................4 2.5. CIRCUIT NUMBER IDENTIFICATION AND COLOR (CONT.), P. 5...................................5 2.6. CIRCUIT…
