KORG DS 8 SERVICE MANUAL ocr

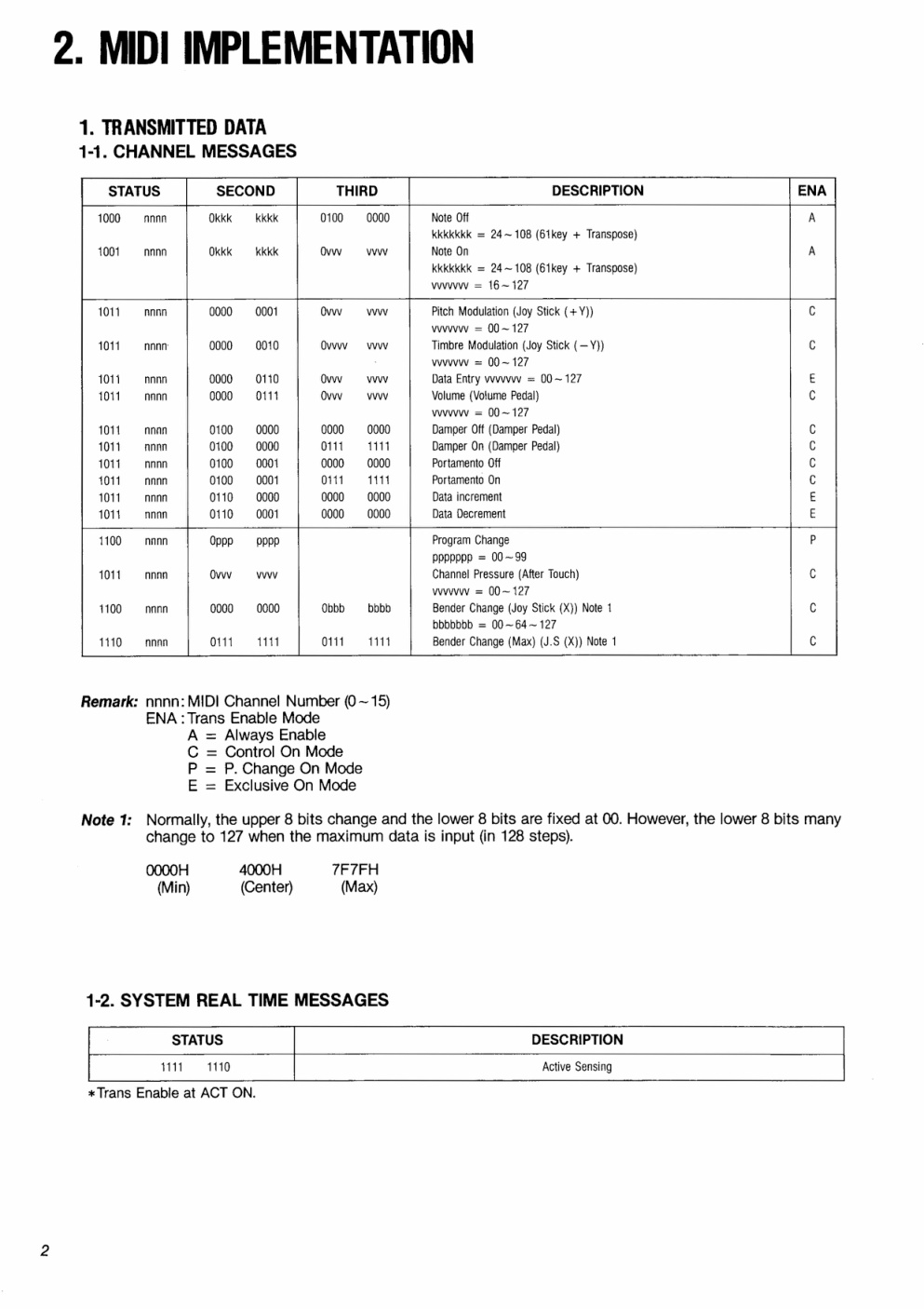

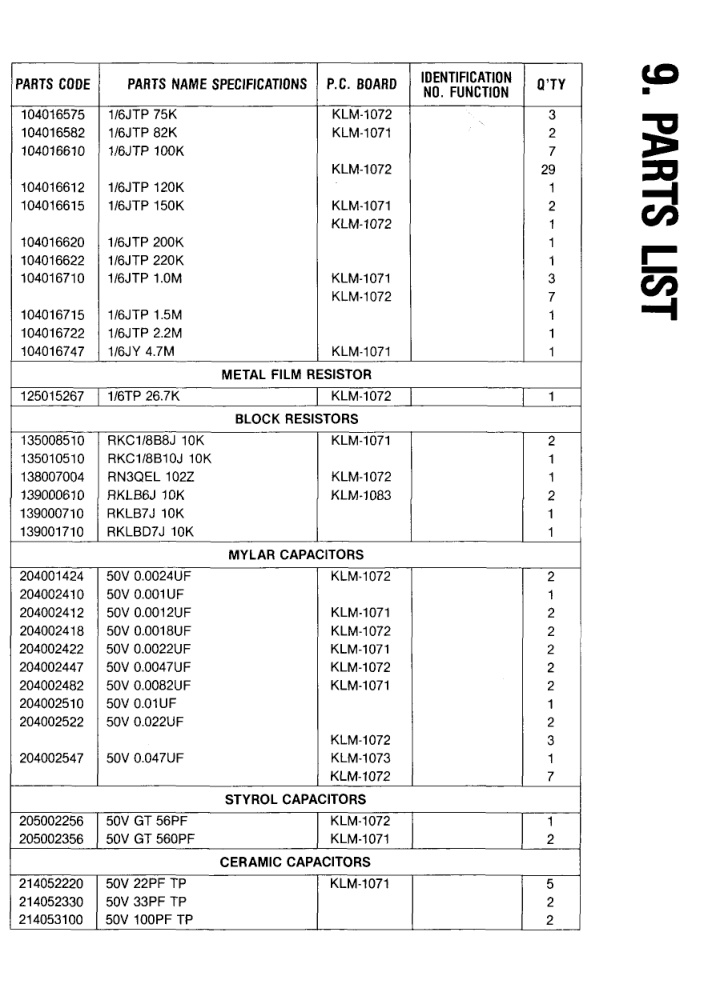

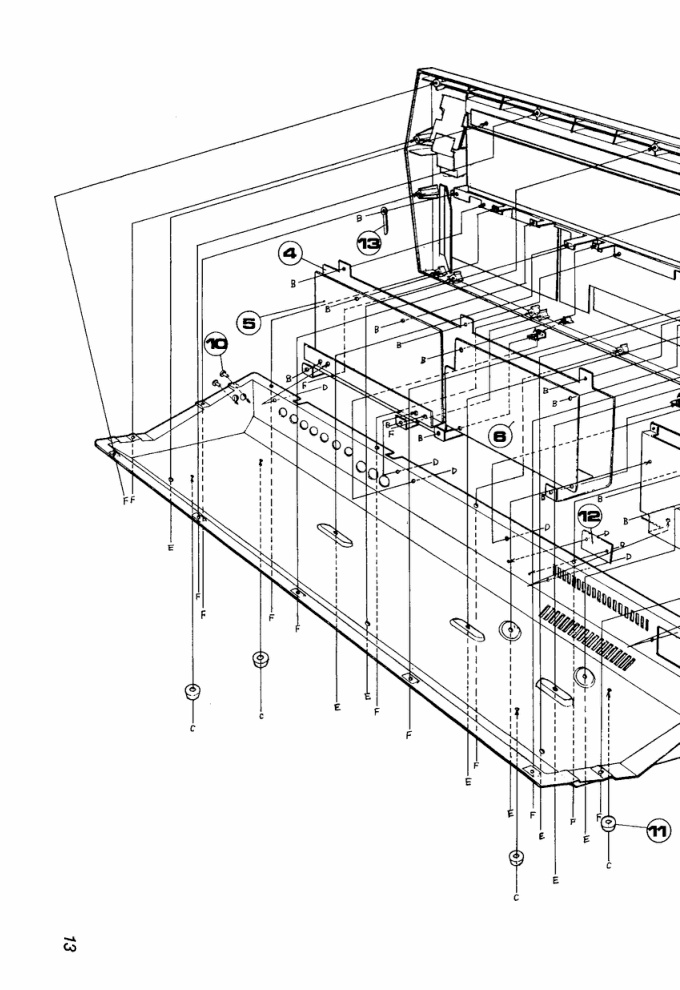

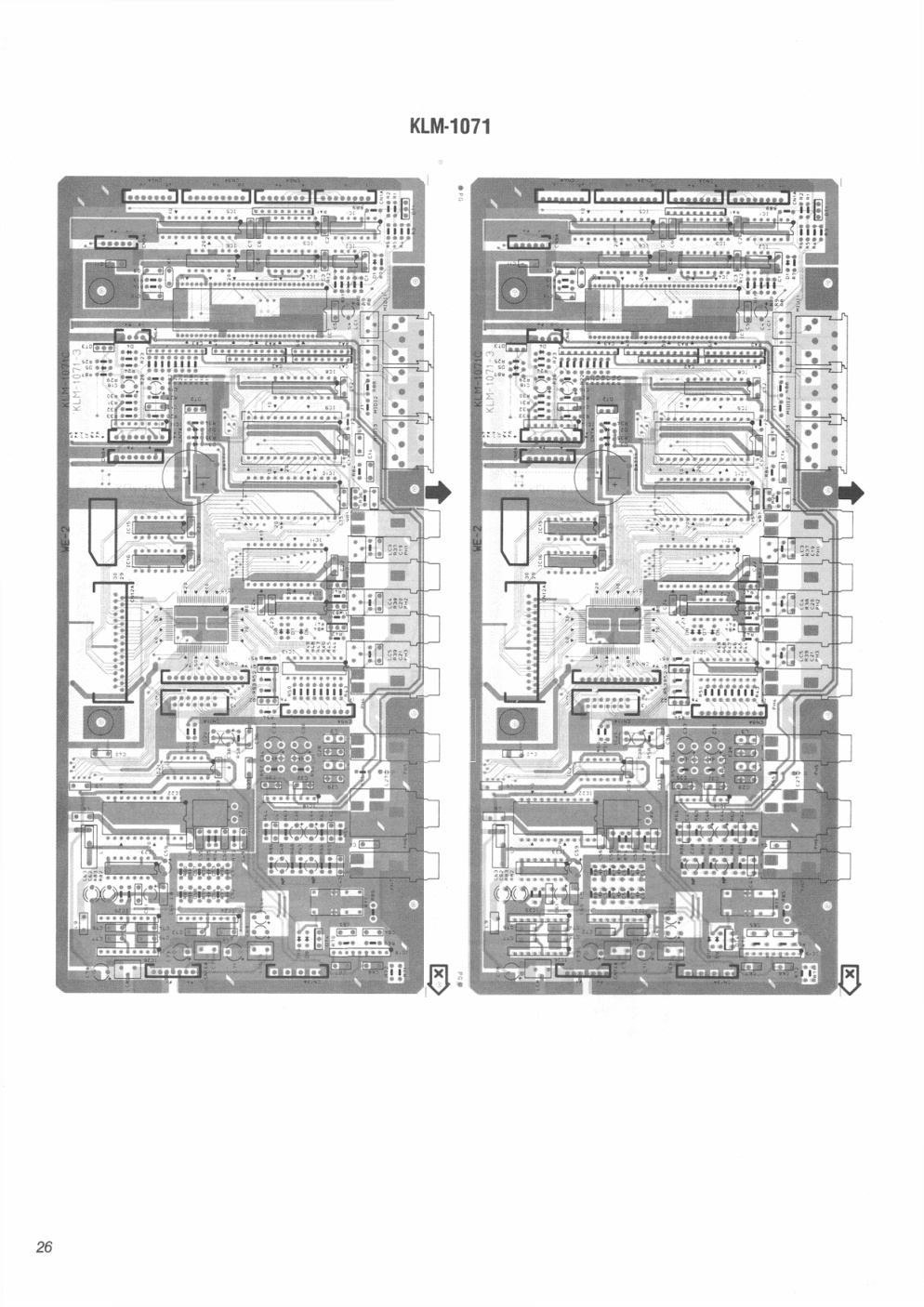

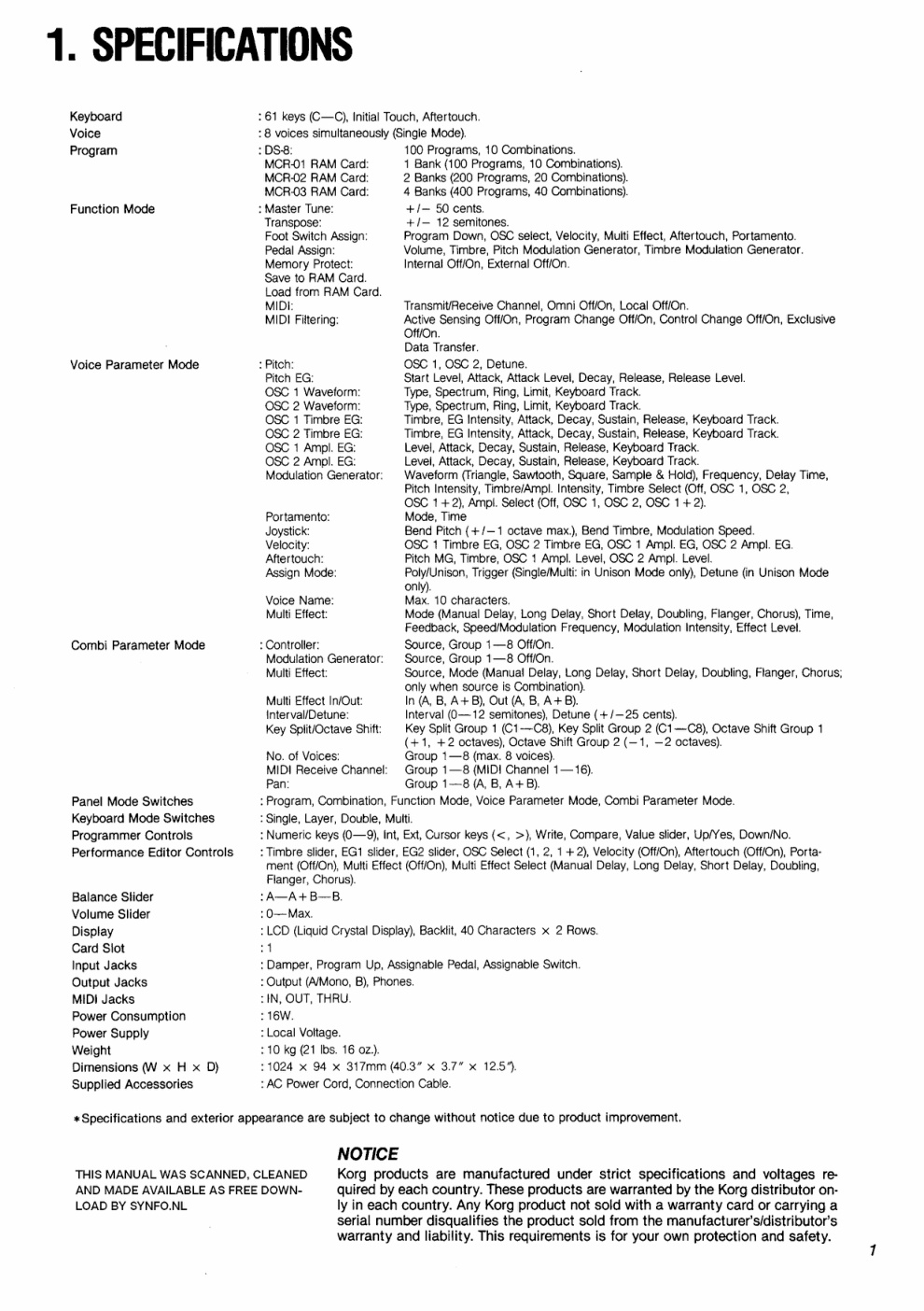

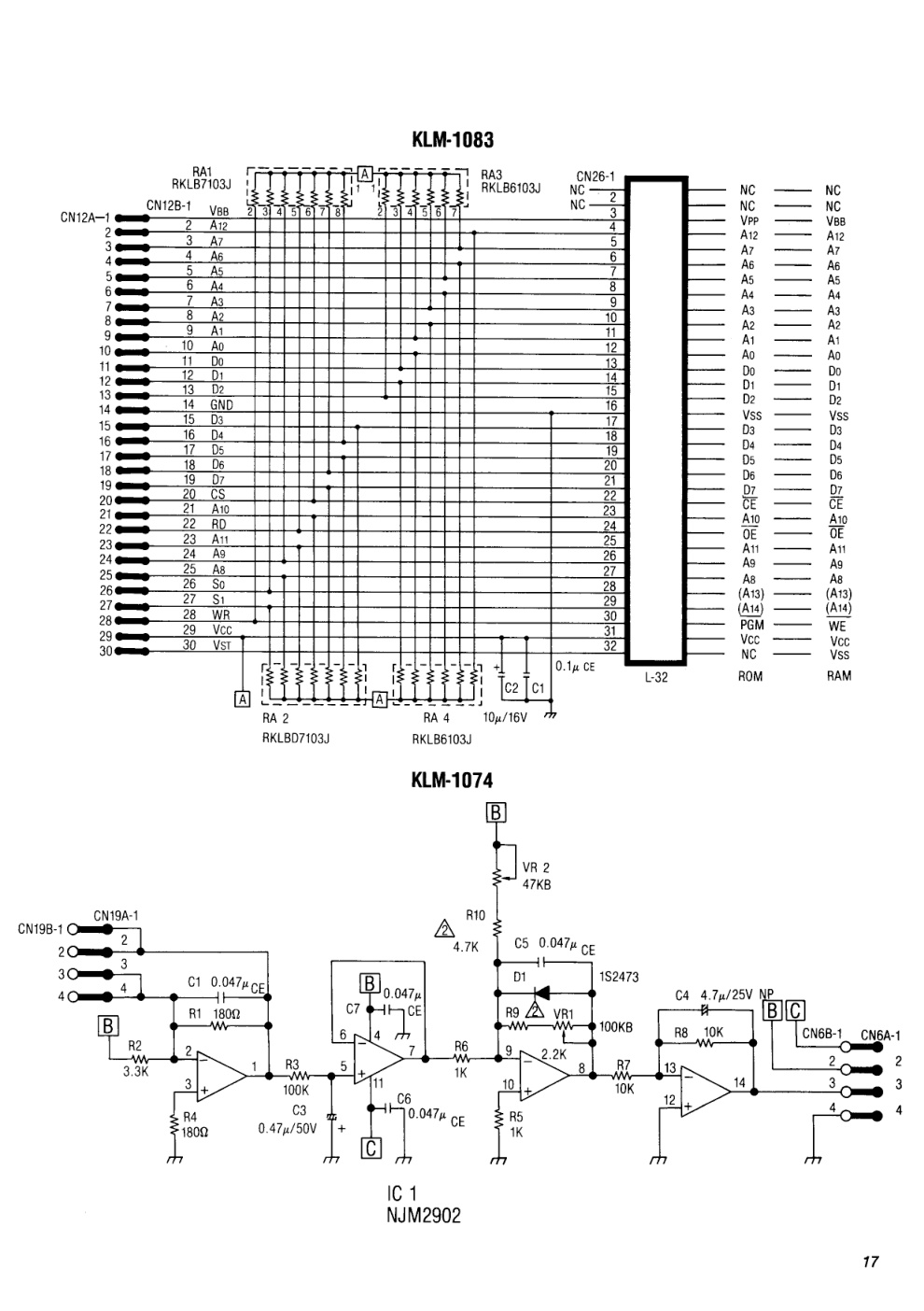

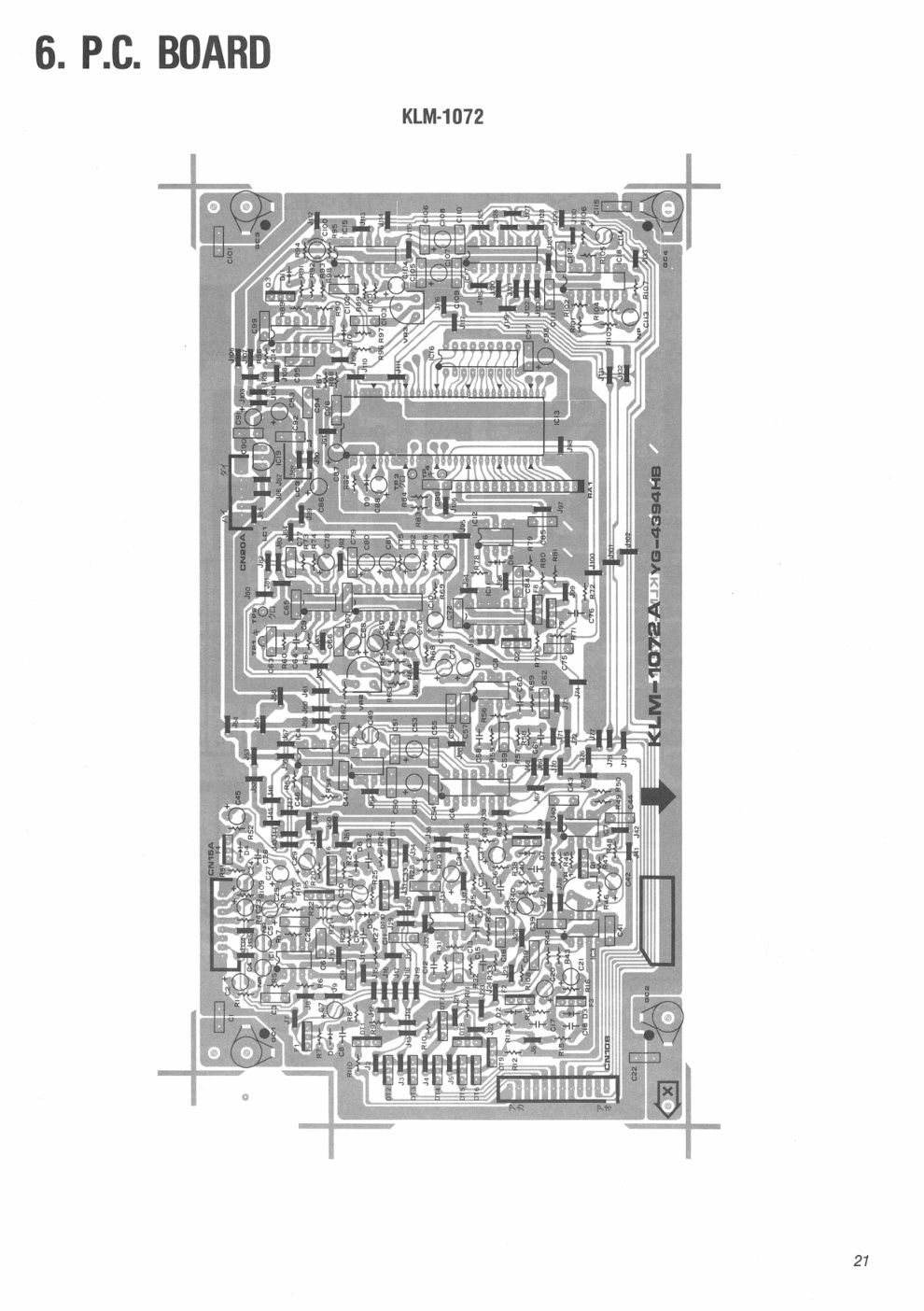

DIGITAL SYNTHESIZER ■疆 80BHC3 J:. 1. SPECIFICATIONS......... 1 6. P.C. BOARD.................... 21 7. CHECK AND 2. MIDI IMPLEMENTATION.. ■■2 ADJUSTMENT PROCEDURE 3. STRUCTURAL DIAGRAM 1 27 2 4. BLOCK DIAGRAM........ 1 8. REFERENCE DATA........... 5. CIRCUIT DIAGRAM....... 1 9. PARTS LIST................... 1.SPECIFICATIONS Keyboard:61 keys (C— C), Initial Touch, Aftertouch. Voice:8 voices simultaneously (Single Mode). Program:DS-8: 100 Programs,10 Combinations. MCR-01 RAM Card 1 Bank (100 Programs,10 Combinations). MCR-02 RAM Card 2 Banks (200 Programs, 20 Combinations). MCR-03 RAM Card 4 Banks (400 Programs, 40 Combinations). Function Mode: Master Tune: + / - 50 cents. Transpose: •f/ - 1 2 semitones. Foot Switch Assign: Program Down, OSC select, Velocity, Multi Effect, Aftertouch, Portamento. Pedal Assign: Volume, Timbre, Pitch Modulation Generator, Timbre Modulation Generator.

DIGITAL SYNTHESIZER DÜ-8MANUAL: へ- : ぐ ” へ ■疆 80BHC3 J : . CONTENTS 1 . SPECIFICATIONS......... 1 6. P.C. BOARD.................... 21 7. CHECK AND 2. MIDI IMPLEMENTATION.. ■■2 ADJUSTMENT PROCEDURE 3. STRUCTURAL DIAGRAM 1 27 2 4. BLOCK DIAGRAM........ 1 8. REFERENCE DATA........... 4 28 5. CIRCUIT DIAGRAM....... 1 9. PARTS LIST................... 30 5 K O R G 1 .SPECIFICATIONS Keyboard :61 keys (C— C), Initial Touch, Aftertouch. Voice :8 voices simultaneously (Single Mode). Program :DS-8: 100 Programs,10 Combinations. MCR-01 RAM Card 1 Bank (100 Programs,10 Combinations). MCR-02 RAM Card 2 Banks (200 Programs, 20 Combinations). MCR-03 RAM Card 4 Banks (400 Programs, 40 Combinations). Function Mode : Master Tune: + / - 50 cents. Transpose: •f/ - 1 2 semitones. Foot Switch Assign: Program Down, OSC select, Velocity, Multi Effect, Aftertouch, Portamento. Pedal Assign: Volume, Timbre, Pitch Modulation Generator, Timbre Modulation Generator. Memory Protect: Internal Off/On, External Off/On. Save to RAM Card. Load from RAM Card. MIDI: Transmit/Receive Channel, Omni Off/On, Local Off/On. MIDI Filtering: Active Sensing Off/On, Program Change Off/On, Control Change Off/On, Exclusive…
