Kenworth T4 T6 T9 Conventional Models Wiring Diagrams

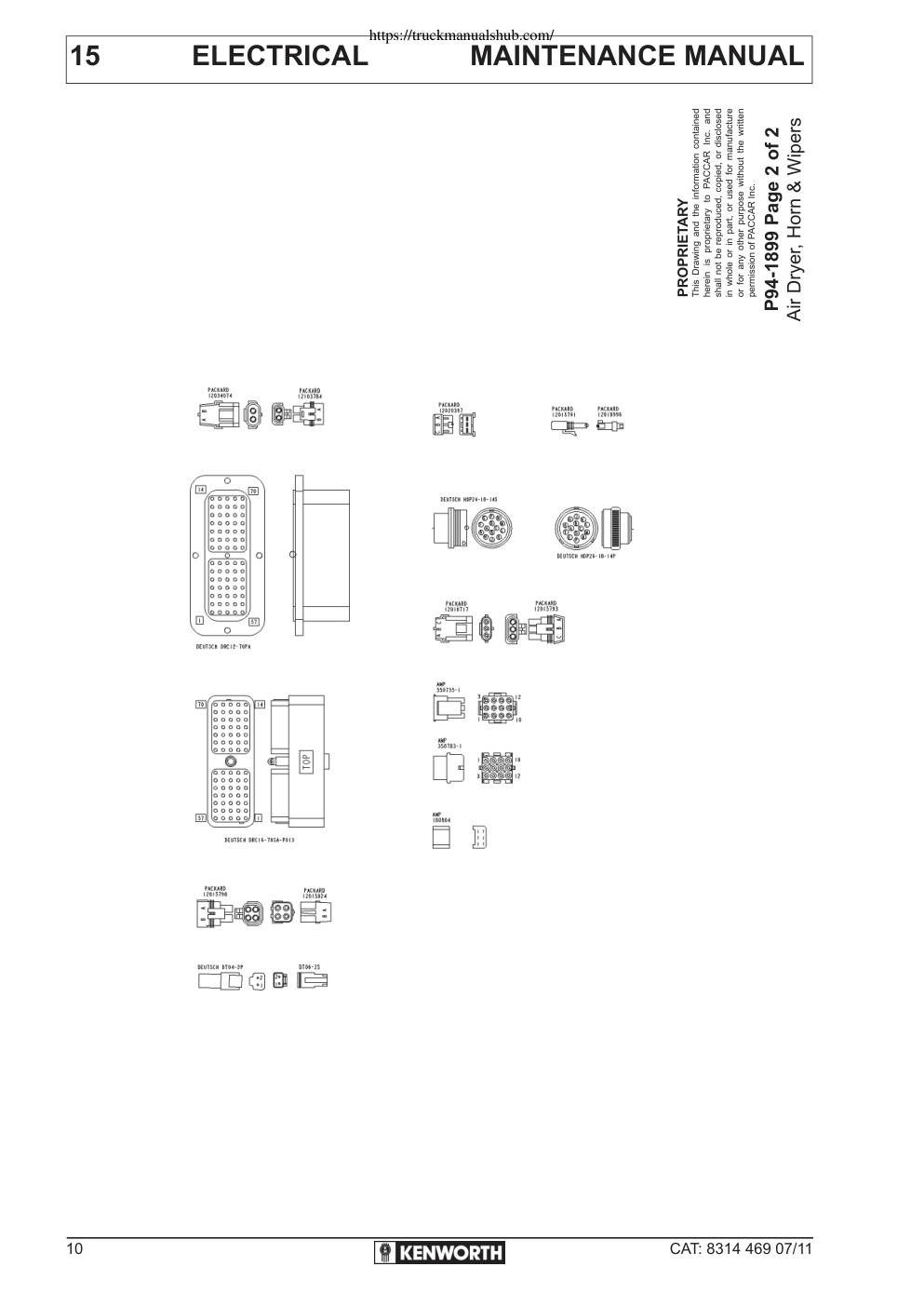

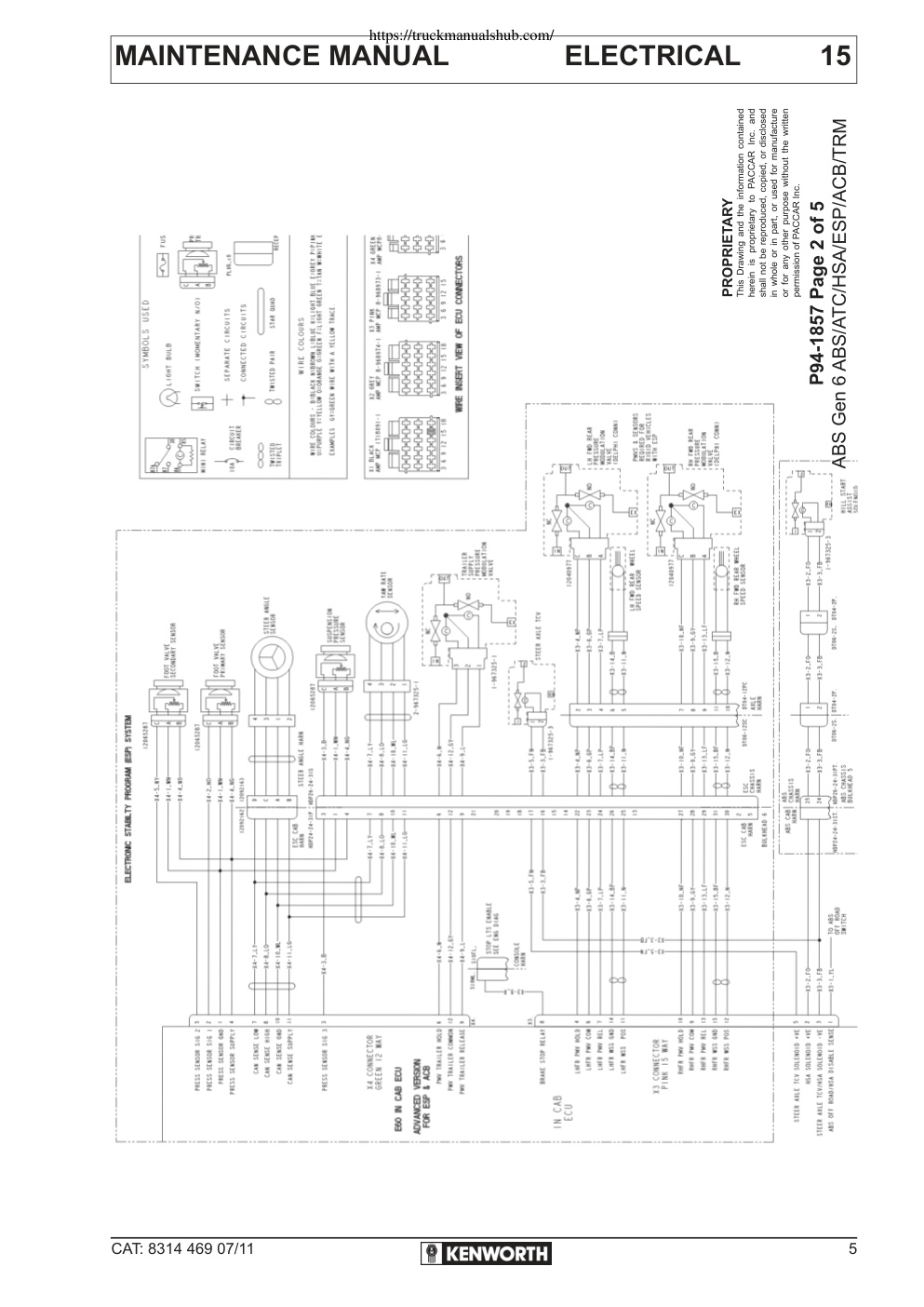

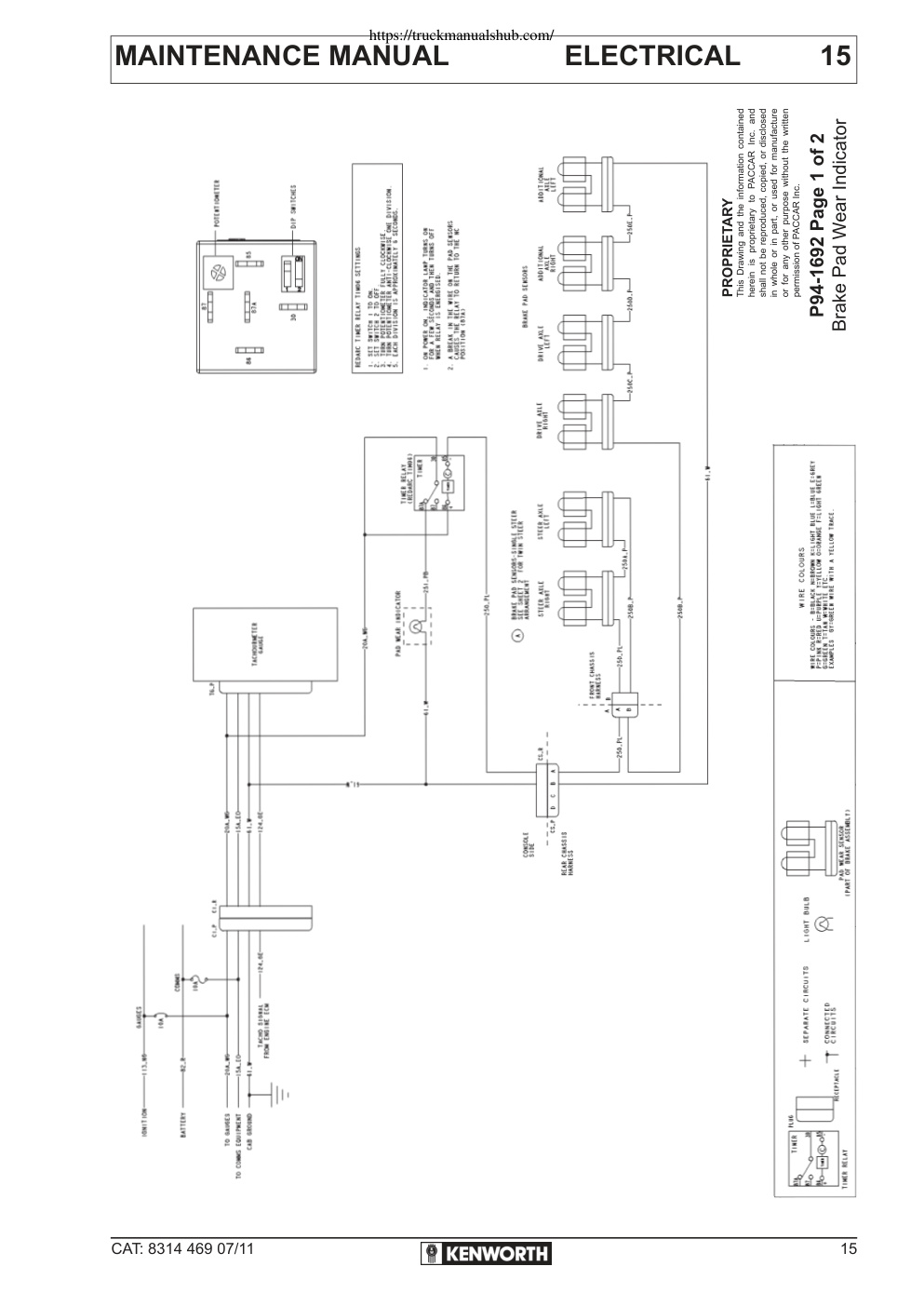

MAINTENANCE MANUAL ELECTRICAL 15 KENWORTH WIRING DIAGRAMS T4, T6 & T9 CONVENTIONAL MODELS DESCRIPTION........................................................... DRAWING No......... PAGE. REV Master Wiring Diagram (Conventional Models).............................. P94-1730 2 pages........ 2........ Rev. - ABS, Bendix Gen 6 ABS/ATC/HSA/ESP/ACB/TRM ABS, Trailer ABS & Active Cruise Braking....................................... P94-1857 5 Page.......... 4......... Rev. - Air Dryer, Horn & Wipers.................................................................. P94-1899 2 Pages........ 9.......... Rev. - Air Switch Control, Diff & Interaxle Lock & Susp Air Dump.............. P94-1901 1 Page.......... 11....... Rev. - Ashdown Battery Isolation Switch.................................................... P94-1902 3 Pages........ 12........ Rev. - Brake pad Wear Indicator (Meritor

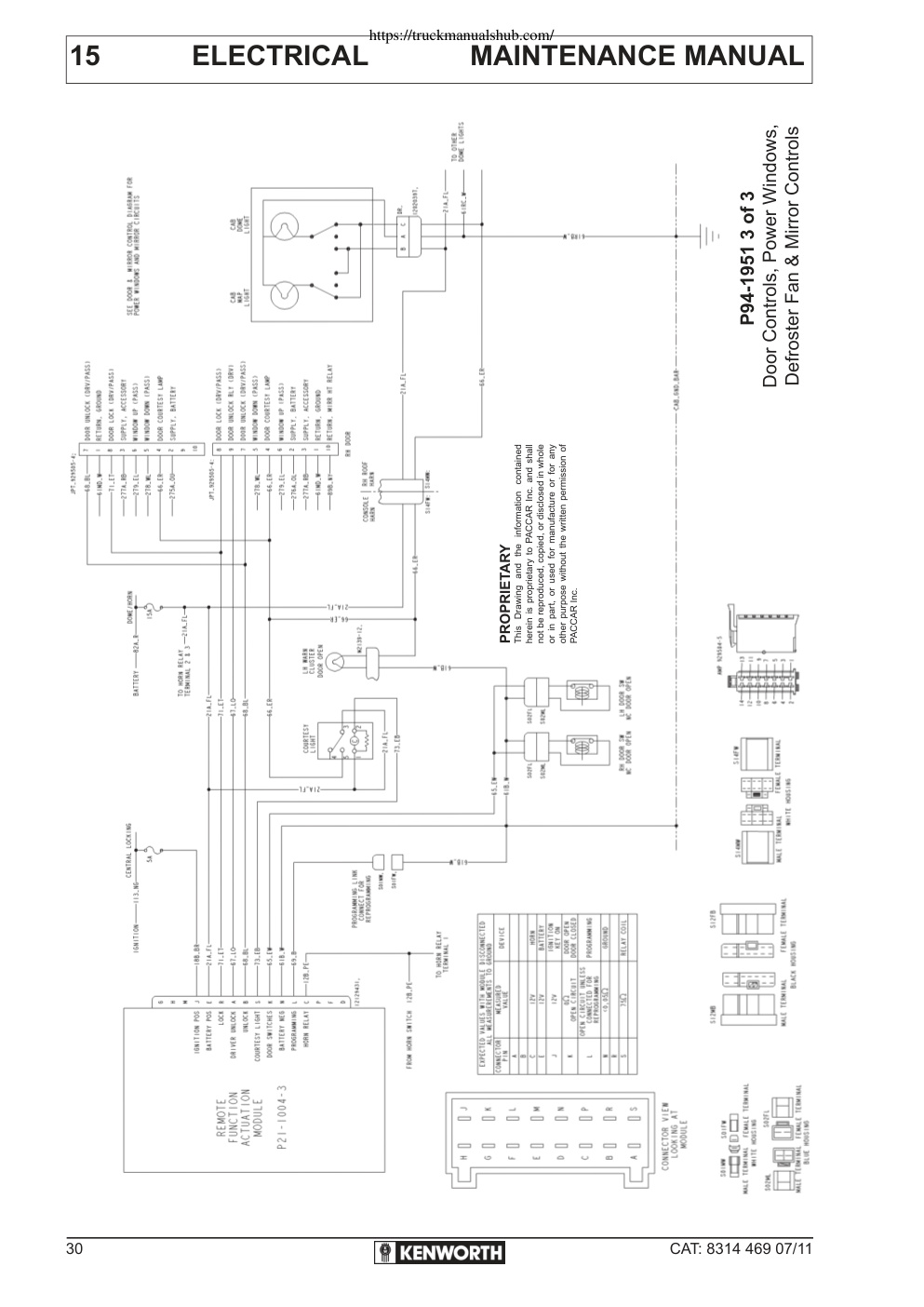

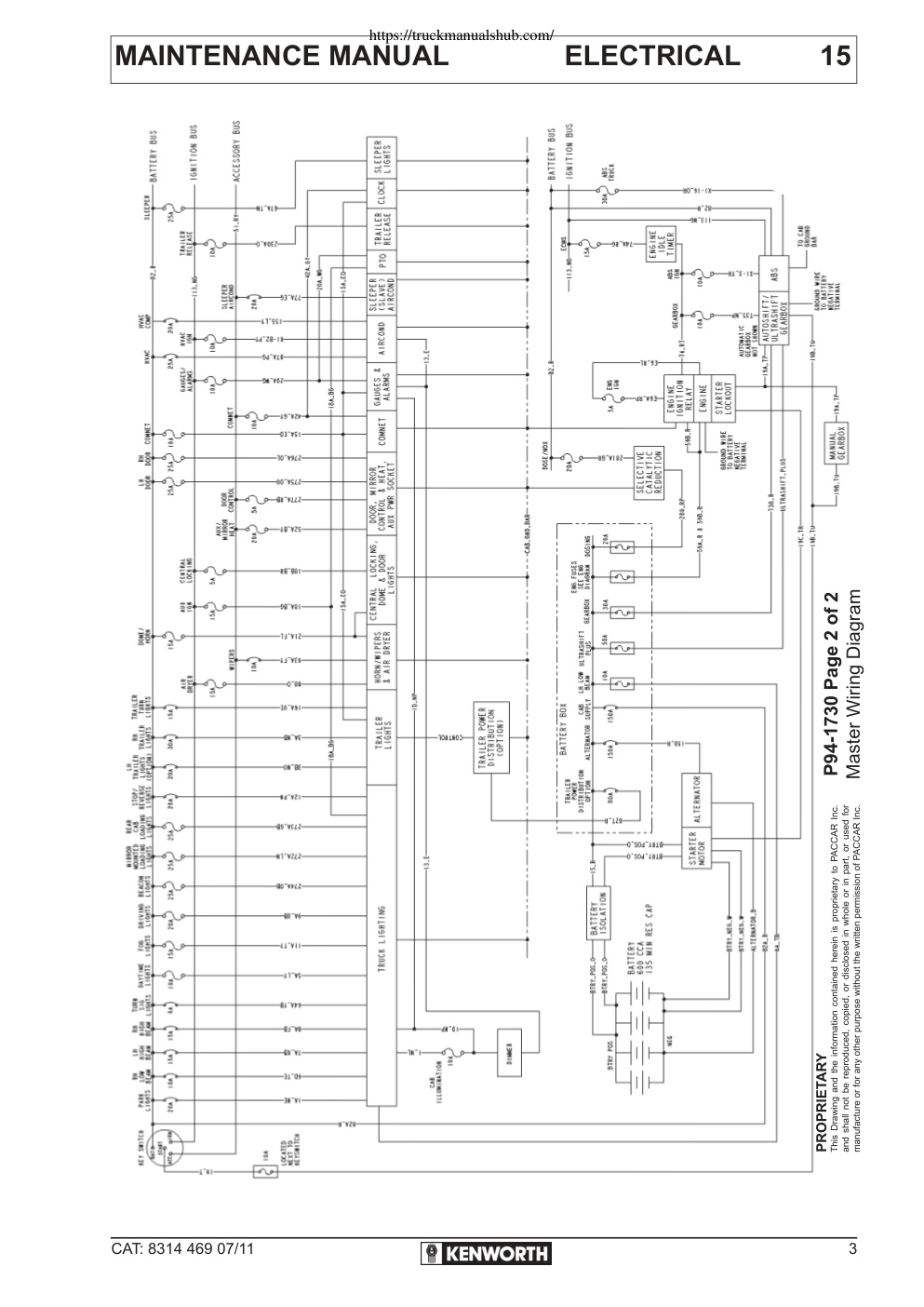

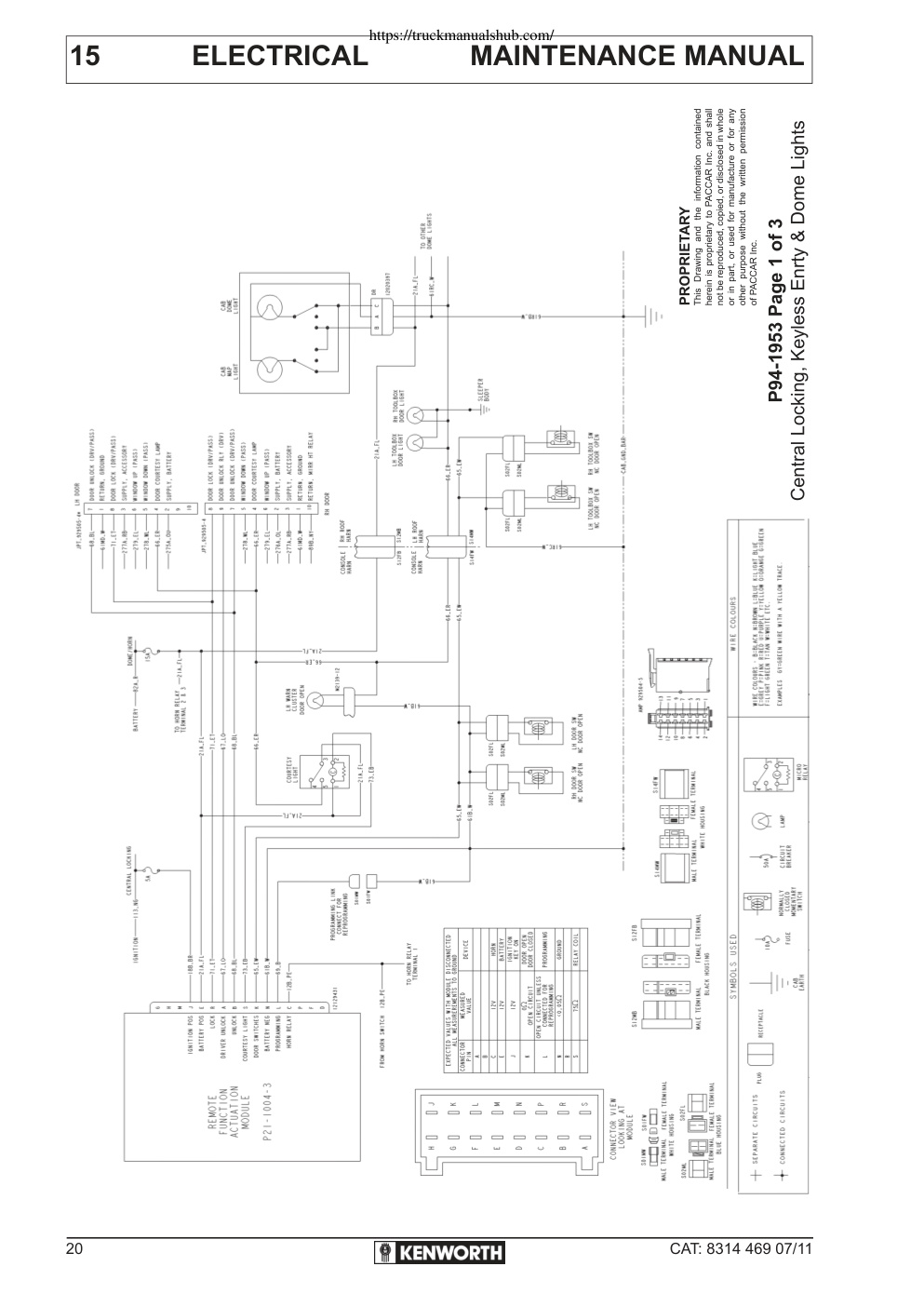

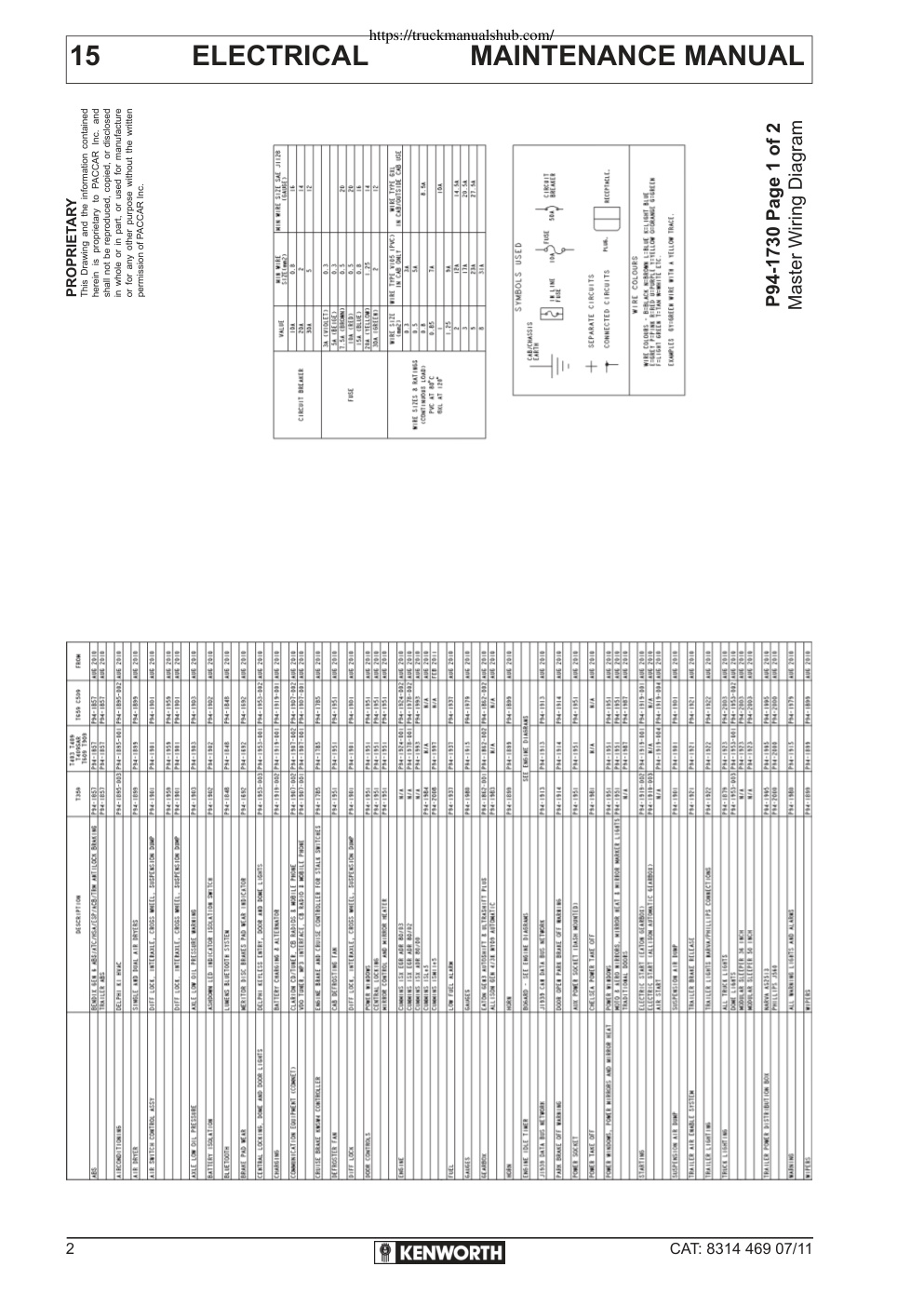

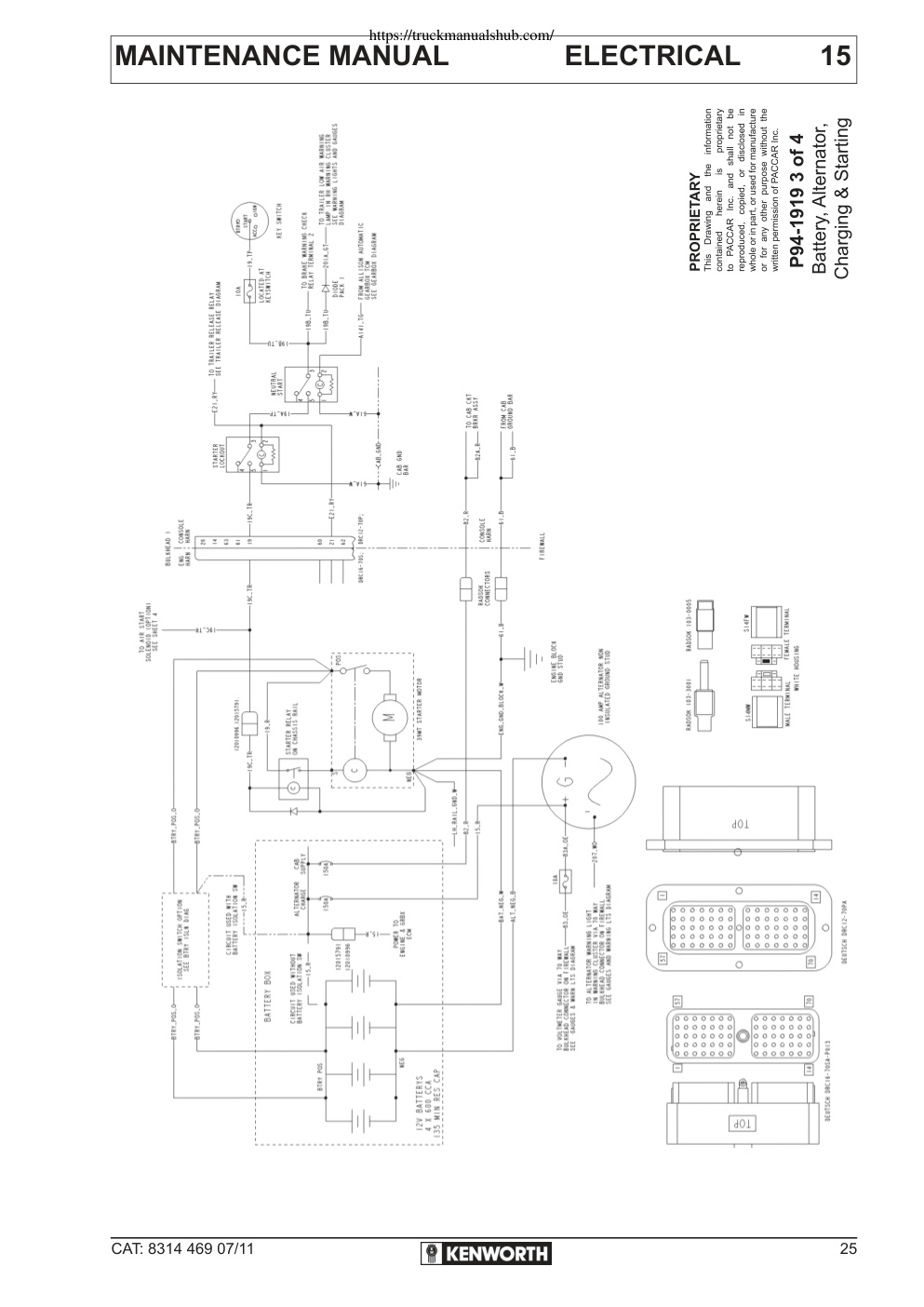

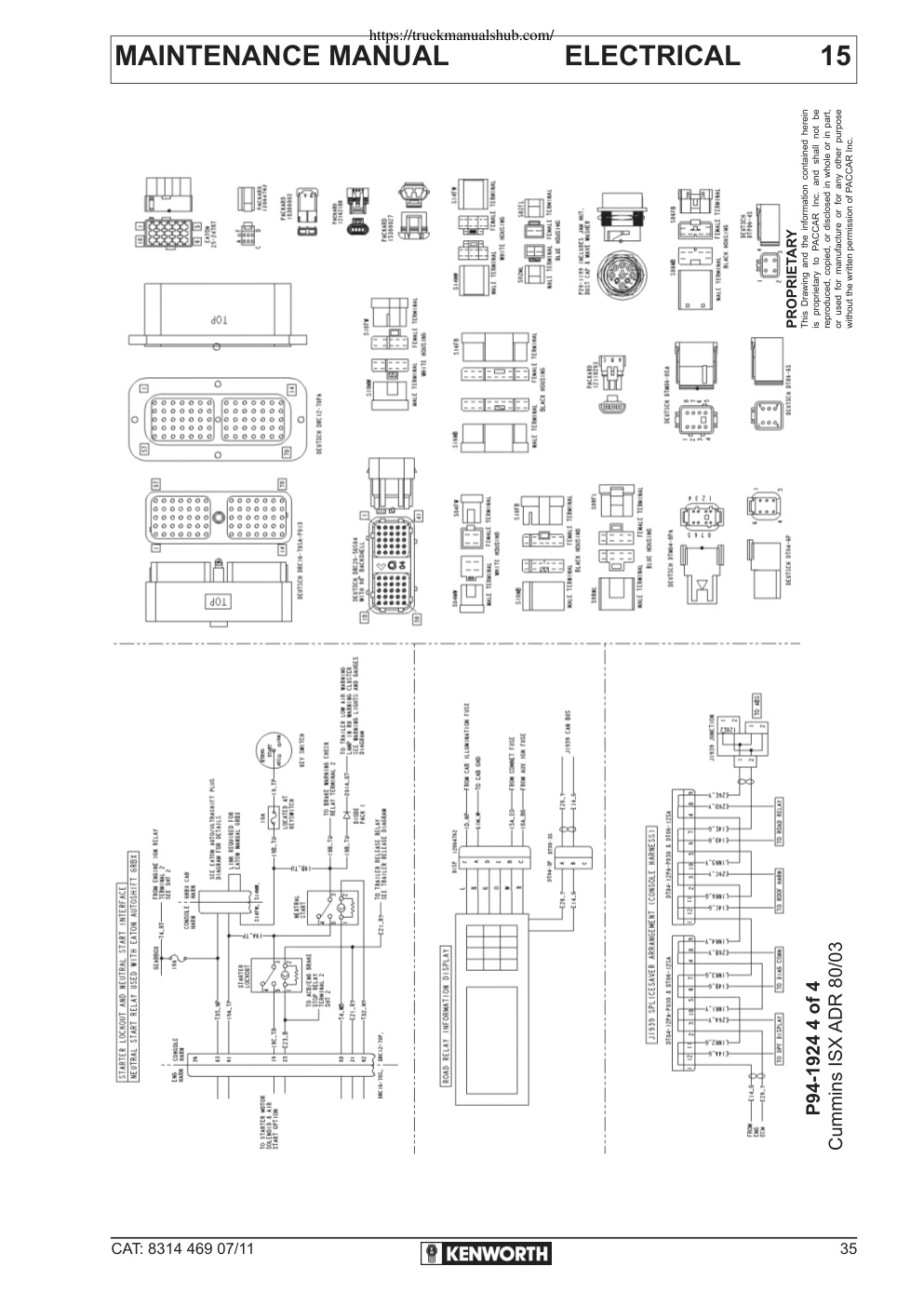

https://truckmanualshub.com/ MAINTENANCE MANUAL ELECTRICAL 15 KENWORTH WIRING DIAGRAMS T4, T6 & T9 CONVENTIONAL MODELS DESCRIPTION ........................................................... DRAWING No ......... PAGE. REV Master Wiring Diagram (Conventional Models) .............................. P94-1730 2 pages ........ 2 ........ Rev. - ABS, Bendix Gen 6 ABS/ATC/HSA/ESP/ACB/TRM ABS, Trailer ABS & Active Cruise Braking ....................................... P94-1857 5 Page .......... 4 ......... Rev. - Air Dryer, Horn & Wipers .................................................................. P94-1899 2 Pages ........ 9.......... Rev. - Air Switch Control, Diff & Interaxle Lock & Susp Air Dump .............. P94-1901 1 Page .......... 11 ....... Rev. - Ashdown Battery Isolation Switch .................................................... P94-1902 3 Pages ........ 12........ Rev. - Brake pad Wear Indicator (Meritor Disc Brakes) .............................. P94-1692 2 Pages ........ 15........ Rev. B CD/Tuner/CB Radio/Mobile Phone/MP3 Interface ........................... P94-1907 3 Pages ........ 17........ Rev. - Central Locking, Keyless Entry & Dome Lights…
