Kioti Tractor LK3054XS Workshop Manual

_] 11.4 [U,[i nnn vec /\i Dr | || Po — i — iif LE LA lo i Lou | on | = a oe fl. i ‘| ae fo ea | vi | |G Sy It i eee | i | __ FE A || | | | EE — SE) À fe Ne mm ——— = (A, PE À. — Te — > NL UR Ferg A ity, — sy Er 4 a FL L Fa — ee. all i. he SS — LL / SS _ _— ee: SSS | WON Si a = —— hi tal | (Se a aie Fr il ———— — —————S | | M — rm = Le ee ———— ee | all ‘(4 ae ar A ih | eee a Soa LSS. _ SS À à em Bee 0 # “LA Ate VN Ln ——_ — —— TL ae aa a a a ffi] eg a eee —— — Pe = a et ar is ee ee Oe IEEE | CC — rl pe — Pr) Dr | DE OA OO A A AE | | =n | = Ss) eee Hy pe Se | — Ss. of = SES NN real | ——— | [Se ee Dee Fae il = OO | | es Mae a ee lies D —_—_——_—— | || A St a Vn 1. lee = El! a = ath: ——— — | we eS | Se | =| | mm 1 Eee nl A sat, ——. ite AN ki = | — = | —— | ul | — | if FA a = = Î ———— ST 7 — ae A ahi | hae i Fh eh = CH —————— - = || | FE | le | i Af Was RE —— RE — ———— | TE | fi = bi LL | N

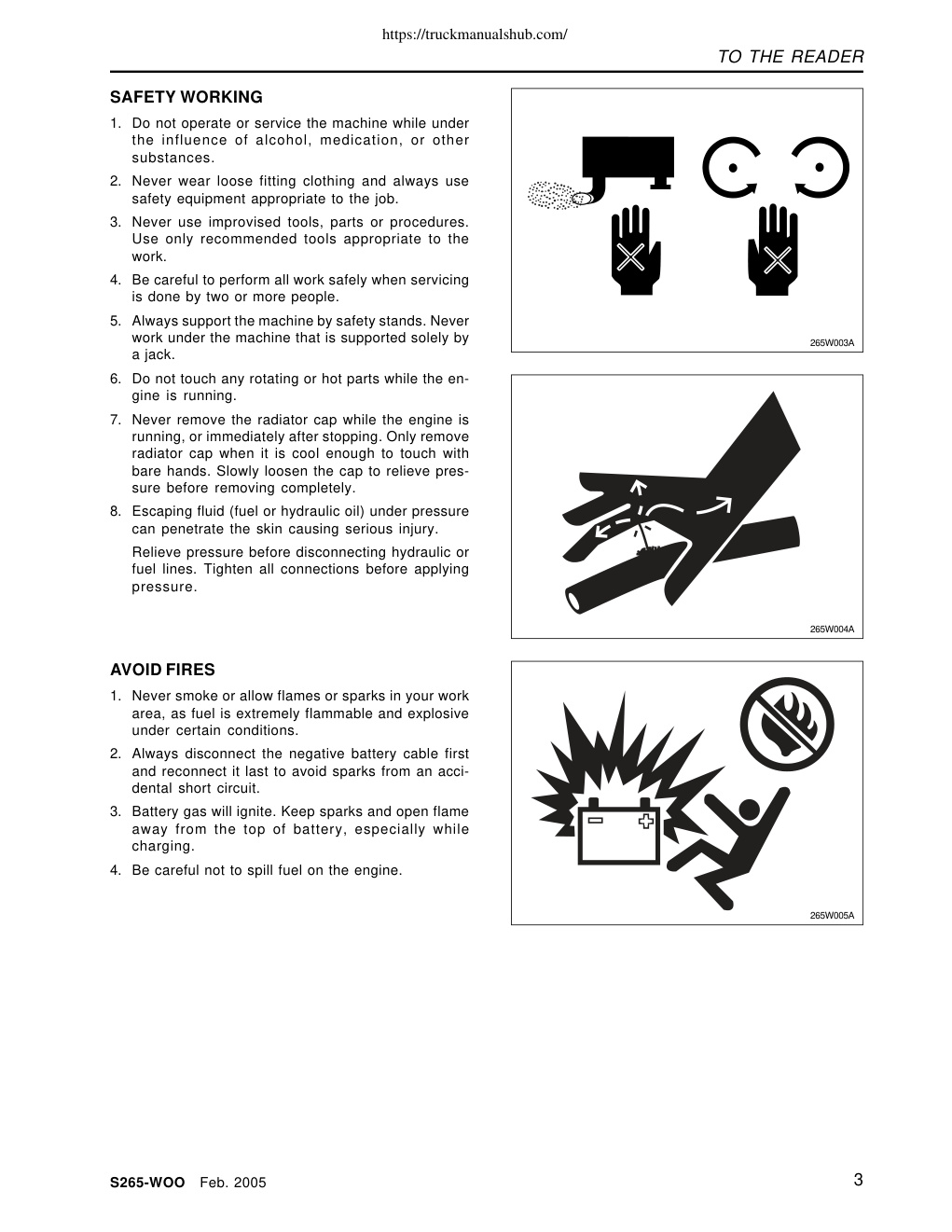

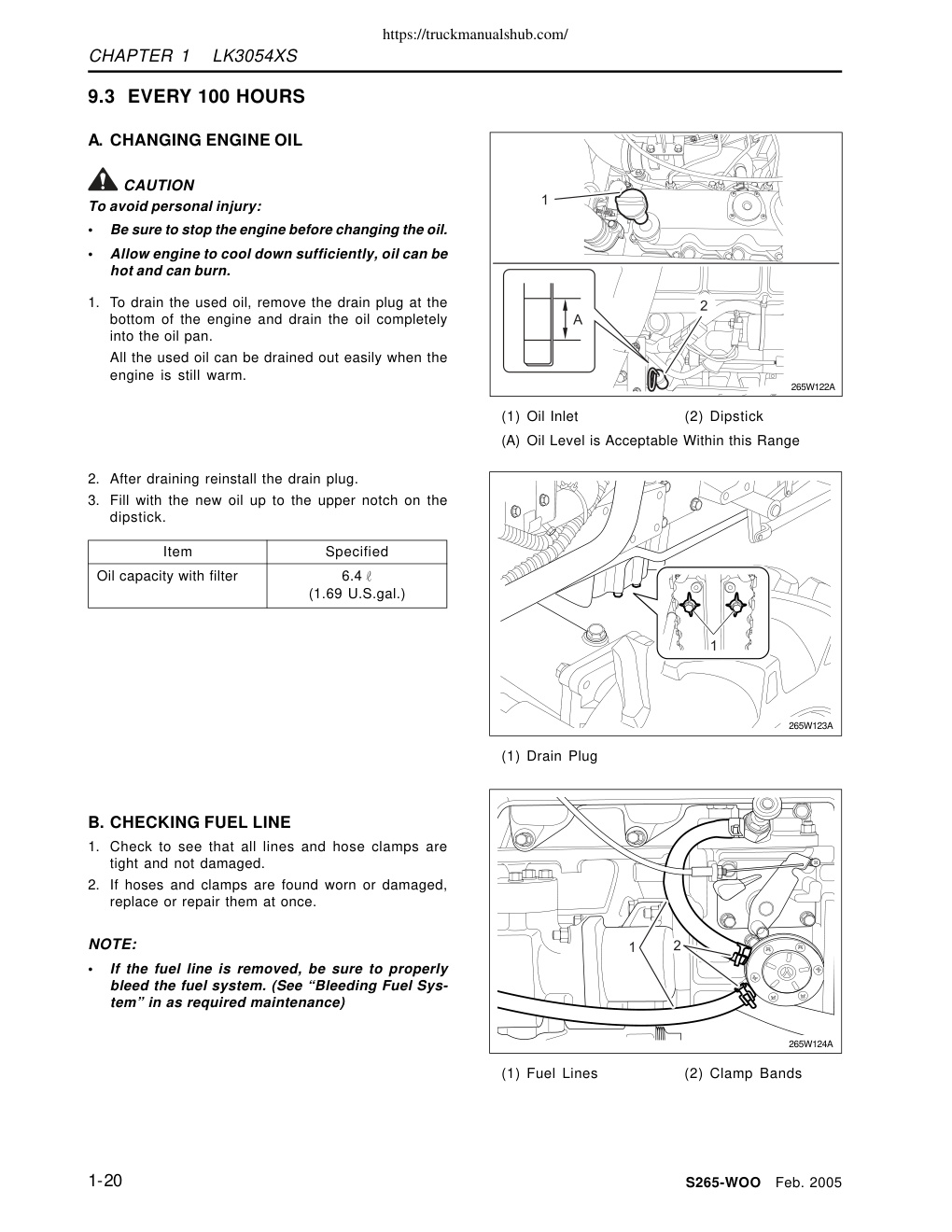

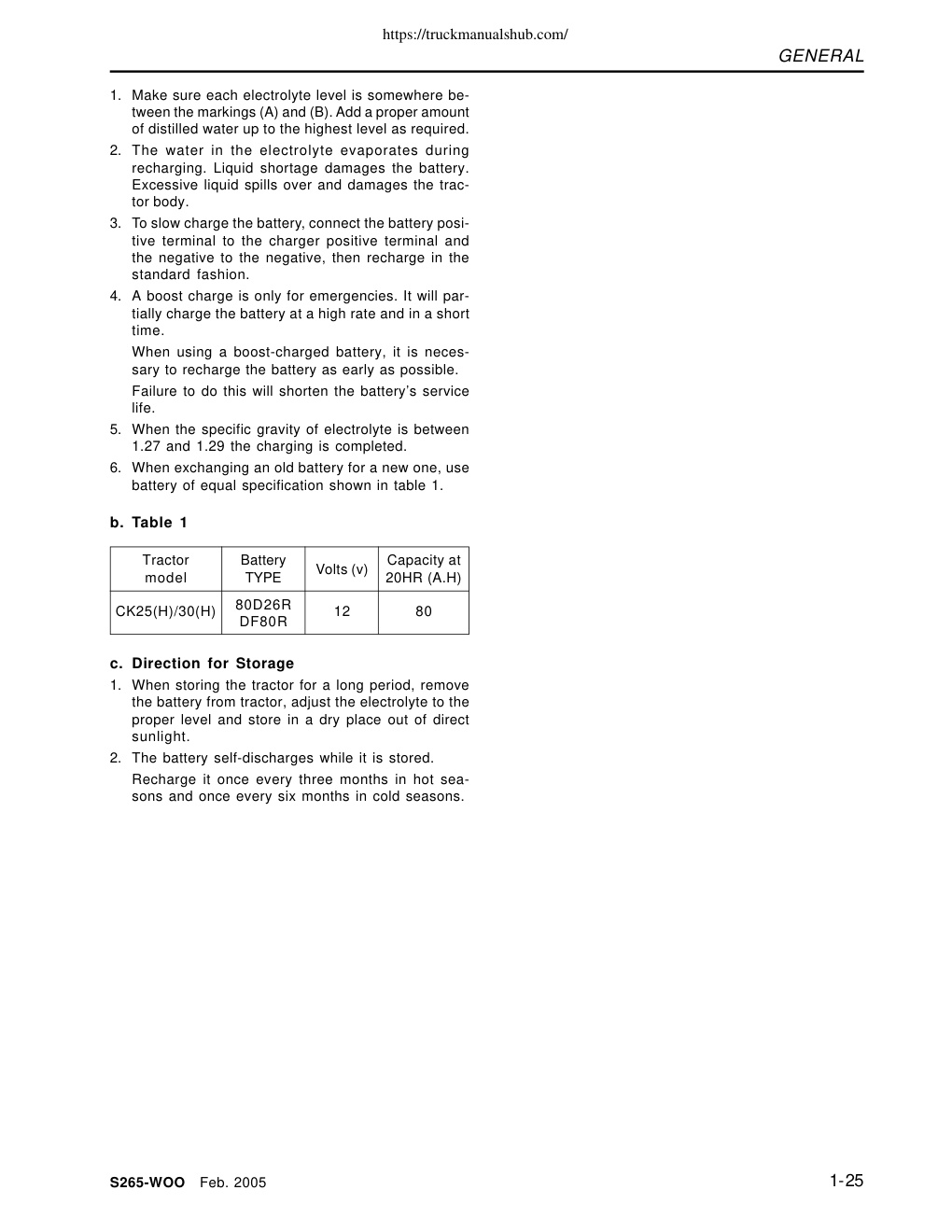

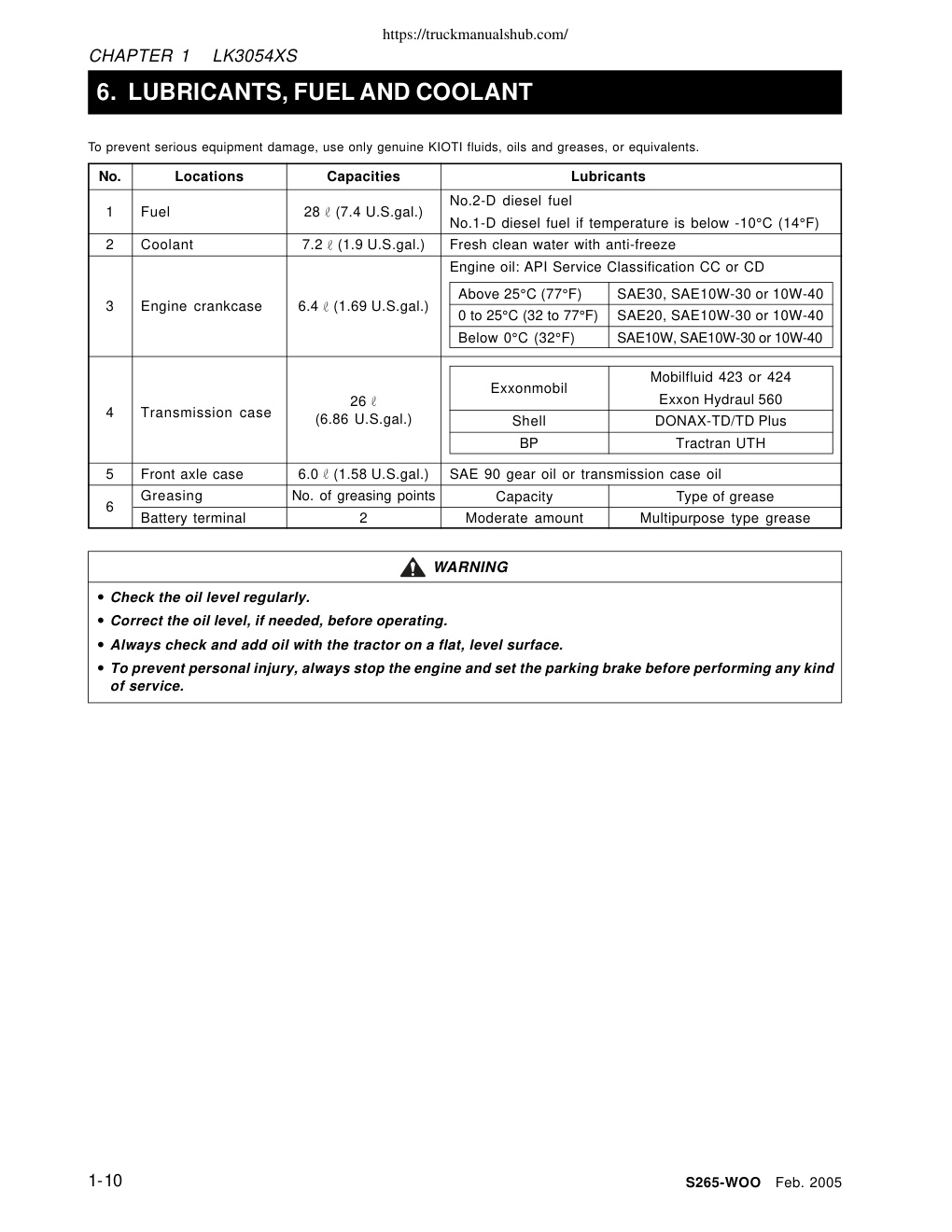

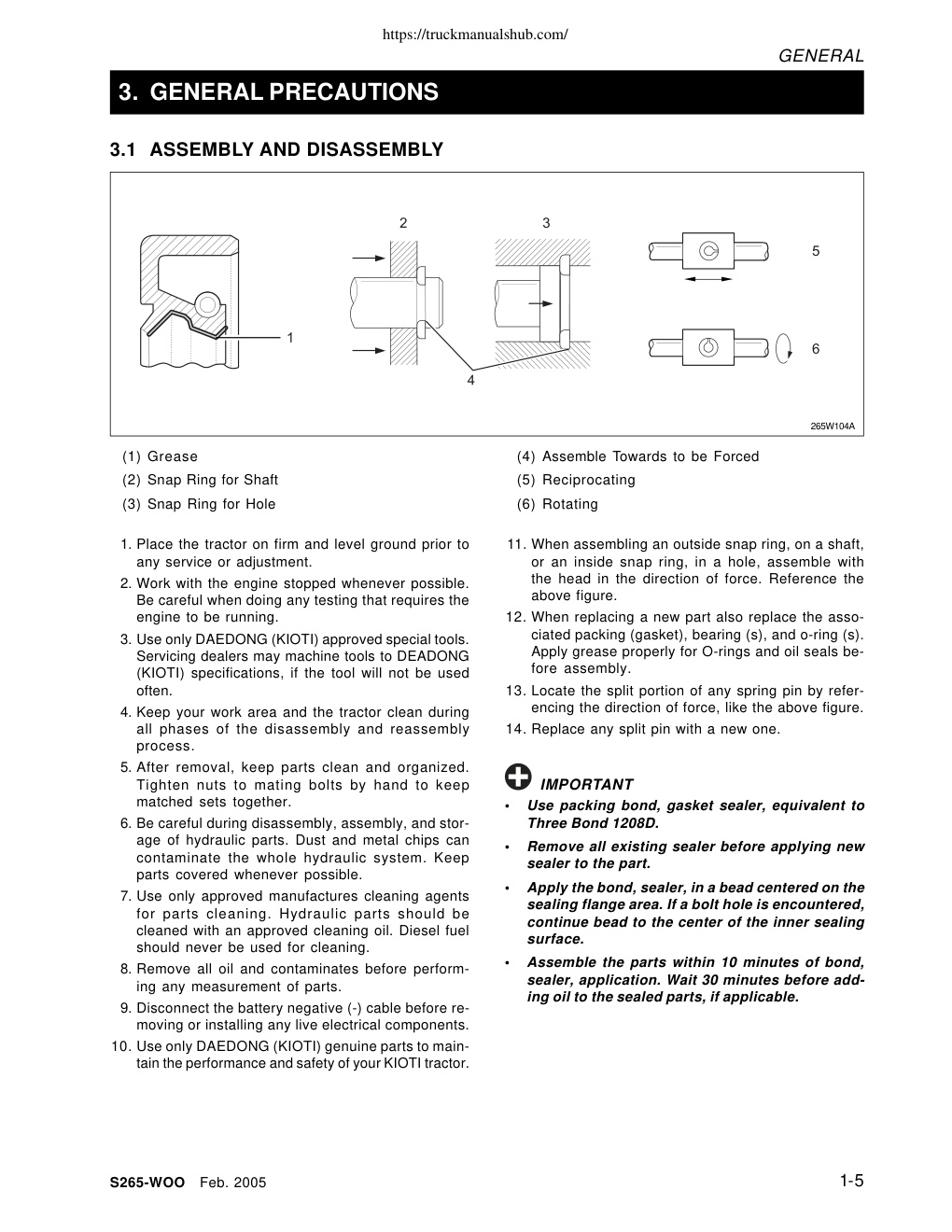

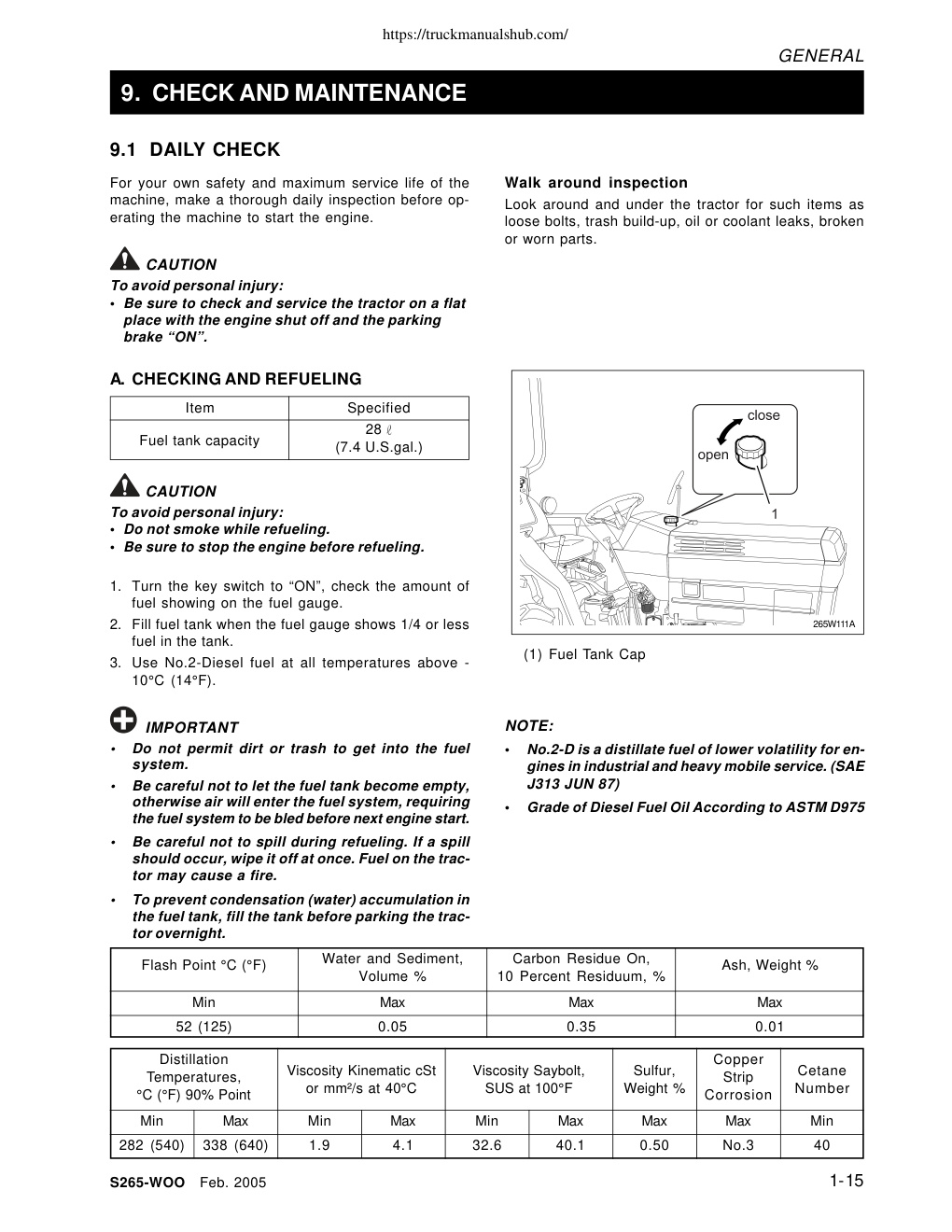

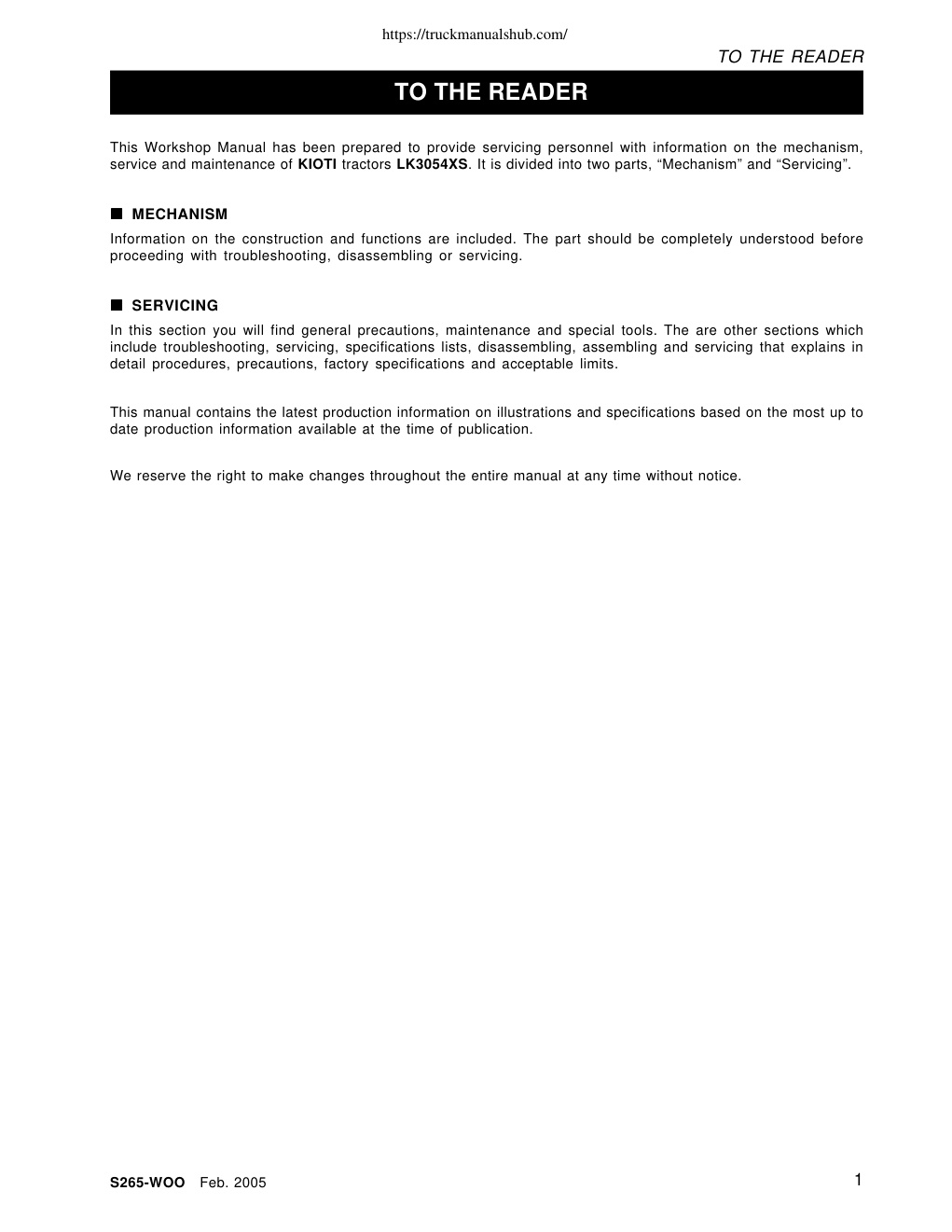

https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ TO THE READER TO THE READER This Workshop Manual has been prepared to provide servicing personnel with information on the mechanism, service and maintenance of KIOTI tractors LK3054XS. It is divided into two parts, “Mechanism” and “Servicing”. „ MECHANISM Information on the construction and functions are included. The part should be completely understood before proceeding with troubleshooting, disassembling or servicing. „ SERVICING In this section you will find general precautions, maintenance and special tools. The are other sections which include troubleshooting, servicing, specifications lists, disassembling, assembling and servicing that explains in detail procedures, precautions, factory specifications and acceptable limits. This manual contains the latest production information on illustrations and specifications based on the most up to date production information available at the time of publication. We reserve the right to make changes throughout the entire manual at any time without notice. S265-WOO Feb. 2005 1 https://truckmanualshub.com/ LK3054XS SAFETY FIRST This symbol, the…
