Korg 01RW SERVICE MANUAL ocr

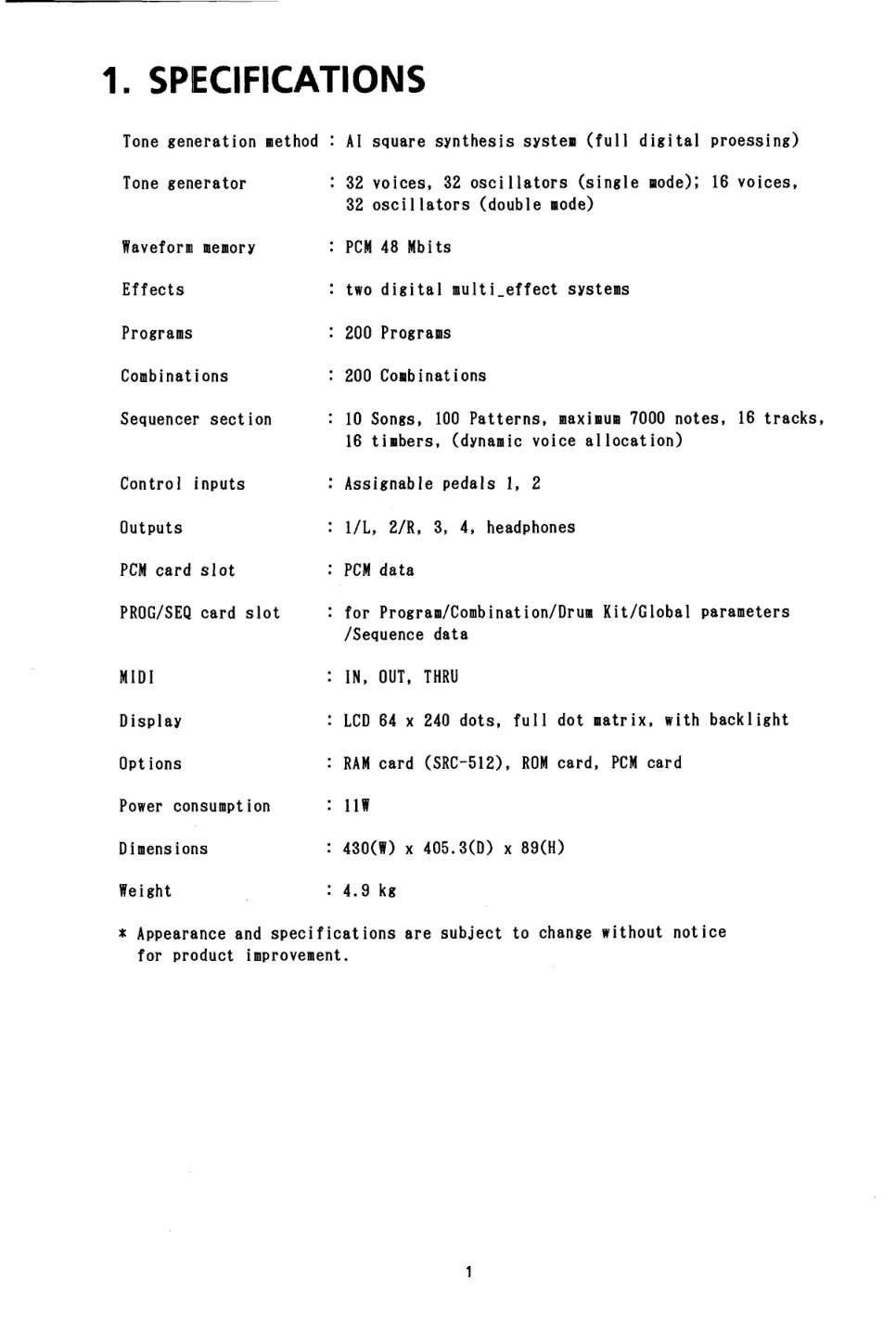

__________ CONTENTS___________ 1. SPECIFICATIONS.............................................................. 1 2. STRUCTURAL DIAGRAM............................................... 2 3. BLOCK DIAGRAM.......................................................... 3 4. CIRCUIT DIAGRAM........................................................ 4-a 5. P.C. BOARDS.................................................................... 6 6. DIAGNOSTIC TEST.......................................................... 9 7. REFERENCE DATA........................................................... 17 8. PARTS LIST...................................................................... 40 1. SPECIFICATIONS Tone generation method: AI square synthesis system (full digital proessing) Tone generator: 32 voices, 32 oscillators (single mode); 16 voices, 32 oscillators (double mode) ffaveform memory PCM 48 Mbit

SERVICE MANUAL 01R/W __________ CONTENTS___________ 1. SPECIFICATIONS .............................................................. 1 2. STRUCTURAL DIAGRAM ............................................... 2 3. BLOCK DIAGRAM .......................................................... 3 4. CIRCUIT DIAGRAM ........................................................ 4-a 5. P.C. BOARDS .................................................................... 6 6. DIAGNOSTIC TEST .......................................................... 9 7. REFERENCE DATA ........................................................... 17 8. PARTS LIST ...................................................................... 40 1. SPECIFICATIONS Tone generation method : AI square synthesis system (full digital proessing) Tone generator : 32 voices, 32 oscillators (single mode); 16 voices, 32 oscillators (double mode) ffaveform memory PCM 48 Mbits Effects two digital multi_effect systems Programs 200 Programs Combinations 200 Combinations Sequencer section 10 Songs, 100 Patterns, maximum 7000 notes, 16 tracks, 16 timbers, (dynamic voice allocation) Control inputs Assignable pedals 1, 2 Outputs 1/L, 2/R, 3, 4,…
