Korg 01W WFD SERVICE MANUAL ocr

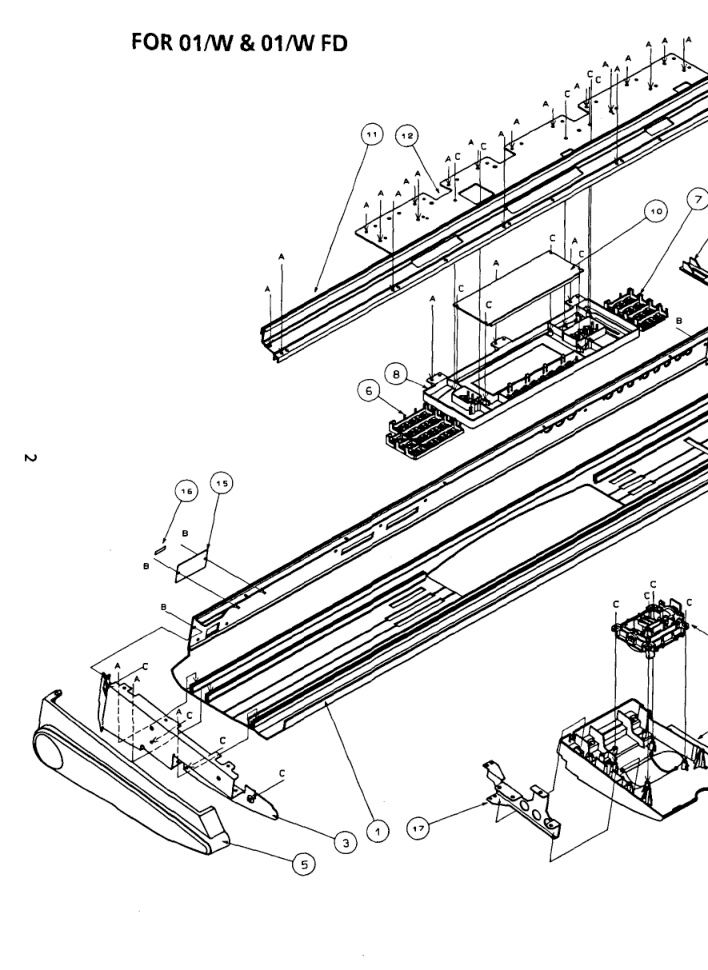

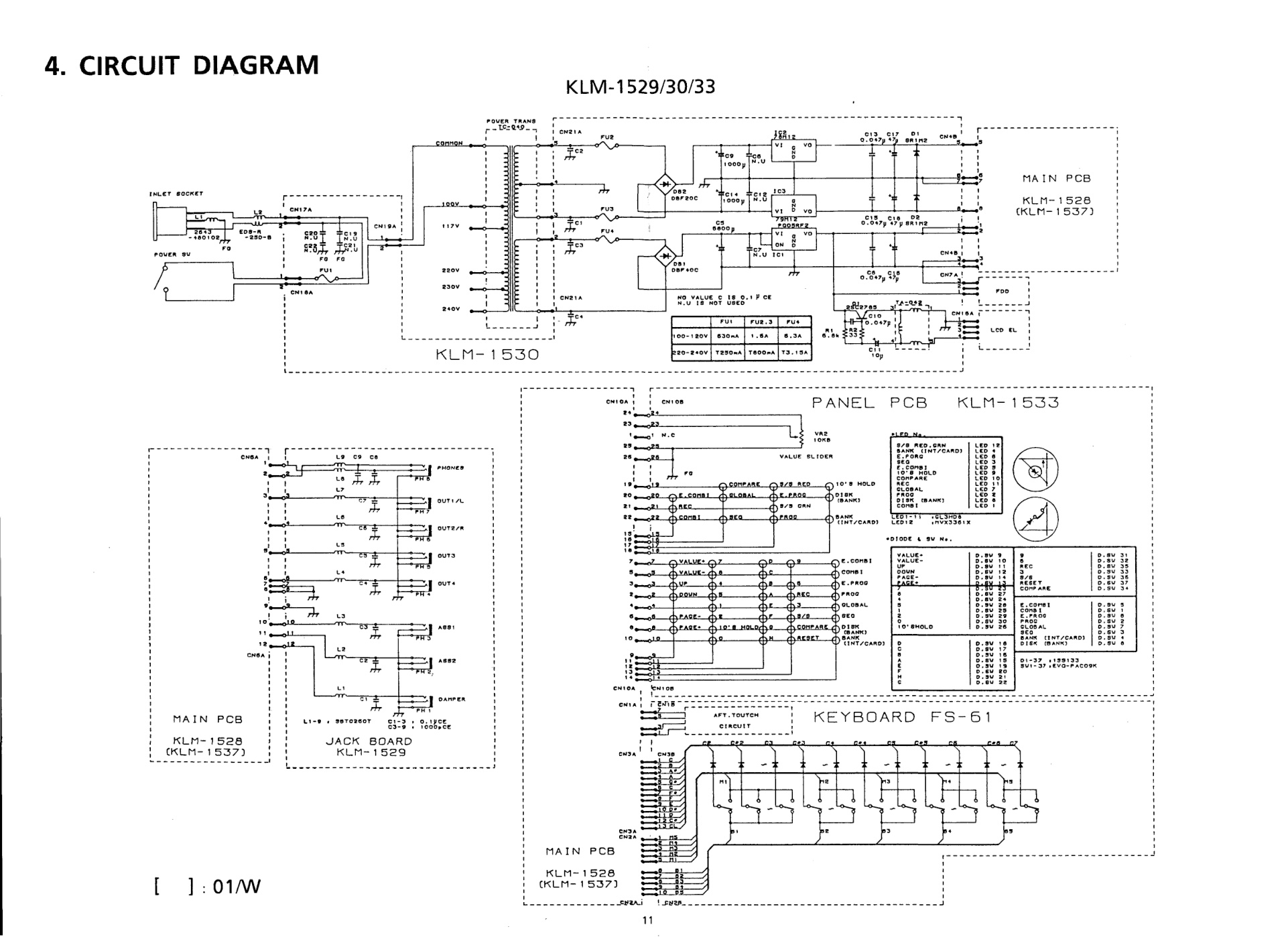

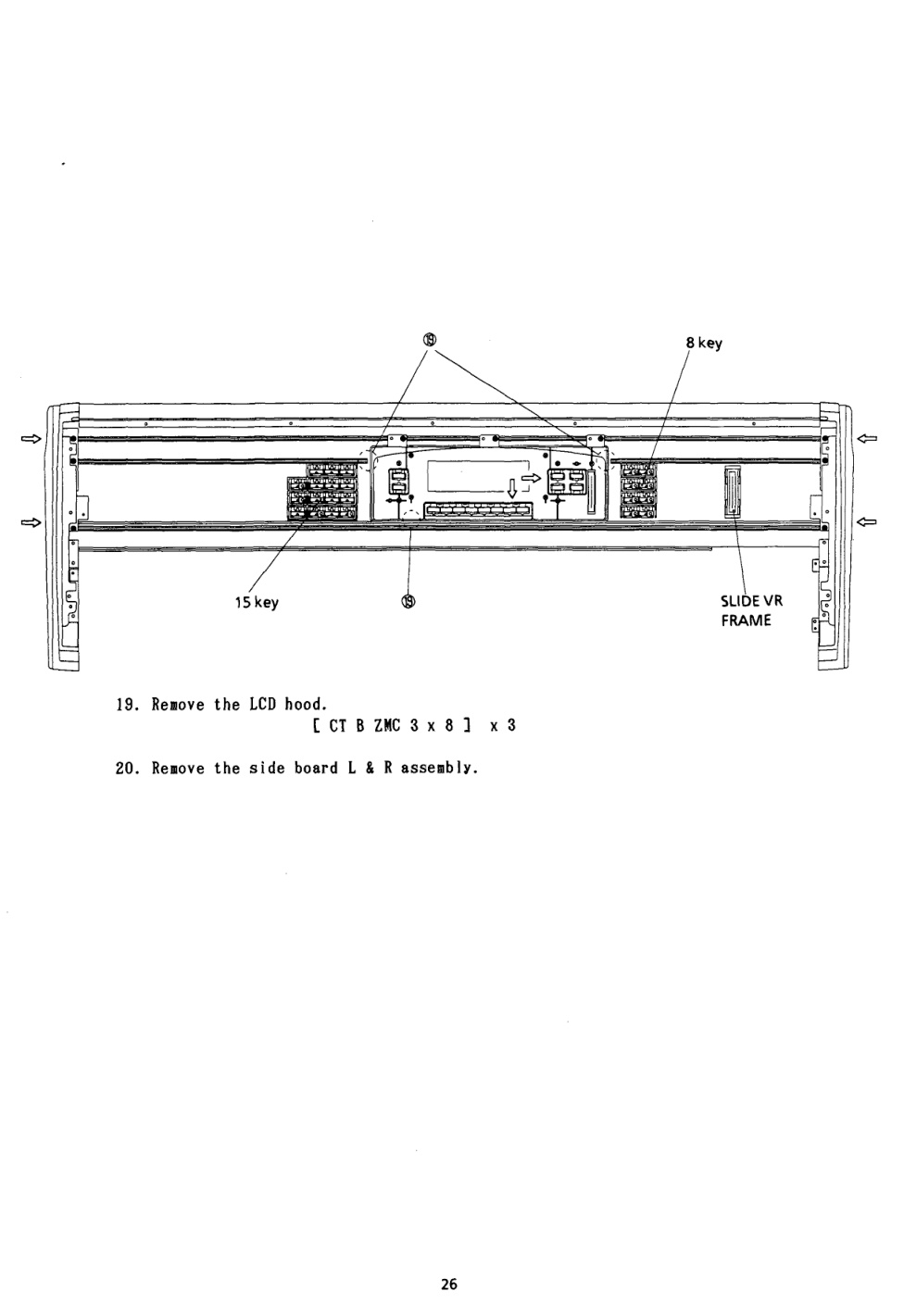

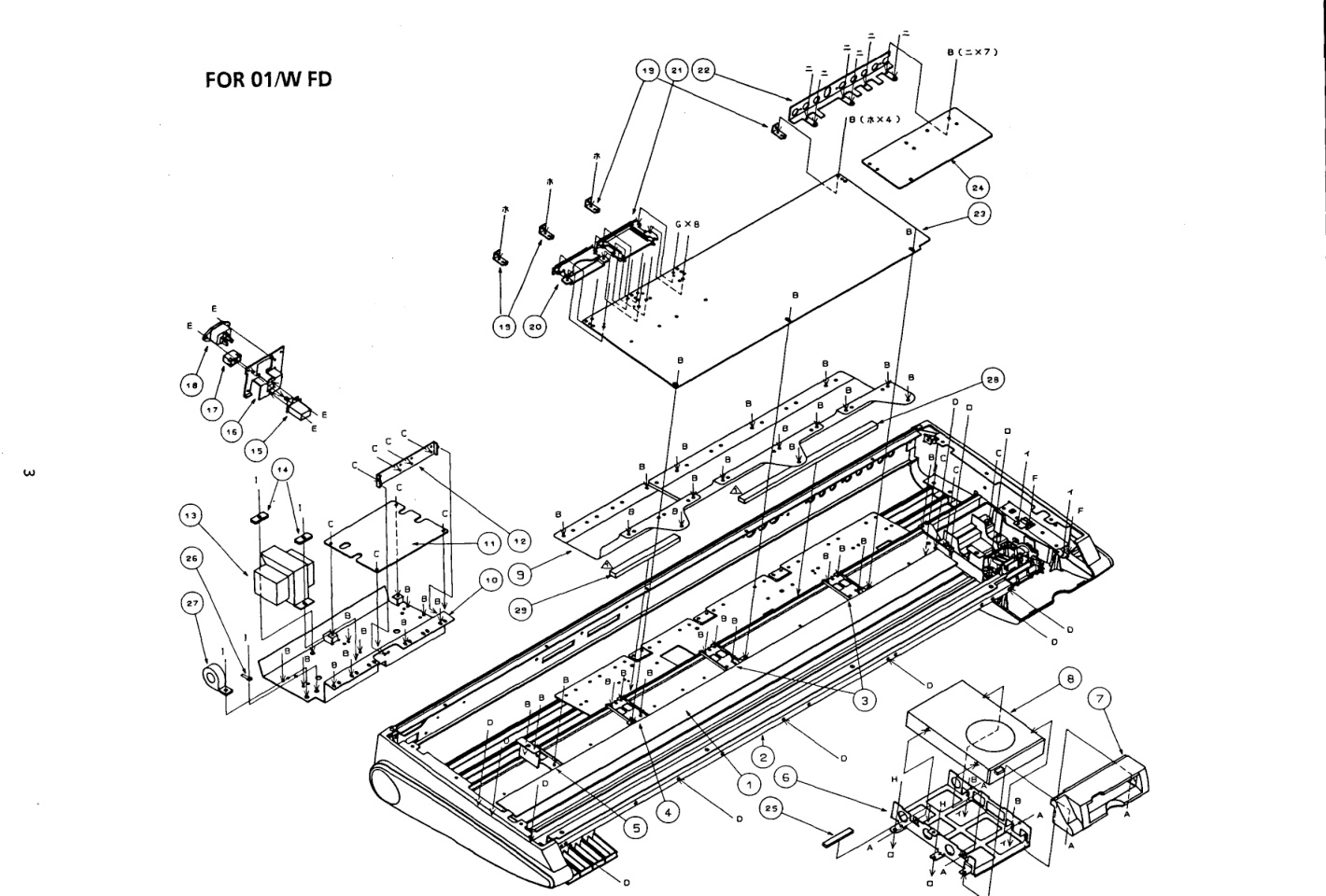

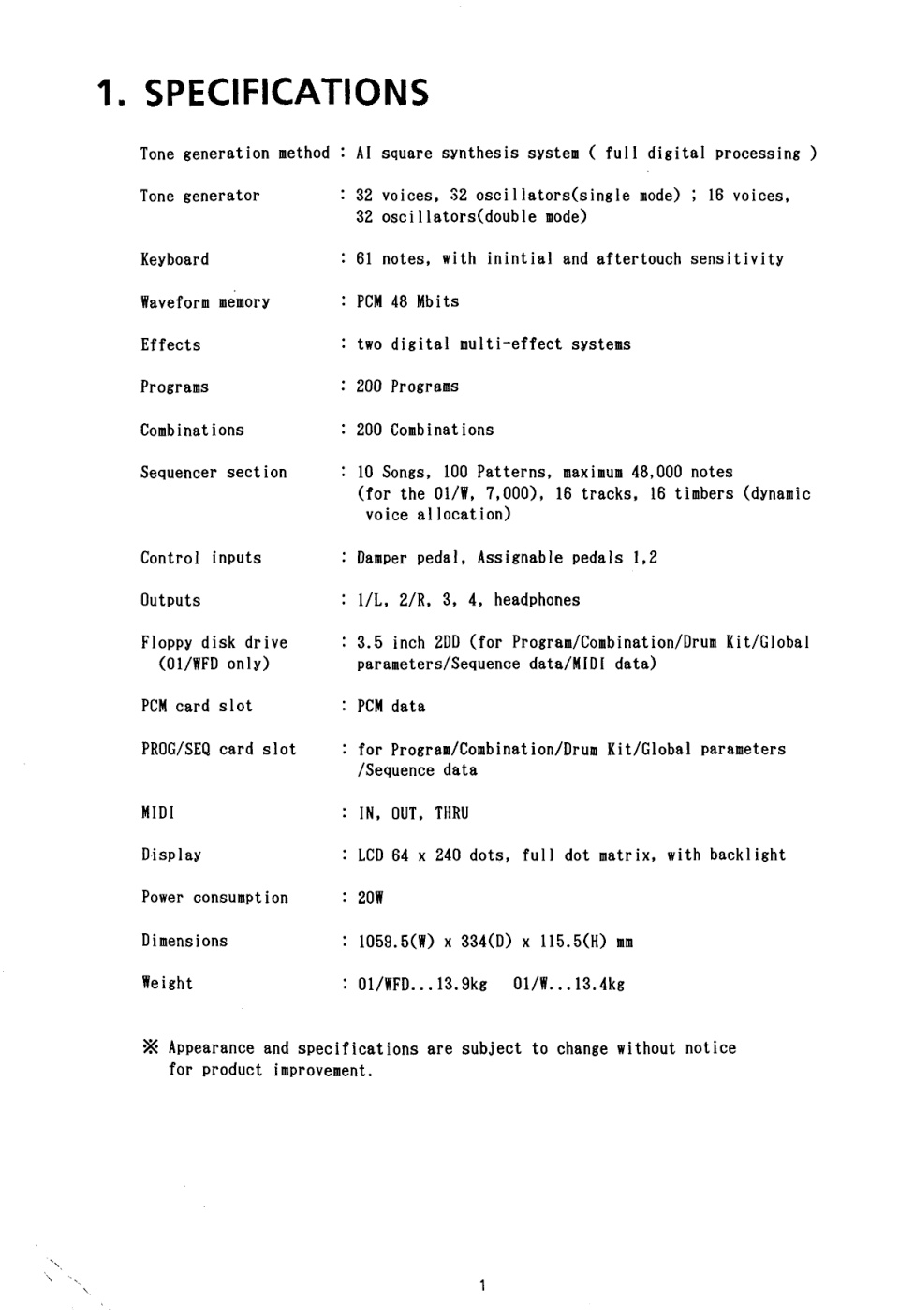

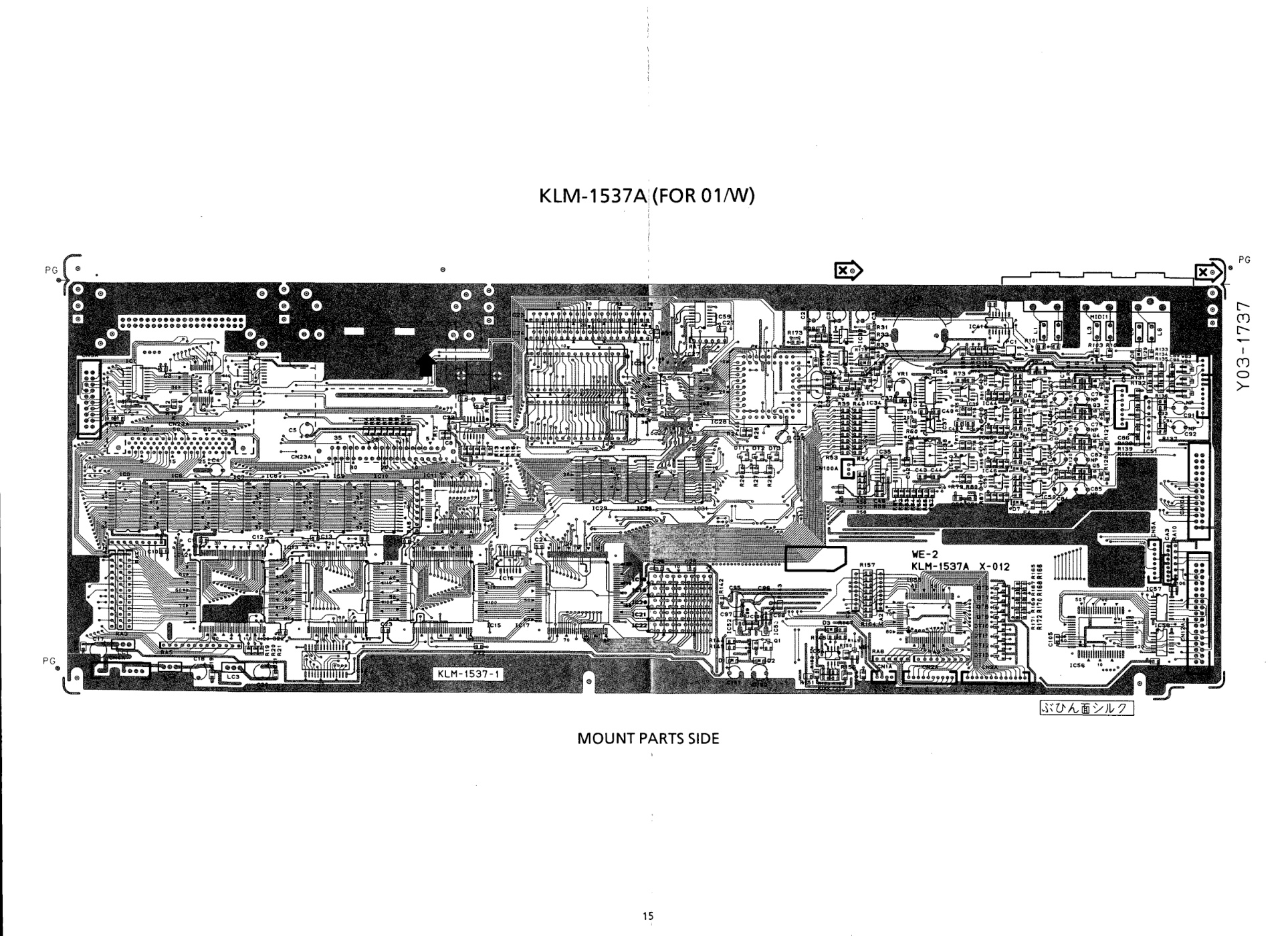

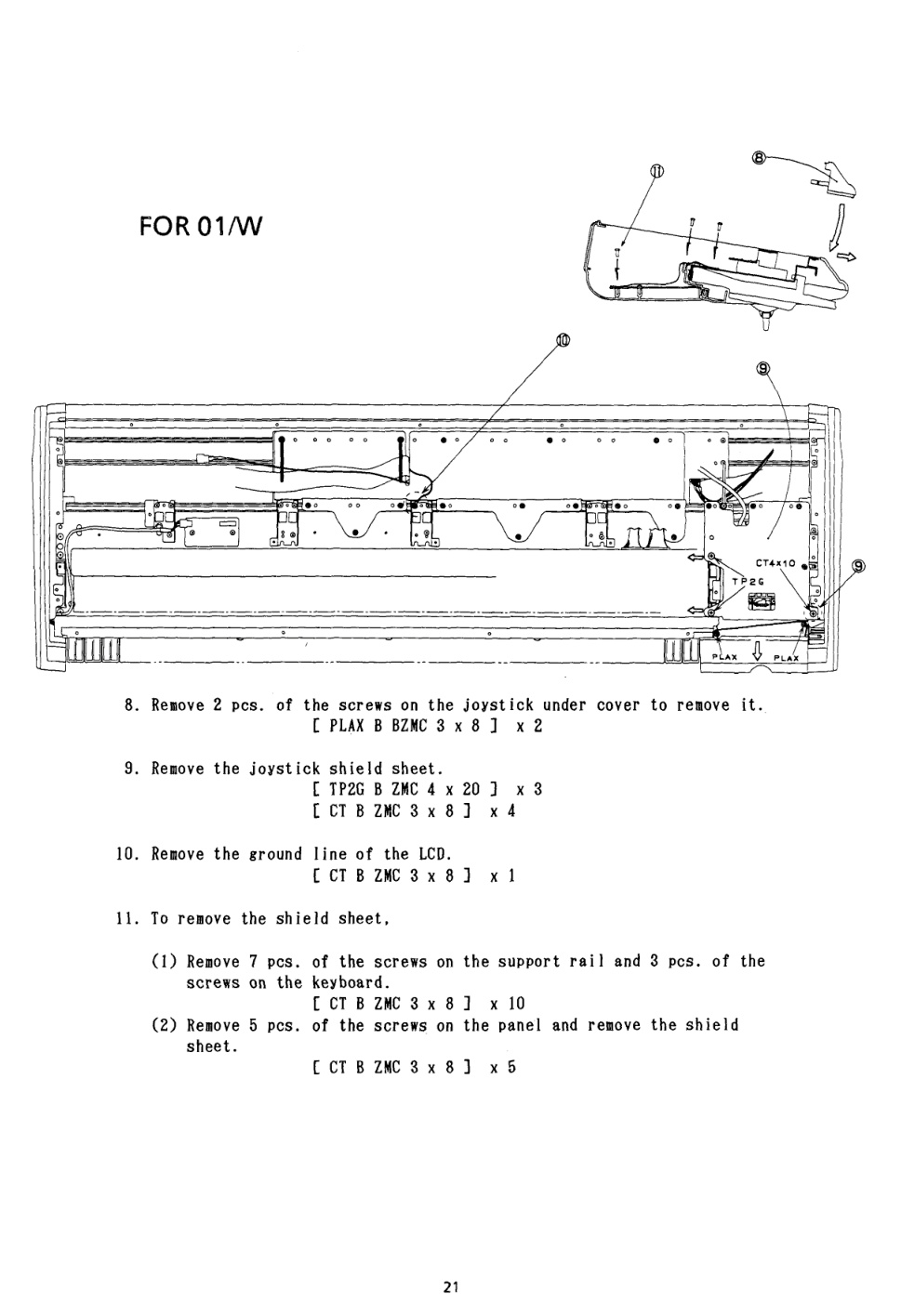

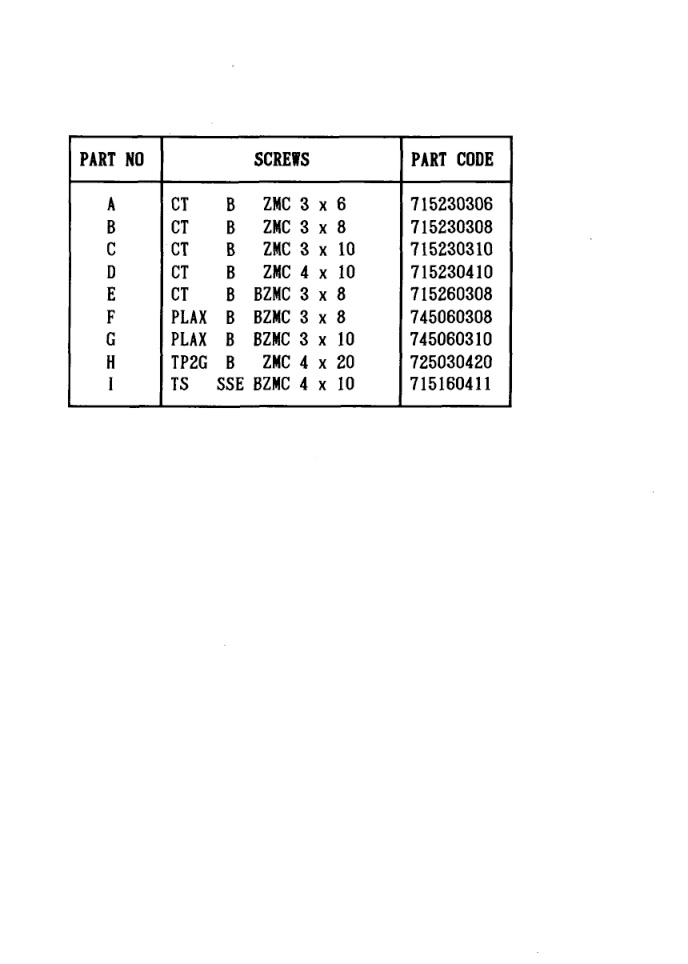

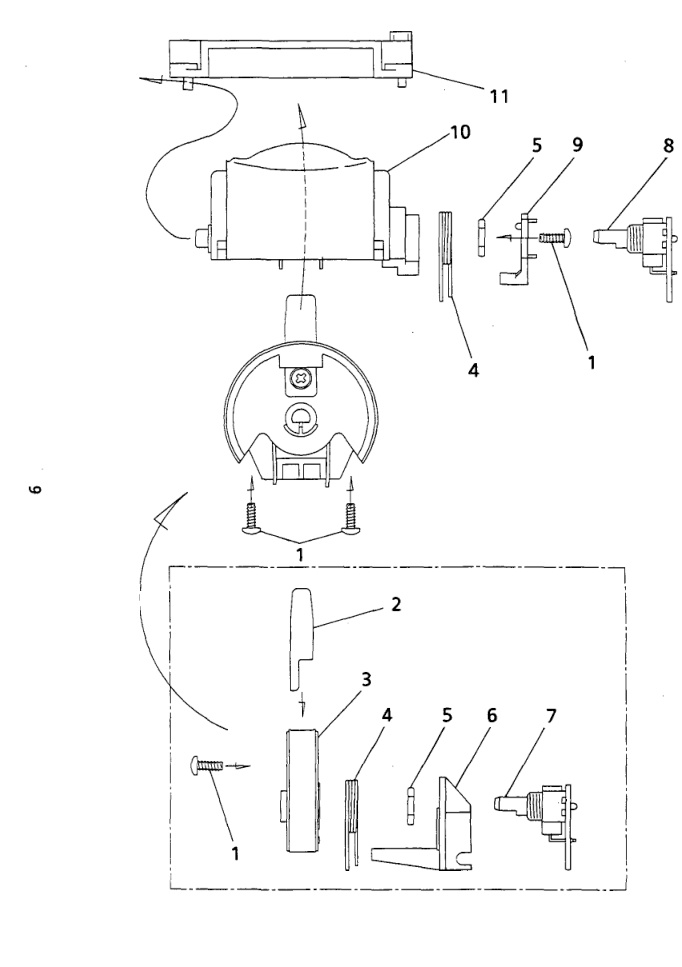

__________ CONTENTS___________ 1. SPECIFICATIONS.................................................. 1 2. STRUCTURAL DIAGRAM...................................... 2 3. BLOCK DIAGRAM............................................... 10-a 4. CIRCUIT DIAGRAM.......................................... 11 5. P.C. BOARDS...................................................... 12 6. HOW TO DISASSEMBLE........................................ 18 7. HARDWARE SPECIFICATIONS................................ 27 8. DIAGNOSTIC TEST............................................... 28 9. REFERENCE DATA............................................... 36 10. PARTS LIST...................................................... 62 1. SPECIFICATIONS Tone generation method AI square synthesis system (full digital processing) Tone generator 32 voices, 32 osci 1latorsCsingle mode); 16 voices, 32 osci 1lators(double

SERVICE MANUAL fd01/W Ol/W __________ CONTENTS___________ 1. SPECIFICATIONS .................................................. 1 2. STRUCTURAL DIAGRAM ...................................... 2 3. BLOCK DIAGRAM ............................................... 10-a 4. CIRCUIT DIAGRAM .......................................... 11 5. P.C. BOARDS ...................................................... 12 6. HOW TO DISASSEMBLE ........................................ 18 7. HARDWARE SPECIFICATIONS ................................ 27 8. DIAGNOSTIC TEST ............................................... 28 9. REFERENCE DATA ............................................... 36 10. PARTS LIST ...................................................... 62 1. SPECIFICATIONS Tone generation method AI square synthesis system ( full digital processing ) Tone generator 32 voices, 32 osci 1latorsCsingle mode) ; 16 voices, 32 osci 1lators(double mode) Keyboard 61 notes, with inintial and aftertouch sensitivity Waveform memory PCM 48 Mbits Effects two digital multi-effect systems Programs 200 Programs Combinations 200 Combinations Sequencer section 10 Songs, 100 Patterns, maximum 48,000 notes (for the 01/W,…
