Korg 03RW SERVICE MANUAL ocr

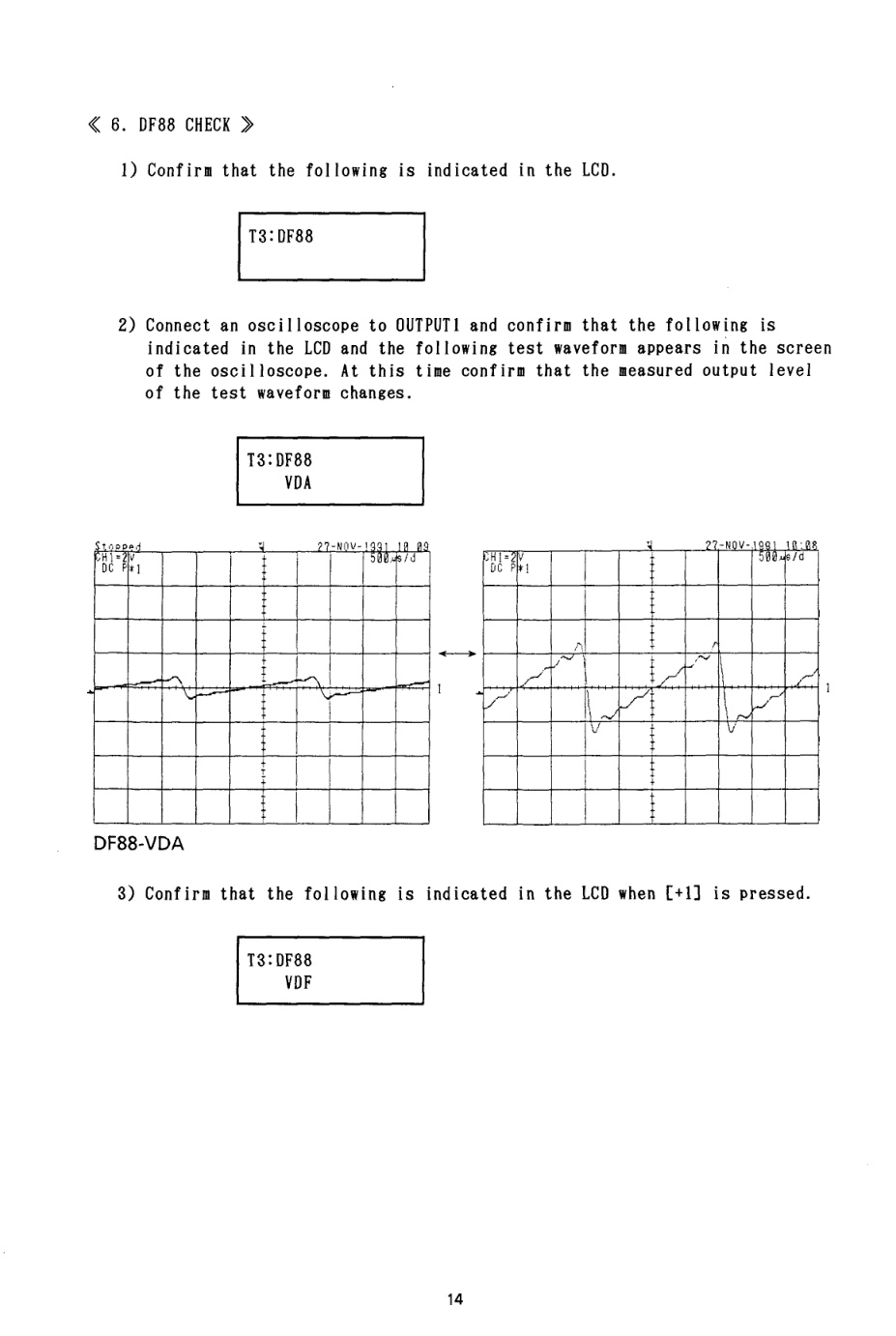

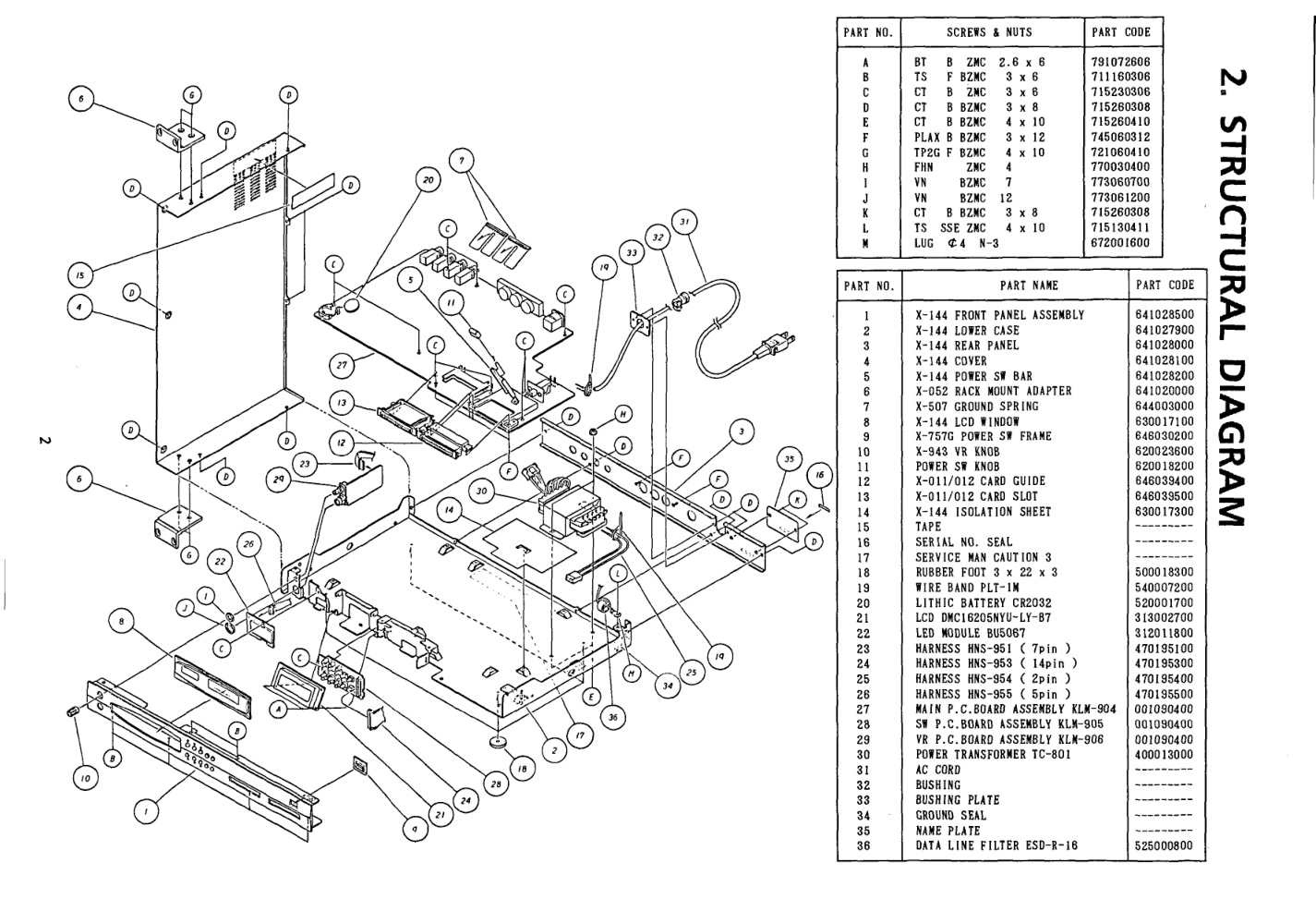

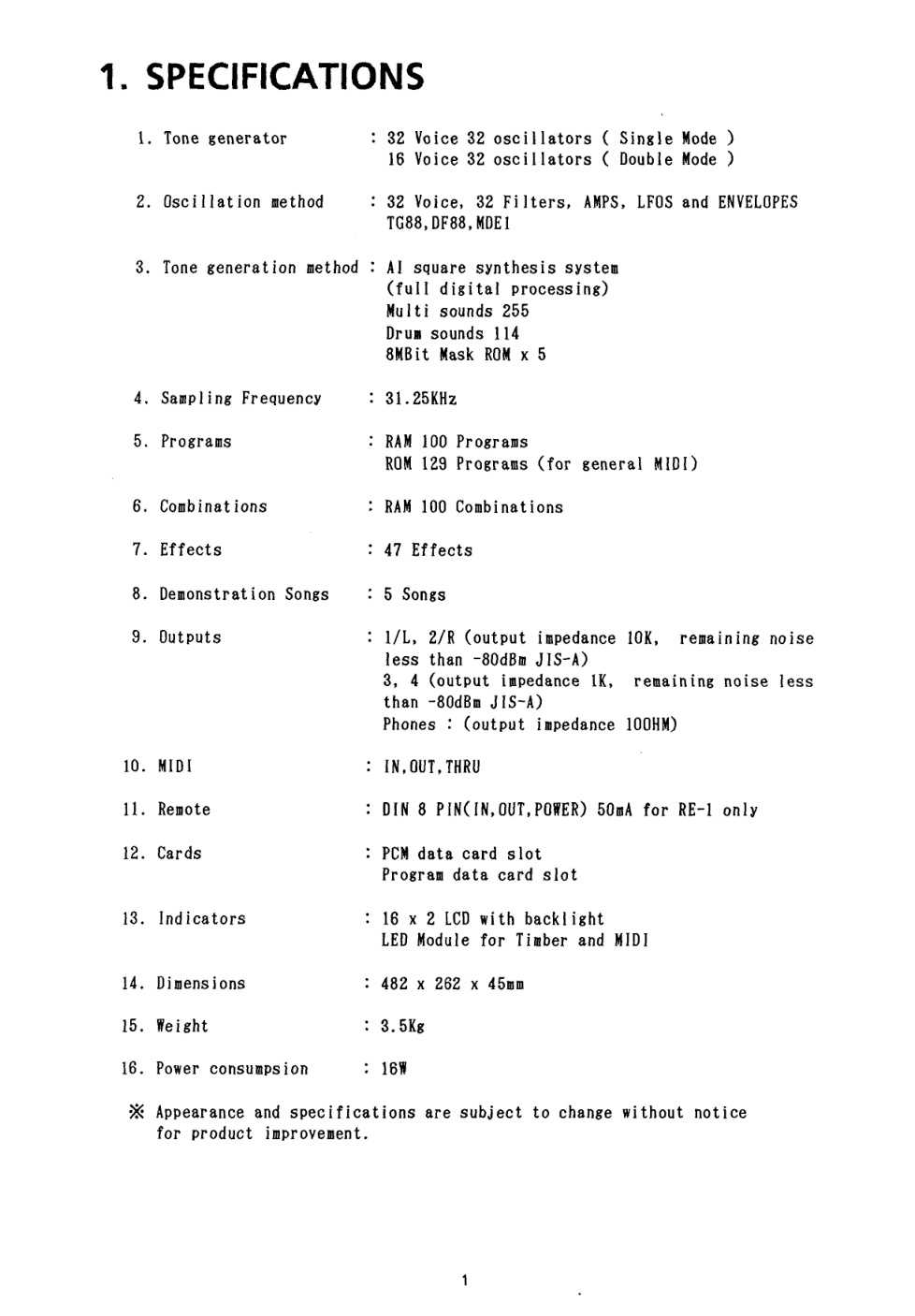

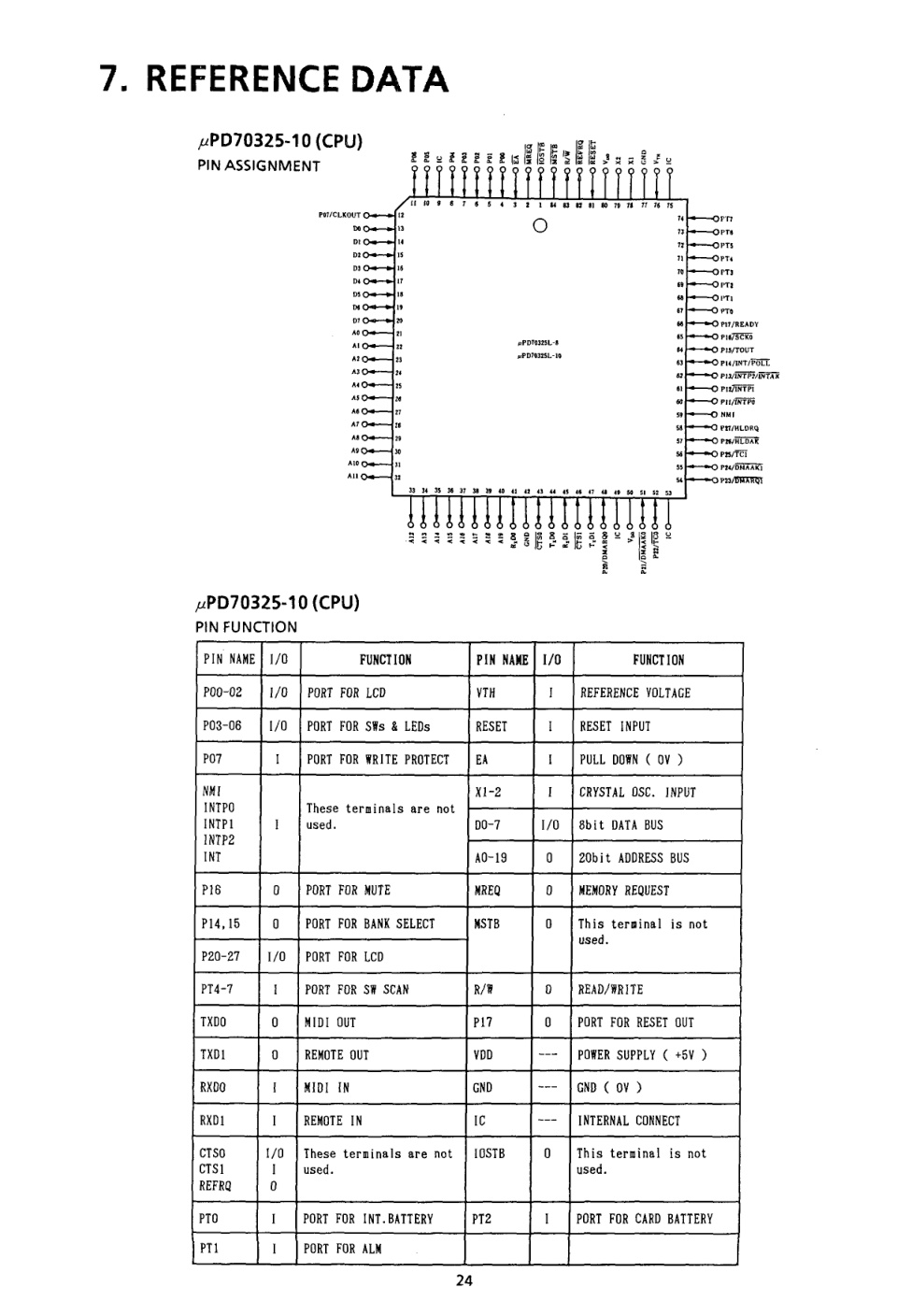

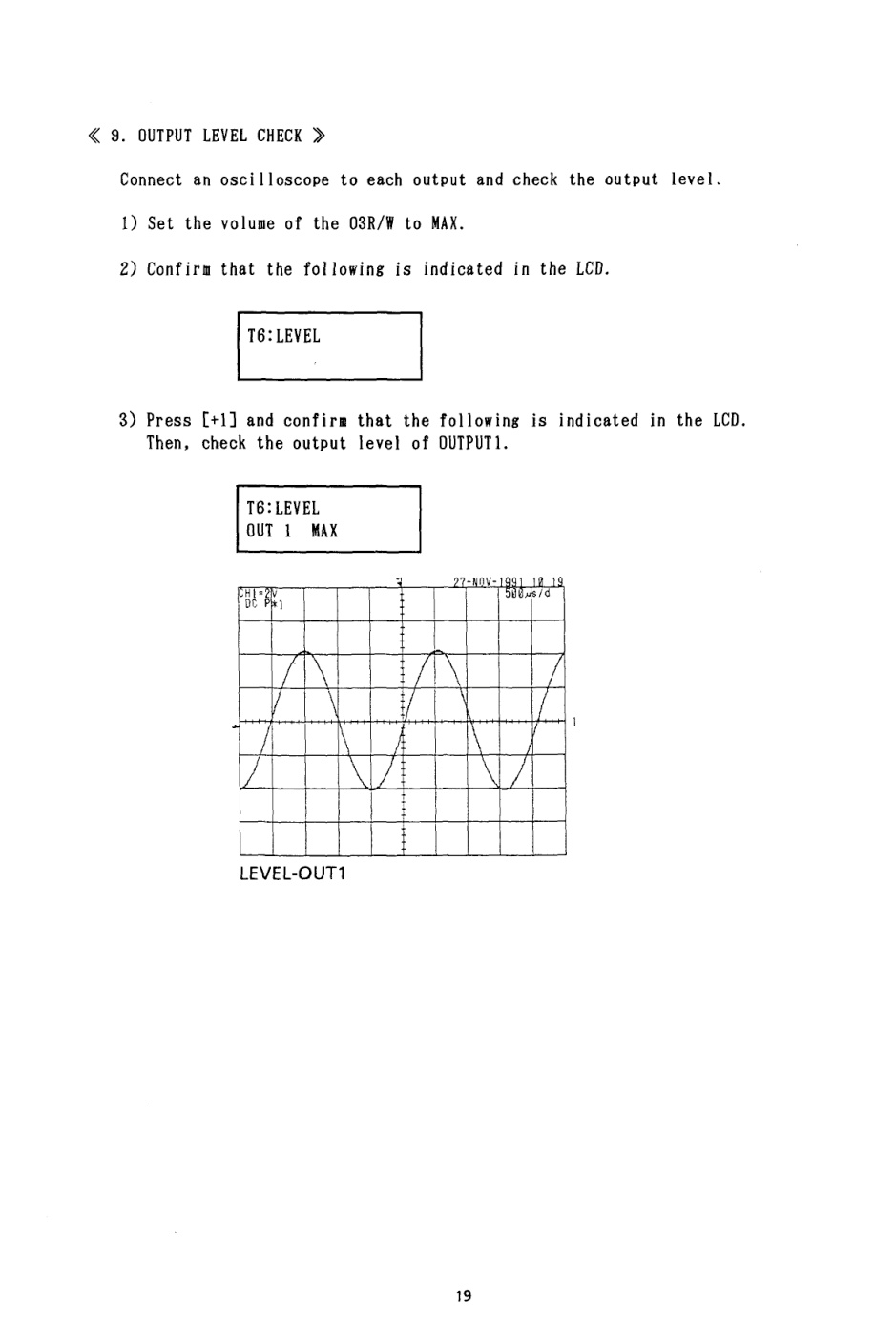

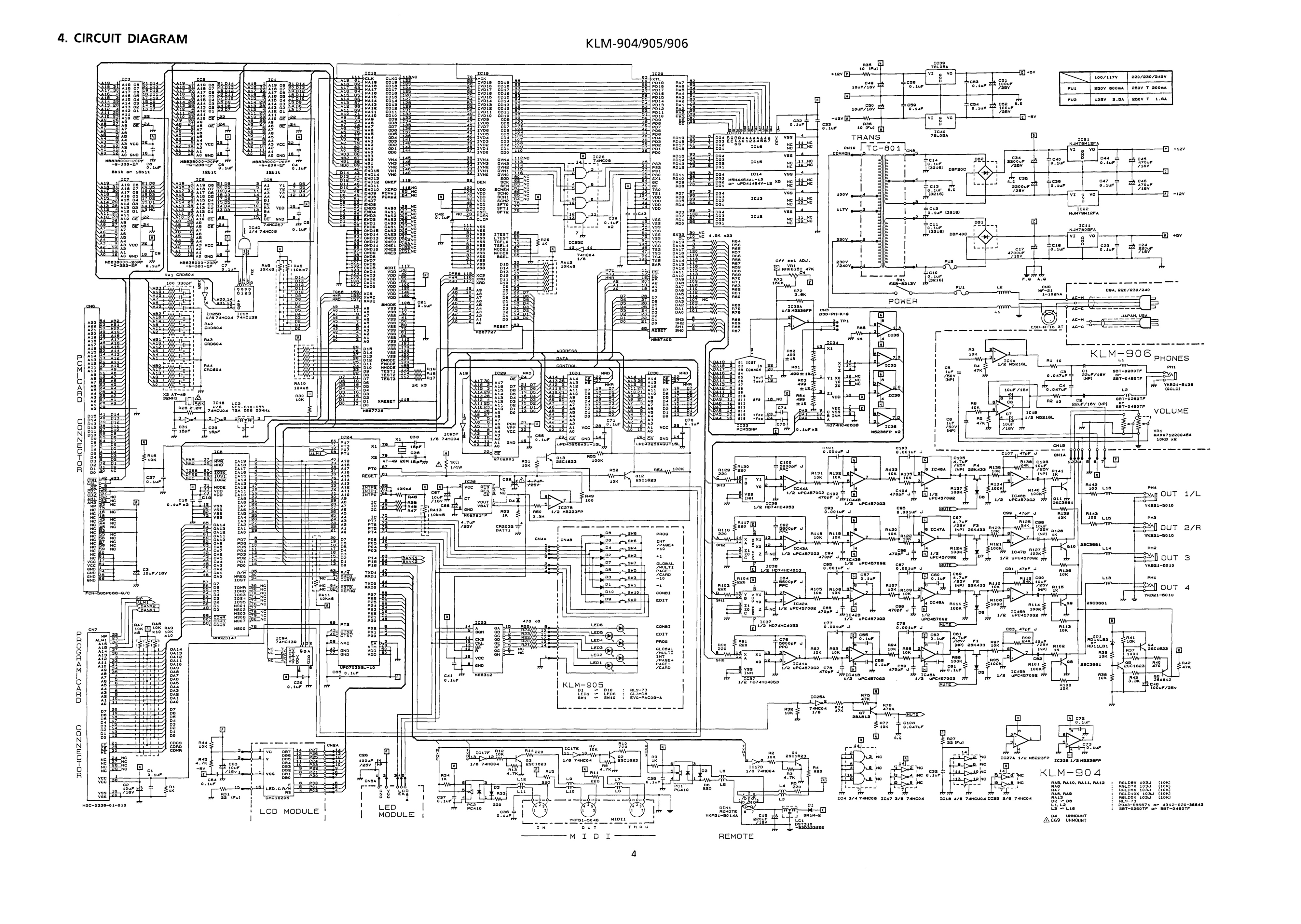

__________CONTENTS__________ 1. SPECIFICATIONS.......................................................................... 1 2. STRUCTURAL DIAGRAM......................................................... 2 3. BLOCK DIAGRAM...................................................................... 3 4. CIRCUIT DIAGRAM.................................................................... 4 5. P.C. BOARDS................................................................................. 5 6. DIAGNOSTIC TEST...................................................................... 7 7. REFERENCE DATA.................................................................... 24 8. PARTS LIST................................................................................. 36 1. SPECIFICATIONS 1. Tone generator: 32 Voice 32 oscillators (Single Mode) 16 Voice 32 oscillators (Double Mode) 2. Oscillation m

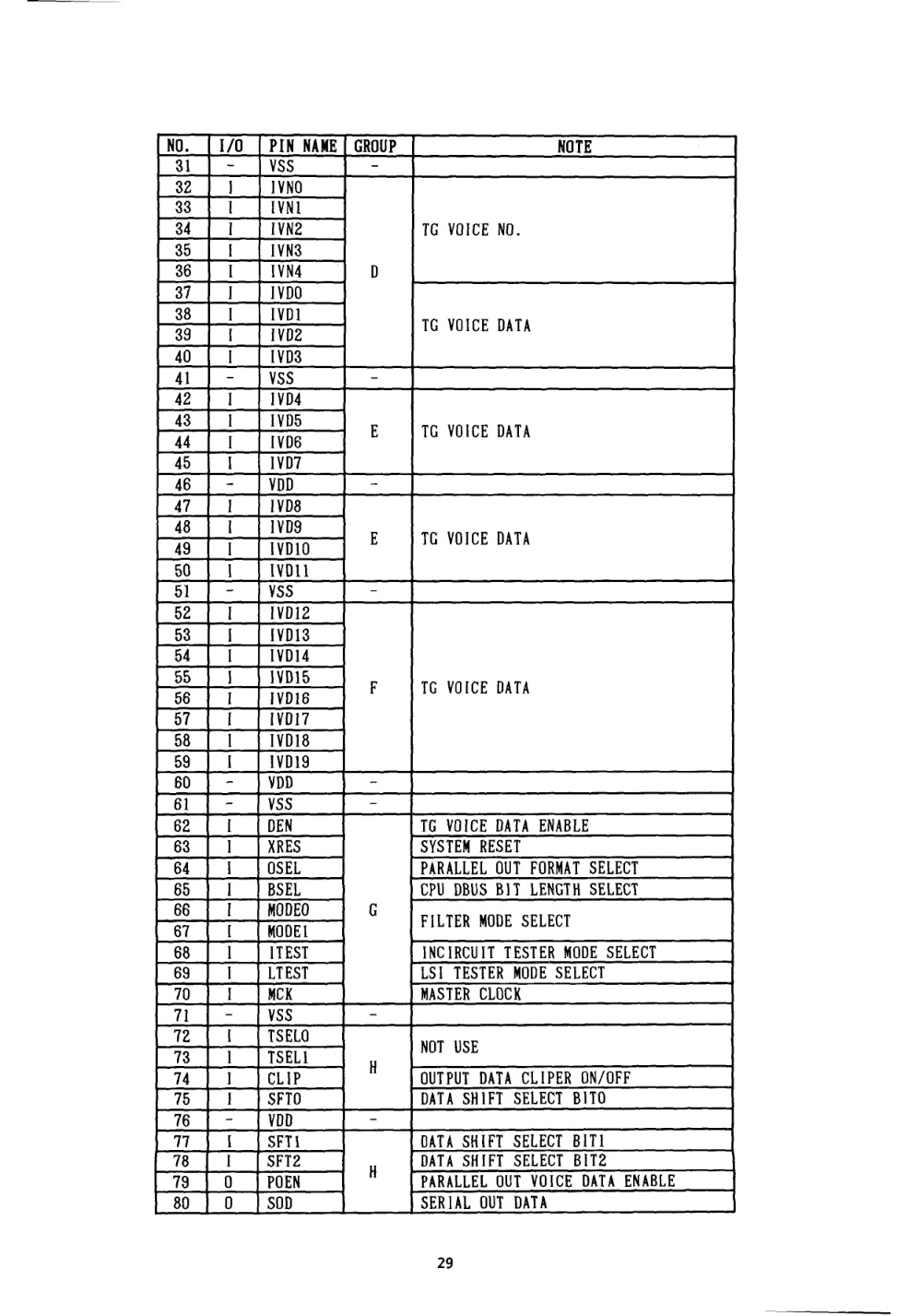

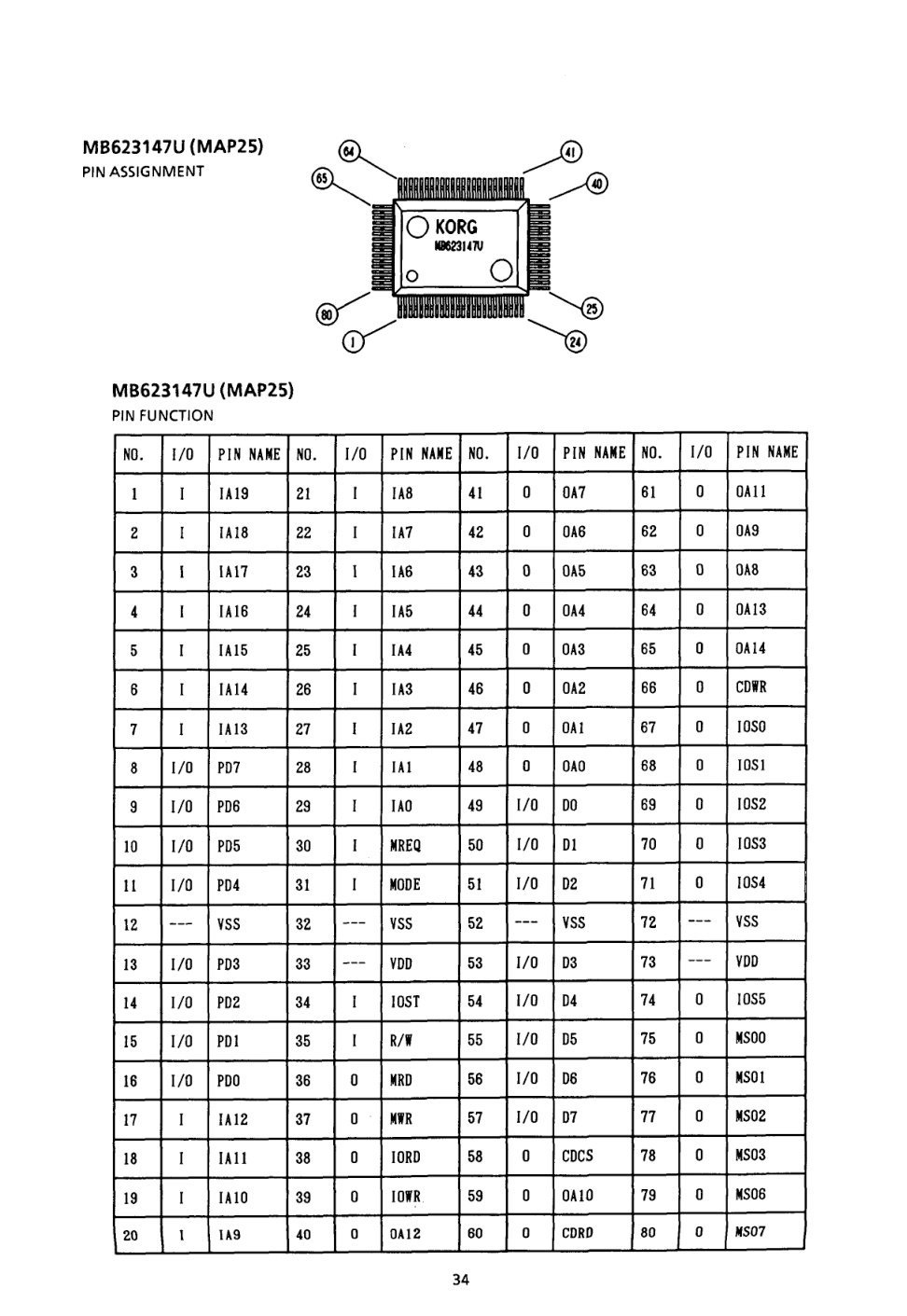

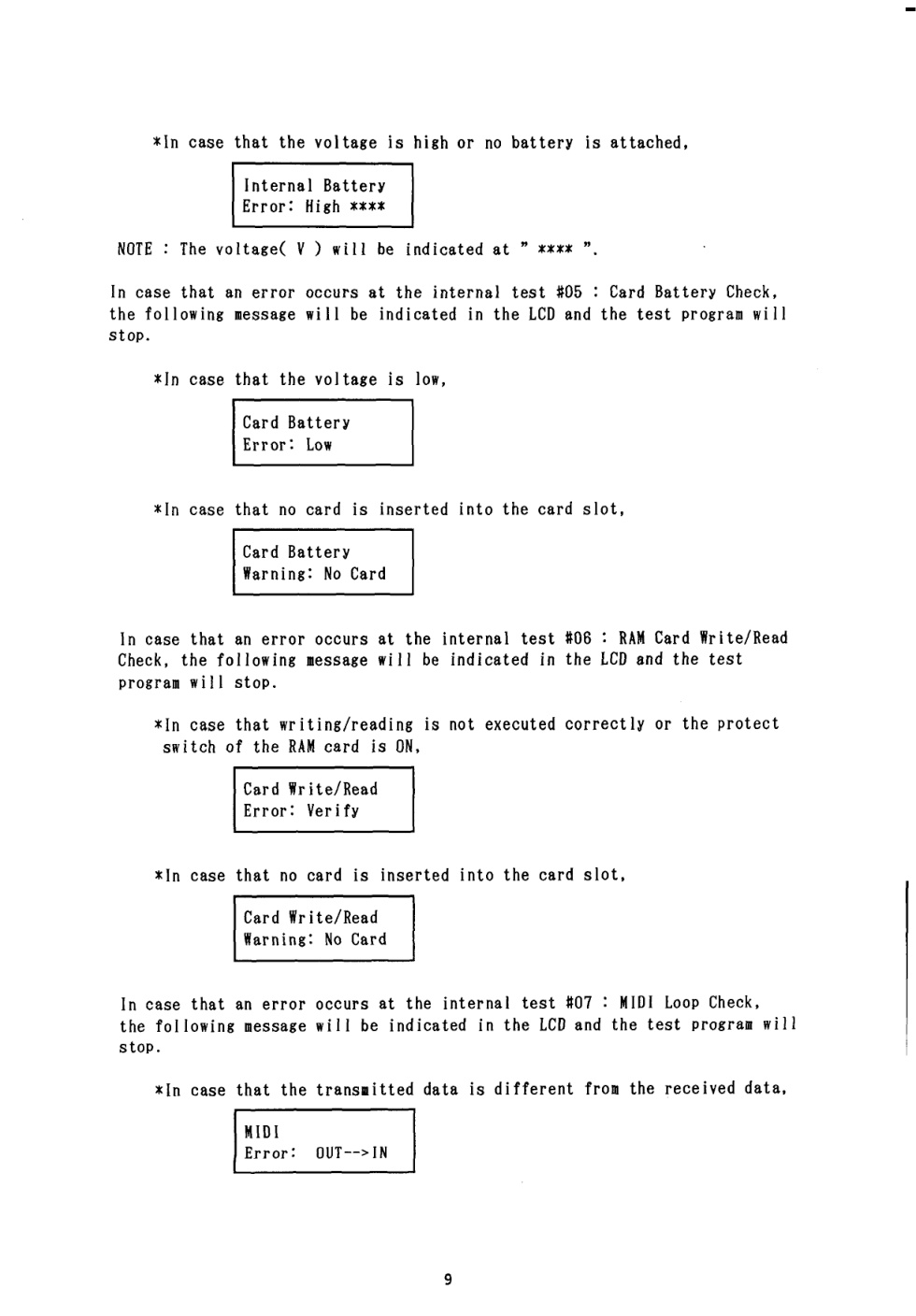

SERVICE MANUAL 03R/W __________CONTENTS__________ 1. SPECIFICATIONS .......................................................................... 1 2. STRUCTURAL DIAGRAM ......................................................... 2 3. BLOCK DIAGRAM ...................................................................... 3 4. CIRCUIT DIAGRAM .................................................................... 4 5. P.C. BOARDS ................................................................................. 5 6. DIAGNOSTIC TEST ...................................................................... 7 7. REFERENCE DATA .................................................................... 24 8. PARTS LIST ................................................................................. 36 1. SPECIFICATIONS 1. Tone generator : 32 Voice 32 oscillators ( Single Mode ) 16 Voice 32 oscillators ( Double Mode ) 2. Oscillation method : 32 Voice, 32 Filters, AMPS, LFOS and ENVELOPES TG88,DF88,MDE1 3. Tone generation method : AI square synthesis system (full digital processing) Multi sounds 255 Drum sounds 114 8MBit Mask ROM x 5 4. Sampling Frequency : 31.25KHZ 5. Programs : RAM 100 Programs ROM 129…
