Korg 05RW SERVICE MANUAL ocr

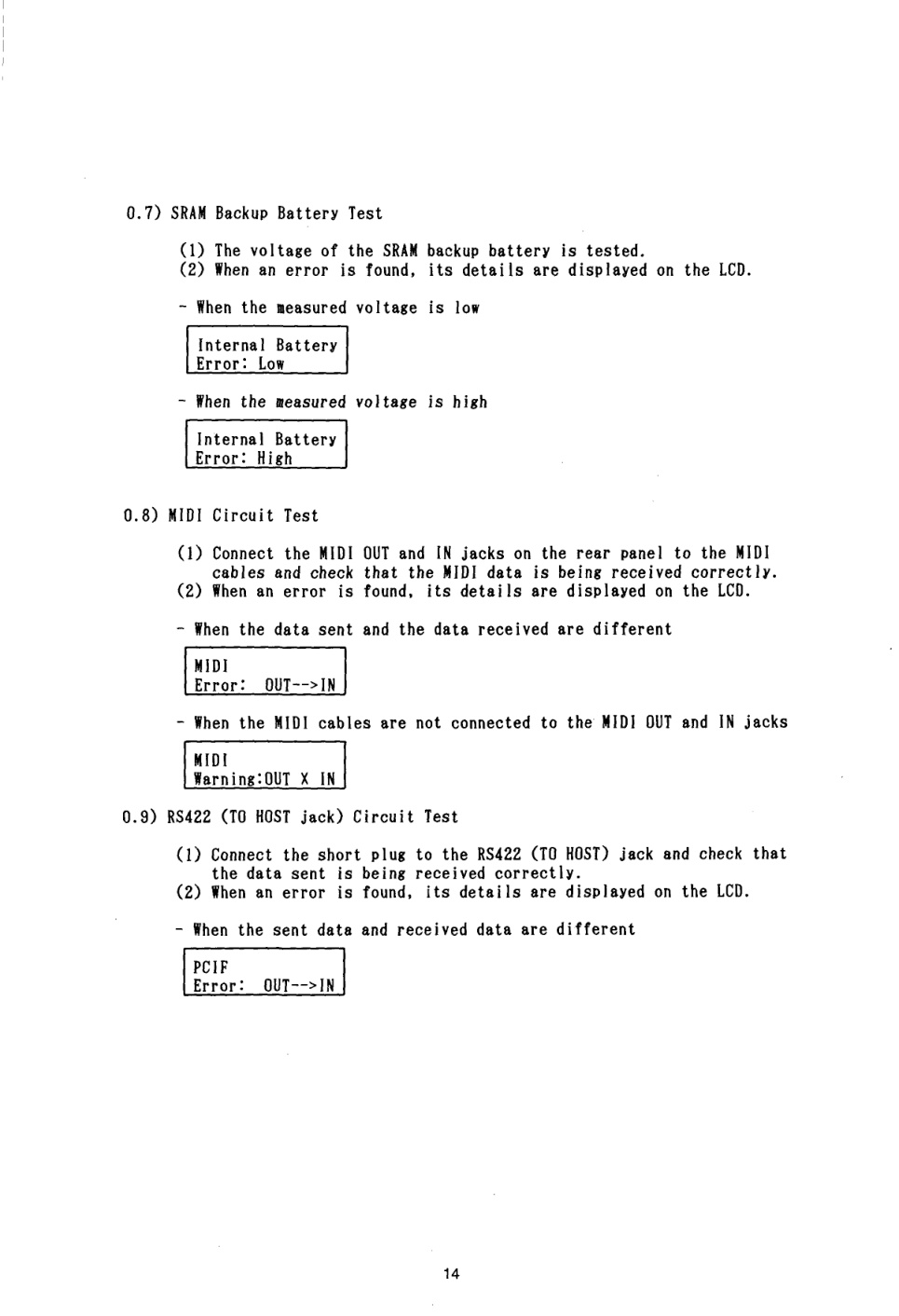

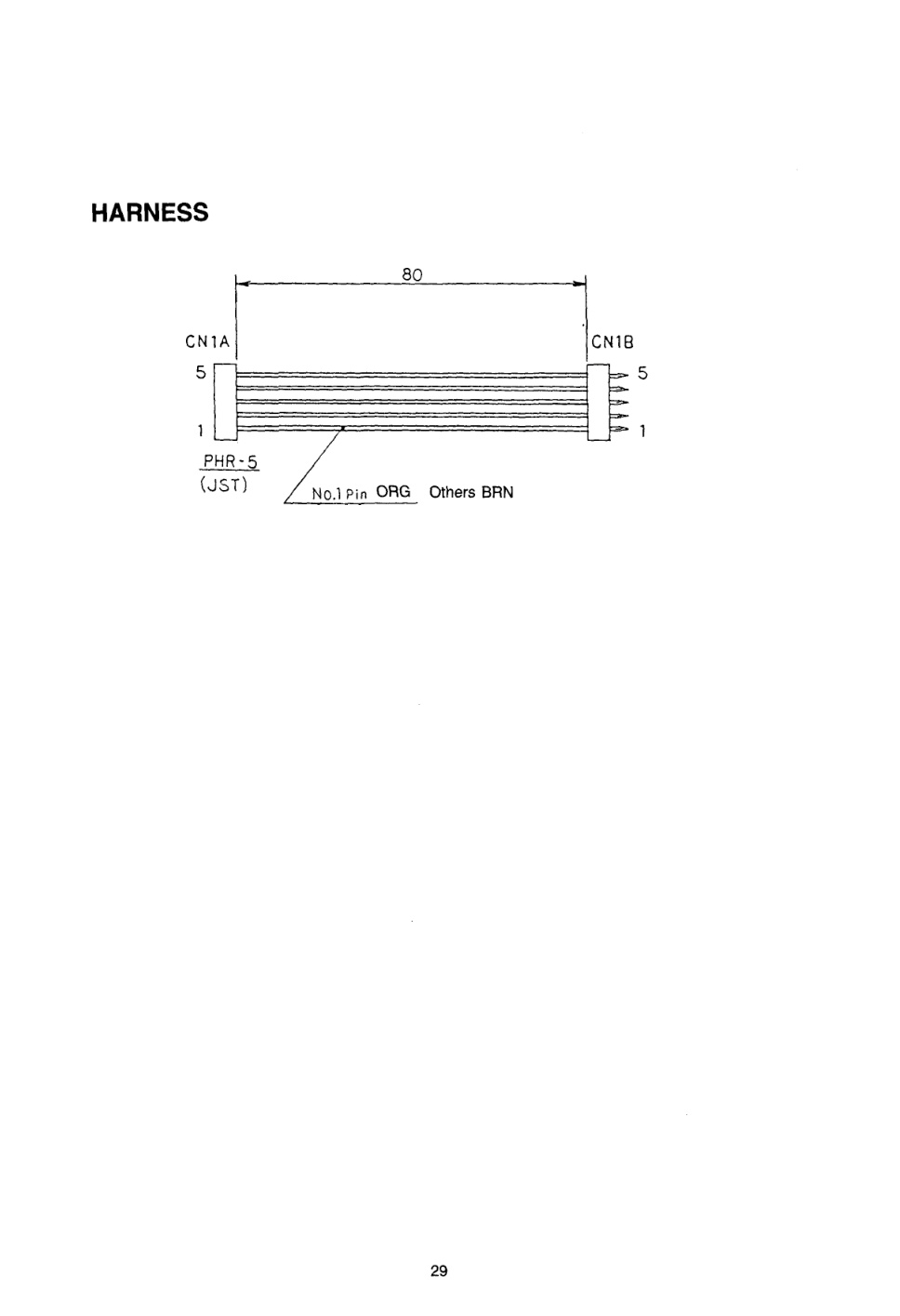

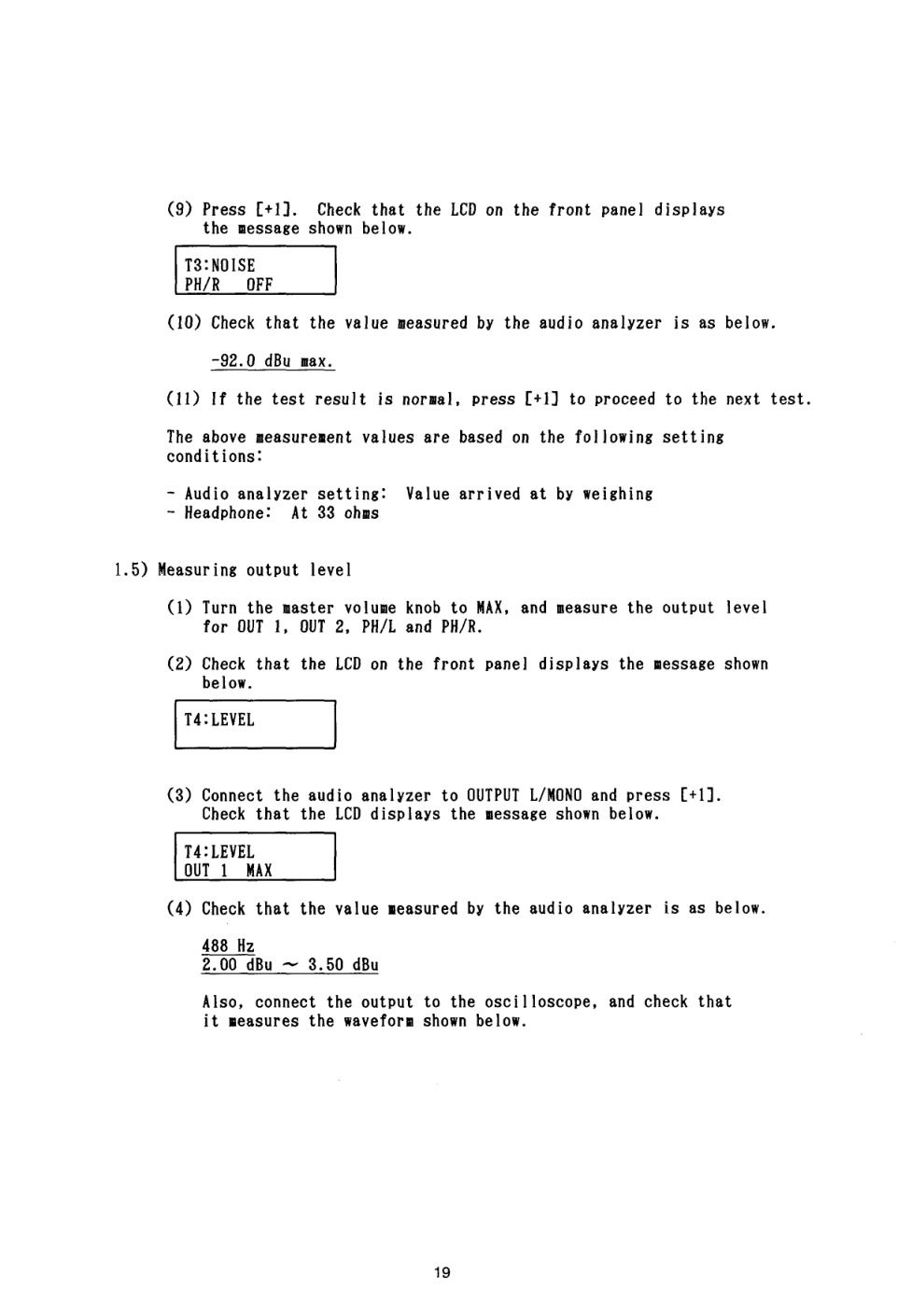

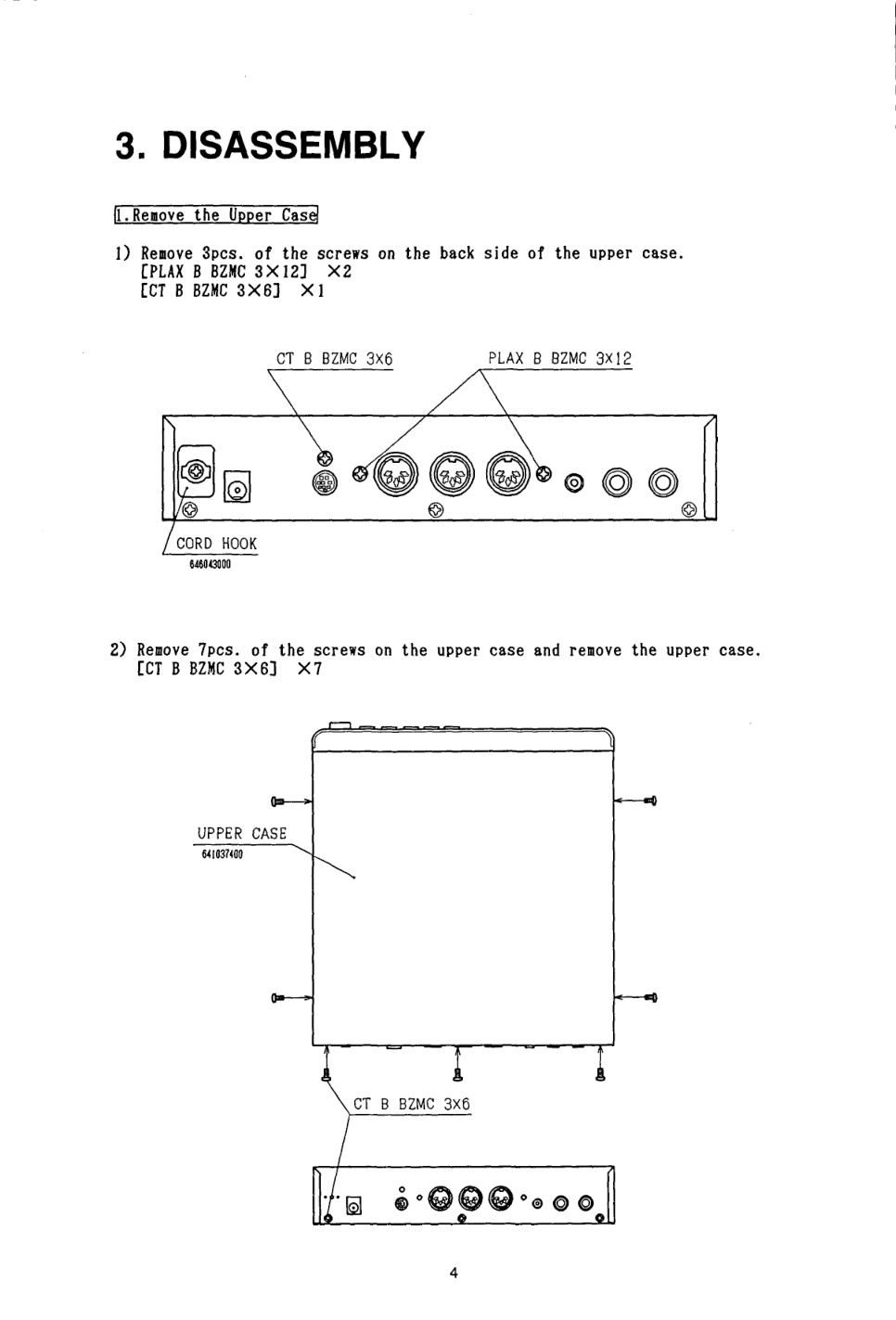

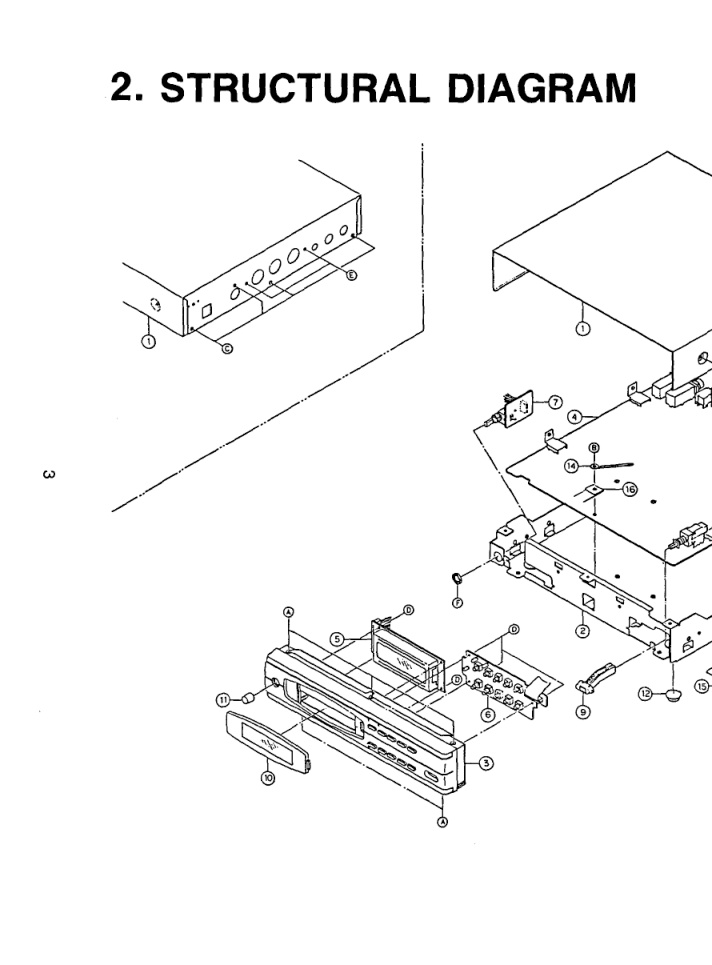

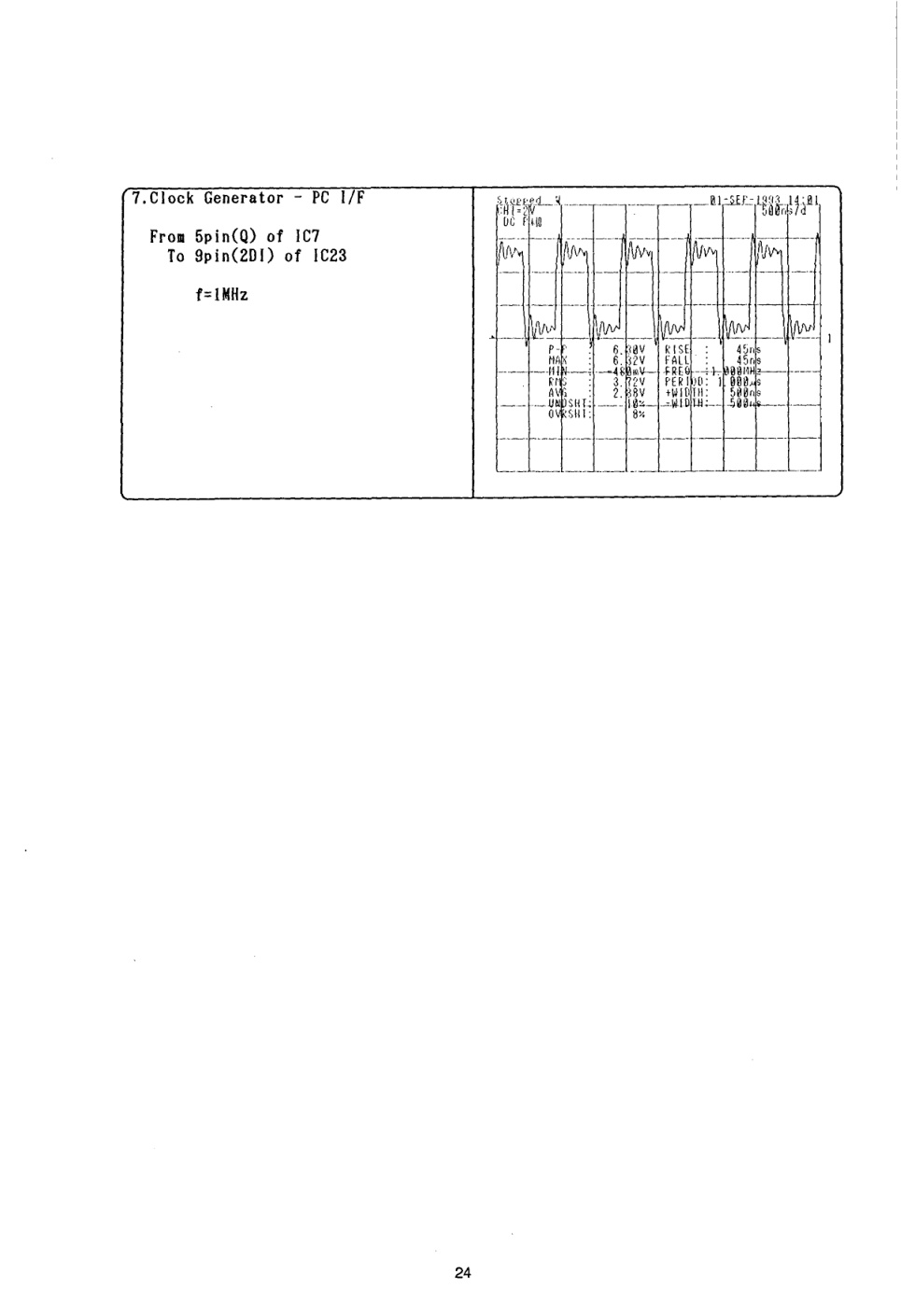

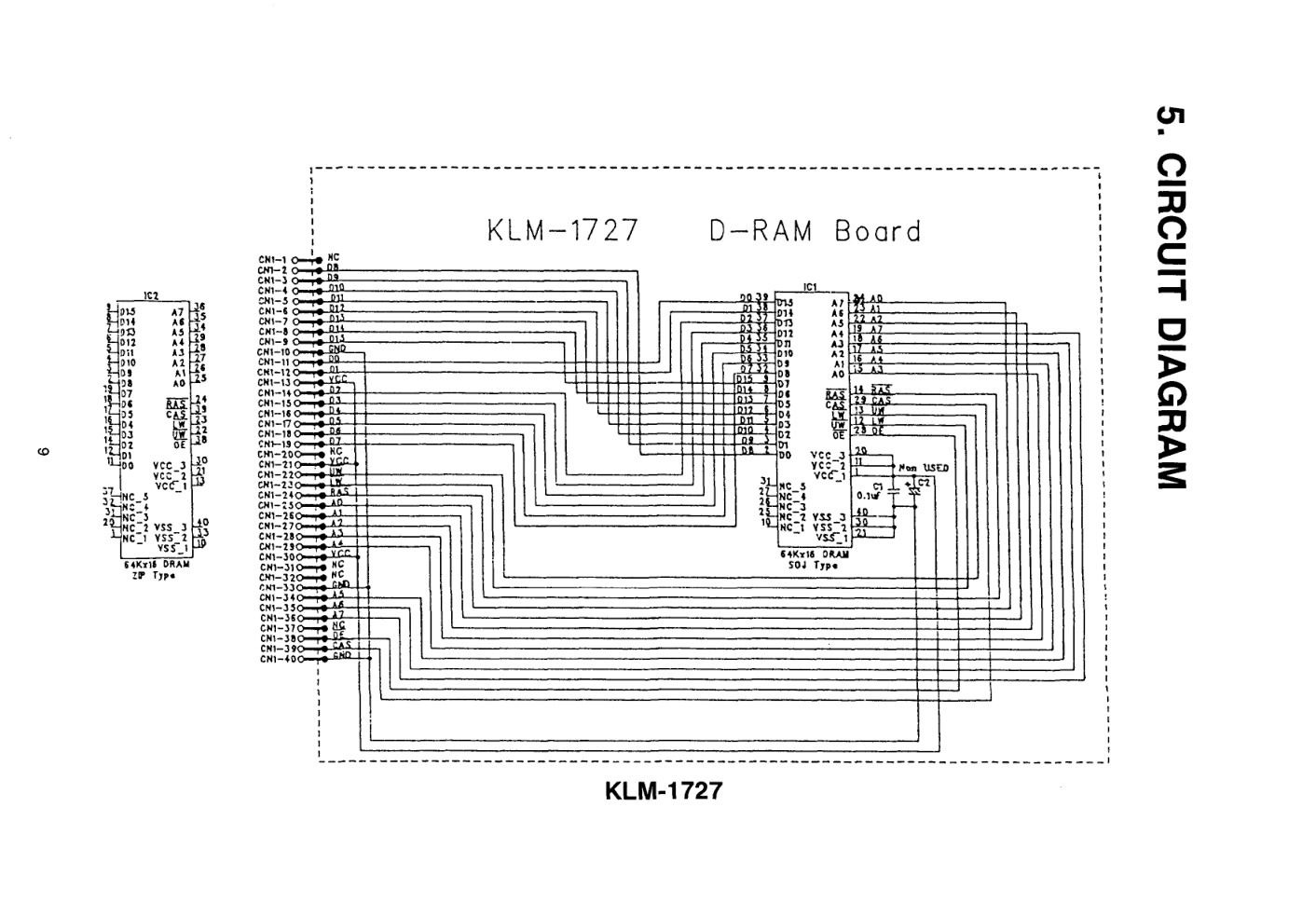

2345678910AI1 SYNTHESIS MODULE 1. SPECIFICATIONS................................................ 2 2. STRUCTURAL DIAGRAM......................................3 3. DISASSEMBLY.......................................................4 4. BLOCK DIAGRAM.................................................. 8 5. CIRCUIT DIAGRAM.......................9 and insertion 6. P.C. BOARD...........................................................10 7. DIAGNOSTIC T E S T.............................................. 12 8. CHECK POINTS.................................................... 22 9. REFERENCE DATA............................................ 25 10. PARTS LIS T......................................................... 29 1. SPECIFICATIONS Tone generation method ÀI square synthesis system (full digital processing) Tone generator 32 voices 32 oscillators (Single Mode) 16 voices 32 oscillators (Double

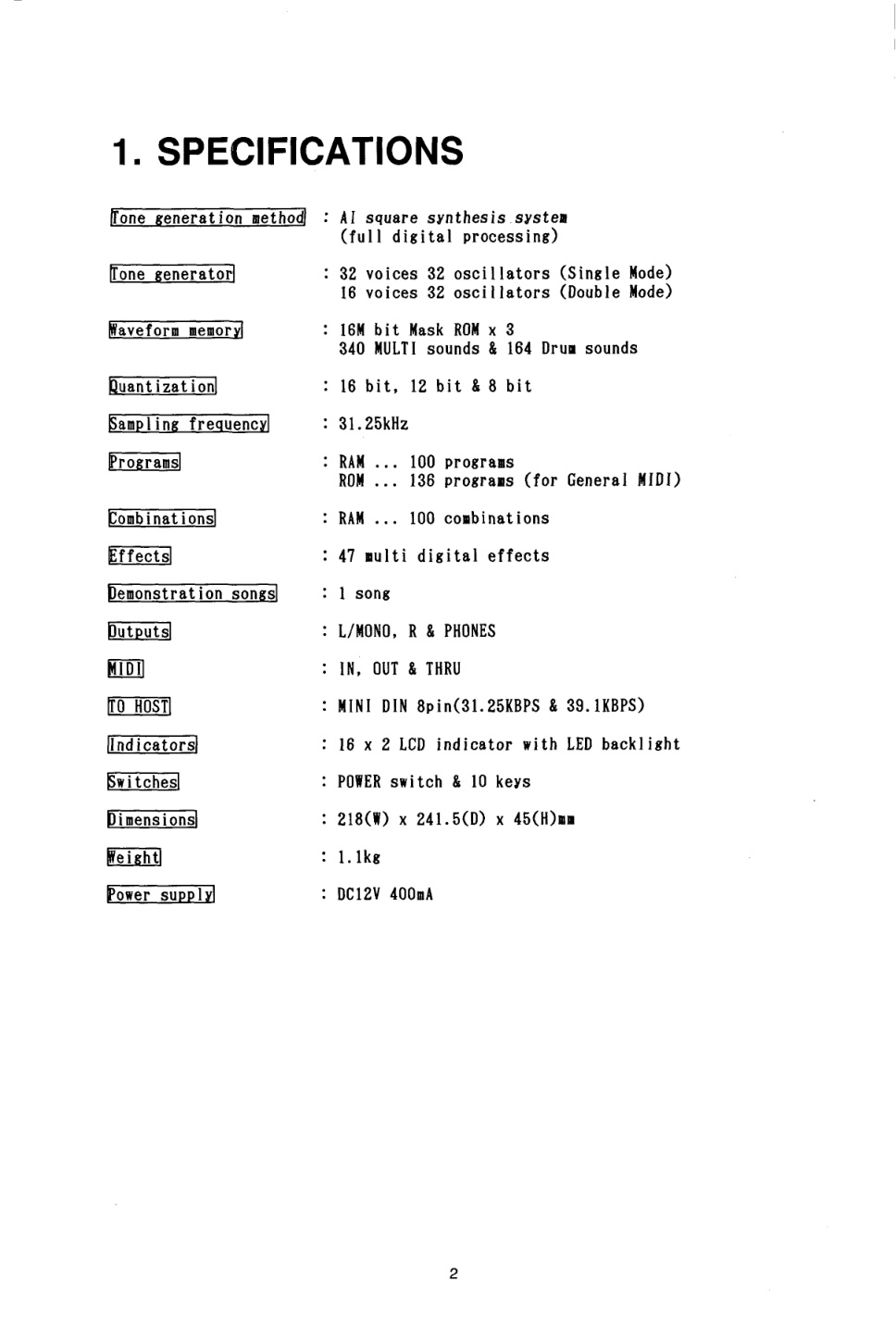

SERVICE MANUAL 05R/W 2345678910AI1 SYNTHESIS MODULE CONTENTS 1. SPECIFICATIONS ................................................ 2 2. STRUCTURAL DIAGRAM......................................3 3. DISASSEMBLY.......................................................4 4. BLOCK DIAGRAM.................................................. 8 5. CIRCUIT DIAGRAM.......................9 and insertion 6. P.C. BOARD...........................................................10 7. DIAGNOSTIC T E S T.............................................. 12 8. CHECK POINTS.................................................... 22 9. REFERENCE DATA . . .......................................... 25 10. PARTS LIS T......................................................... 29 1. SPECIFICATIONS Tone generation method ÀI square synthesis system (full digital processing) Tone generator 32 voices 32 oscillators (Single Mode) 16 voices 32 oscillators (Double Mode) Waveform memory] 16M bit Mask ROM x 3 340 MULTI sounds & 164 Drum sounds iQuant ization 16 bit, 12 bit & 8 bit Sampling frequency 31.25kHz Programs RAM ... 100 programs ROM ... 136 programs (for General MIDI) Combinations! RAM ... 100 combinations Effects 47…
