Korg D16 SERVICE MANUAL

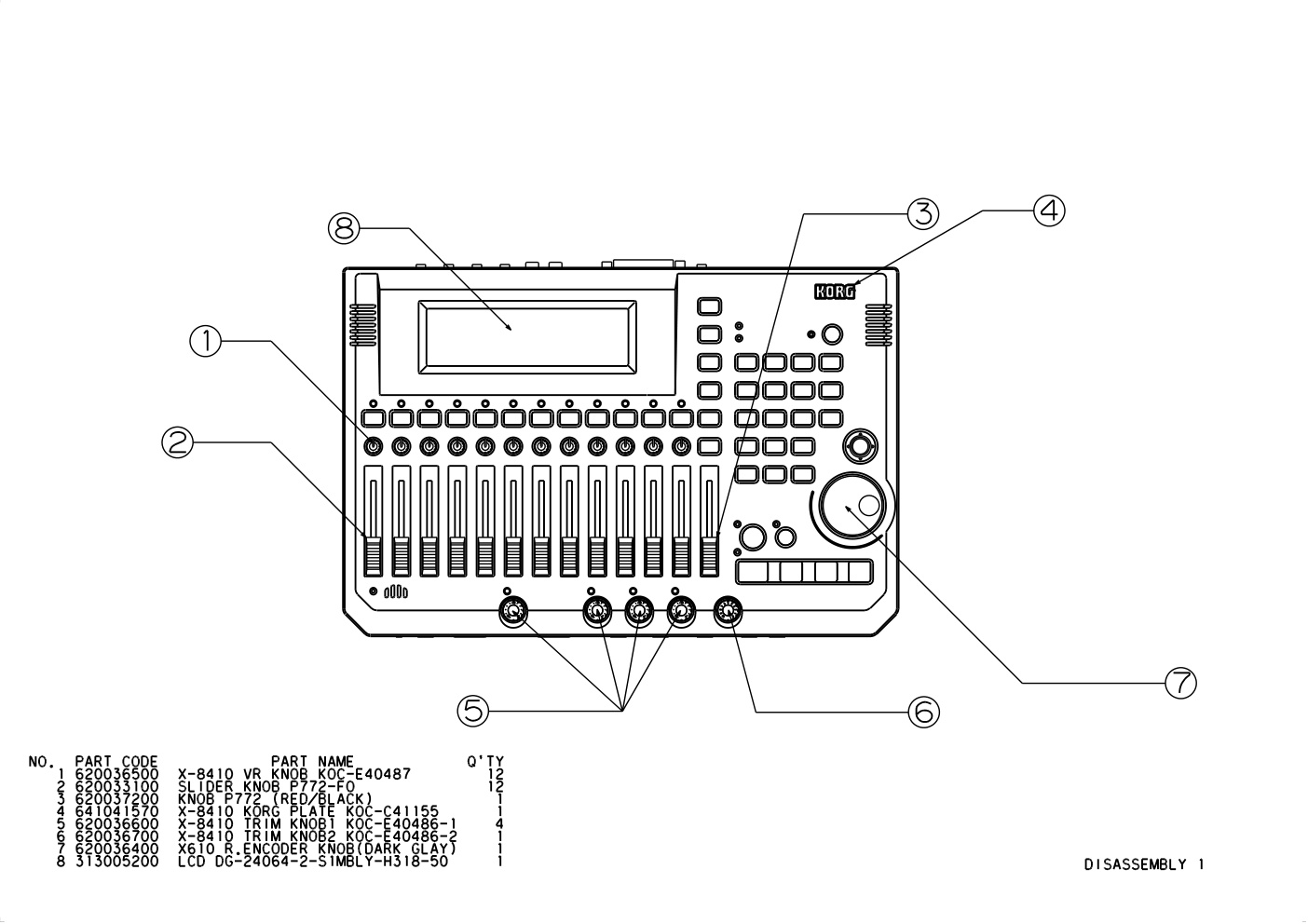

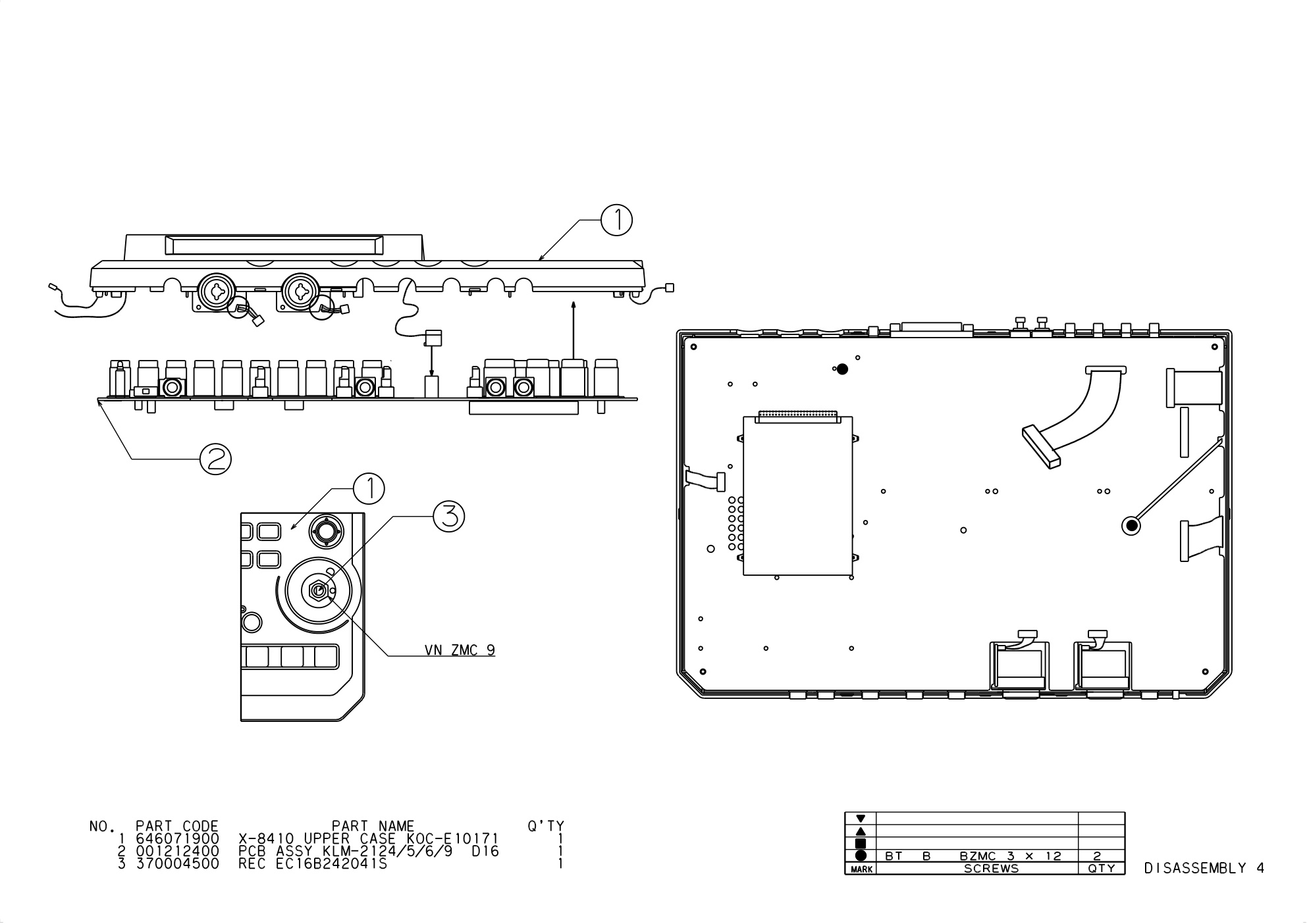

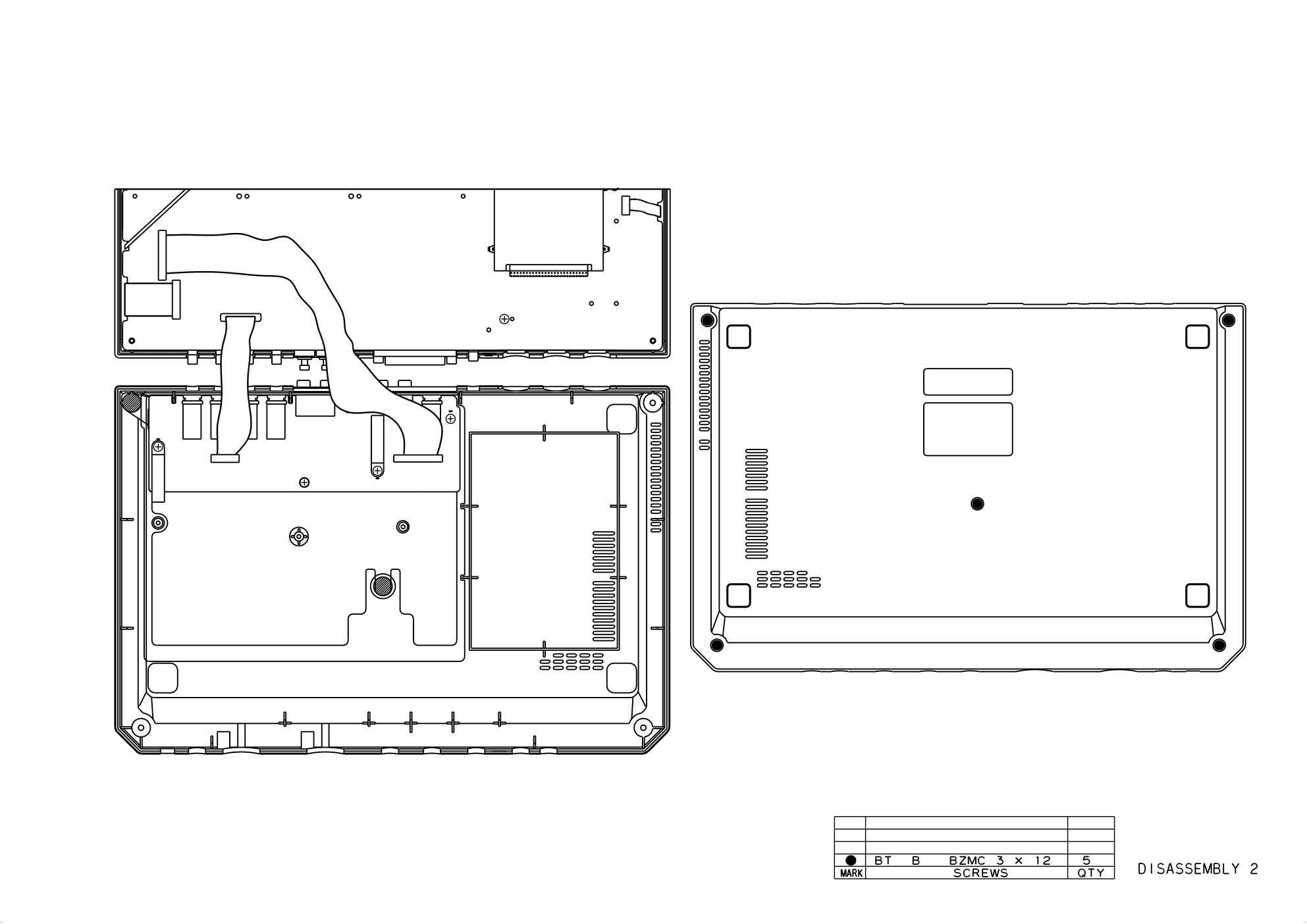

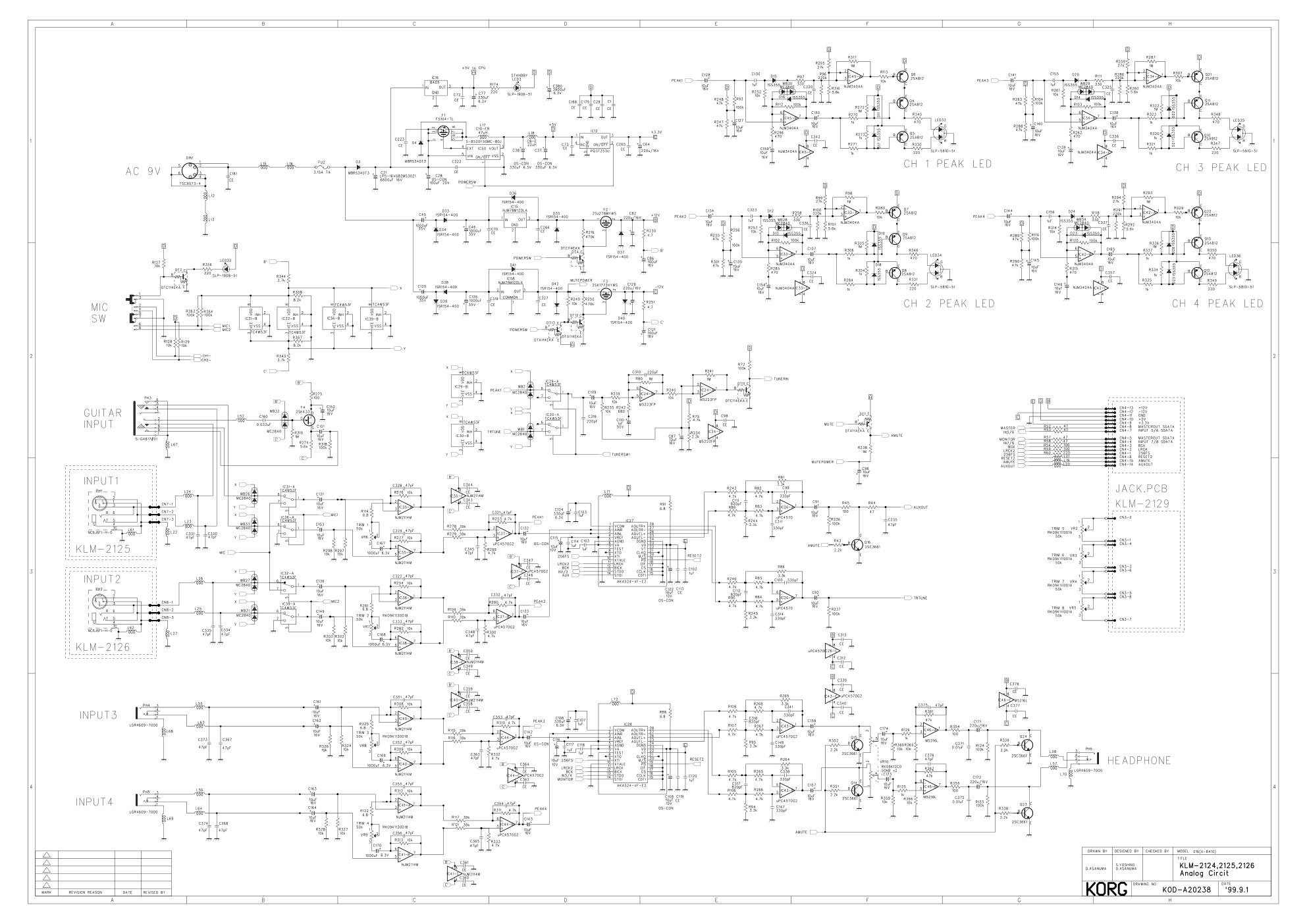

(PROVISIONAL VERSION) 1) Structural Diagram - - - - - 2 2) Block Diagram - - - - - - - - - 7 3) Circuit Diagram - - - - - - - - 9 4) Diagnostics - - - - - - - - - - - Not yet 5) Parts List - - - - - - - - - - - - - 13 PROVISIONAL VERSION Issued date: Dec.20.1999 Issued by: KORG INC.; — = — — nn | | o~ [2 | 8b4c9 à 0 0 0 0 0 0 0 0 0 0 98 o ja O000000000000 0000 2) 2000000000000 OO © alo ° o oOo 0 NO. PART CODE PART NAME Q°TY 1 620036500 X-8410 VR KNOB_KOC-E40487 12 2 620033100 SLIDER_KNOB_P/72-FQ 12 3 620037200 KNOB P772 TRED/BLACK) 1 4 641041570 X-8410 KORG PLATE KOC-C41155 1 5 620036600 X-8410 TRIM KNOBI KOC-E40486-1 4 6 620036700 X-8410 TRIM KNOB2 Sant tania tal 1 f 620036400 X610 KNOB(DARK GLAY 1 8 313005200 LCD DG-24064-2-S1MBLY-H318-50 1 DISASSEMBLY 1

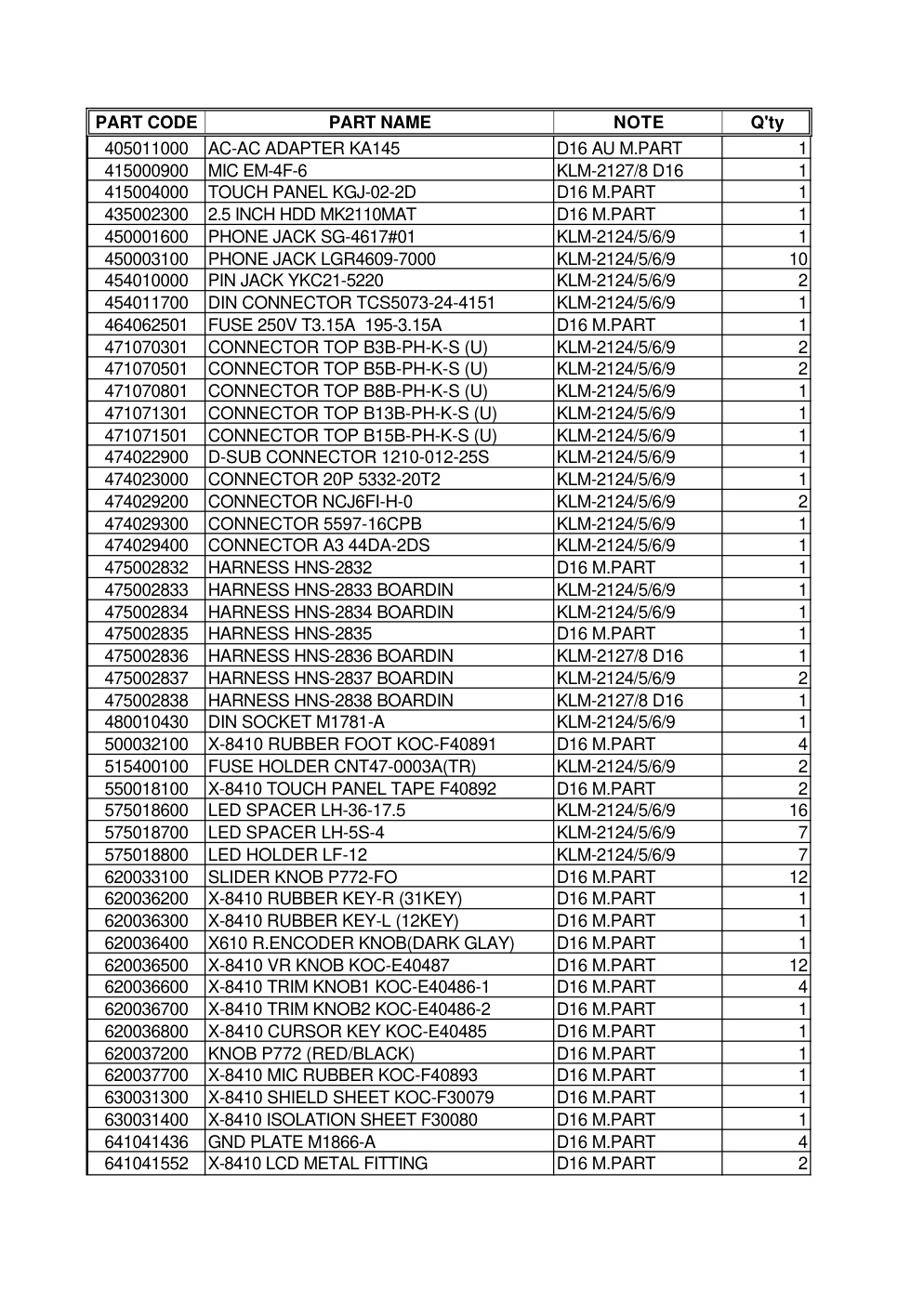

Service Manual (PROVISIONAL VERSION) CONTENTS 1) Structural Diagram - - - - - 2 2) Block Diagram - - - - - - - - - 7 3) Circuit Diagram - - - - - - - - 9 4) Diagnostics - - - - - - - - - - - Not yet 5) Parts List - - - - - - - - - - - - - 13 PROVISIONAL VERSION Issued date: Dec.20.1999 Issued by: KORG INC. PART CODE PART NAME NOTE Q'ty 001212400 PCB ASSY KLM-2124/5/6/9 D16 D16 M.PART 1 001212700 PCB ASSY KLM-2127/28 D16 D16 M.PART 1 304000070 TR 2SA812-T1B (M5-7) (TS) KLM-2124/5/6/9 19 304020230 TR 2SC3661-TA/TB(3K) (TS) KLM-2124/5/6/9 9 304050140 DIGITAL TR DTC114EKA T146 (TS) KLM-2124/5/6/9 9 304050150 DIGITAL TR DTA114EKA T146 (TS) KLM-2124/5/6/9 4 304060070 FET 2SK433-T12-1C (TS) KLM-2124/5/6/9 1 304060140 FET 2SK170-GR (TPE2) (TR) KLM-2124/5/6/9 2 304060200 FET 2SK1772HYTR(TS) KLM-2124/5/6/9 1 304060210 FET 2SJ278MYTR(TS) KLM-2124/5/6/9 1 304060240 FET FSS104-TL(TS) KLM-2124/5/6/9 1 312051600 LED SLP-190B-51 KLM-2124/5/6/9 5 312052300 LED SLP-290B-51 KLM-2124/5/6/9 2 312052400 LED SLP-581D-51 KLM-2124/5/6/9 16 313005200 LCD DG-24064-2-S1MBLY-H318-50 D16 M.PART 1 314001800 DIODE 1SS355 TE-17 (TS) KLM-2124/5/6/9 29 314030300 LED CL-200HR-C-TU(TS) KLM-2124/5/6/9 13 314030400…
