Korg DW 6000 SERVICE MANUAL ocr

PROGRAMMABLE DIGITAL WAVEFORM SYNTHESIZER 1. SPECIFICATÏONS.............................................................................. 2 2. MIDI IMPLEMENTATION............... 3 3. DATA DUMP REFERENCE...................................................…. 6 4. STRUCTURAL D IA G R A M....................................... 10 5. BLOCK DIAGRAM............................................................................... 13 6. CIRCUIT D IA G R A M.............................................................................14 7. PC BOARD........................................................................................... 20 8. CIRCUIT DESCRIPTIONS................................................................ 26 9. CHECK AND ADJUSTMENT PROCEDURE.................................. 29 10. TROUBLESHOOTING TABLE............................................................32 1 1.

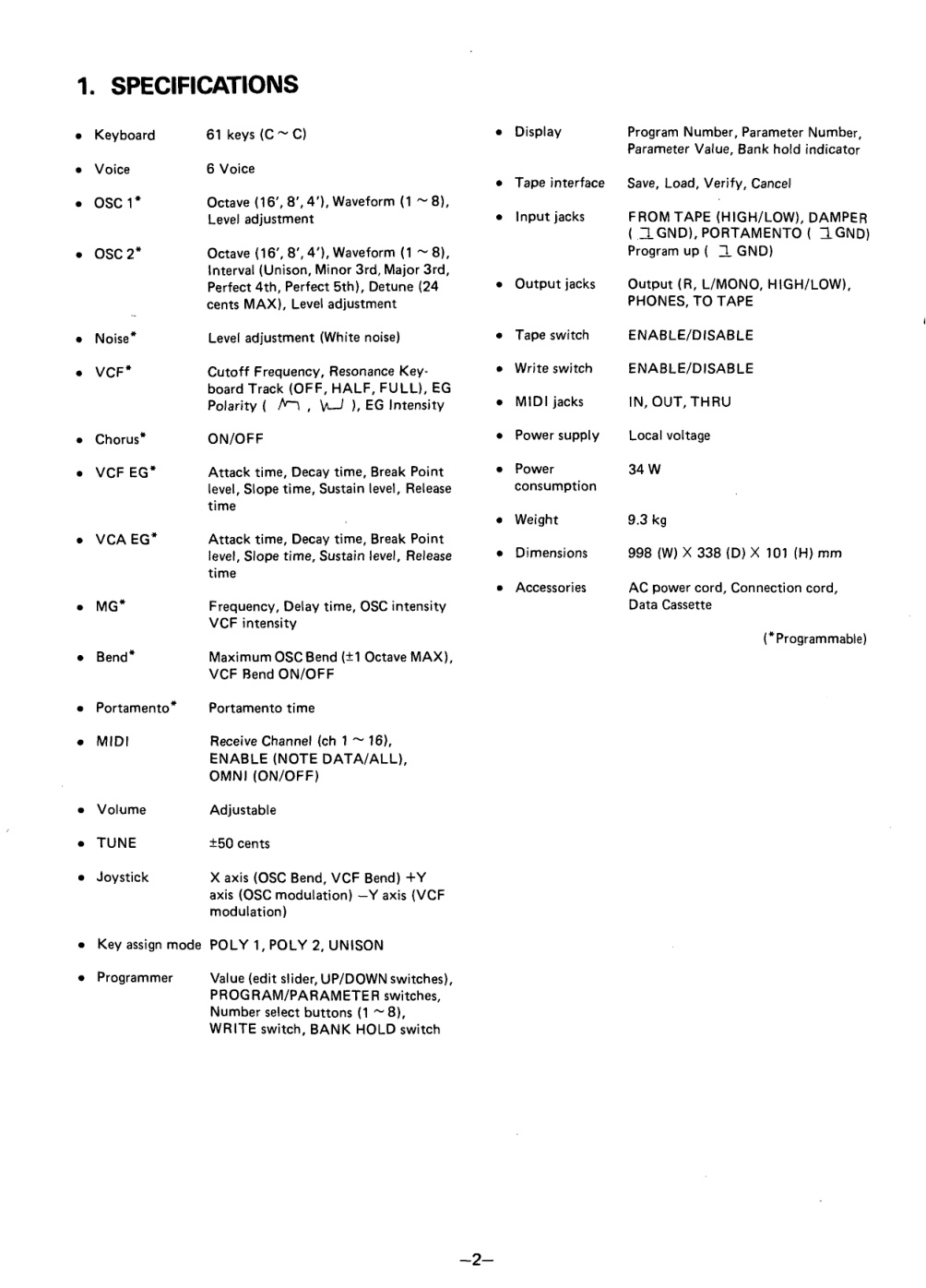

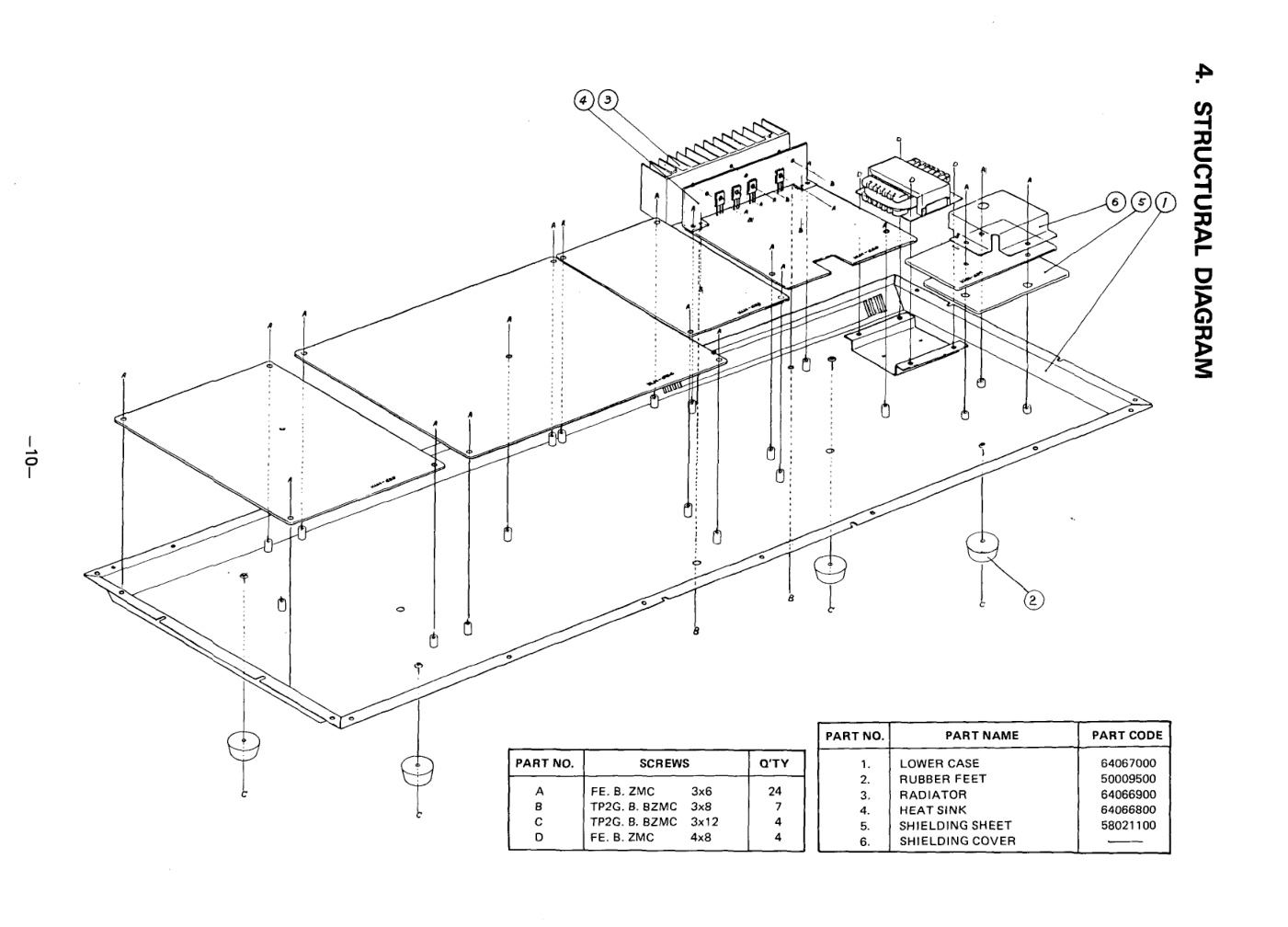

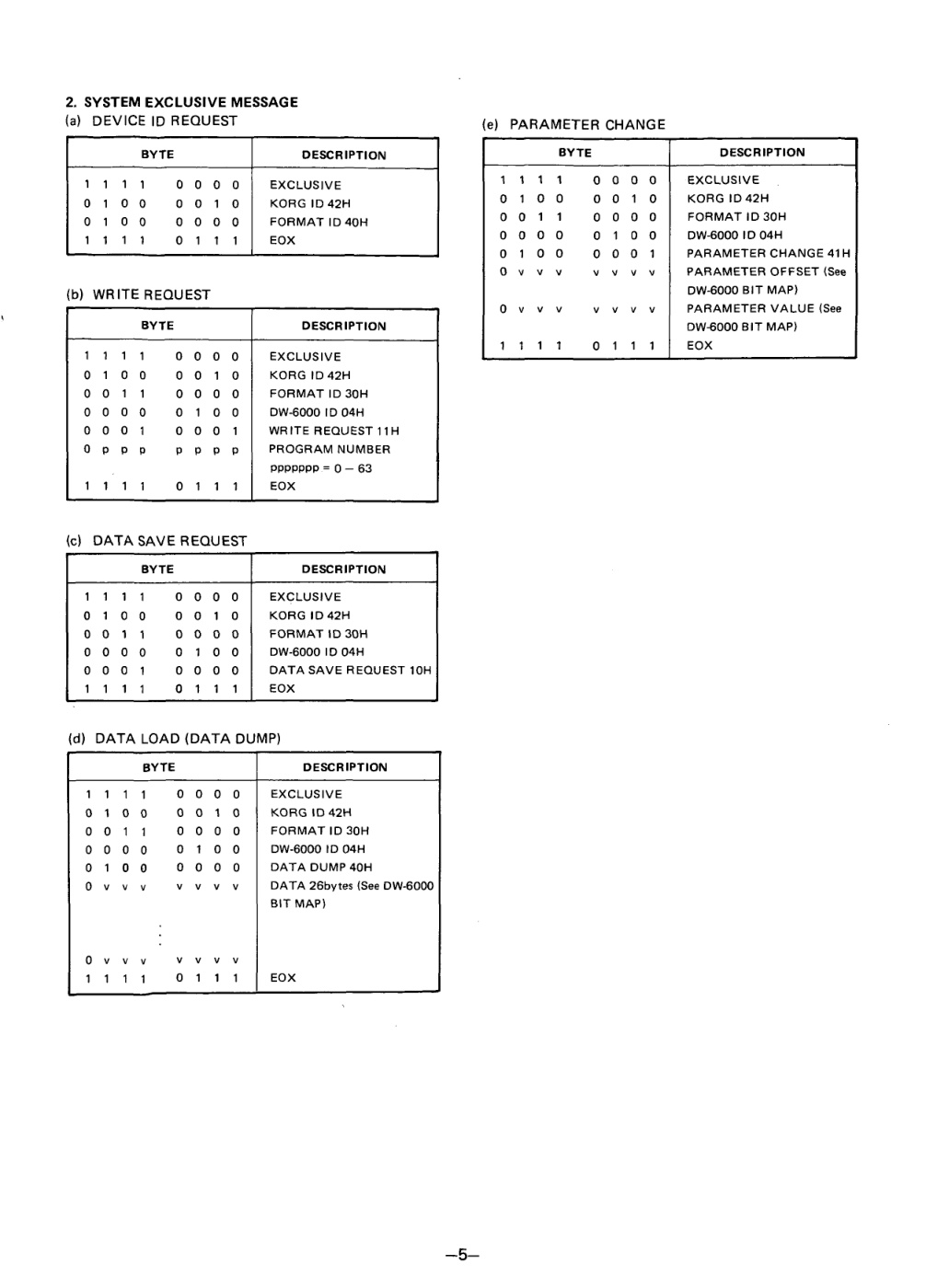

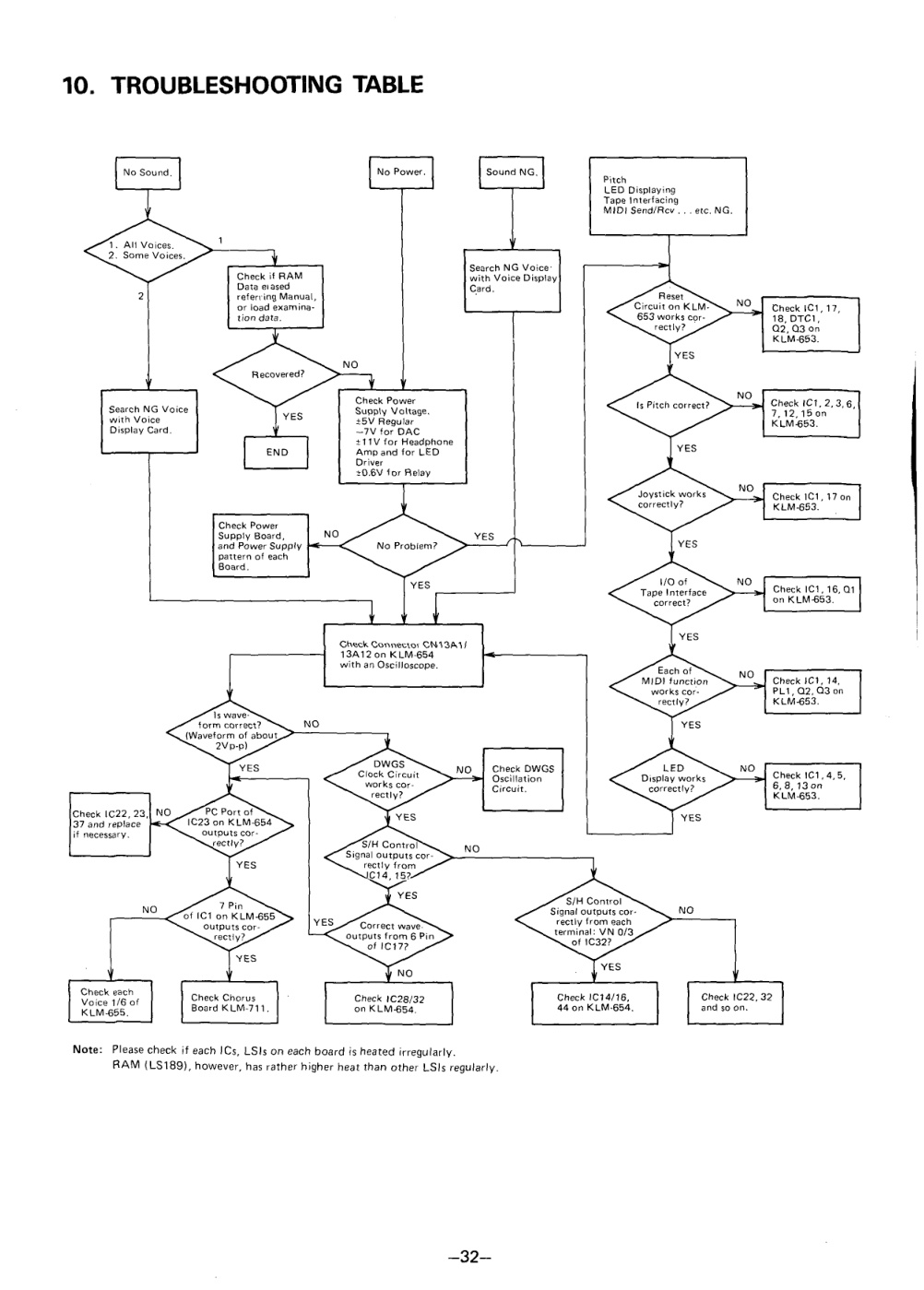

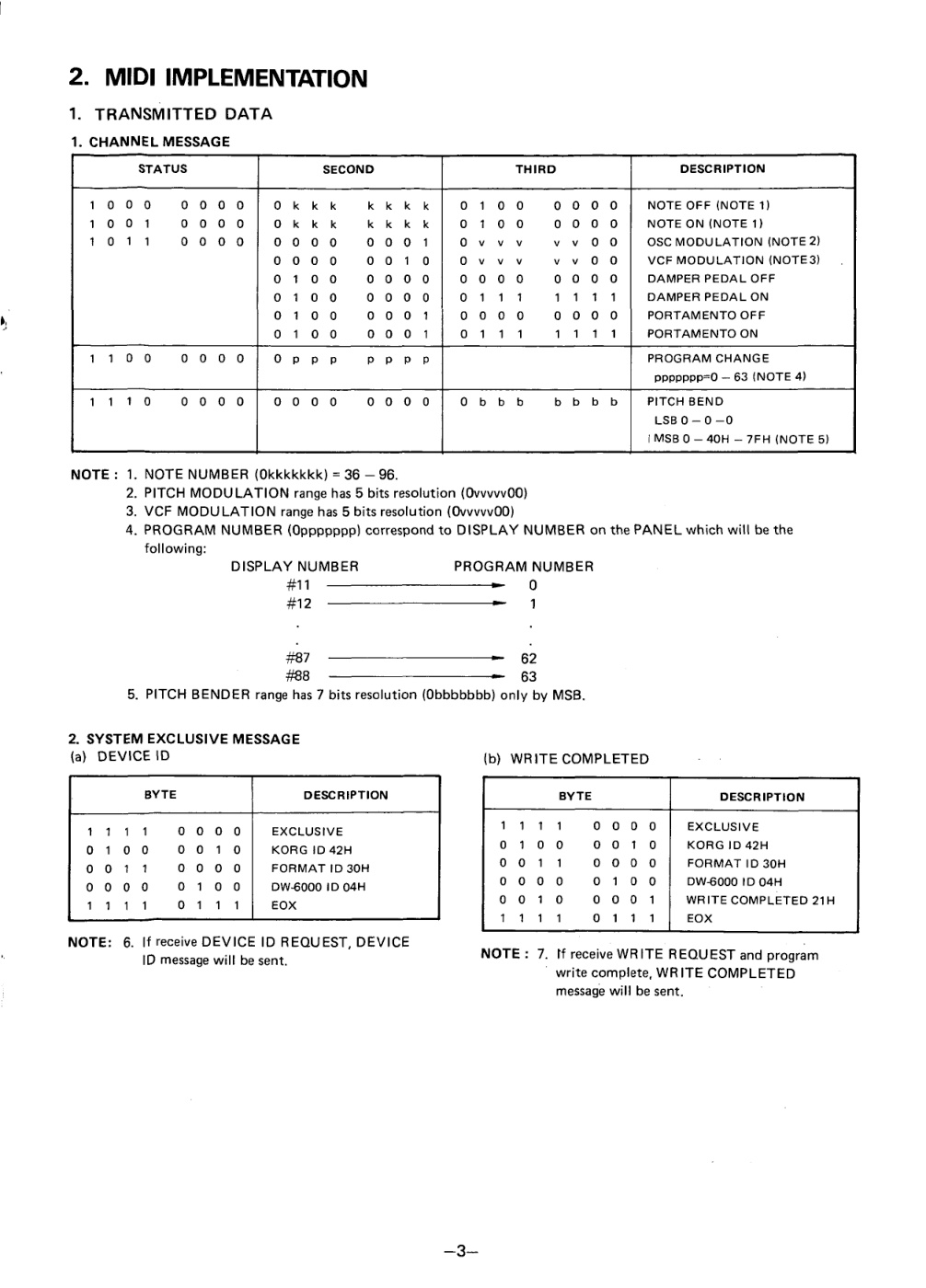

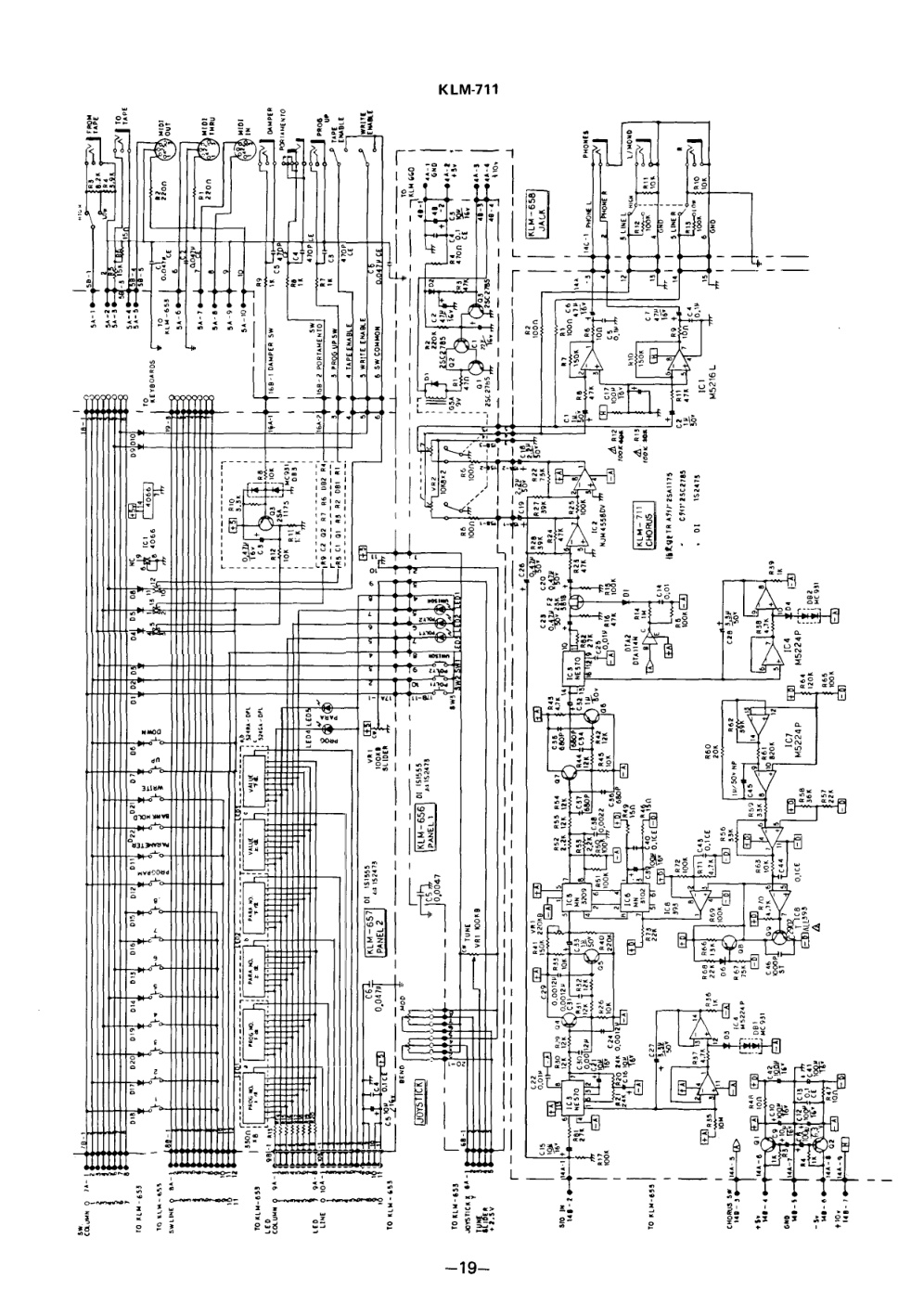

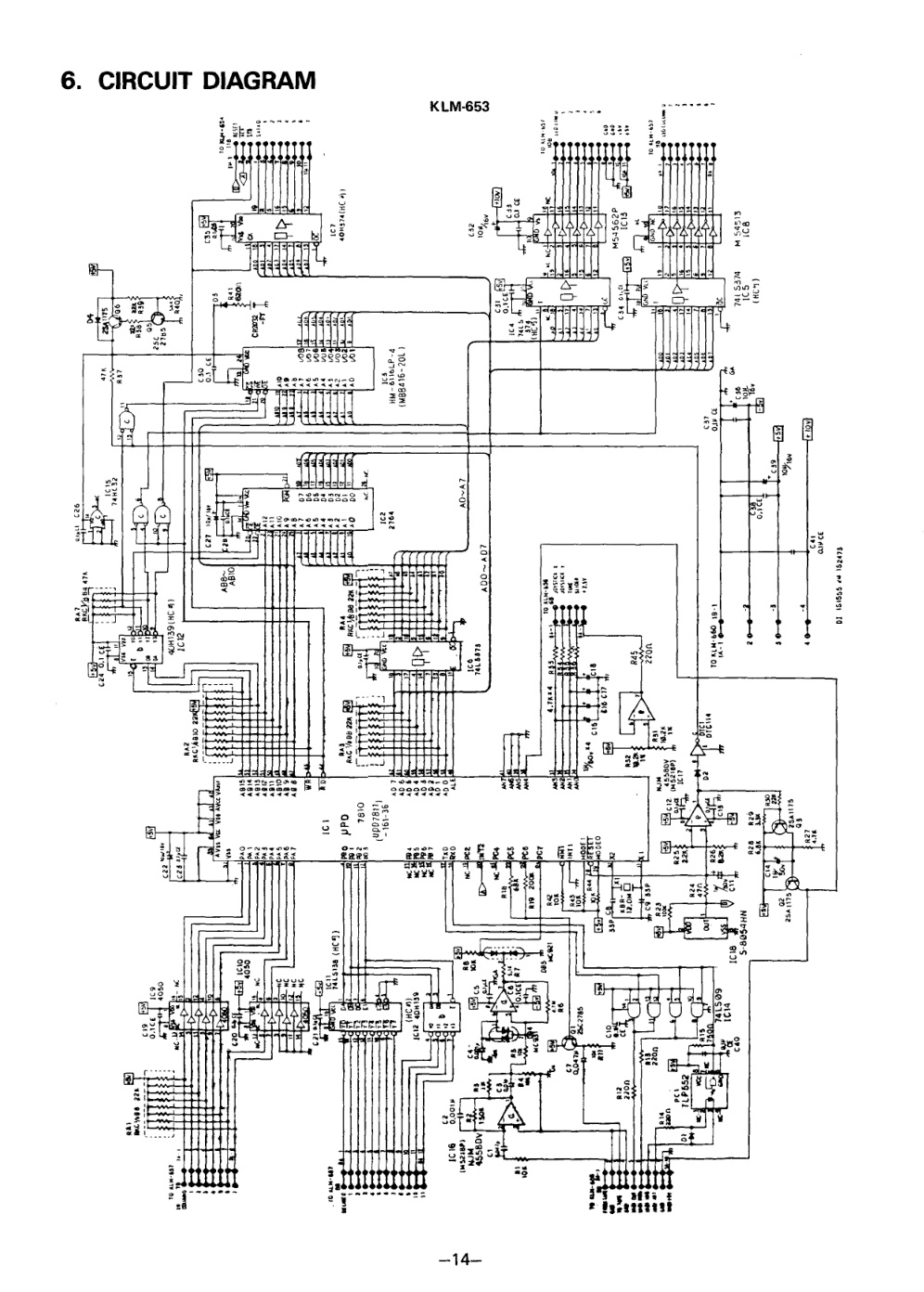

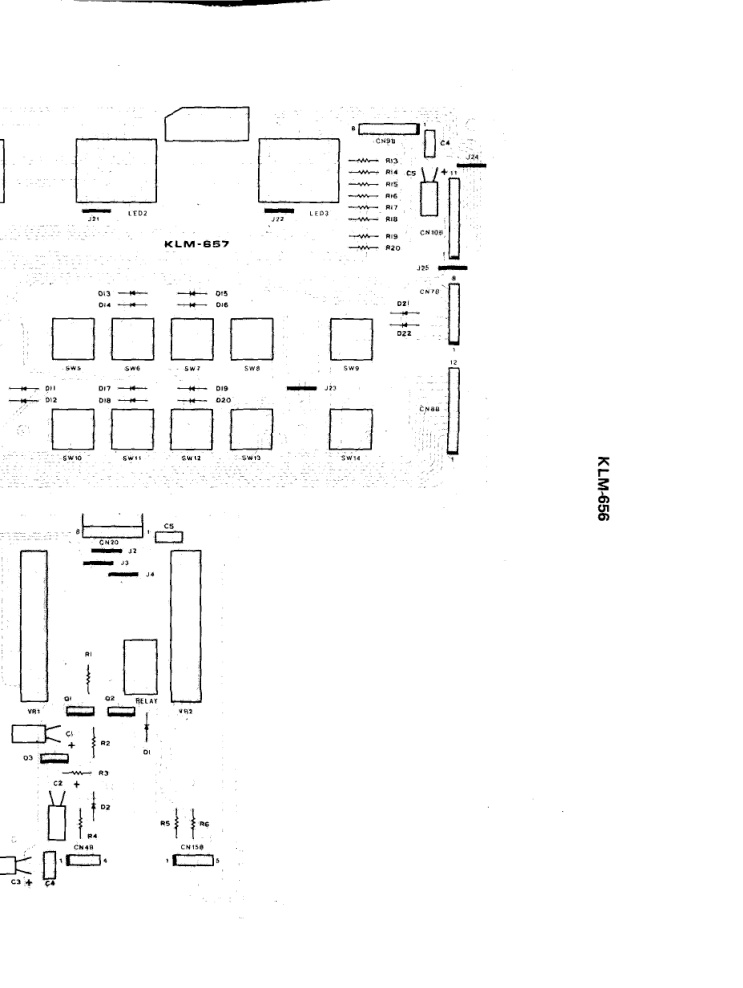

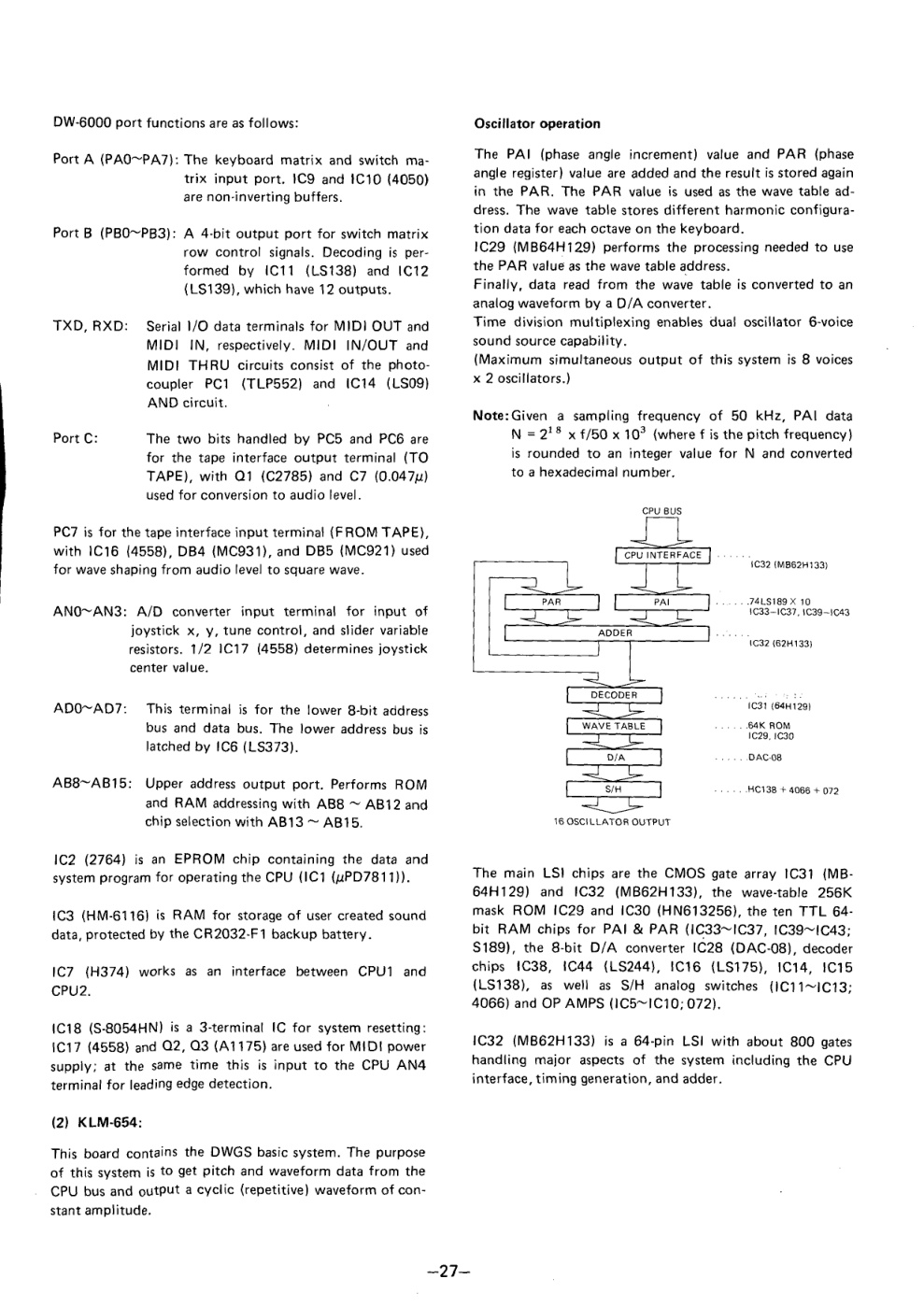

KORG@ PROGRAMMABLE DIGITAL WAVEFORM SYNTHESIZER MANUAL DW-6000 CONTENTS 1 . SPECIFICATÏONS.............................................................................. 2 2. MIDI IMPLEMENTATION ............... 3 3. DATA DUMP REFERENCE ...................................................… . 6 4. STRUCTURAL D IA G R A M ....................................... 10 5. BLOCK DIAGRAM ............................................................................... 13 6. CIRCUIT D IA G R A M .............................................................................14 7. PC BOARD........................................................................................... 20 8. CIRCUIT DESCRIPTIONS ................................................................ 26 9. CHECK AND ADJUSTMENT PROCEDURE .................................. 29 10. TROUBLESHOOTING TABLE ............................................................32 1 1 . PARTS LIS T ....................................................................................... 33 KEIO ELECTRONIC LABORATORY CORPORATION TOKYO/JAPAN 1 . SPECIFICATIONS • Keyboard 61 keys <C 〜C> • Display Program Number, Parameter Number, Parameter Value, Bank…
