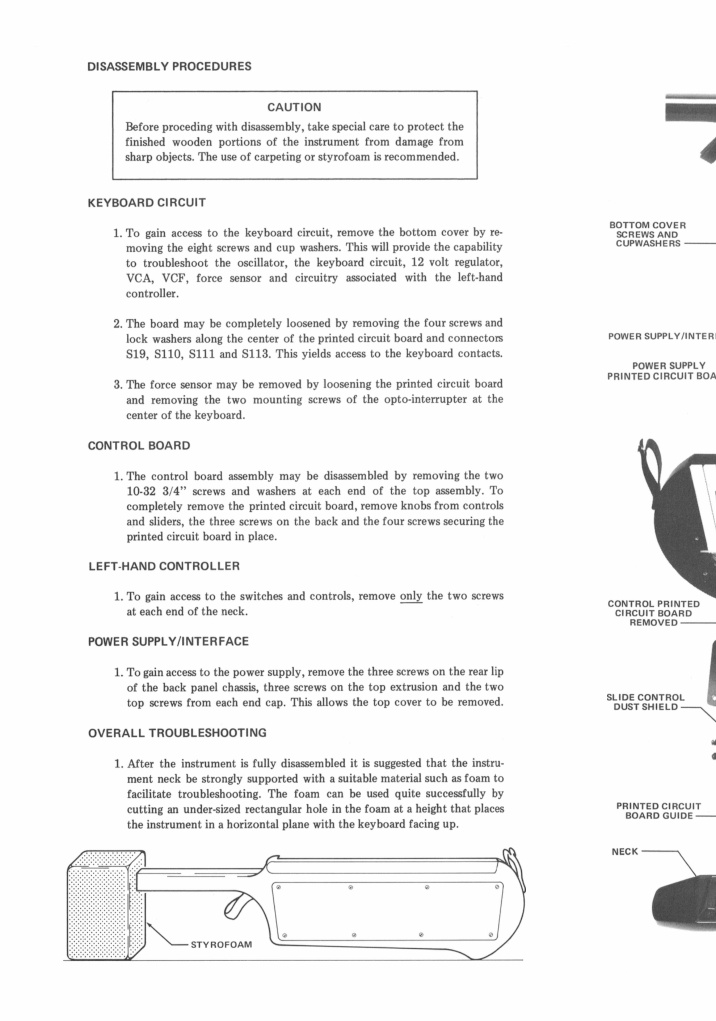

N0. 993 044595 001 SERVICE INFORMATION DOMESTIC MODEL 338A EXPORT MODEL 338BX M OOG M U SIC INC- 2500 Walden Avenue, Buffalo, New York 14225 N O R LIN M U SIC IN ST RU M EN T S LIM IT E D 161 Alden Road, Markham, Ontario, Canada L3R 3W7 MOOG M U SIC B.V. Waalhaven Zuidzjjde 48, 3088 H.J., Rotterdam, The Netherlands These drawings and specifications are the property of Moog Music Inc., and shall not be reproduced or copied in whole or in part as the basis for manufacture or sale of the items. C O P Y R IG H T - 1980 M O O G MU<5IC INC DISASSEM BLY PROCEDURES Before proceding with disassembly, take special care to protect the finished wooden portions of the instrument from damage from sharp objects. The use of carpeting or styrofoam is recommended. KEYBO ARD CIRCUIT 1. To gain access to the keyboard circuit, remove the bottom cover by re­ BOTTOMSCREWSCOVERAND moving the eight screws and cu

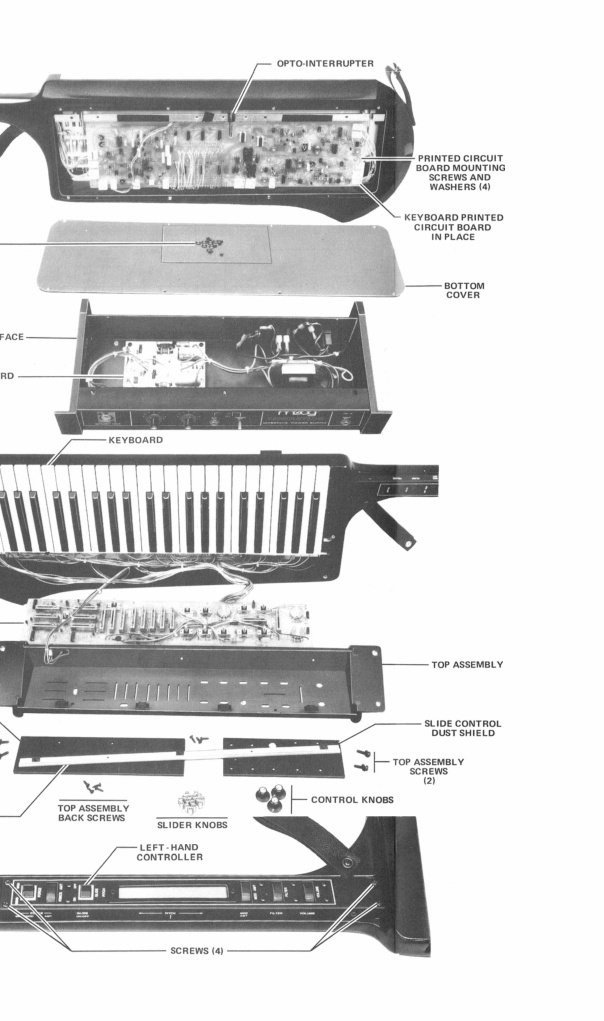

N0. 993 044595 001 TECHNICAL SERVICE INFORMATION for LIBERATION DOMESTIC MODEL 338A EXPORT MODEL 338BX M OOG M U SIC INC- 2500 Walden Avenue, Buffalo, New York 14225 N O R LIN M U SIC IN ST RU M EN T S LIM IT E D 161 Alden Road, Markham, Ontario, Canada L3R 3W7 MOOG M U SIC B.V. Waalhaven Zuidzjjde 48, 3088 H.J., Rotterdam, The Netherlands These drawings and specifications are the property of Moog Music Inc., and shall not be reproduced or copied in whole or in part as the basis for manufacture or sale of the items. C O P Y R IG H T - 1980 M O O G MU<5IC INC DISASSEM BLY PROCEDURES CAUTION Before proceding with disassembly, take special care to protect the finished wooden portions of the instrument from damage from sharp objects. The use of carpeting or styrofoam is recommended. KEYBO ARD CIRCUIT 1. To gain access to the keyboard circuit, remove the bottom cover by re­ BOTTOMSCREWSCOVERAND moving the eight screws and cup washers. This will provide the capability CUP WASHERS - to troubleshoot the oscillator, the keyboard circuit,12 volt regulator, VCA, VCF, force sensor and circuitry associated with the left-hand controller. 2. The board may be completely loosened by removing the…
