Landini MISTRAL2 STD GE

5 ENGLISH DD FRANÇAIS Z ESPANOL 6 we AA à o YL L == & Cw 1€ | et =" Be LE Pap | ae | PO AG Er eee À WI L | 1 i r => LL o>, eo « a om À \ \ a C J _ was is A | À: | \ » /] N | \ | L. | = f bu iy! = LE a i Passion for Innovation. MISTRAL 2-055 MISTRAL 2-060 MISTRAL 2-055 MISTRAL 2-060 Manufacturer Kohler Engine type KDI 1903 TCR Max power (ISO) hp/kW 49 / 36 57 / 42 49 / 36 57 / 42 Engine speed at max power rpm 2600 Max torque Nm 180 200 180 200 Engine speed at max torque rpm 1200 Cylinders / Valves - Displacement cm3 3 / 12 - 1900 Emissions category Stage V Exhaust after-treatment system EGR + DOC + DPF Air intake system turbo aftercooler Fuel injection system common rail direct injection Cooling system liquid Engine Memo Switch l Transmission type mechanical Clutch type mechanical No. of gears - FWD+REV l 12+12 - ¡ 16+16 w/creeper Minimum speed m/h l 770 - ¡ 220 (w/creeper) Engine speed

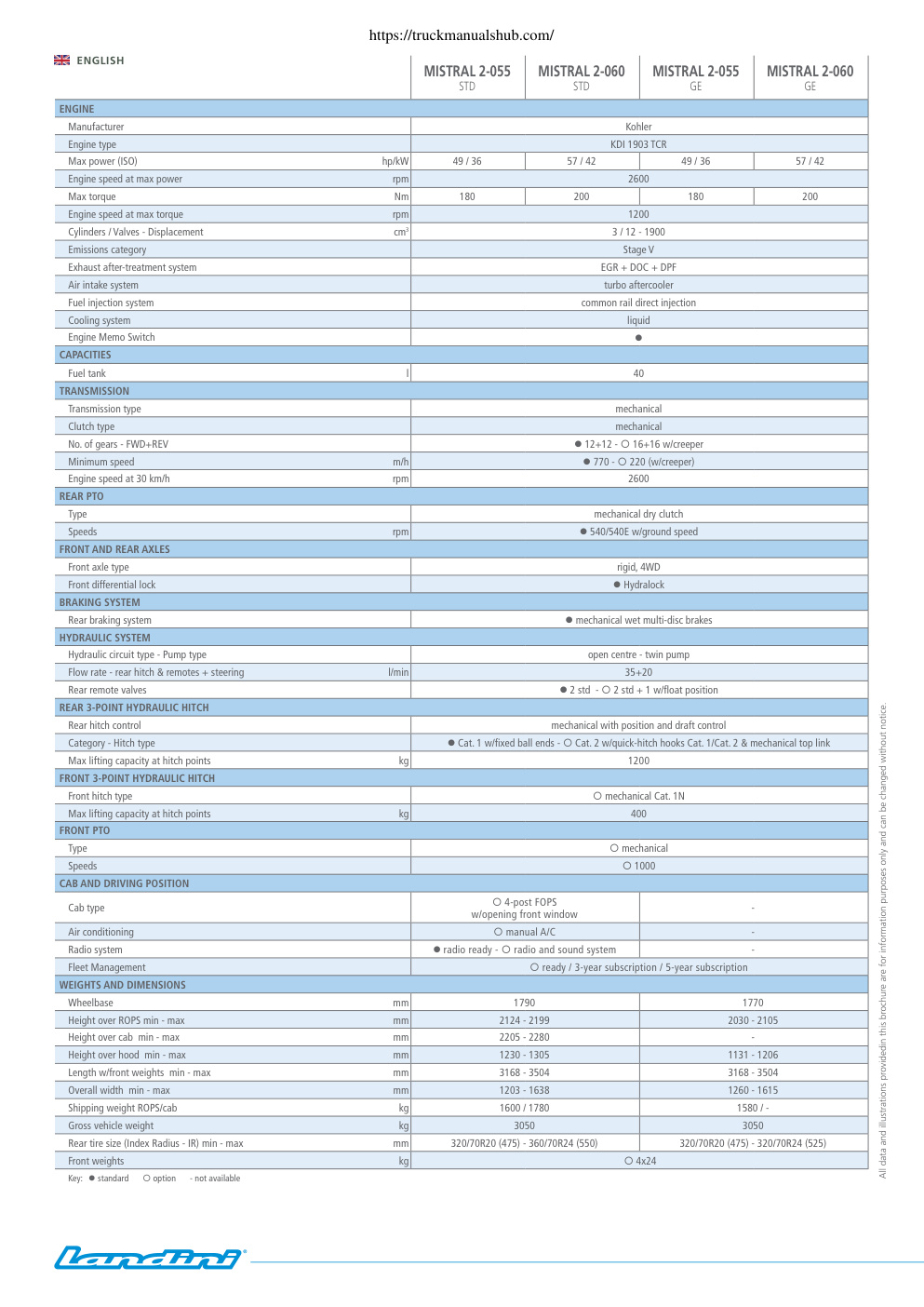

https://truckmanualshub.com/ ENGLISH FRANÇAIS ESPAÑOL MISTRAL2 MISTRAL2 STD - GE 2-055 • 2-060 https://truckmanualshub.com/ ENGLISH MISTRAL 2-055 MISTRAL 2-060 MISTRAL 2-055 MISTRAL 2-060 STD STD GE GE ENGINE Manufacturer Kohler Engine type KDI 1903 TCR Max power (ISO) hp/kW 49 / 36 57 / 42 49 / 36 57 / 42 Engine speed at max power rpm 2600 Max torque Nm 180 200 180 200 Engine speed at max torque rpm 1200 Cylinders / Valves - Displacement cm3 3 / 12 - 1900 Emissions category Stage V Exhaust after-treatment system EGR + DOC + DPF Air intake system turbo aftercooler Fuel injection system common rail direct injection Cooling system liquid Engine Memo Switch l CAPACITIES Fuel tank l 40 TRANSMISSION Transmission type mechanical Clutch type mechanical No. of gears - FWD+REV l 12+12 - ¡ 16+16 w/creeper Minimum speed m/h l 770 - ¡ 220 (w/creeper) Engine speed at 30 km/h rpm 2600 REAR PTO Type mechanical dry clutch Speeds rpm l 540/540E w/ground speed FRONT AND REAR AXLES Front axle type rigid, 4WD Front differential lock l Hydralock BRAKING SYSTEM Rear braking system l mechanical wet multi-disc brakes HYDRAULIC SYSTEM Hydraulic circuit type - Pump type open centre - twin pump Flow rate -…
