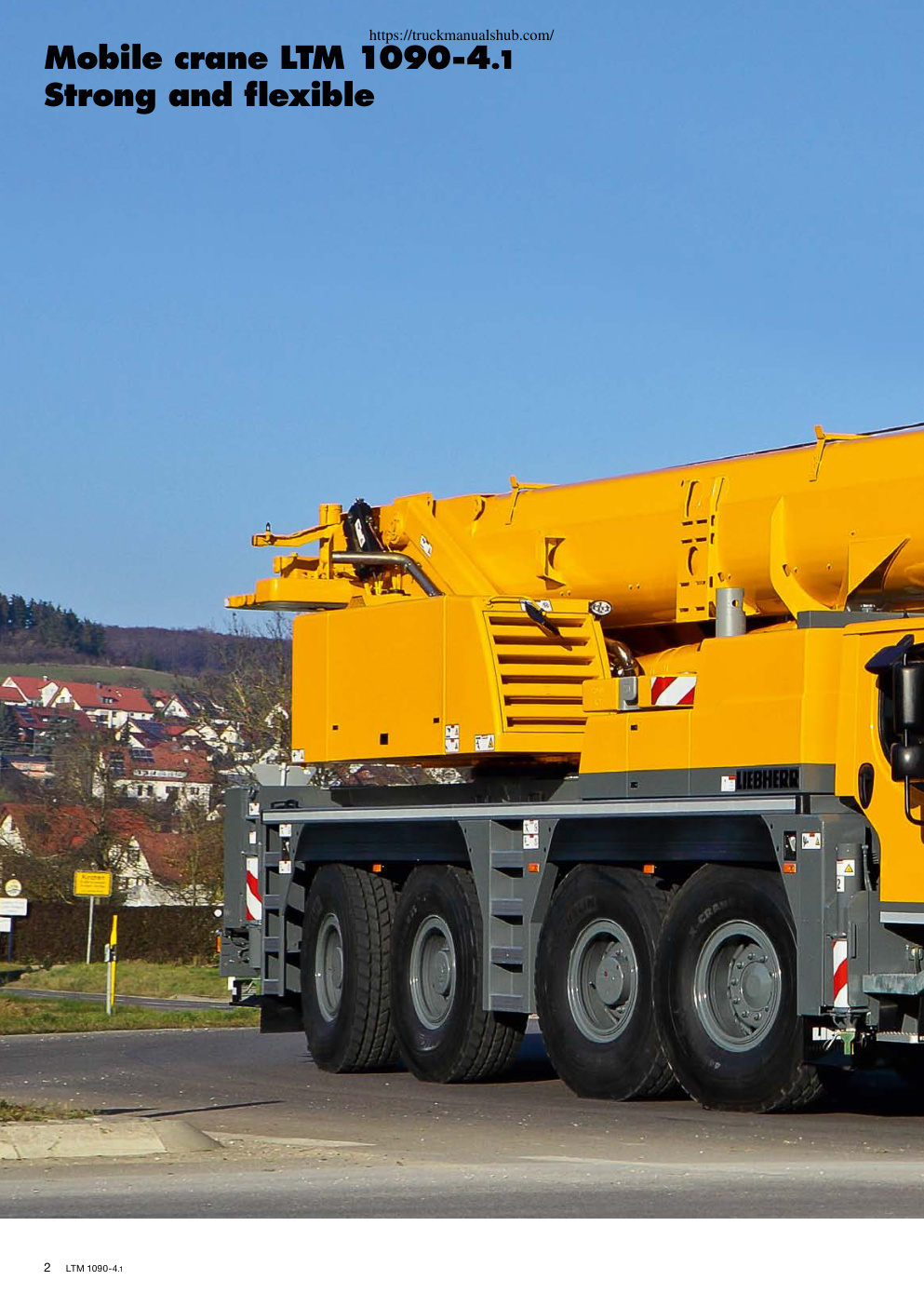

Mobile crane LTM 1090-4.1 Max. lifting capacity: 90t Max. lifting height: 75m Max. working radius: 62m ‘mf | \ \ es = = — | al 4, \ = ‘Ae Va | 6 * | ee 5 j Li ie \ = _ \ à if |] OO —= Wh i ae |) =a vi: hey Me) eth 4 1 ERA I ey] | a TE \ i if | is ER AT 1 nN a | | le LL os | (1 Que ce) | da y | wy By Wl ay ae yy | i | f 4 == {Pet er Lal FEU si É = se mel À À = =, lie ENT Be Wh = ‘i ji Co i Rat a AA F2 _ Hamlet m4 e & ese mil Lede als AA rd | Jautt —— à Li = pee aa ite ale AC A gt ies We — | — Nis eT) Vas | || Pau": |) mec Te RPC | A iets,” CET A AE eas | En || IN 1 ee — Li | | SRE Bp, AIN fe Je nr | - i ee Sot gue aS Se à PEUR © EP CT RS! ey Ai a i) ‘fs rs pe Ê ip = —— ese: 4 mn — fi ag | | | À i HW | aia Ne we aa oe Wi ay er en ene ANT Leg ee [A HAS | si 2 1 ee En is Asia ji IR ue" ic | a “en RDS i Aaa ee MU EE NL UN] | AR ee a ine — jf wd ‘on | ee D ARS LE i geal ete ee al hy i a Fe

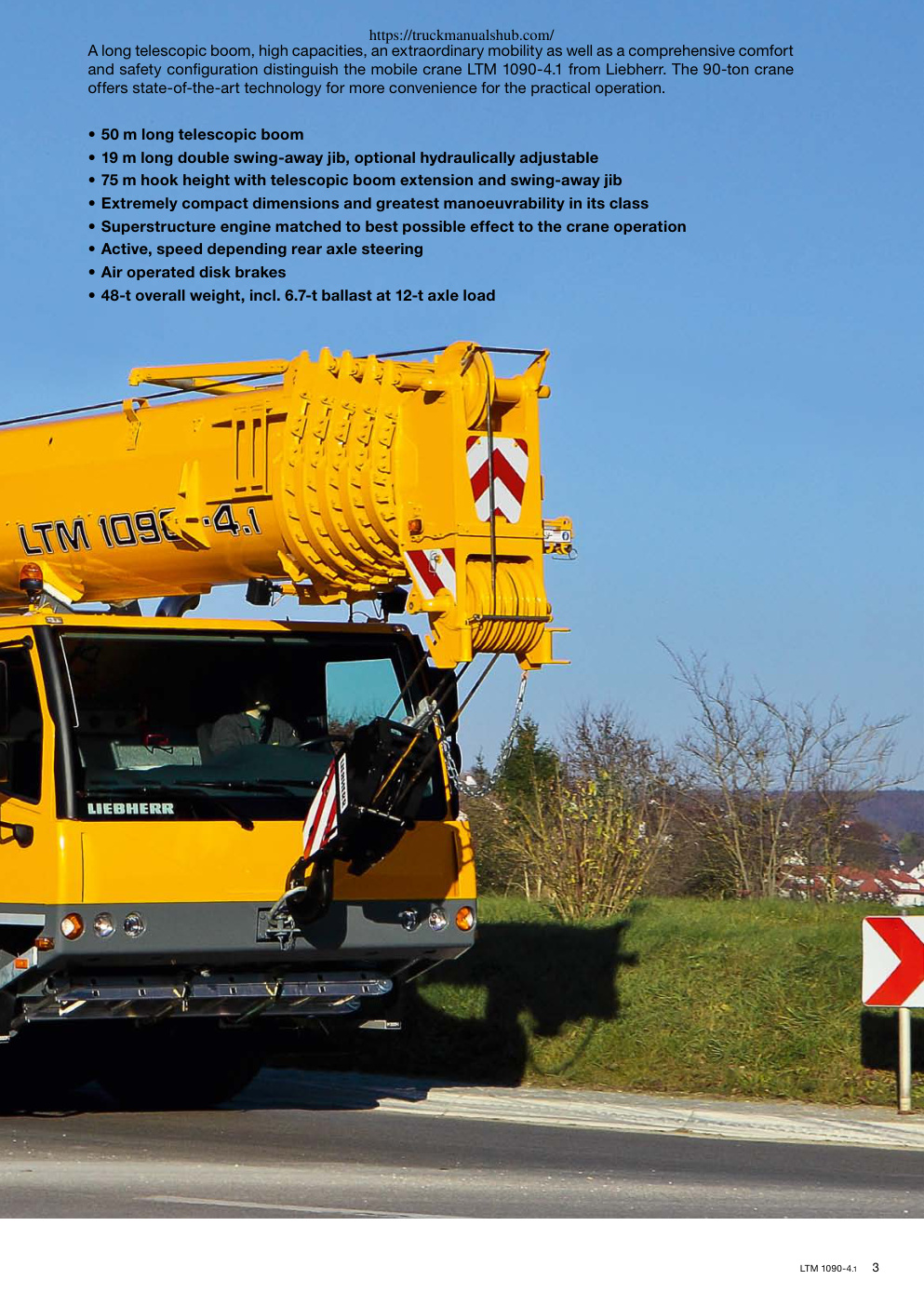

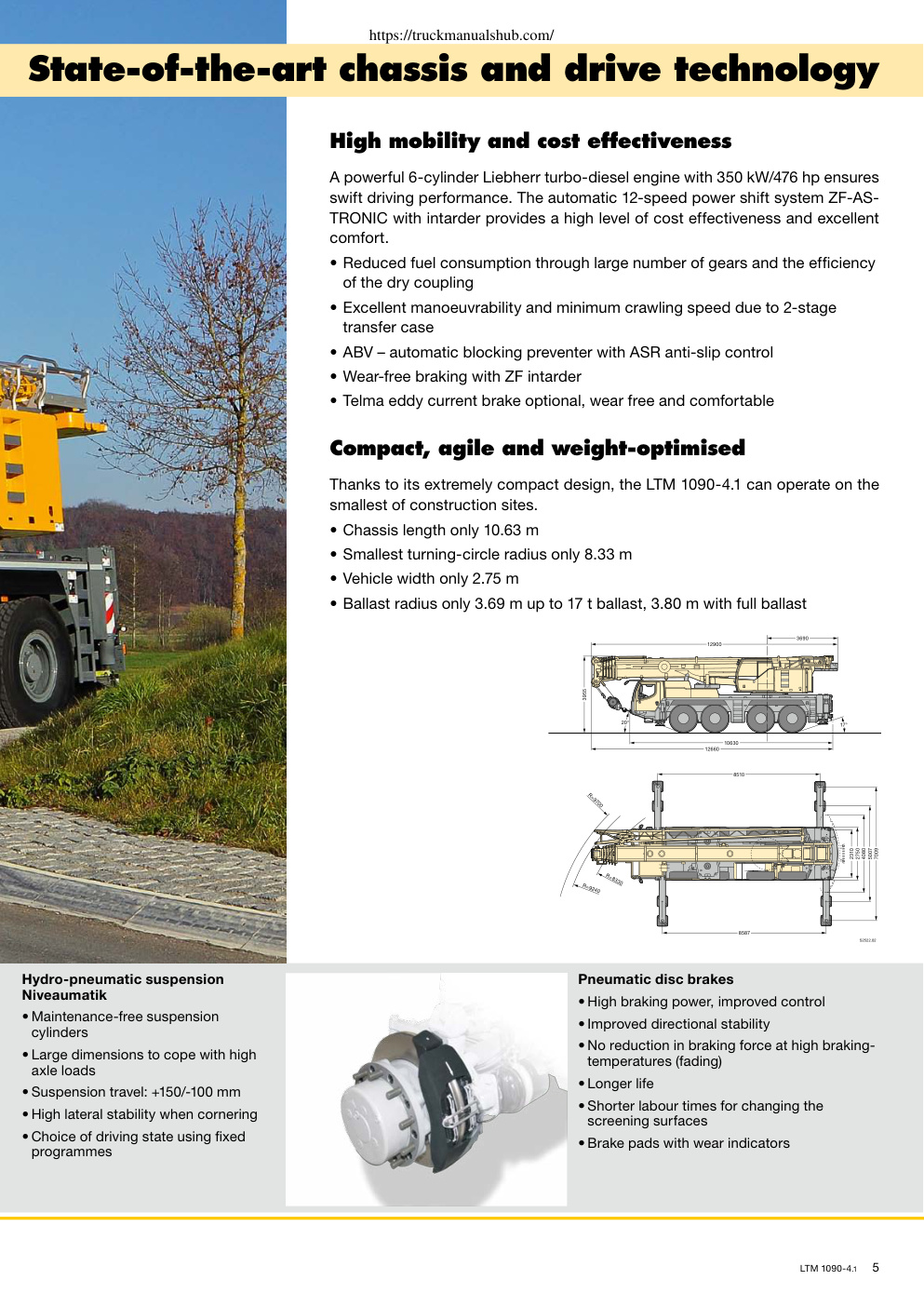

https://truckmanualshub.com/ Mobile crane LTM 1090-4.1 Max. lifting capacity: 90 t Max. lifting height: 75 m Max. working radius: 62 m https://truckmanualshub.com/ Mobile crane LTM 1090-4.1 Strong and flexible 2 LTM 1090-4.1 https://truckmanualshub.com/ A long telescopic boom, high capacities, an extraordinary mobility as well as a comprehensive comfort and safety configuration distinguish the mobile crane LTM 1090-4.1 from Liebherr. The 90-ton crane offers state-of-the-art technology for more convenience for the practical operation. • 50 m long telescopic boom • 19 m long double swing-away jib, optional hydraulically adjustable • 75 m hook height with telescopic boom extension and swing-away jib • Extremely compact dimensions and greatest manoeuvrability in its class • Superstructure engine matched to best possible effect to the crane operation • Active, speed depending rear axle steering • Air operated disk brakes • 48-t overall weight, incl. 6.7-t ballast at 12-t axle load LTM 1090-4.1 3 https://truckmanualshub.com/ Drivetrain • 6-cylinder Liebherr turbo-diesel en- gine, 350 kW/476 hp, max. torque: 2220 Nm • Automated ZF AS-TRONIC gearbox, 12 forward and 2 reverse speeds • ZF…
