Lull 1044C 54 Series II Illustrated Parts Manual

Mustrated Parts Manual SN 0160009654 to Present including 0160008714 October 26, 2016

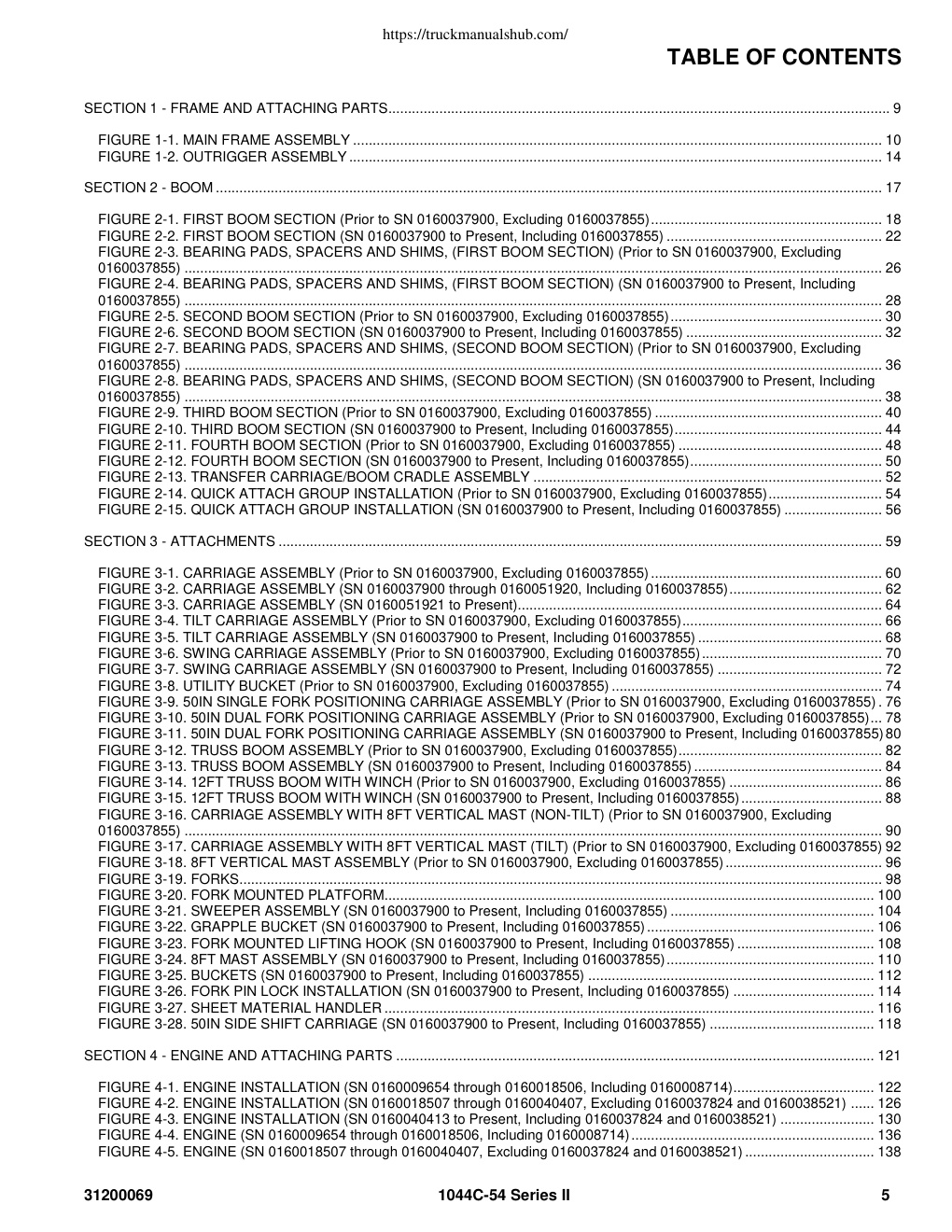

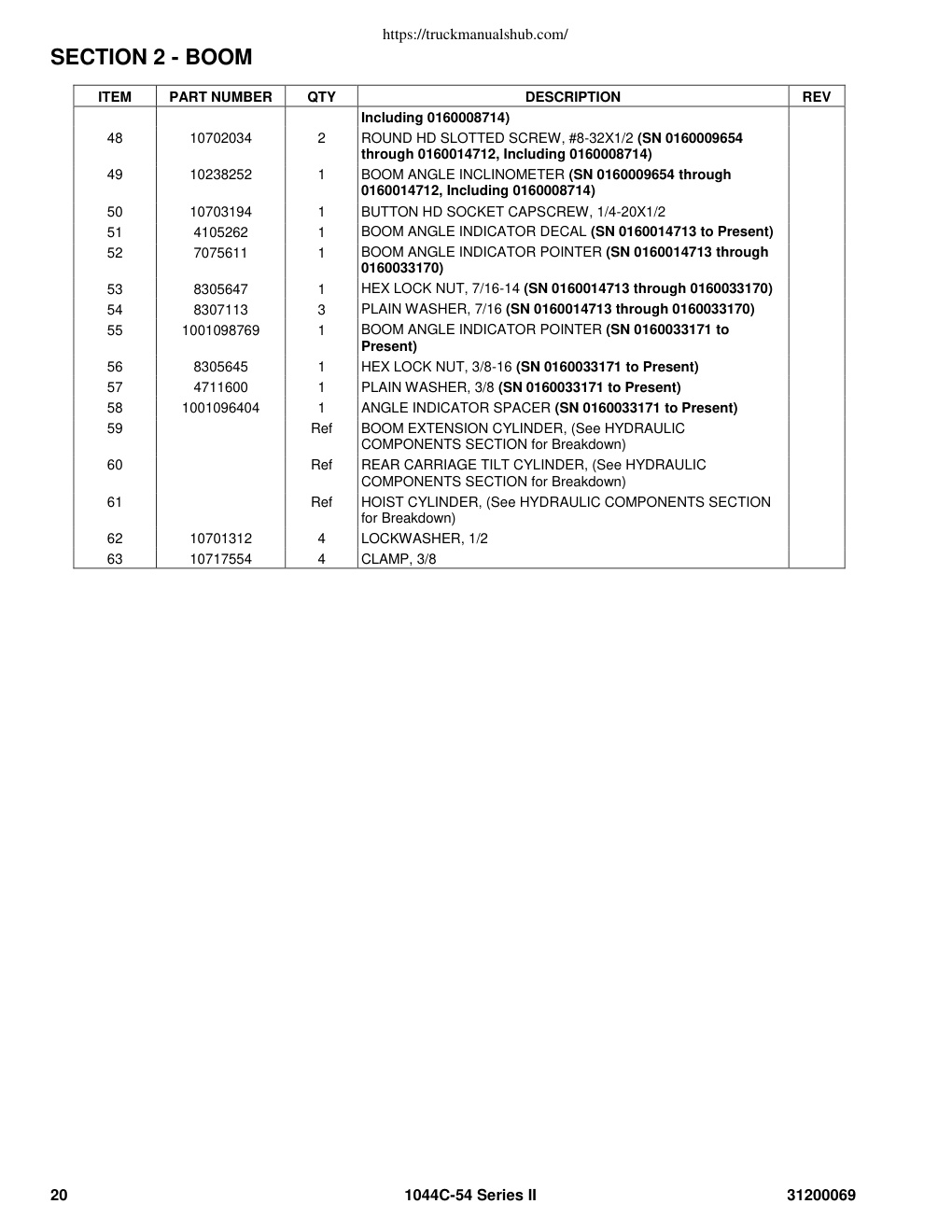

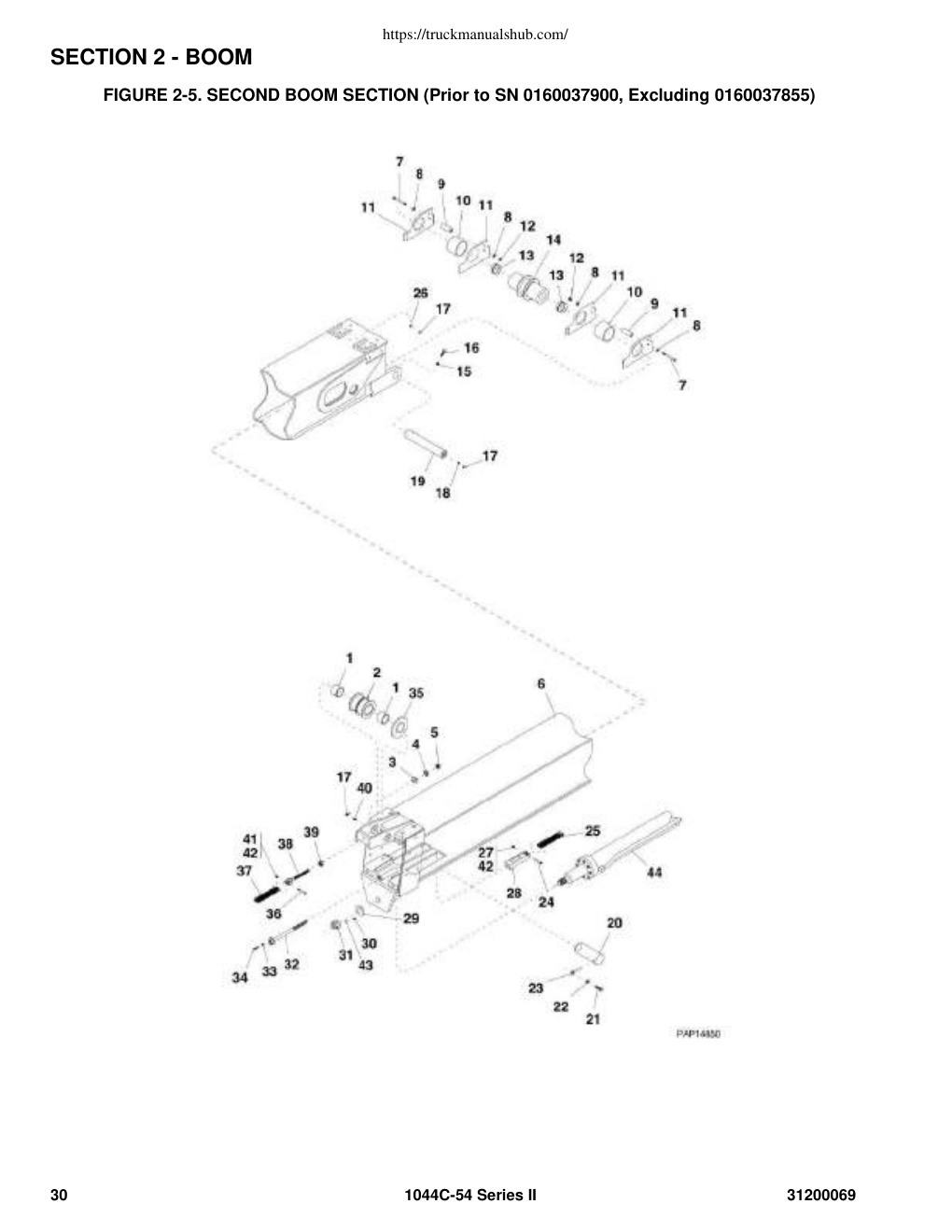

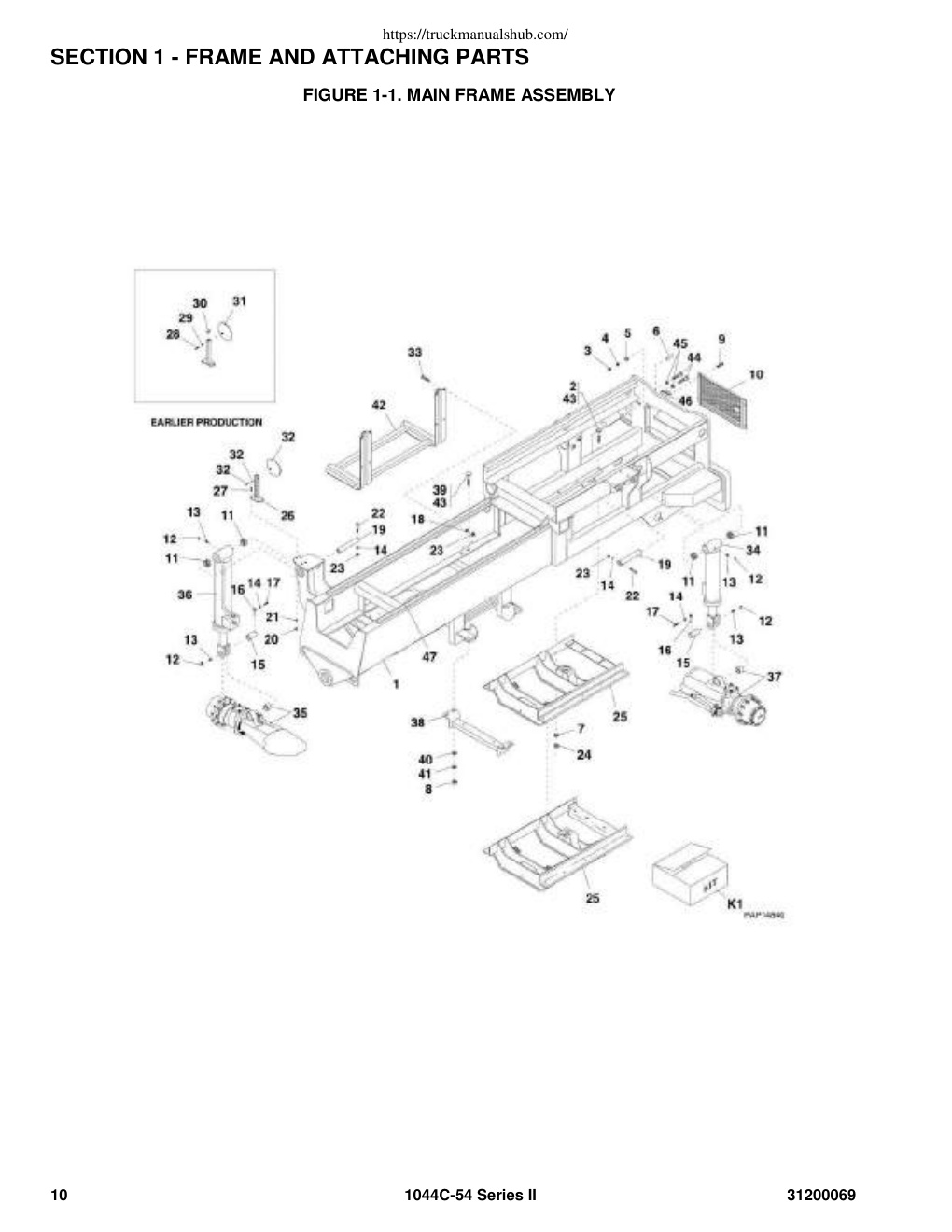

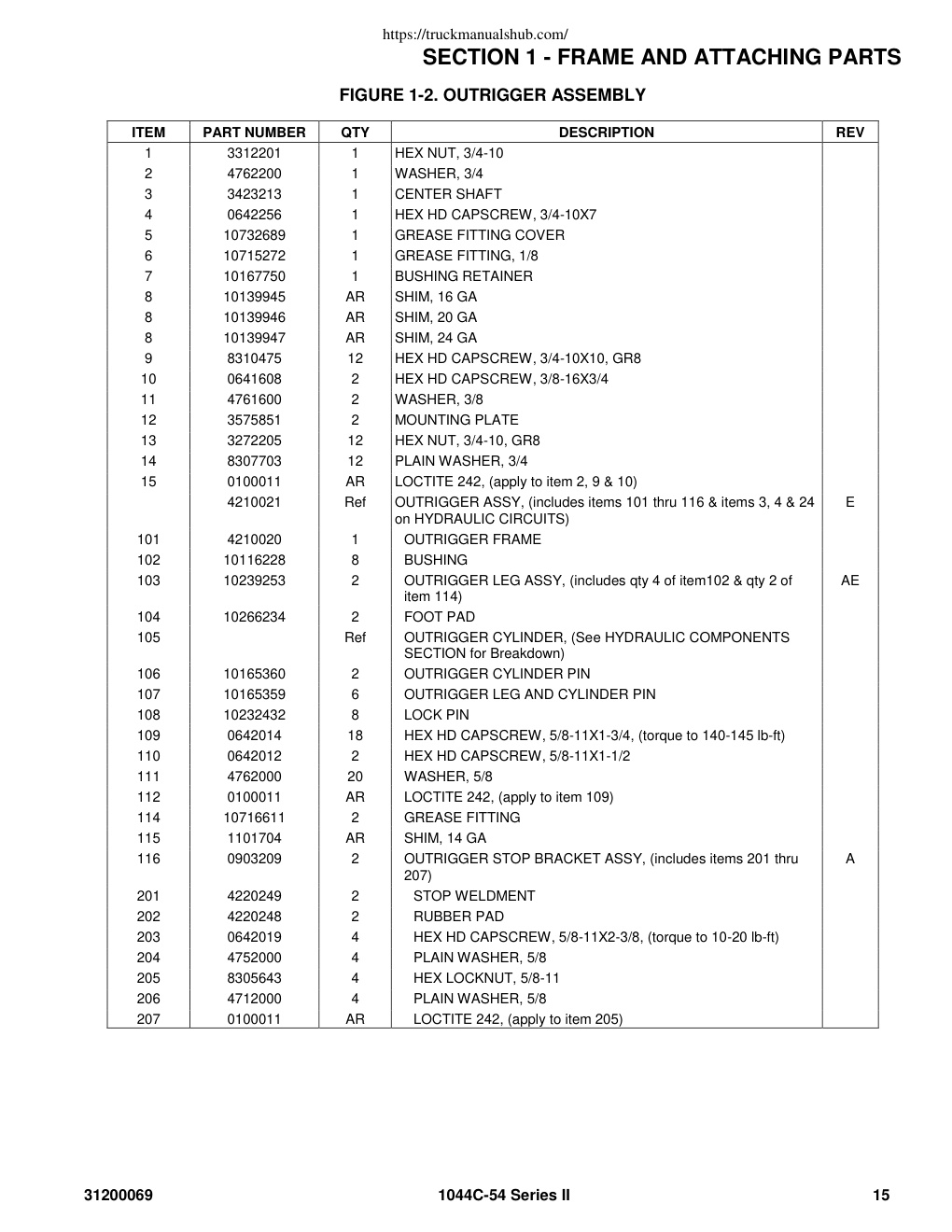

https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ 31200069 1044C-54 Series II 3 https://truckmanualshub.com/ https://truckmanualshub.com/ TABLE OF CONTENTS SECTION 1 - FRAME AND ATTACHING PARTS................................................................................................................................ 9 FIGURE 1-1. MAIN FRAME ASSEMBLY ....................................................................................................................................... 10 FIGURE 1-2. OUTRIGGER ASSEMBLY ........................................................................................................................................ 14 SECTION 2 - BOOM .......................................................................................................................................................................... 17 FIGURE 2-1. FIRST BOOM SECTION (Prior to SN 0160037900, Excluding 0160037855) ........................................................... 18 FIGURE 2-2. FIRST BOOM SECTION (SN 0160037900 to Present, Including 0160037855) ....................................................... 22 FIGURE 2-3. BEARING PADS,…
