MAESTRO FUZZ 271A SERVICE MANUAL ocr

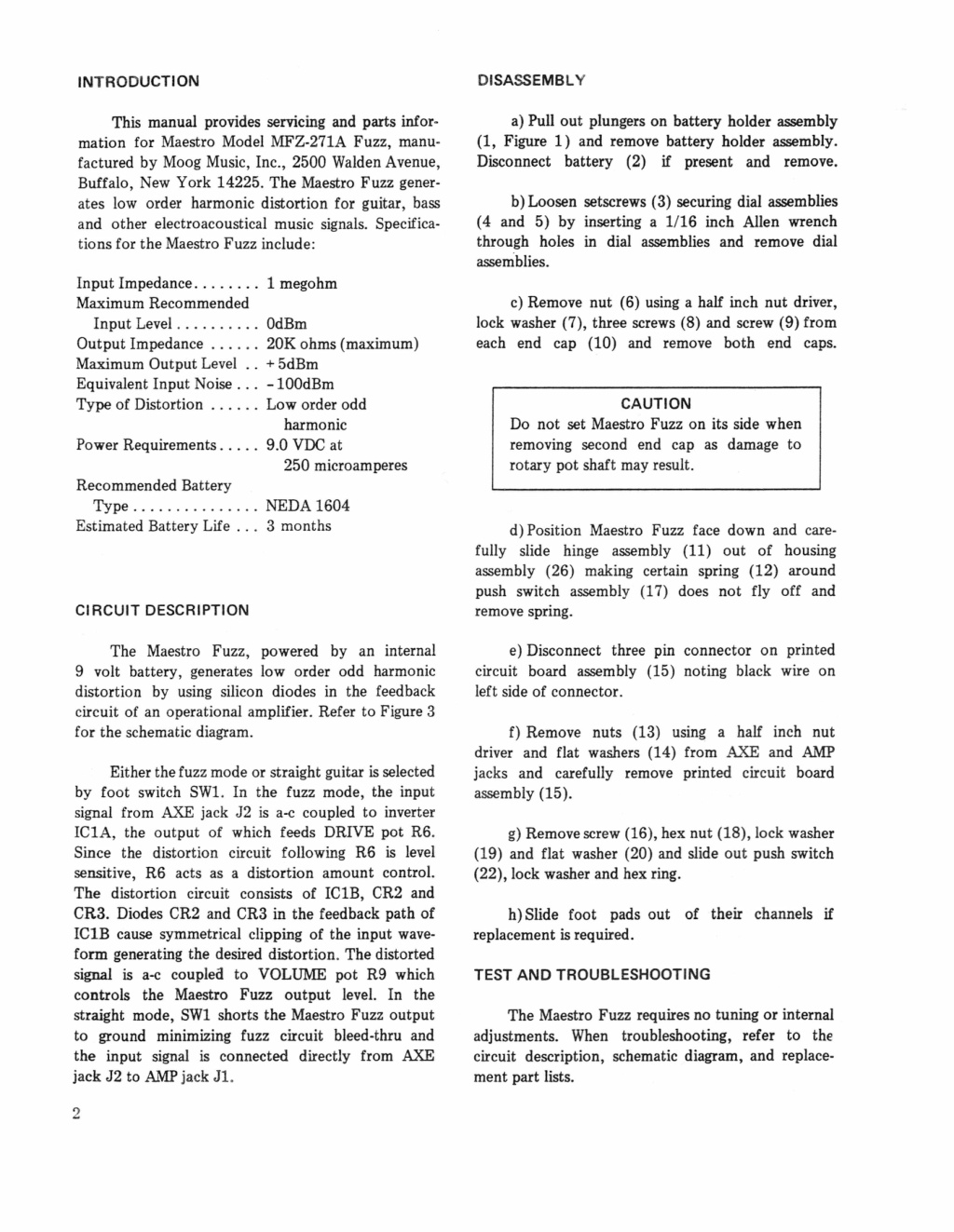

MAESTRO’ Meats: SS 4 Model MFZ-271A 2500 Walden Ave. NORLIN MUSIC Buffalo, NY. 14225 (716) 681-7242 INTRODUCTION DISASSEMBLY This manual provides servicing and parts infor­ a) Pull out plungers on battery holder assembly mation for Maestro Model MFZ-271A Fuzz, manu­ (1, Figure 1) and remove battery holder assembly. factured by Moog Music, Inc., 2500 Walden Avenue, Disconnect battery (2) if present and remove. Buffalo, New York 14225. The Maestro Fuzz gener­ ates low order harmonic distortion for guitar, bass b) Loosen setscrews (3) securing dial assemblies and other electroacoustical music signals. Specifica­ (4 and 5) by inserting a 1/16 inch Allen wrench tions for the Maestro Fuzz include: through holes in dial assemblies and remove dial Input Impedance................1 megohm Maximum Recommended c) Remove nut (6) using a hall inch nut driver, Input Level.................... OdBm

MANUAL NO. 993-040657-001 PRICE $ 5.00 TECHNICAL SERVICE MANUAL for Carlini 2500 Walden Ave. NORLIN MUSIC Buffalo, NY 14225 (716)681-7242 INTRODUCTION DISASSEMBLY This manual provides servicing and parts infor­ a) Pull out plungers on battery holder assembly mation for Maestro Model MFZ-271A Fuzz, manu­ ( 1 , Figure 1 ) and remove battery holder assembly. factured by Moog Music, Inc., 2500 Walden Avenue, Disconnect battery (2) if present and remove. Buffalo, New York 14225. The Maestro Fuzz gener­ ates low order harmonic distortion for guitar, bass b) Loosen setscrews (3) securing dial assemblies and other electroacoustical music signals. Specifica­ (4 and 5) by inserting a 1/16 inch Allen wrench tions for the Maestro Fuzz include: through holes in dial assemblies and remove dial assemblies. Input Impedance................1 megohm Maximum Recommended c) Remove nut (6) using a hall inch nut driver, Input Level.................... OdBm lock washer (7), three screws (8) and screw (9) from Output Impedance........... 20K ohms (maximum) each end cap (10) and remove both end caps. Maximum Output Level.. + 5dBm Equivalent Input Noise … - lOOdBm Type of Distortion........... Low order odd…
