MINIMOOG D SERVICE MANUAL

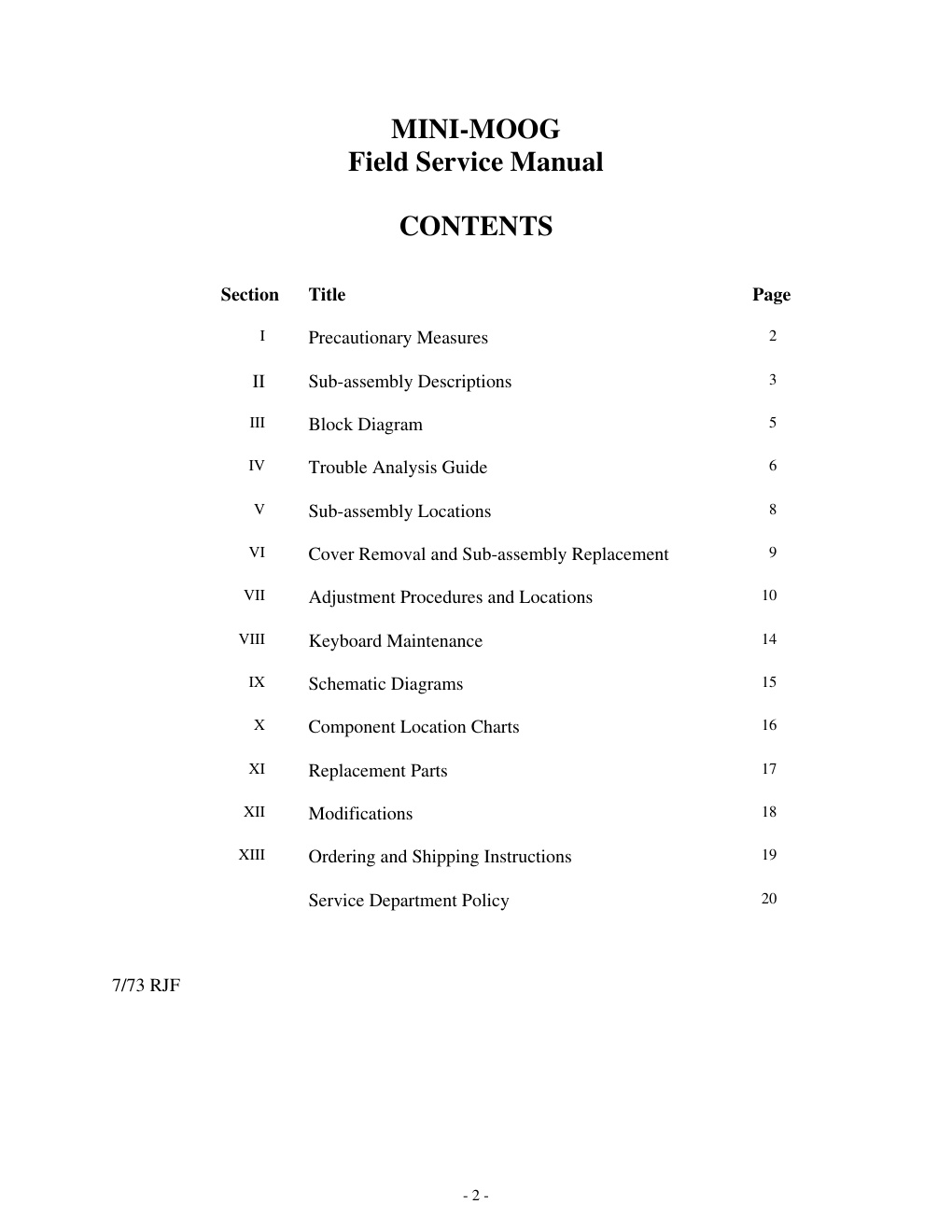

TECHNICAL SERVICE MANUAL by R. J. Folkman CONTROLLERS OSCILLATOR BANK MIXER MODIFIERS OUTPUT the first sound in synthesizers Field Service Manual Section Title Page I Precautionary Measures 2 II Sub-assembly Descriptions 3 III Block Diagram 5 IV Trouble Analysis Guide 6 V Sub-assembly Locations 8 VI Cover Removal and Sub-assembly Replacement 9 VII Adjustment Procedures and Locations 10 VIII Keyboard Maintenance 14 IX Schematic Diagrams 15 X Component Location Charts 16 XI Replacement Parts 17 XII Modifications 18 XIII Ordering and Shipping Instructions 19 Service Department Policy 20

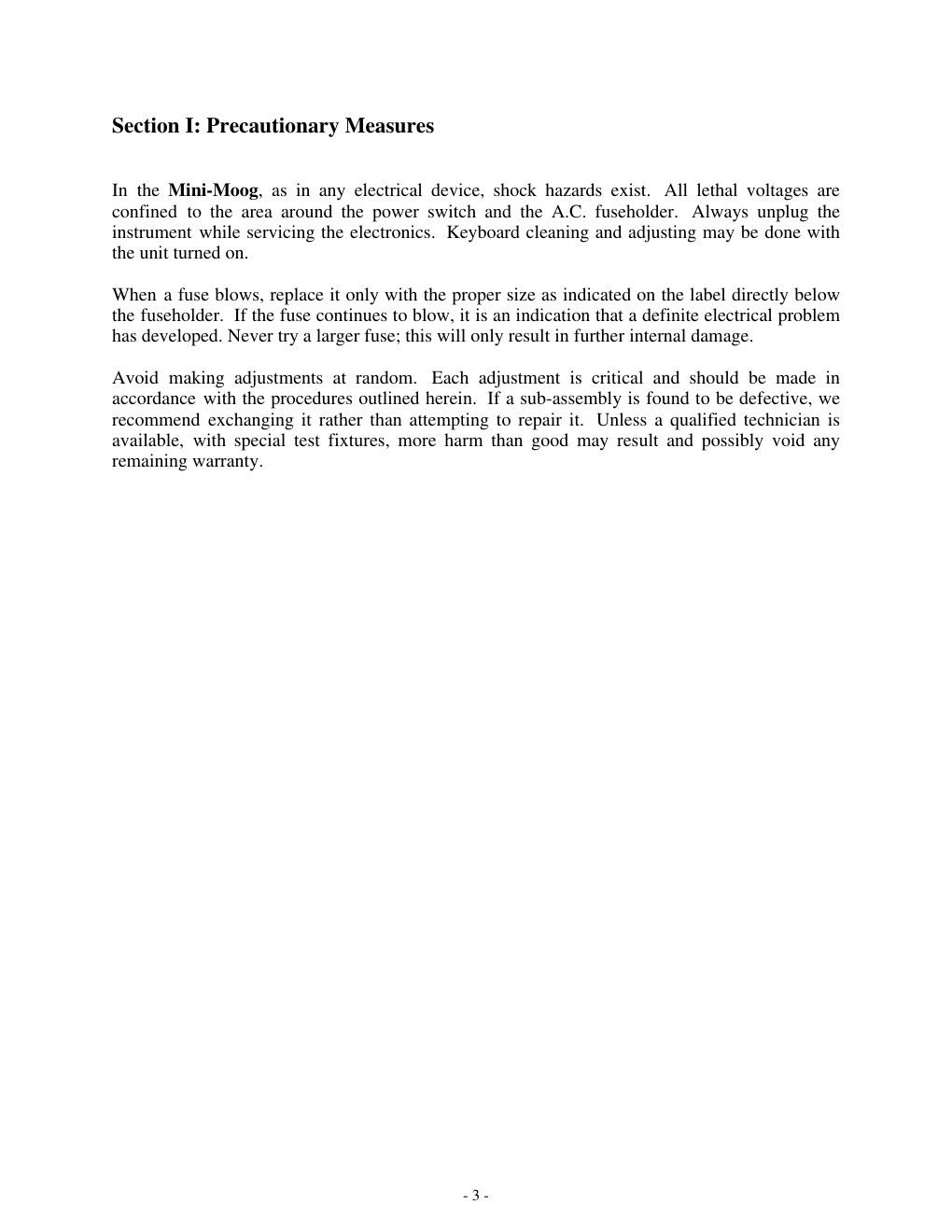

The minimoog MODEL D TECHNICAL SERVICE MANUAL by R. J. Folkman CONTROLLERS OSCILLATOR BANK MIXER MODIFIERS OUTPUT moogMUSIC INC. the first sound in synthesizers - 1 - MINI-MOOG Field Service Manual CONTENTS Section Title Page I Precautionary Measures 2 II Sub-assembly Descriptions 3 III Block Diagram 5 IV Trouble Analysis Guide 6 V Sub-assembly Locations 8 VI Cover Removal and Sub-assembly Replacement 9 VII Adjustment Procedures and Locations 10 VIII Keyboard Maintenance 14 IX Schematic Diagrams 15 X Component Location Charts 16 XI Replacement Parts 17 XII Modifications 18 XIII Ordering and Shipping Instructions 19 Service Department Policy 20 7/73 RJF - 2 - Section I: Precautionary Measures In the Mini-Moog, as in any electrical device, shock hazards exist. All lethal voltages are confined to the area around the power switch and the A.C. fuseholder. Always unplug the instrument while servicing the electronics. Keyboard cleaning and adjusting may be done with the unit turned on. When a fuse blows, replace it only with the proper size as indicated on the label directly below the fuseholder. If the fuse continues to blow, it is an indication that a definite electrical problem has…
