Mahindra Jivo 365 DI Tractor Service Manual

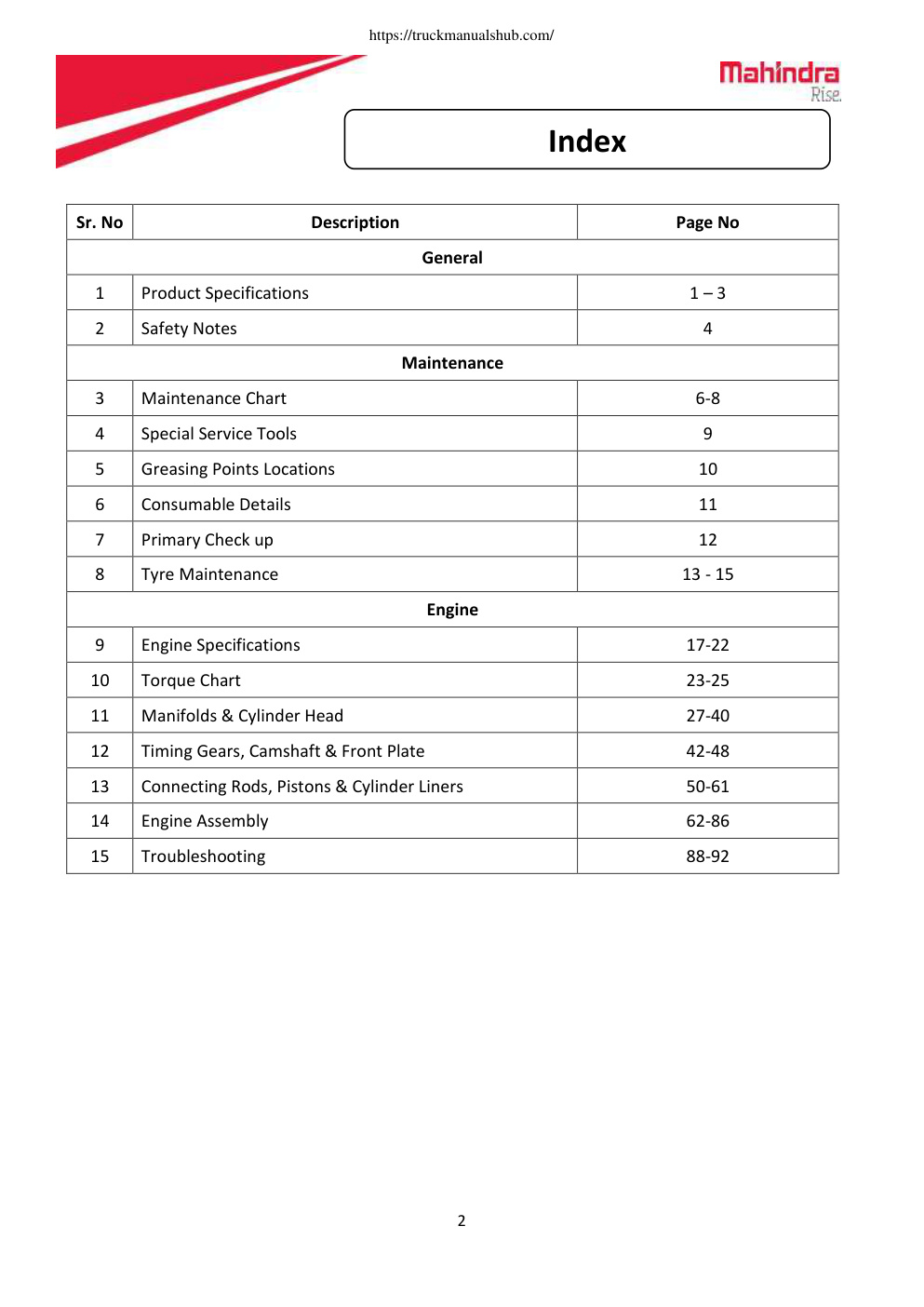

Sr. No Description Page No 1 Product Specifications 1 – 3 2 Safety Notes 4 3 Maintenance Chart 6-8 4 Special Service Tools 9 5 Greasing Points Locations 10 6 Consumable Details 11 7 Primary Check up 12 8 Tyre Maintenance 13 - 15 9 Engine Specifications 17-22 10 Torque Chart 23-25 11 Manifolds & Cylinder Head 27-40 12 Timing Gears, Camshaft & Front Plate 42-48 13 Connecting Rods, Pistons & Cylinder Liners 50-61 14 Engine Assembly 62-86 15 Troubleshooting 88-92

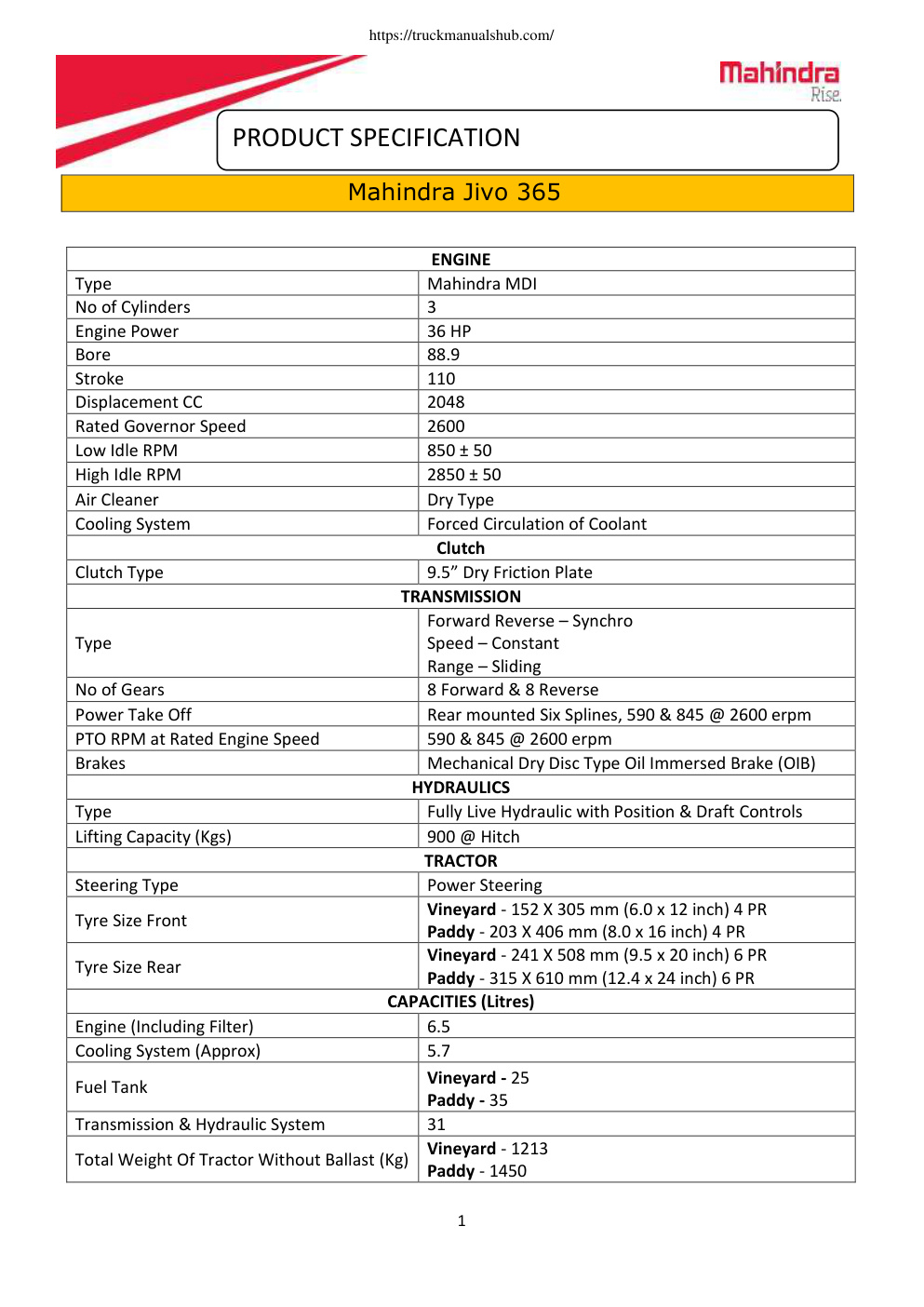

https://truckmanualshub.com/ Mahindra Jivo 365 DI SERVICE MANUAL 1 https://truckmanualshub.com/ Index Sr. No Description Page No General 1 Product Specifications 1 – 3 2 Safety Notes 4 Maintenance 3 Maintenance Chart 6-8 4 Special Service Tools 9 5 Greasing Points Locations 10 6 Consumable Details 11 7 Primary Check up 12 8 Tyre Maintenance 13 - 15 Engine 9 Engine Specifications 17-22 10 Torque Chart 23-25 11 Manifolds & Cylinder Head 27-40 12 Timing Gears, Camshaft & Front Plate 42-48 13 Connecting Rods, Pistons & Cylinder Liners 50-61 14 Engine Assembly 62-86 15 Troubleshooting 88-92 2 https://truckmanualshub.com/ PRODUCT SPECIFICATION Mahindra Jivo 365 ENGINE Type Mahindra MDI No of Cylinders 3 Engine Power 36 HP Bore 88.9 Stroke 110 Displacement CC 2048 Rated Governor Speed 2600 Low Idle RPM 850 ± 50 High Idle RPM 2850 ± 50 Air Cleaner Dry Type Cooling System Forced Circulation of Coolant Clutch Clutch Type 9.5” Dry Friction Plate TRANSMISSION Forward Reverse – Synchro Type Speed – Constant Range – Sliding No of Gears 8 Forward & 8 Reverse Power Take Off Rear mounted Six Splines, 590 & 845 @ 2600 erpm PTO RPM at Rated Engine Speed 590 & 845 @ 2600 erpm Brakes Mechanical Dry…
