Massey Ferguson MF 300 Wiring Diagrams

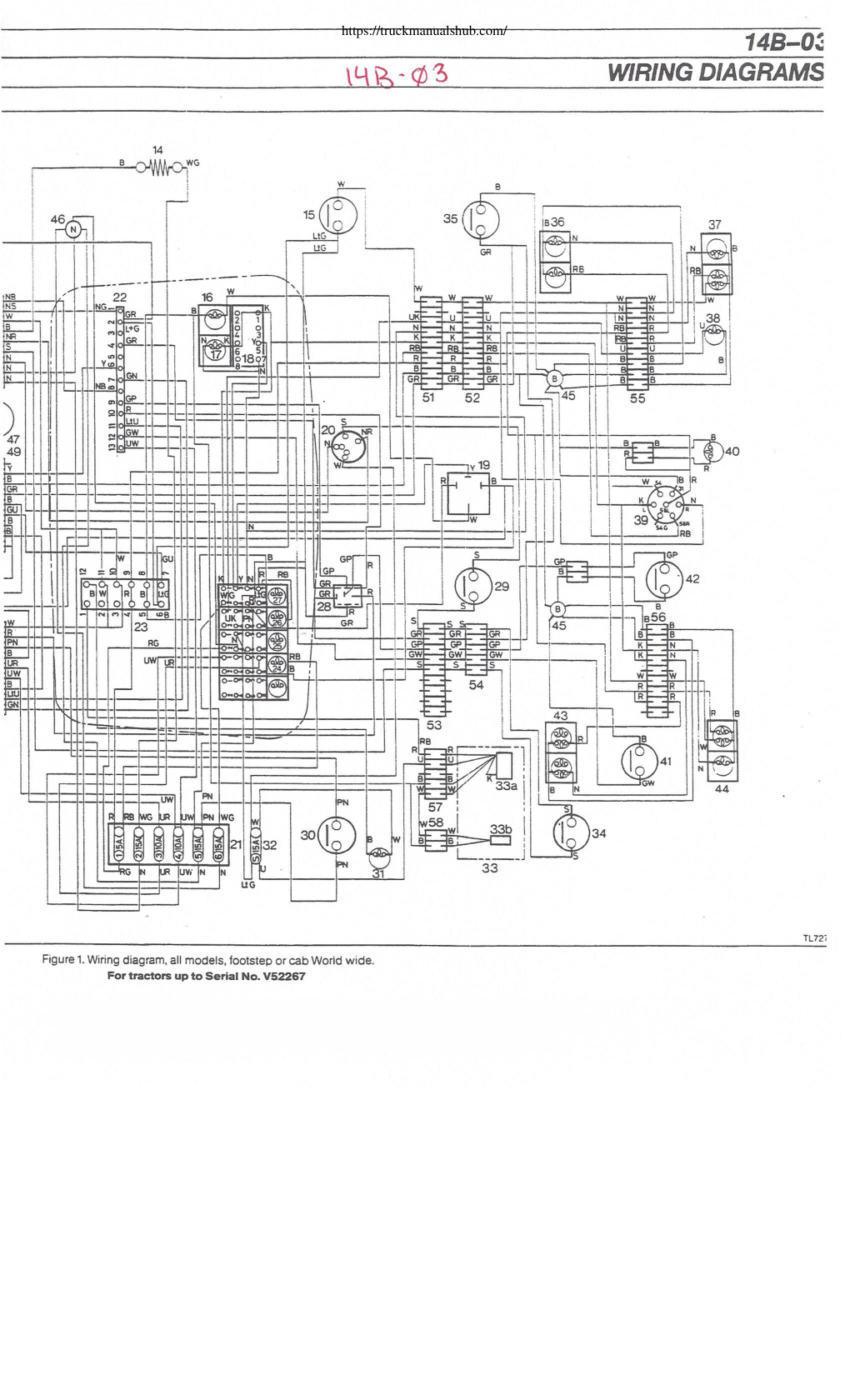

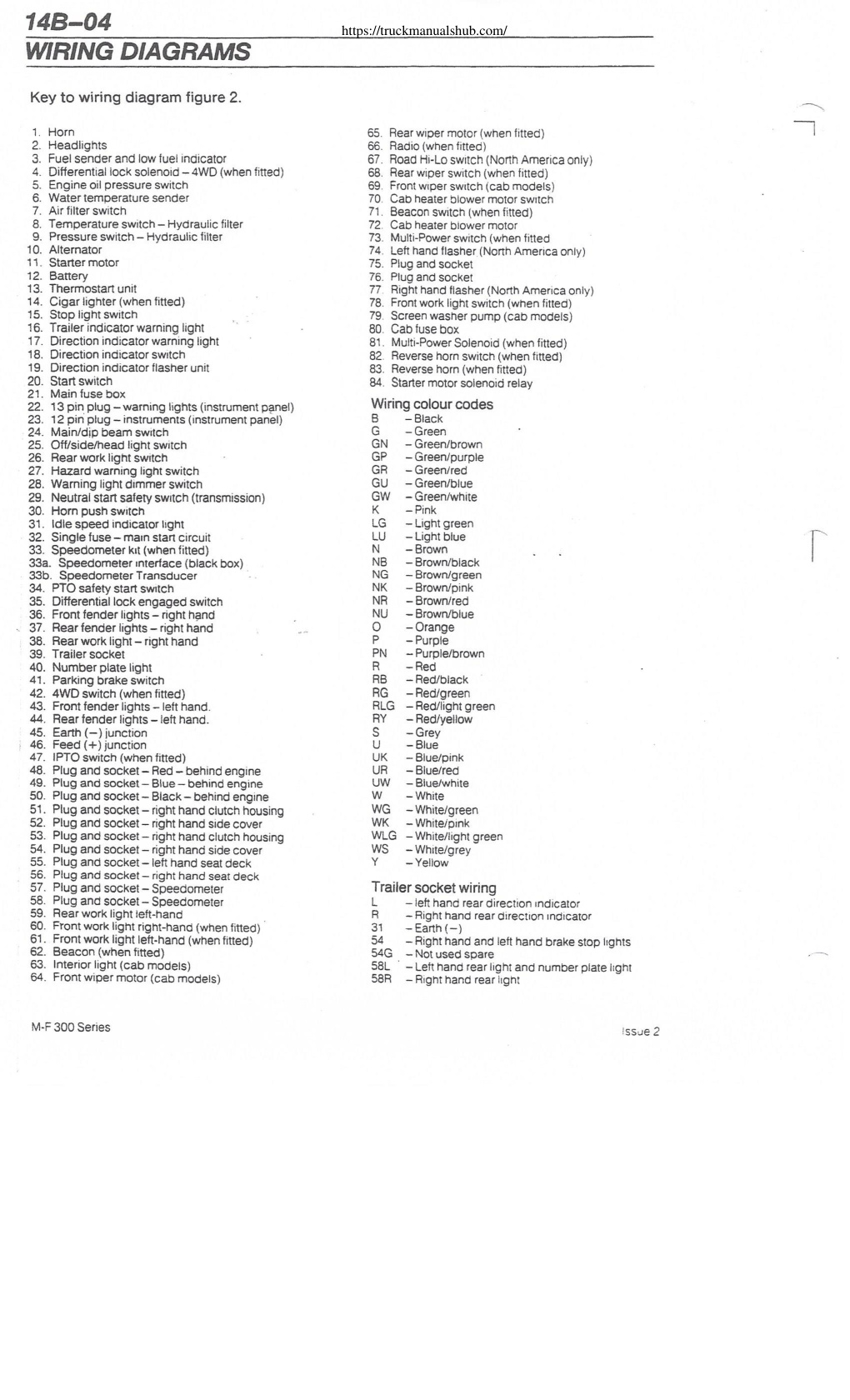

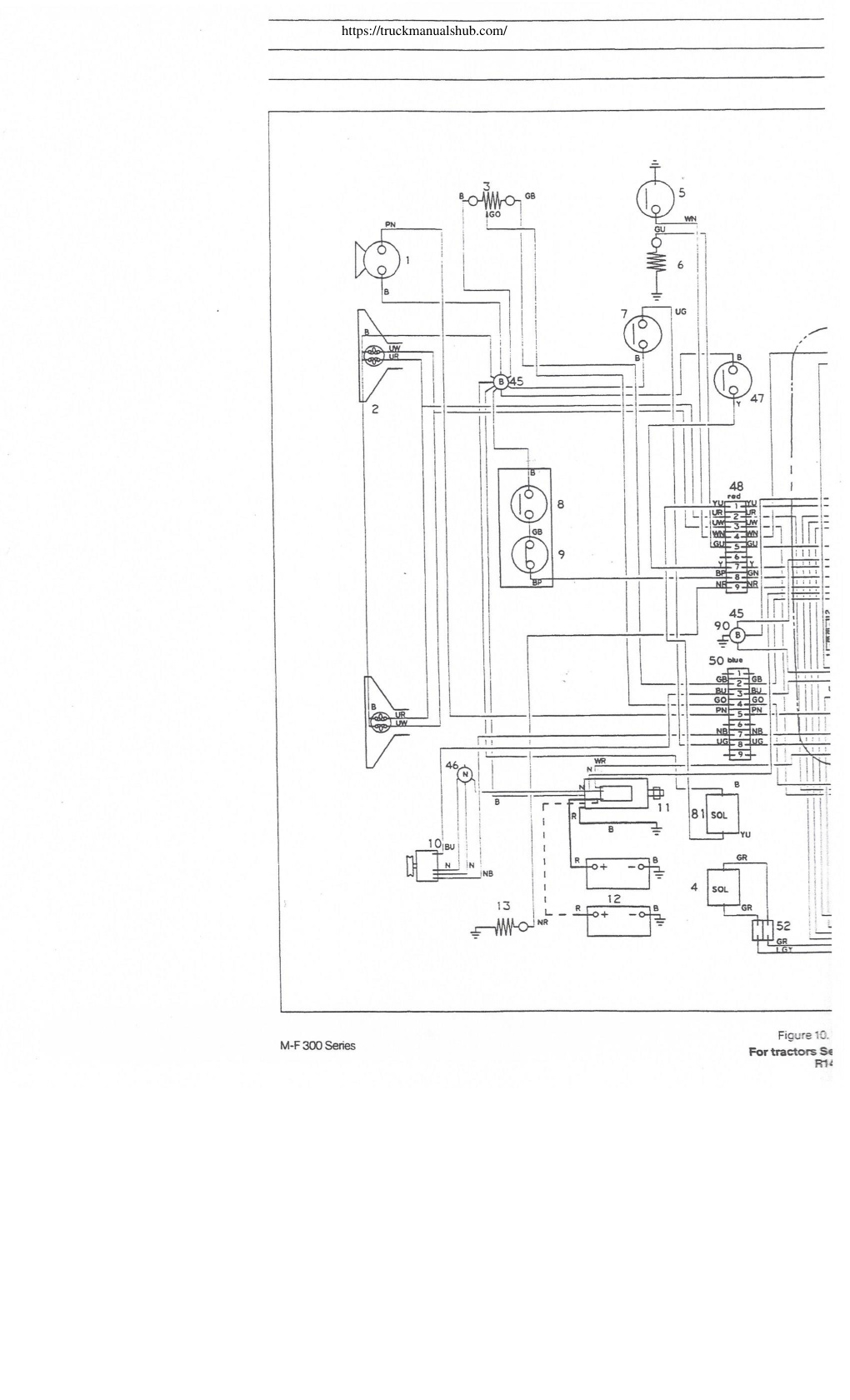

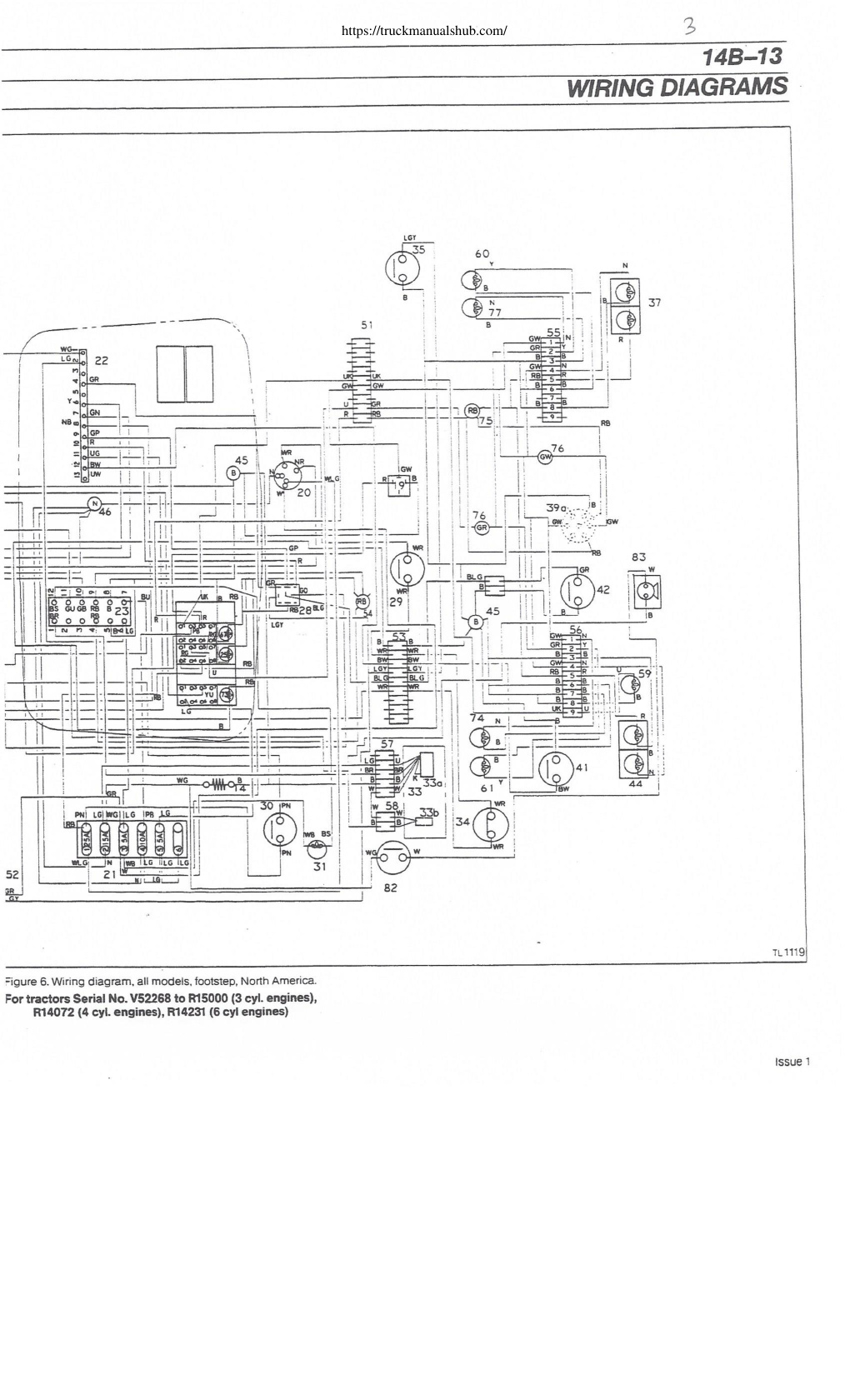

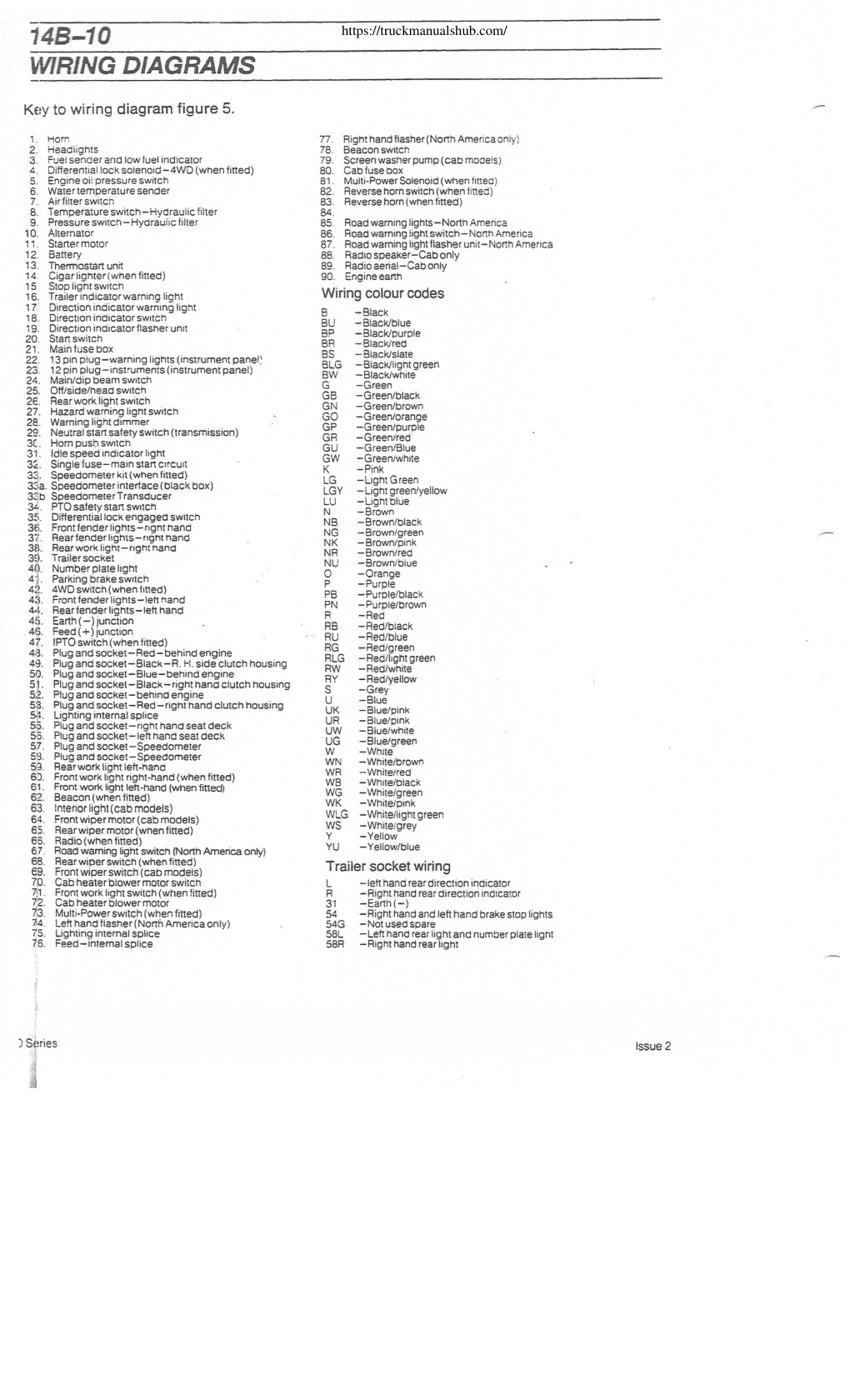

WIRING DIAGRAM FIGURE 1 All models, footstep or cab, Worid wide For tractors up to Serial No. V52267 14B —04 Key to wiring diagram figure 2. — 1. Horn 65. Rear wiper motor (when fitted) ~ 2. Headlights 66. Radio (when fitted) 3. Fuel sender and low fuel indicator 67. Road Hi-Lo switch (North America only) 4. Differential lock solenoid — 4WD (when fitted) 68. Rear wiper switch (when fitted) 5. Engine oil pressure switch 69. Front wiper switch (cab models) 6. Water temperature sender 70. Cab heater biower motor switch | 7. Air filter switch 71. Beacon switch (when fitted) 8. Temperature switch — Hydraulic filter 72. Cab heater biower motor 9. Pressure switch — Hydraulic filter 73. Multi-Power switch (when fitted 10. Alternator 74. Left hand flasher (North America only) ‘ 11. Starter motor 75. Plug and socket 12. Battery 76. Plug and socket 13. Thermostart unit
