NICE Era Fit EN 2

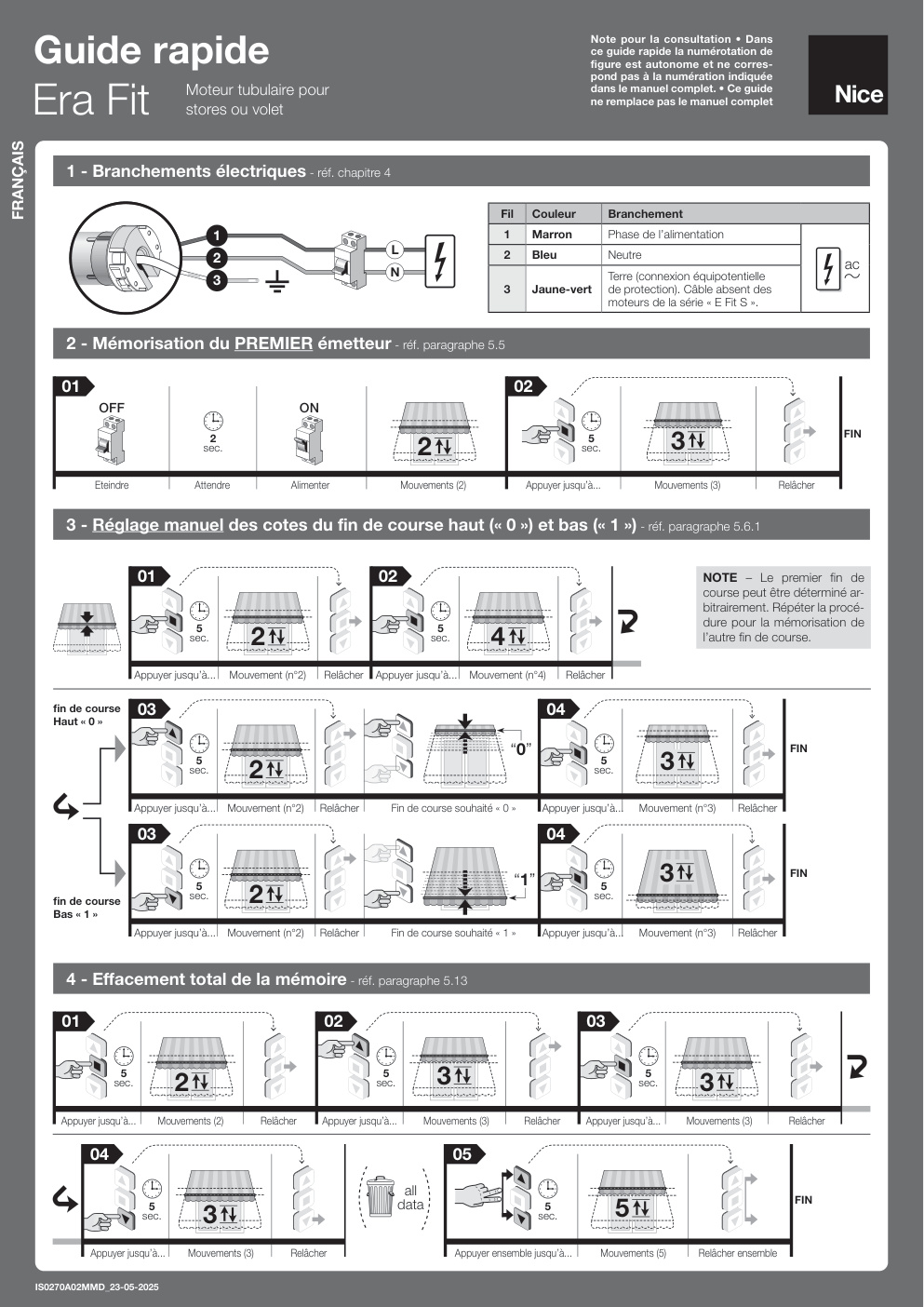

EN - Instructions and warnings for installation and use IT - Istruzioni ed avvertenze per l’installazione e l’uso FR - Instructions et avertissements pour l’installation et l’utilisation ES - Instrucciones y advertencias para la instalación y el uso DE - Installierungs-und Gebrauchsanleitungen und Hinweise PL - Instrukcje i ostrzeżenia do instalacji i użytkowania NL - Aanwijzingen en aanbevelingen voor installatie en gebruik Note for reading this Guide • In this Quick Start Guide, the numbering of Quick start guide the figures is separate and does not correspond to the numbering cited in tubular motor for awnings the complete manual. • This guide does not substitute the complete manual. and shutters Era Fit 1 - Electrical connections - see Chapter 4ENGLISH Cable Colour Connection 1 1 Brown Power supply phase L 2 2 Blue Neutral ac N Ground (protective electrical 3 3 Yellow-green bonding).

Era Fit E Fit S E Fit M E Fit L Tubular motor EN - Instructions and warnings for installation and use IT - Istruzioni ed avvertenze per l’installazione e l’uso FR - Instructions et avertissements pour l’installation et l’utilisation ES - Instrucciones y advertencias para la instalación y el uso DE - Installierungs-und Gebrauchsanleitungen und Hinweise PL - Instrukcje i ostrzeżenia do instalacji i użytkowania NL - Aanwijzingen en aanbevelingen voor installatie en gebruik Note for reading this Guide • In this Quick Start Guide, the numbering of Quick start guide the figures is separate and does not correspond to the numbering cited in tubular motor for awnings the complete manual. • This guide does not substitute the complete manual. and shutters Era Fit 1 - Electrical connections - see Chapter 4ENGLISH Cable Colour Connection 1 1 Brown Power supply phase L 2 2 Blue Neutral ac N Ground (protective electrical 3 3 Yellow-green bonding). Cable not present on series “E Fit S” motors. 2 - Memorising the FIRST transmitter - see paragraph 5.5 01 02 OFF ON THE END 2 5 END sec. sec. 3 2 Turn OFF Wait Turn ON Movements (no. 2) Press until ... Movements (no. 3) Release 3 - Manual adjustment of…
