RK 100 SERVICE MANUAL ocr

REMOTE KEYBOARD D I / H f \ f \SERVICE | l l \ l l l l I U UMANUAL 1. SP EC IFIC ATIO N S...................................................................................... 2 2. MIDI IM PLEM EN TATIO N......................................................................... 2 3. STRUCTURAL D IA G R A M...................................................................... 3 4. BLOCK DIAGRAM................................................................................... 4 5. CIRCUIT DIAGRAM................................................................................. 5 6. PC B O A R D.................................................................................................... 6 7. CIRCUIT DESCRIPTIONS......................................................................... 8 8. TROUBLESHOOTING C H AR T...................................................................

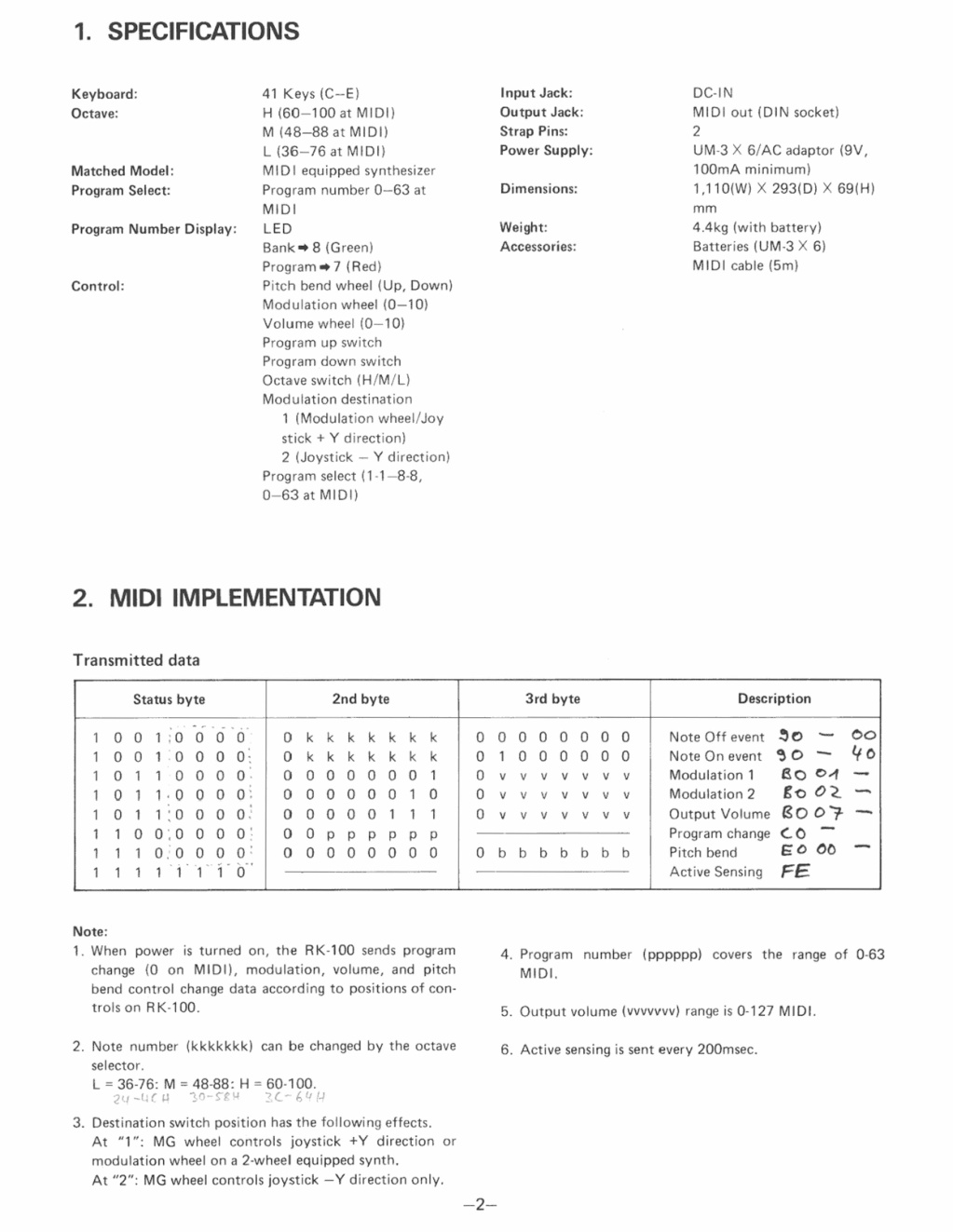

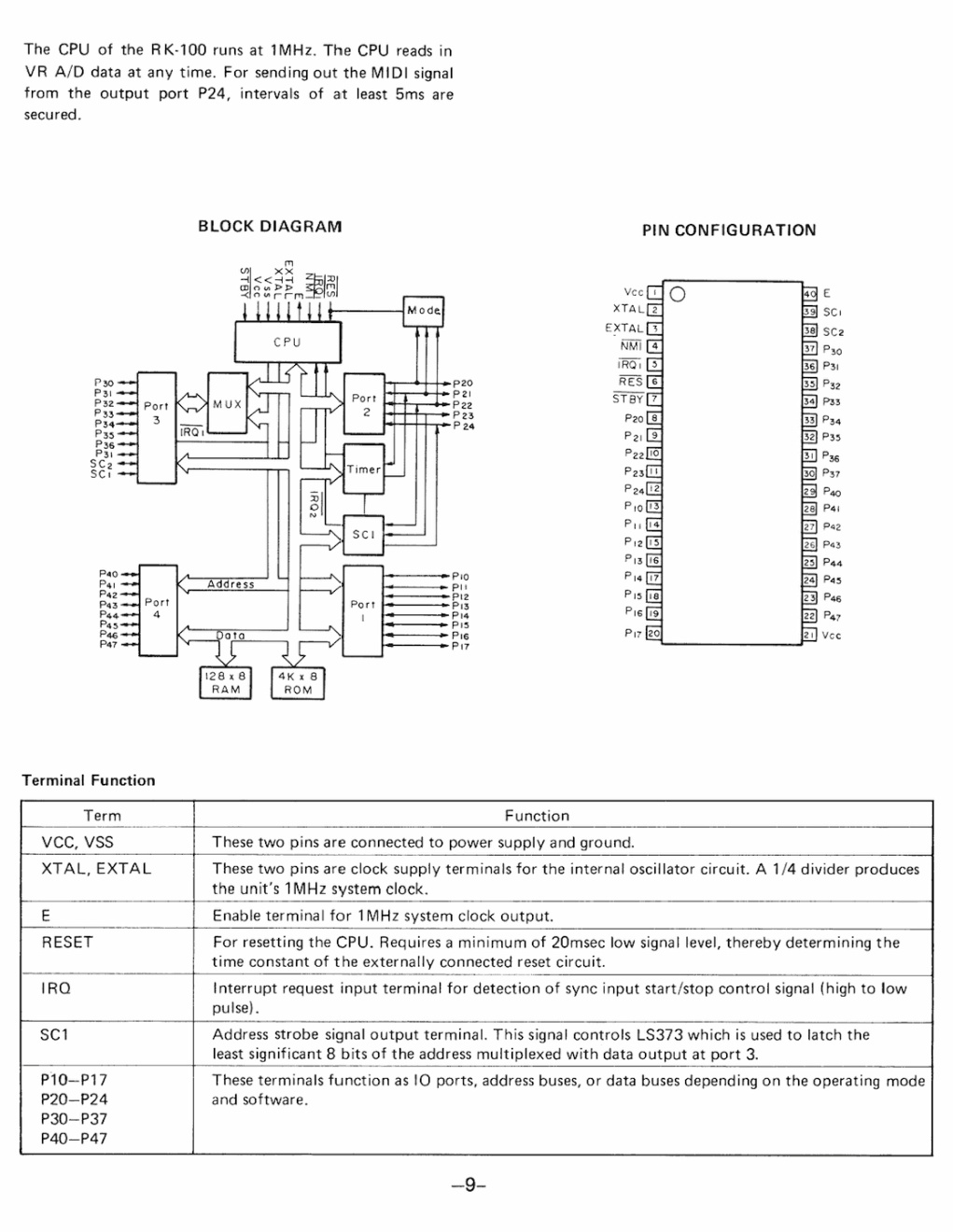

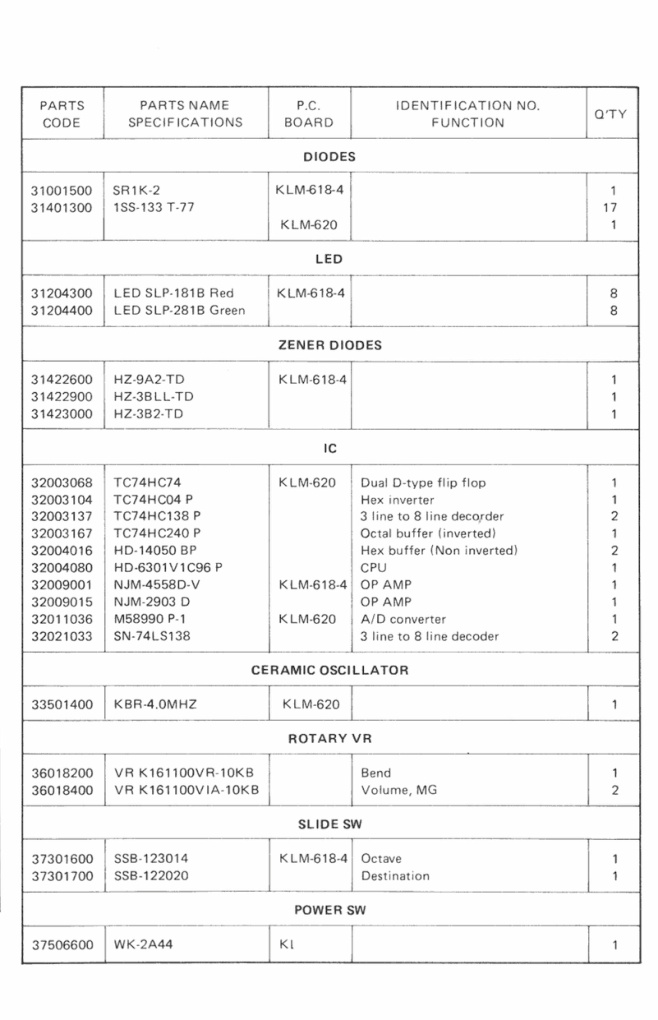

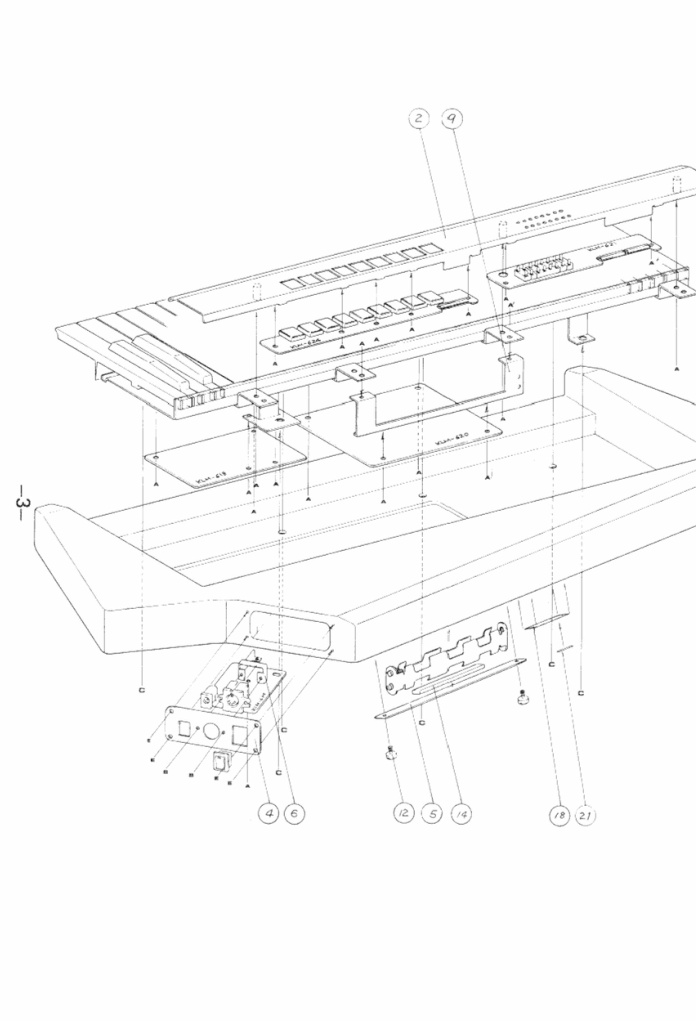

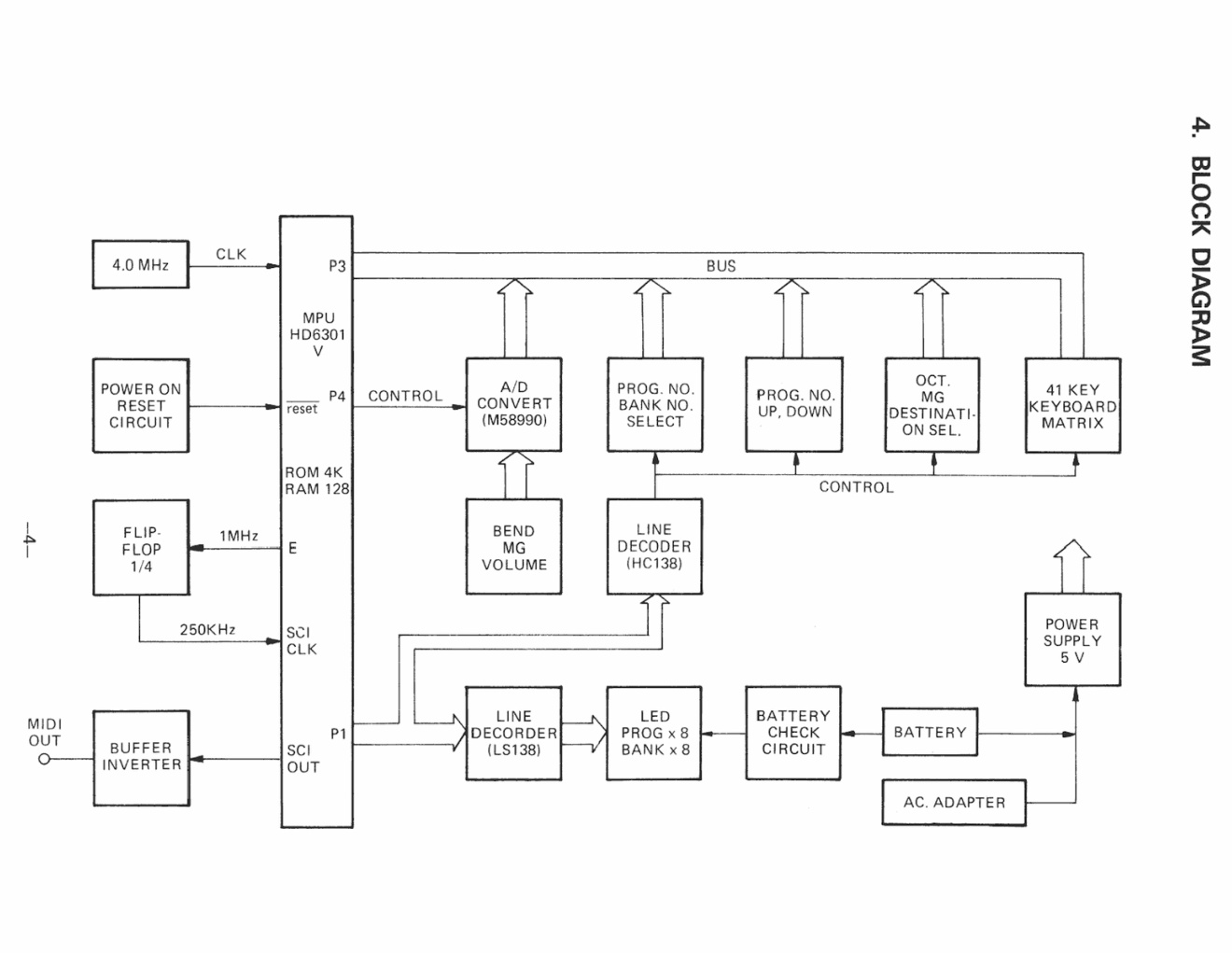

KORG REMOTE KEYBOARD D I / H f \ f \SERVICE | l l \ l l l l I U UMANUAL CONTENTS 1 . SP EC IFIC ATIO N S...................................................................................... 2 2. MIDI IM PLEM EN TATIO N ......................................................................... 2 3. STRUCTURAL D IA G R A M ...................................................................... 3 4. BLOCK DIAGRAM ................................................................................... 4 5. CIRCUIT DIAGRAM ................................................................................. 5 6. PC B O A R D .................................................................................................... 6 7. CIRCUIT DESCRIPTIONS......................................................................... 8 8. TROUBLESHOOTING C H AR T................................................................... 12 9. PARTS L IS T ....................................................................................................13 KEIO ELECTRONIC LABORATORY CORPORATION TOKYO/JAPAN 1 . SPECIFICATIONS Keyboard: 41 Keys (C-E) Input Jack: DC-IN Octave: H (60-100 at MIDI) Output Jack; MIDI out…
