Sampo Rosenlew FR68 forwarder Technical Specification

econ, ee ml Sule ORES SLATE DUR ED ee ee! ER oe | Ma RE 4 EO yah ee eae ae 4 el ae Rts Tite £ ma a shabs ony =. =e pet aren Sei ale se ERA PE RACE" E eae etn | ek ae aN aN A Shag SA eae as hes UE Goma eres ou 1. a ac, ee ee ee igre A dr ONE DE FRA OR SEEN ne: Fi hele oo Re Bh cue 093 Rem 4 oa Ce RE Ree L Te VS SRE Ni NOUS: FRET eee et eS. th. TOM i » Gxt) em fl op ae à L ET CS | in ee: ay pore ee a es, ‘ii ean PN ee Vee ie) LE TR ote | me ou ee a ‘feet al (te oe ae ‘i ihe ee cleats Pi A eae ia Re SE ee (Ae SR Te, cee = a Pe aa Er moi Ho i ae a # = a LS ie a 6 HF He ra ae L A, | 4. | i wee ae - Ve + 1 ee Soa ak ce i> LAS SR: ge MR fe Aie an Oe Pei TE ae Baa * US he oe ~*~ eas: oo ES ve ee TS aoe fees ee: if LR Ps, FE 7, ce ae 4 let Lee: LE i ace Mrs Ha Lx ee eee +e ee 4 BL. Pett a Fe el | ee Rs À D a ai om | ee ar eet ork bai ‘ jie Ares AIRE ee i | CCE CRIE AL hoa EP moule NS BSE RL

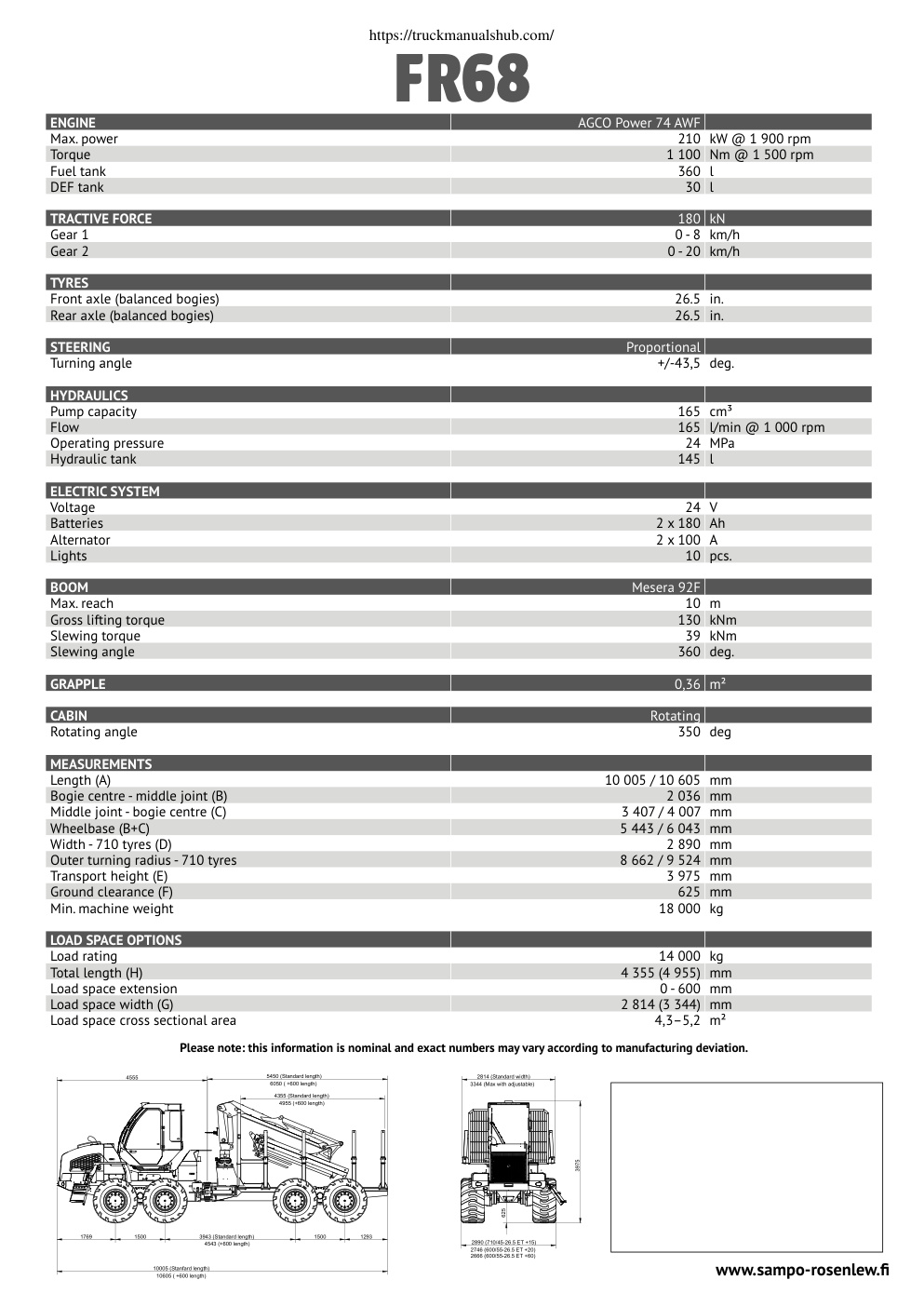

https://truckmanualshub.com/ FR68FR68 https://truckmanualshub.com/ FR68ENGINE AGCO Power 74 AWF Max. power 210 kW @ 1 900 rpm Torque 1 100 Nm @ 1 500 rpm Fuel tank 360 l DEF tank 30 l TRACTIVE FORCE 180 kN Gear 1 0 - 8 km/h Gear 2 0 - 20 km/h TYRES Front axle (balanced bogies) 26.5 in. Rear axle (balanced bogies) 26.5 in. STEERING Proportional Turning angle +/-43,5 deg. HYDRAULICS Pump capacity 165 cm³ Flow 165 l/min @ 1 000 rpm Operating pressure 24 MPa Hydraulic tank 145 l ELECTRIC SYSTEM Voltage 24 V Batteries 2 x 180 Ah Alternator 2 x 100 A Lights 10 pcs. BOOM Mesera 92F Max. reach 10 m Gross lifting torque 130 kNm Slewing torque 39 kNm Slewing angle 360 deg. GRAPPLE 0,36 m² CABIN Rotating Rotating angle 350 deg MEASUREMENTS Length (A) 10 005 / 10 605 mm Bogie centre - middle joint (B) 2 036 mm Middle joint - bogie centre (C) 3 407 / 4 007 mm Wheelbase (B+C) 5 443 / 6 043 mm Width - 710 tyres (D) 2 890 mm Outer turning radius - 710 tyres 8 662 / 9 524 mm Transport height (E) 3 975 mm Ground clearance (F) 625 mm Min. machine weight 18 000 kg LOAD SPACE OPTIONS Load rating 14 000 kg Total length (H) 4 355 (4 955) mm Load space extension 0 - 600 mm Load space width (G) 2 814 (3…
