Snapper Rear Engine Rider Series 11 Parts Manual

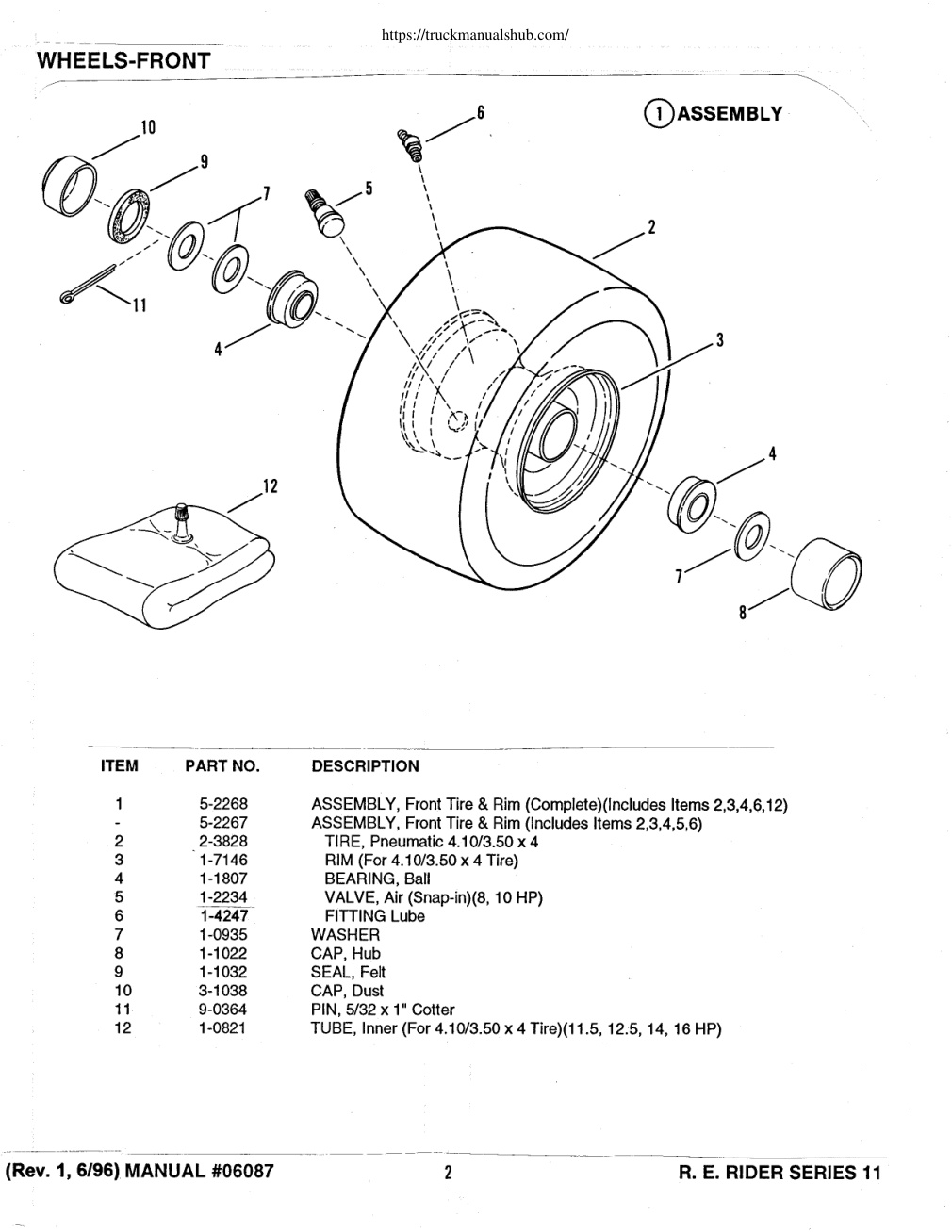

“ P arts Manual for ©) = NOTE: The Series number RT 155: The Series number | ~ A is the last numeral in the model number.: | SNAP iP ERB srcvonoush, GA., 30253 U.S.A. | NOTE: REFER TO PARTS MANUAL #06084 FOR ACCESSORIES. | (Rev. 1, 6/96) | MANUAL #06087 OL a | 6 ASSEMBLY =. | 10 a a _ G) | vd ~ \ fs À: \ / 3 a / ‘ / JJ 7 > a (A a oy (0). 6; ITEM PART NO. DESCRIPTION 1 5-2268 ASSEMBLY, Front Tire & Rim (Complete) (Includes Items 2,3,4,6,12) - 5-2267 ASSEMBLY, Front Tire & Rim (Includes Items 2,3,4,5,6) 2 _2-3828 TIRE, Pneumatic 4.10/3.50 x 4 3 1-7146 RIM (For 4.10/3.50 x 4 Tire) 4 1-1807 BEARING, Ball 5 1-2234 © VALVE, Air (Snap-in)(8, 10 HP) 6 1-4247 FITTING Lube 7 1-0935 WASHER 8 1-1022 CAP, Hub 9 1-1032 SEAL, Felt | 10 38-1038 CAP, Dust 11 9-0364 PIN, 5/32 x 1" Cotter 42 1-0821 TUBE, Inner (For 4.10/3.50 x 4 Tire)(11.5, 12.5
