X3 SERVICE MANUAL ocr

MUSIC WORKSTATION 1. SPECIFICATIONS.................................................................... 1 2. STRUCTURAL DIAGRAM......................................................2 3. BLOCK DIAGRAM...................................................................4 4. CIRCUIT DIAGRAM.................................................................5 5. P C. BOARDS........................................................................... 9 6. HOW TO DISASSEMBLY..................................................... 13 7. DIAGNOSTIC TEST....................................................... 16 8. CHECKPOINTS.....................................................................26 9. REFERENCE DATA................................................................30 10. WAVE ROM SOUND LIST...................................................42 11. PARTS LIST.......................................

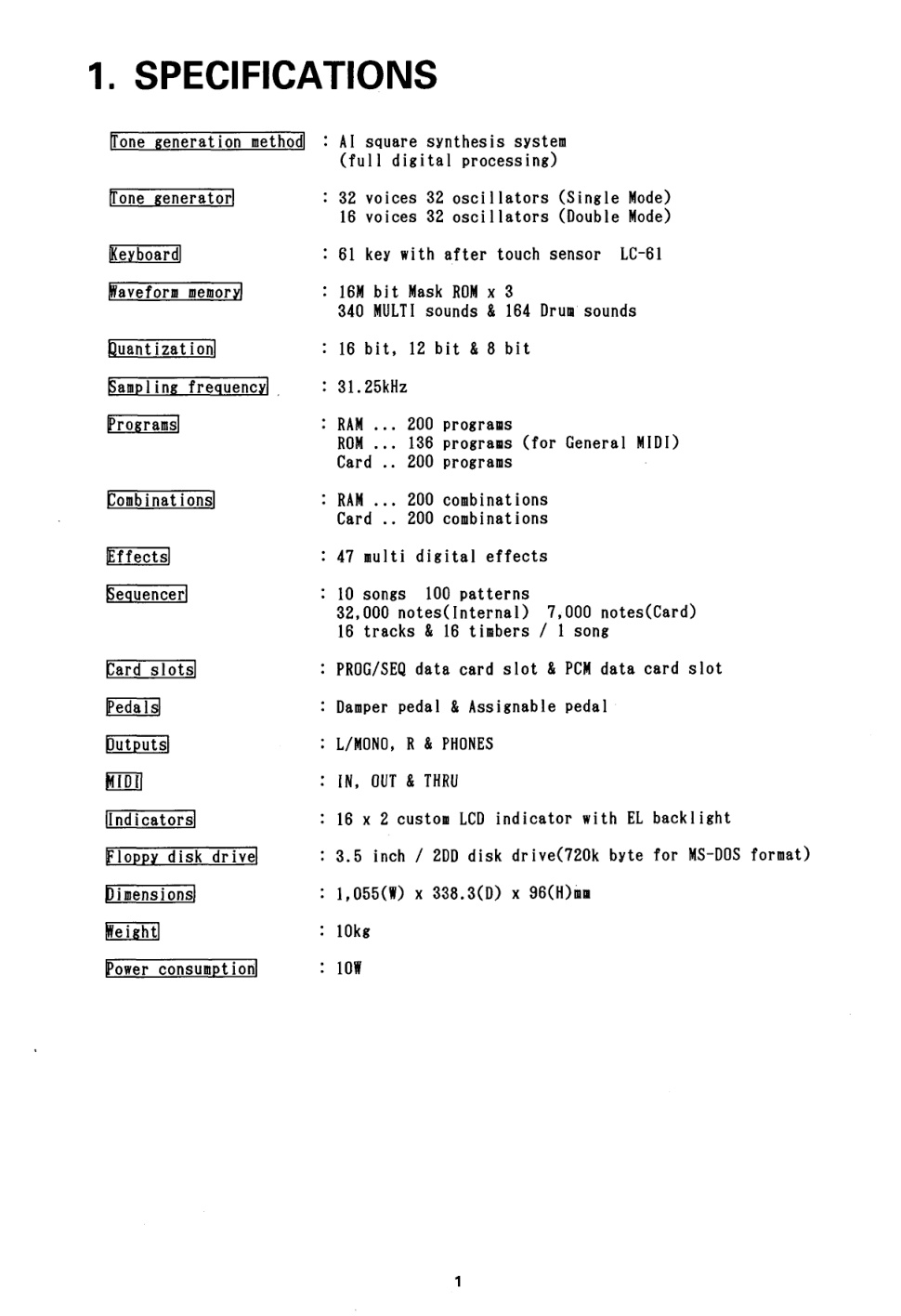

SERVICE MANUAL MUSIC WORKSTATION CONTENTS 1. SPECIFICATIONS.................................................................... 1 2. STRUCTURAL DIAGRAM......................................................2 3. BLOCK DIAGRAM...................................................................4 4. CIRCUIT DIAGRAM.................................................................5 5. P C. BOARDS........................................................................... 9 6. HOW TO DISASSEMBLY..................................................... 13 7. DIAGNOSTIC TEST....................................................... 16 8. CHECKPOINTS.....................................................................26 9. REFERENCE DATA................................................................30 10. WAVE ROM SOUND LIST...................................................42 11. PARTS LIST............................................................................49 1. SPECIFICATIONS Tone generation method AI square synthesis system (full digital processing) [Tone generatori 32 voices 32 oscillators (Single Mode) 16 voices 32 oscillators (Double Mode) Keyboard 61 key with after touch sensor LC-61…
