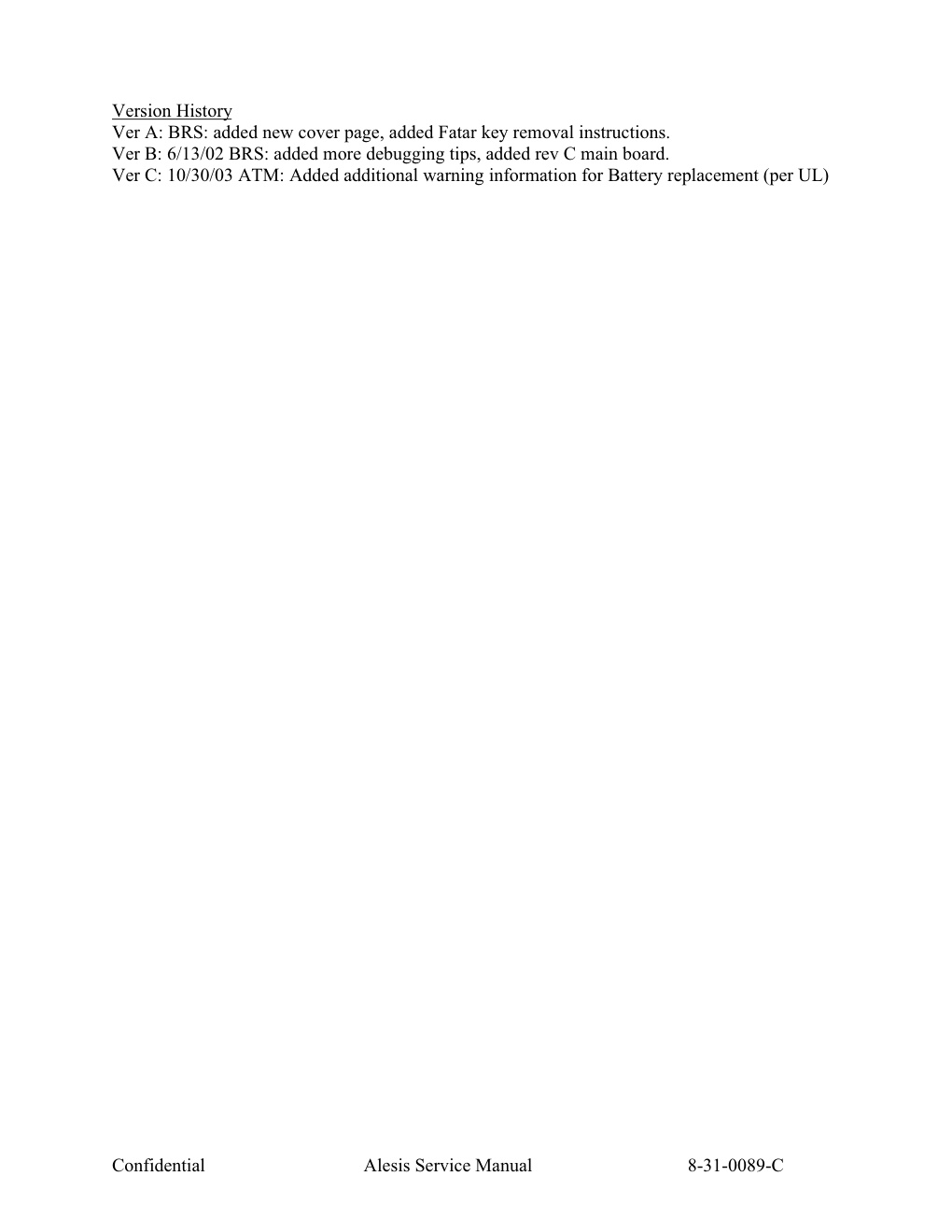

A6 Andromeda (A6) P/N: 8-31-0089-C THIS DOCUMENT CONTAINS SENSITIVE PROPRIETARY INFORMATION. ALL RECIPIENTS MUST HAVE A CURRENT NON- DISCLOSURE AGREEMENT ON FILE WITH DO NOT DISTRIBUTE THIS DOCUMENT IN ELECTRONIC FORM The information in this document contains privileged and confidential information. It is intended only for the use of those authorized by Alesis. If you are not the authorized, intended recipient, you are hereby notified that any review, dissemination, distribution or duplication of this document is strictly prohibited. If you are not authorized, please contact Alesis and destroy all copies of this document. You may contact Alesis at Confidential Alesis Service Manual 8-31-0089-C Version History Ver A: BRS: added new cover page, added Fatar key removal instructions. Ver B: 6/13/02 BRS: added more debugging tips, added rev C main board. Ver C: 10/30/03 AT

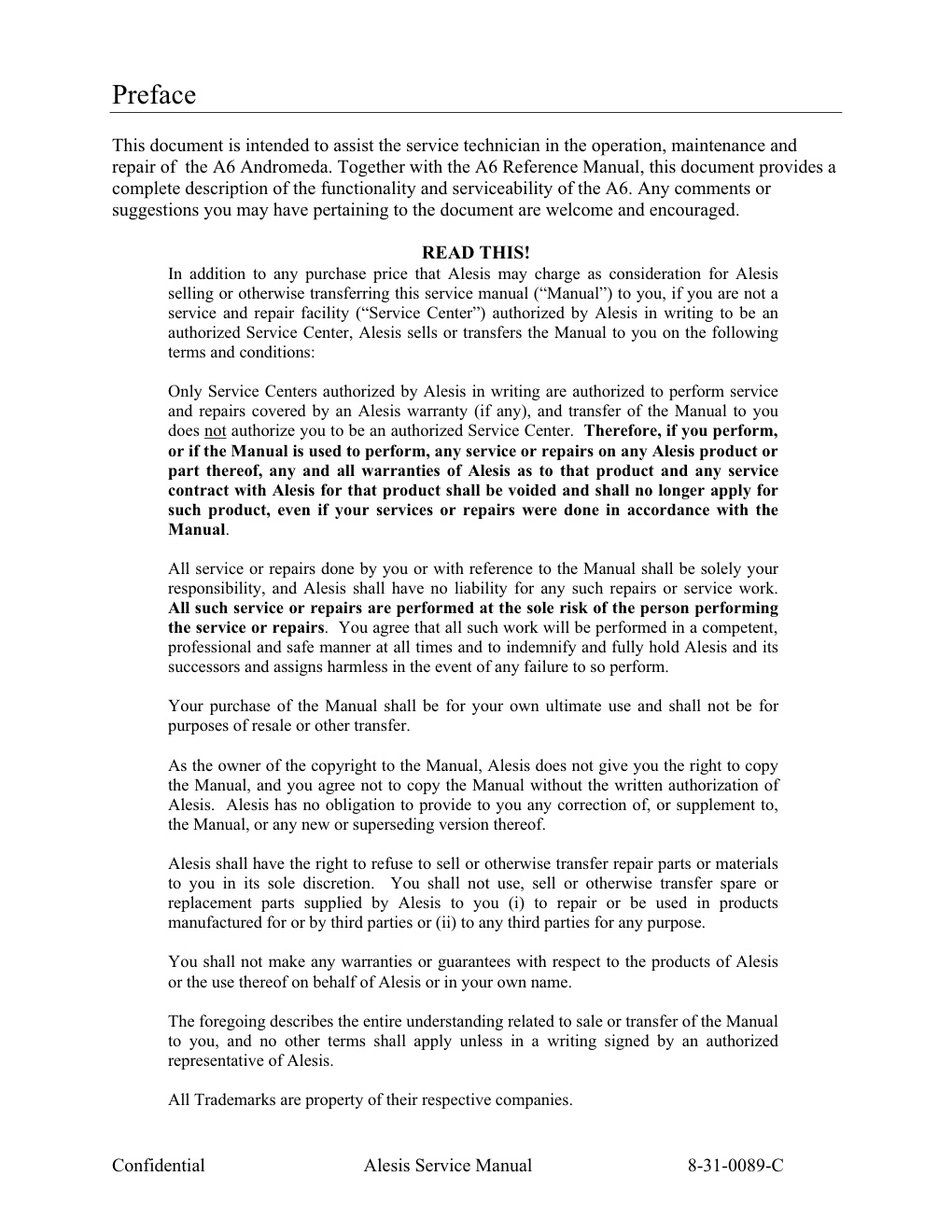

ALESIS A6 Andromeda (A6) Service Manual P/N: 8-31-0089-C ATTENTION! THIS DOCUMENT CONTAINS SENSITIVE PROPRIETARY INFORMATION. ALL RECIPIENTS MUST HAVE A CURRENT NON- DISCLOSURE AGREEMENT ON FILE WITH ALESIS, LLC. DO NOT DISTRIBUTE THIS DOCUMENT IN ELECTRONIC FORM The information in this document contains privileged and confidential information. It is intended only for the use of those authorized by Alesis. If you are not the authorized, intended recipient, you are hereby notified that any review, dissemination, distribution or duplication of this document is strictly prohibited. If you are not authorized, please contact Alesis and destroy all copies of this document. You may contact Alesis at support@Alesis.com. Copyright © 2003 Alesis, LLC Confidential Alesis Service Manual 8-31-0089-C Version History Ver A: BRS: added new cover page, added Fatar key removal instructions. Ver B: 6/13/02 BRS: added more debugging tips, added rev C main board. Ver C: 10/30/03 ATM: Added additional warning information for Battery replacement (per UL) Confidential Alesis Service Manual 8-31-0089-C Preface This document is intended to assist the service technician in the operation, maintenance and…
