ensoniq sq 80 service manual

Dipl. Inform. Rainer Ruchty November 10, 1999

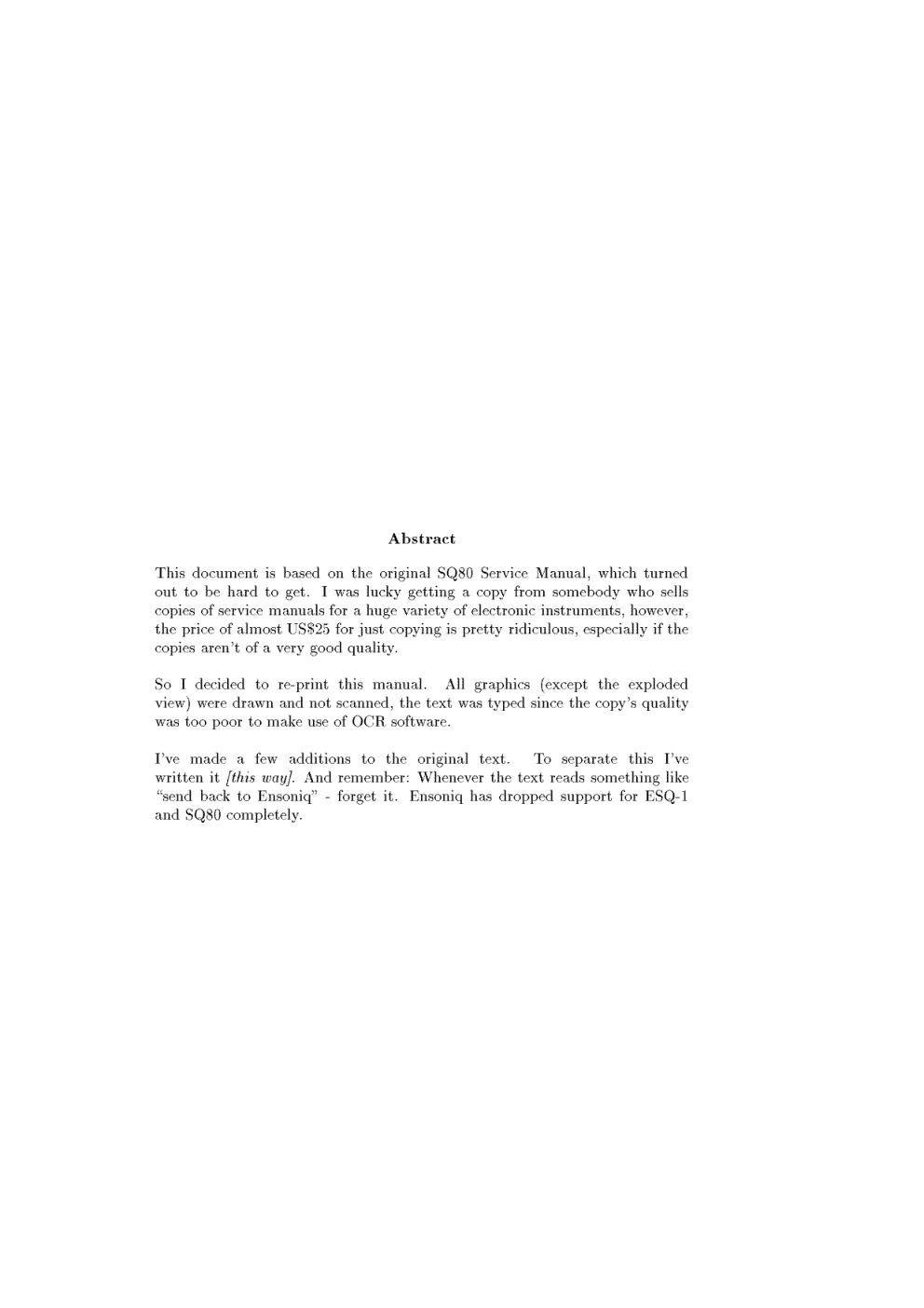

Ensoniq SQ80 Service Manual Dipl. Inform. Rainer Ruchty November 10, 1999 2 A b stract This document is based on the original SQ80 Service Manual, which turned out to be hard to get. I was lucky getting a copy from somebody who sells copies of service manuals for a huge variety of electronic instruments, however, the price of almost US$25 for just copying is pretty ridiculous, especially if the copies aren’t of a very good quality. So I decided to re-print this manual. All graphics (except the exploded view) were drawn and not scanned, the text was typed since the copy’s quality was too poor to make use of OCR software. I’ve made a few additions to the original text. To separate this I’ve written it [th is w ay]. And remember: Whenever the text reads something like !!send back to Ensoniq” - forget it. Ensoniq has dropped support for ESQ-1 and SQ80 completely. 2 Contents 1 Im p ortan t thin gs to know about the SQ80 7 1.1 The keyboard.................................................................................... 7 1.2 The disk drive ................................................................................ 8 1.3 Ferrite B ead…
