OPERATING INSTRUCTIONS

REPAIR PARTS ILLUSTRATIONS _ALLIS-CHALMERS MODEL ‘WD’ TRACTOR ALLIS-CHALMERS MFG. CO. TRACTOR DIVISION MILWAUKEE, WISCONSIN, U.5.A. LITHO. IN U.S. A:: FORM TM-98 The instructions given in this book cover the operation of the Allis-Chalmers Model “WD” Tractor. A close adherence to these instructions will result in many hours of trouble-free operation and a longer operating life for the unit. This book is written for the purpose of giving the operator essential information regarding the day-to-day care, lubrication and adjustment of the machine. Economical operation will be insured if these instructions are followed. Many Allis-Chalmers owners employ the dealer’s Service Department for any work other than routine care and adjust- ments. This practice is encouraged as our dealers are kept well informed by the factory regarding advanced methods of servicing Allis-Chalmers products and are e

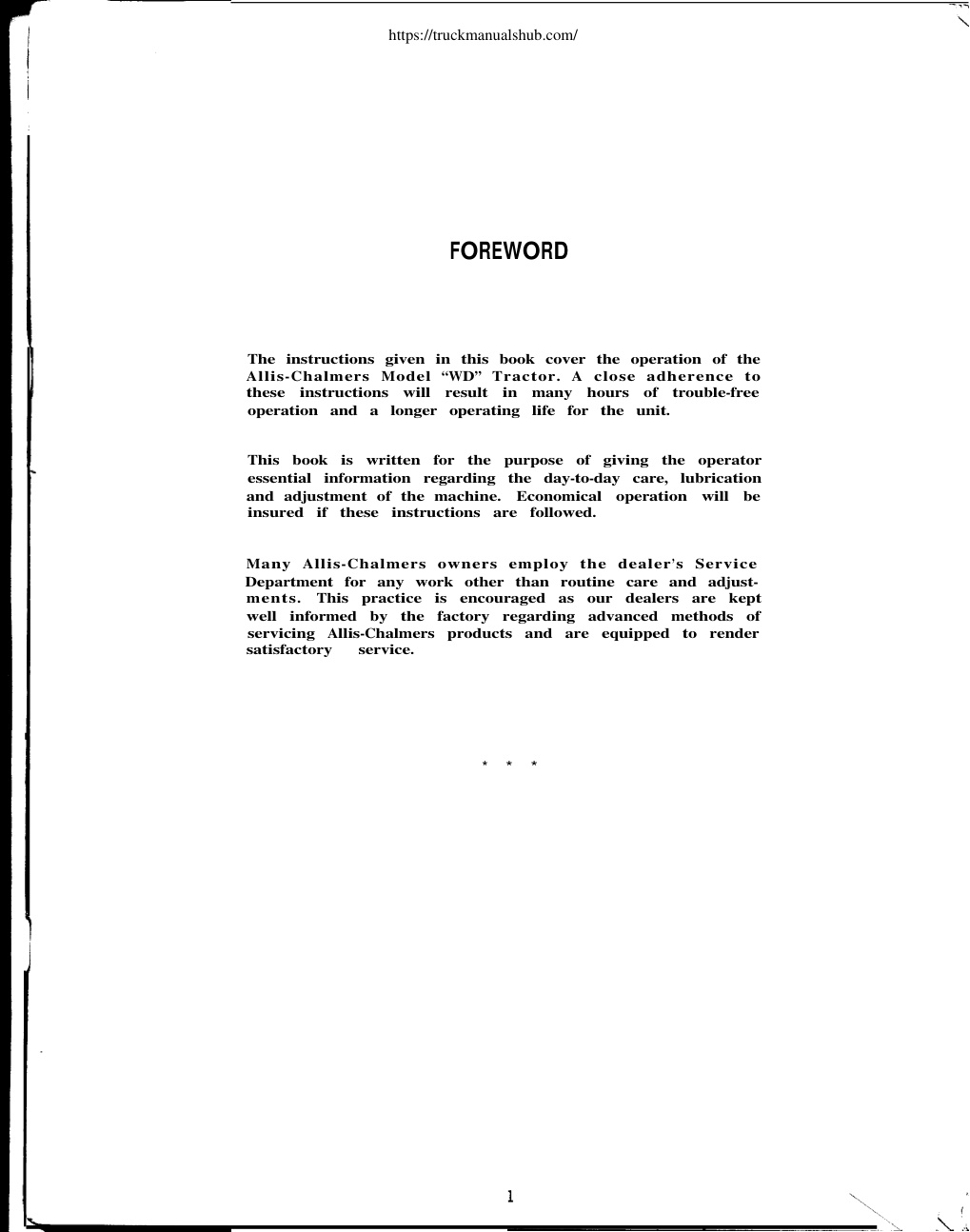

https://truckmanualshub.com/ https://truckmanualshub.com/ FOREWORD The instructions given in this book cover the operation of the Allis-Chalmers Model “WD” Tractor. A close adherence to these instructions will result in many hours of trouble-free operation and a longer operating life for the unit. This book is written for the purpose of giving the operator essential information regarding the day-to-day care, lubrication and adjustment of the machine. Economical operation will be insured if these instructions are followed. Many Allis-Chalmers owners employ the dealer’s Service Department for any work other than routine care and adjust- ments. This practice is encouraged as our dealers are kept well informed by the factory regarding advanced methods of servicing Allis-Chalmers products and are equipped to render satisfactory service. * * * https://truckmanualshub.com/ INDEX BRAKES HYDRAULIC SYSTEM Adjustment . . . . . . . . . . . . . 2 6 Adjustments and Operation Operation . . . . . . . . . . . . . . 26 Delayed Lift . . . . . . . . . . . 3 2 Type. . . . . . . . . . . . . . . . . 26 Drawbar Control. . . . . . . . . 3 3 Hold Position . . . . . . . . . . 3 3 CLUTCHES Lift and Lower. .…
