Iransmission. Allison 4" Generation Controls Troubleshooting Product Families Troubleshooting | 1000 AND 2000 PRODUCFFAMILIES Manual ALLISON 4T# GENERATION CONTROLS © Alison TS3977EN 200707

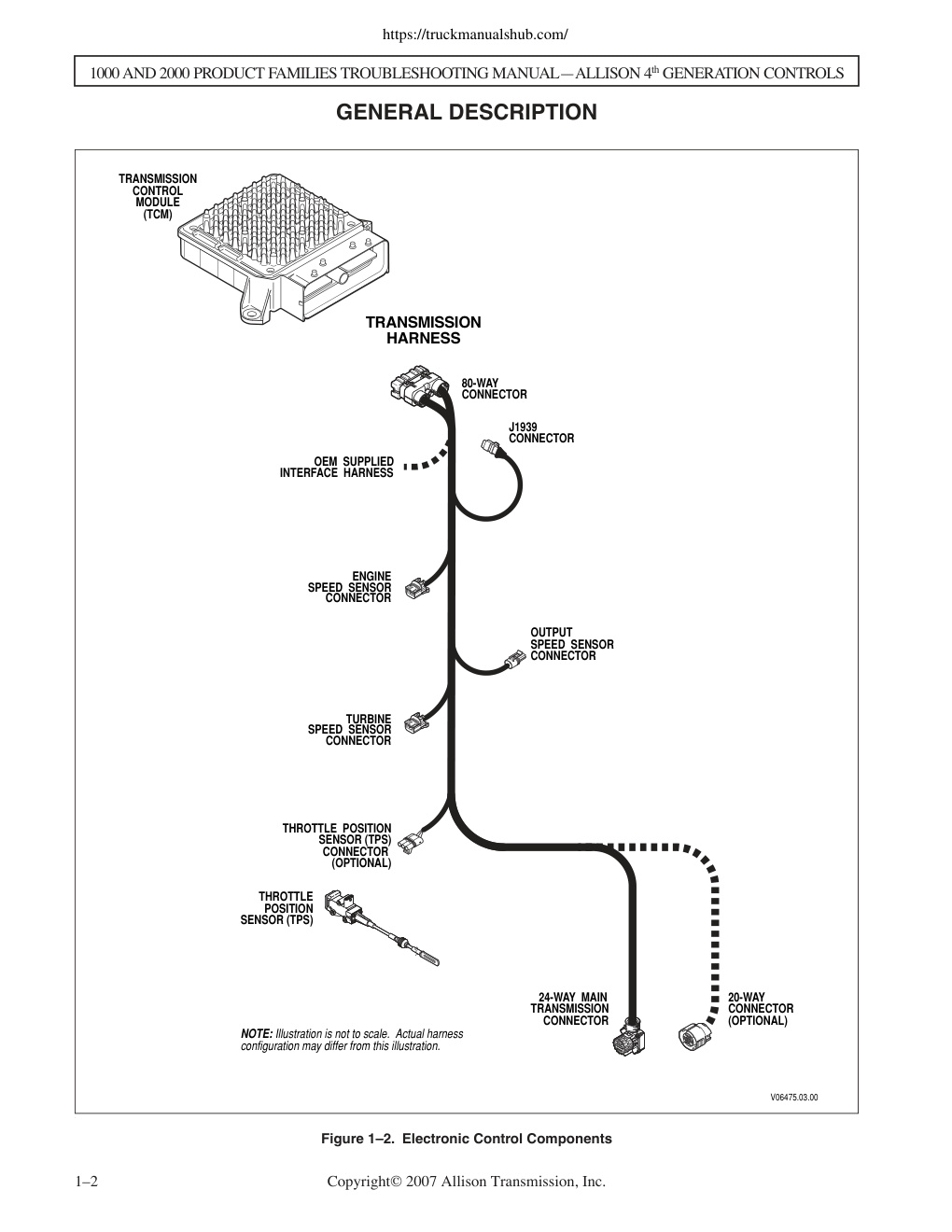

https://truckmanualshub.com/ Allison 4th Generation Controls Troubleshooting Manual 1000 and 2000 Product Families TS3977EN Troubleshooting https://truckmanualshub.com/ 1000 AND 2000 PRODUCT FAMILIES Manual ALLISON 4TH GENERATION CONTROLSTS3977EN 200707 https://truckmanualshub.com/ Troubleshooting 2007 FEBRUARY REV. 1 2007 JULY Manual TS3977EN Allison Transmission ALLISON 4TH GENERATION CONTROLS 1000 and 2000 Product Families Allison Transmission, Inc. P.O. Box 894 Indianapolis, Indiana 46206-0894 www.allisontransmission.com Printed in USA Copyright © 2007 Allison Transmission, Inc. https://truckmanualshub.com/ 1000 AND 2000 PRODUCT FAMILIES TROUBLESHOOTING MANUAL—ALLISON 4th GENERATION CONTROLS FOREWORD — How to Use This Manual This manual provides troubleshooting information for Allison Transmission 1000 and 2000 Product Families transmissions. Service Manual SM4006EN, Mechanics Tips MT4007EN, and Parts Catalog PC3062EN may be used in conjunction with this manual. This manual includes: • Description of the electronic control system. • Description of the electronic control system components. • Description of diagnostic codes, system responses to faults, and troubleshooting. •…
