Heated hand Grip Kit

Instruction Sheet Kit Number: 72101400 Control Panel A WARNING: FAILURE TO FOLLOW INSTRUCTIONS could result in personal injury and/or damage to unit. Read, understand, and follow all safety practices in Owner/Operator Manual before PACKAGE CONTENTS Check the contents of your kit for the parts listed below. Control Panel B Also see Figure 1. Item Part No. Qty Description 1 07500015 2 Heated Hand Grip 2 04329600 1 Light and Warmer Harness 3 06403800 1 1/2" x 7/8" Flat Steel Washer Figure 2 4 06310900 1 9/16" Internal Locking Washer REMOVAL 5 02485700 1 On/Off Switch (includes nut) 6 05272500 1 Loctite® EA445 Fast-Cure Remove Wire Harness Epoxy 1. Stop engine and remove key. Wait for moving parts to stop and hot parts to cool. Disconnect spark plug 7 07500121 2 1" Tube Cap 8 07517300 4 Cable Tie 2. Disconnect wire harness from headlight. 3. Cut wire harness ties off of the handlebar, pull p

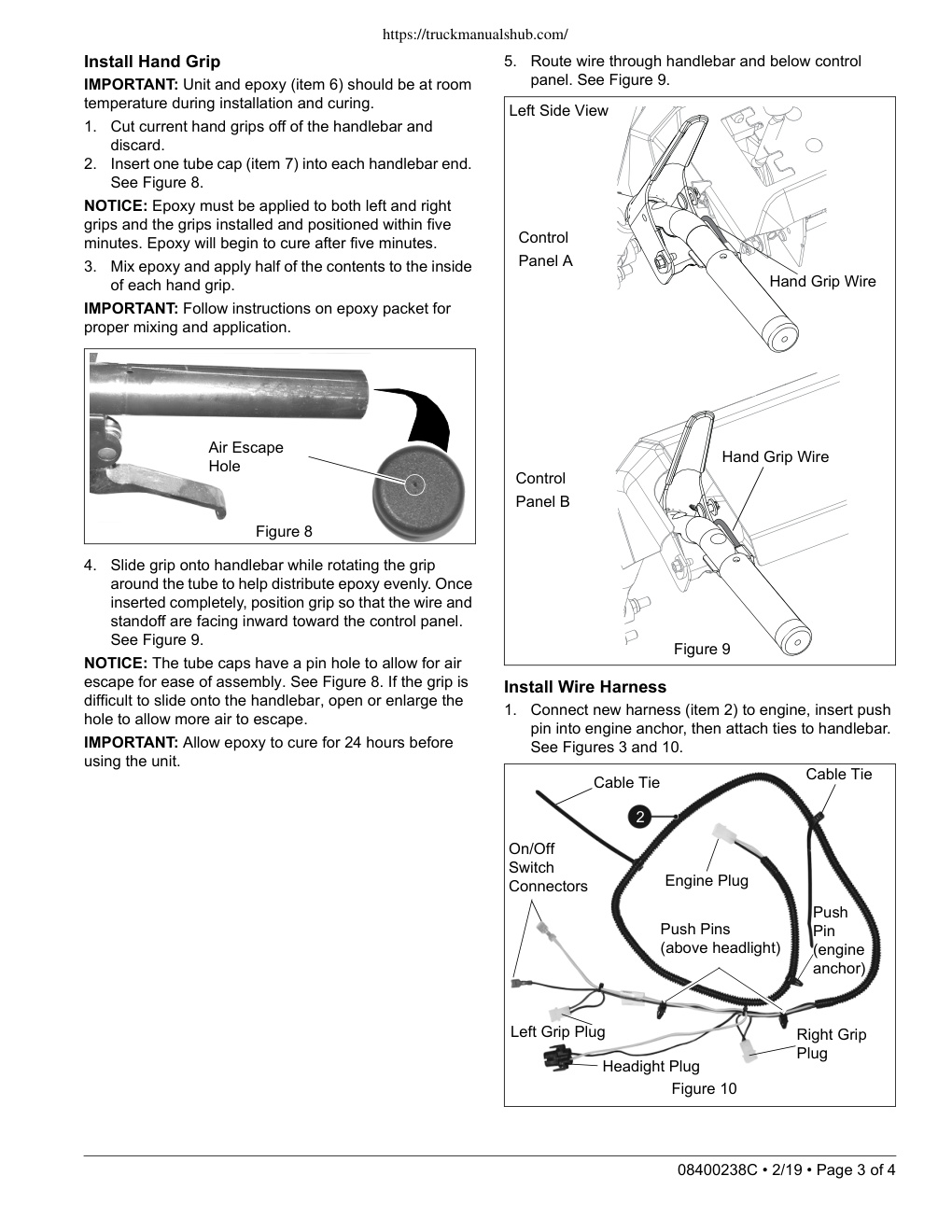

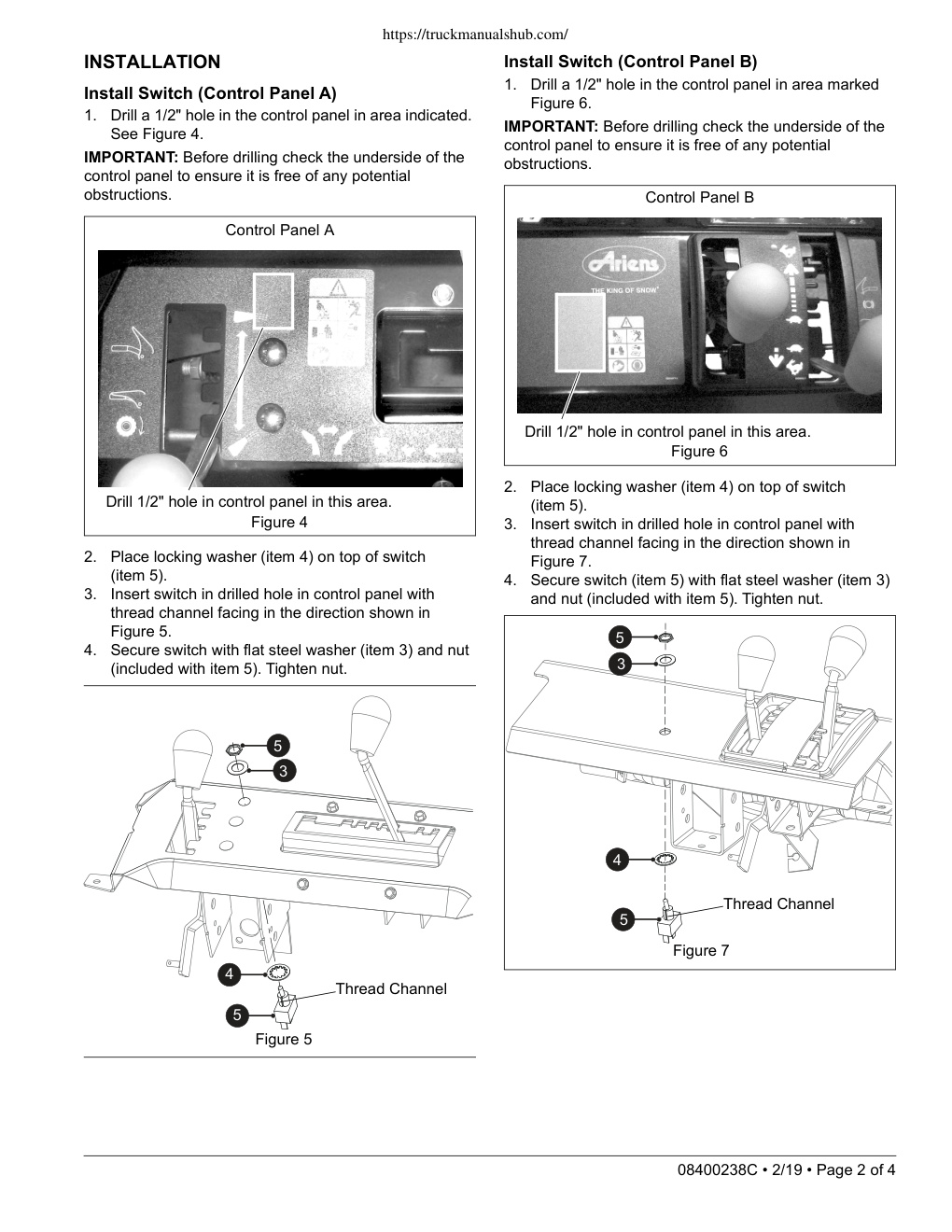

https://truckmanualshub.com/ Instruction Sheet Kit Number: 72101400 HEATED HAND GRIP KIT Control Panel A WARNING: FAILURE TO FOLLOW INSTRUCTIONS could result in personal injury and/or damage to unit. Read, understand, and follow all safety practices in Owner/Operator Manual before beginning. PACKAGE CONTENTS Check the contents of your kit for the parts listed below. Control Panel B Also see Figure 1. Item Part No. Qty Description 1 07500015 2 Heated Hand Grip 2 04329600 1 Light and Warmer Harness 3 06403800 1 1/2" x 7/8" Flat Steel Washer Figure 2 4 06310900 1 9/16" Internal Locking Washer REMOVAL 5 02485700 1 On/Off Switch (includes nut) 6 05272500 1 Loctite® EA445 Fast-Cure Remove Wire Harness Epoxy 1. Stop engine and remove key. Wait for moving parts to stop and hot parts to cool. Disconnect spark plug 7 07500121 2 1" Tube Cap wire. 8 07517300 4 Cable Tie 2. Disconnect wire harness from headlight. 3. Cut wire harness ties off of the handlebar, pull push pin out of engine anchor and disconnect wire harness from engine. See Figure 3. Discard harness. 4 8 6 5 3 7 Ties Push Pin 2 Engine Plug Figure 3 1 Figure 1 Copyright 2019 • AriensCo • Brillion, WI 54110 08400238C • 2/19 • Page…
