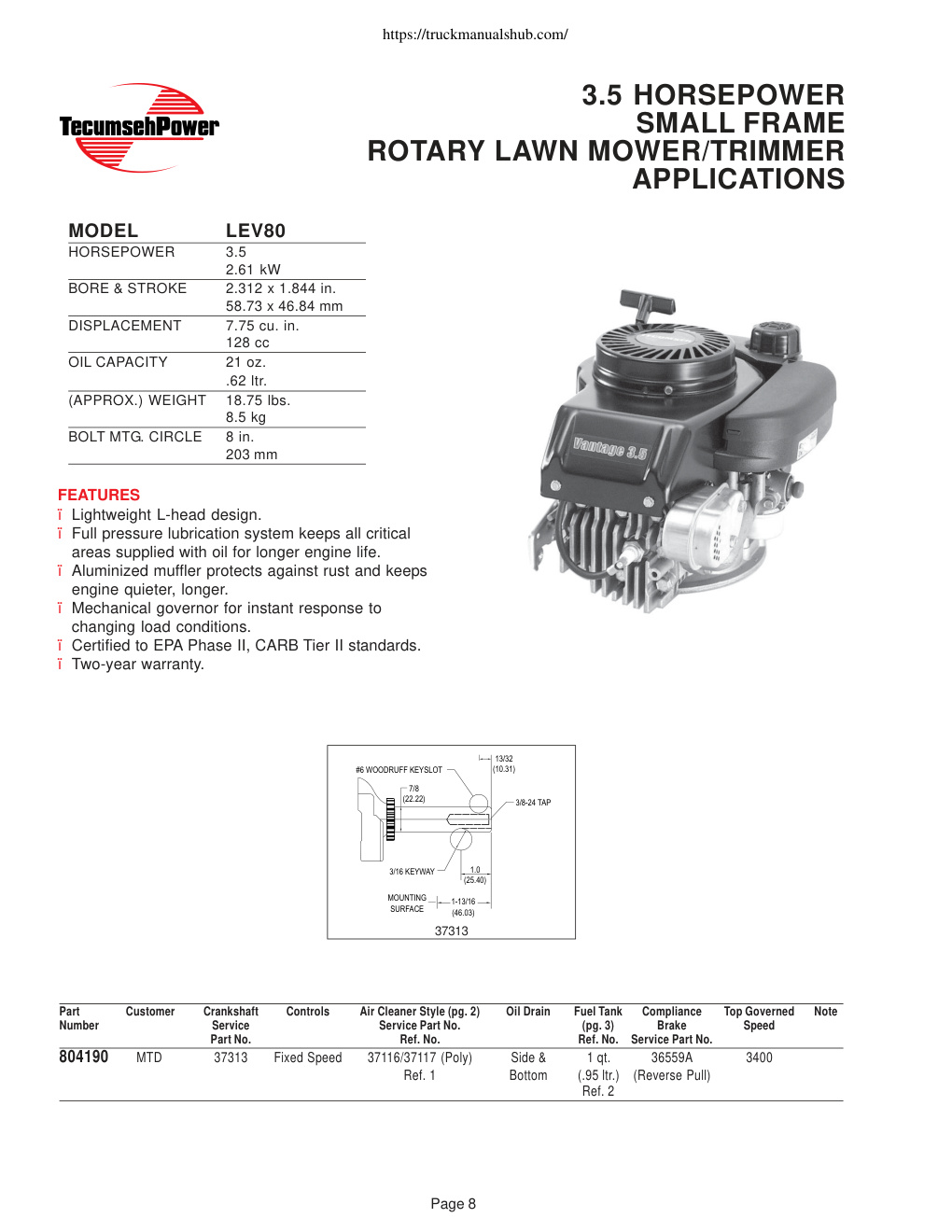

https://truckmanualshub.com/ Service Engines and Accessories TecumsehPower https://truckmanualshub.com/ 3.5 HORSEPOWER TecumsehPower SMALL FRAME ROTARY LAWN MOWER/TRIMMER APPLICATIONS MODEL LEV80 HORSEPOWER 3.5 2.61 kW BORE & STROKE 2.312 x 1.844 in. 58.73 x 46.84 mm DISPLACEMENT 7.75 cu. in. 128 cc OIL CAPACITY 21 oz. .62 ltr. (APPROX.) WEIGHT 18.75 lbs. 8.5 kg BOLT MTG. CIRCLE 8 in. 203 mm FEATURES ï Lightweight L-head design. ï Full pressure lubrication system keeps all critical areas supplied with oil for longer engine life. ï Aluminized muffler protects against rust and keeps engine quieter, longer. ï Mechanical governor for instant response to changing load conditions. ï Certified to EPA Phase II, CARB Tier II standards. ï Two-year warranty. 13/32 #6 WOODRUFF KEYSLOT (10.31) 7/8 (22.22) 3/8-24 TAP 3/16 KEYWAY 1.0 (25.40) MOUNTING 1-13/16 SURFACE (46.03) 37313 Part Customer Crankshaft Controls Air Cleaner Style (pg. 2) Oil Drain Fuel Tank Compliance Top Governed Note Number Service Service Part No. (pg. 3) Brake Speed Part No. Ref. No. Ref. No. Service Part No. 804190 MTD 37313 Fixed Speed 37116/37117 (Poly) Side & 1 qt. 36559A 3400 Ref. 1 Bottom (.95 ltr.) (Reverse Pull)…

33 pages 2,73 Mo PDF créé le 13/12/2007
