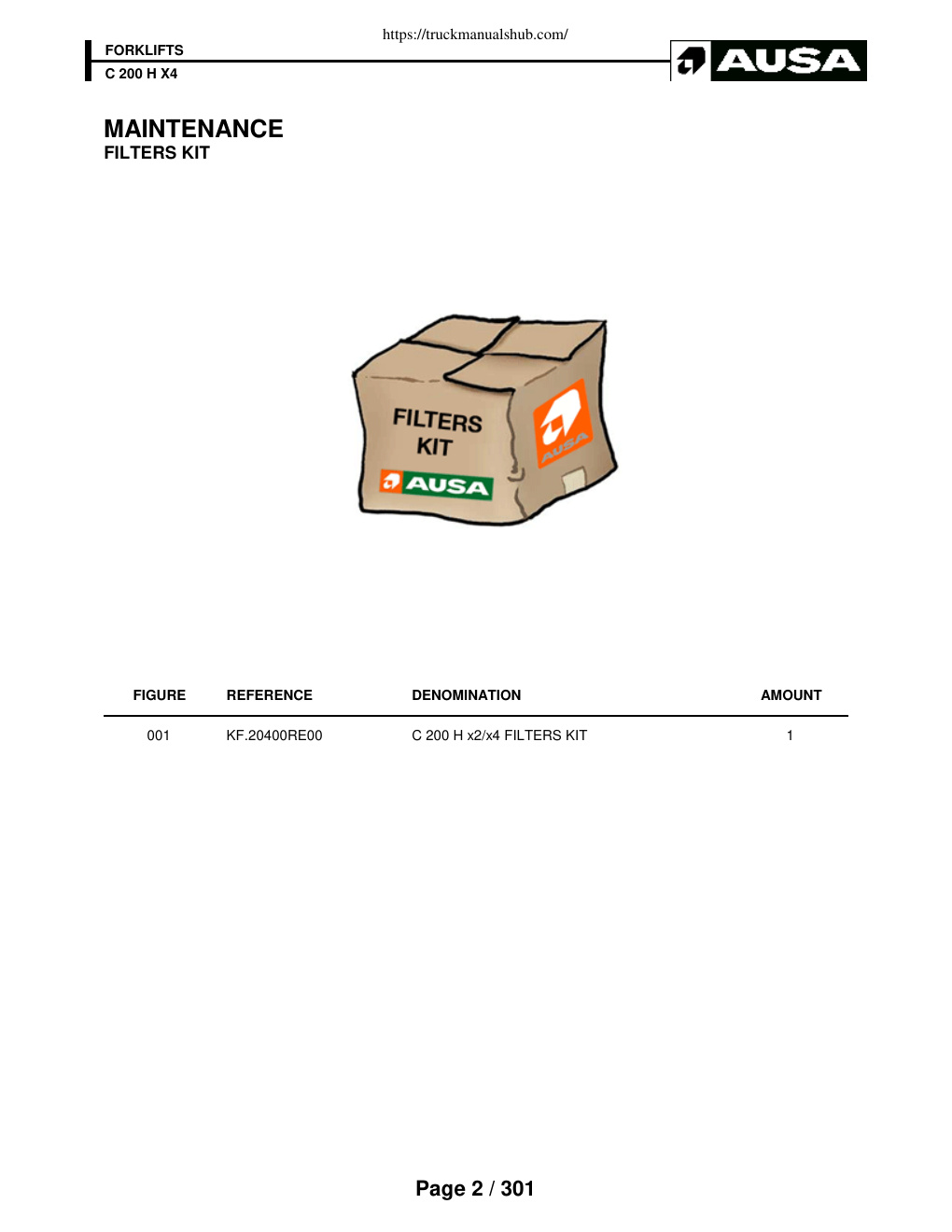

FIGURE REFERENCE DENOMINATION AMOUNT 001 KF.20400RE00 C 200 H x2/x4 FILTERS KIT 1

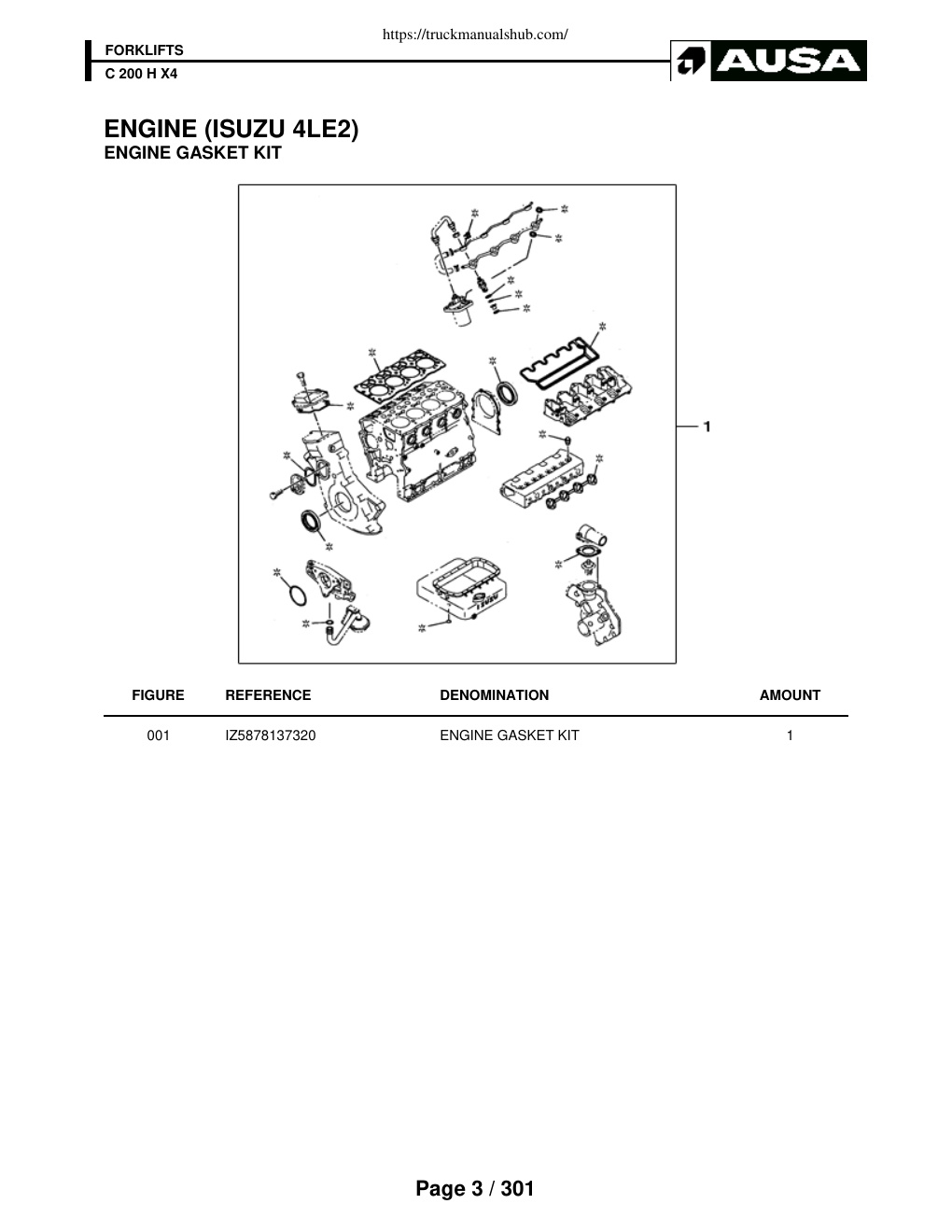

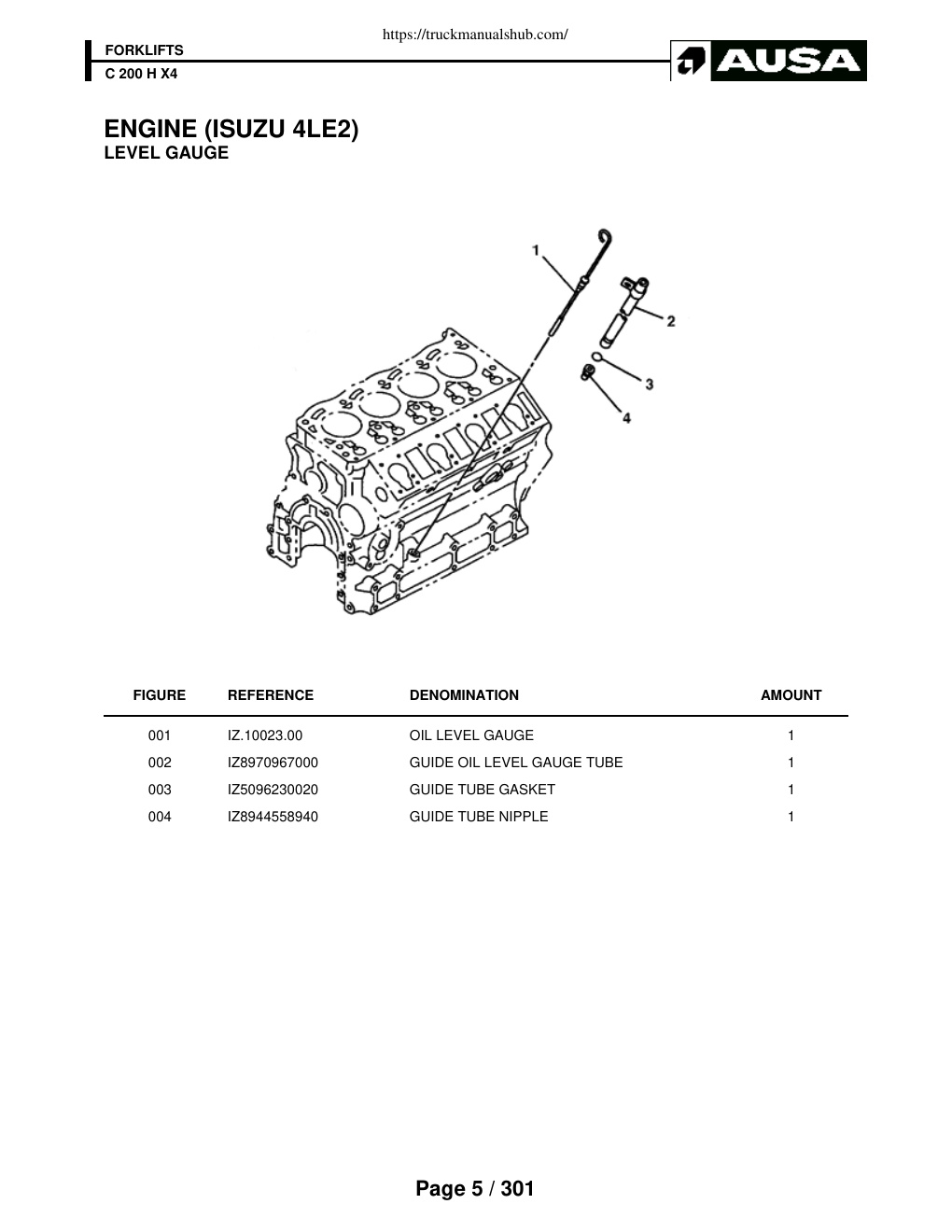

https://truckmanualshub.com/ FORKLIFTS C 200 H X4 PARTS MANUAL Page 1 / 301 https://truckmanualshub.com/ FORKLIFTS C 200 H X4 MAINTENANCE FILTERS KIT FIGURE REFERENCE DENOMINATION AMOUNT 001 KF.20400RE00 C 200 H x2/x4 FILTERS KIT 1 Page 2 / 301 https://truckmanualshub.com/ FORKLIFTS C 200 H X4 ENGINE (ISUZU 4LE2) ENGINE GASKET KIT FIGURE REFERENCE DENOMINATION AMOUNT 001 IZ5878137320 ENGINE GASKET KIT 1 Page 3 / 301 https://truckmanualshub.com/ FORKLIFTS C 200 H X4 ENGINE (ISUZU 4LE2) CYLINDER HEAD FIGURE REFERENCE DENOMINATION AMOUNT 001 IZ8972001902 CYLINDER HEAD COVER 1 002 IZ.10020.00 HEAD TO COVER GASKET 1 003 IZ0280806200 HEAD COVER BOLT M6X20 9 004 IZ0280806450 HEAD COVER BOLT M6X45 4 005 IZ8941236231 OIL FILLER GASKET 1 006 05.60410MI23 OIL FILLER CAP 1 Page 4 / 301 https://truckmanualshub.com/ FORKLIFTS C 200 H X4 ENGINE (ISUZU 4LE2) LEVEL GAUGE FIGURE REFERENCE DENOMINATION AMOUNT 001 IZ.10023.00 OIL LEVEL GAUGE 1 002 IZ8970967000 GUIDE OIL LEVEL GAUGE TUBE 1 003 IZ5096230020 GUIDE TUBE GASKET 1 004 IZ8944558940 GUIDE TUBE NIPPLE 1 Page 5 / 301 https://truckmanualshub.com/ FORKLIFTS C 200 H X4 ENGINE (ISUZU 4LE2) OIL PAN FIGURE REFERENCE DENOMINATION AMOUNT 001…
