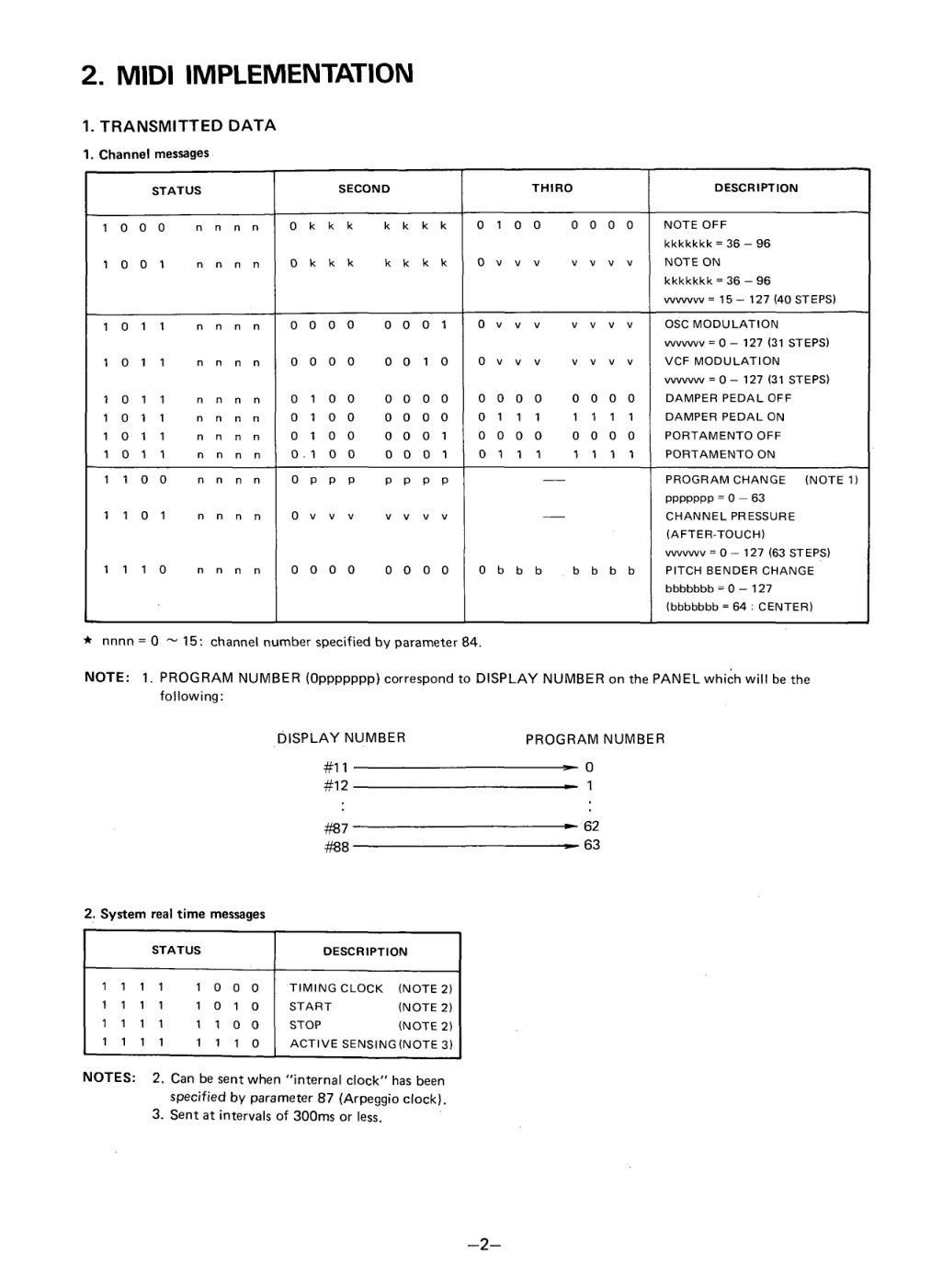

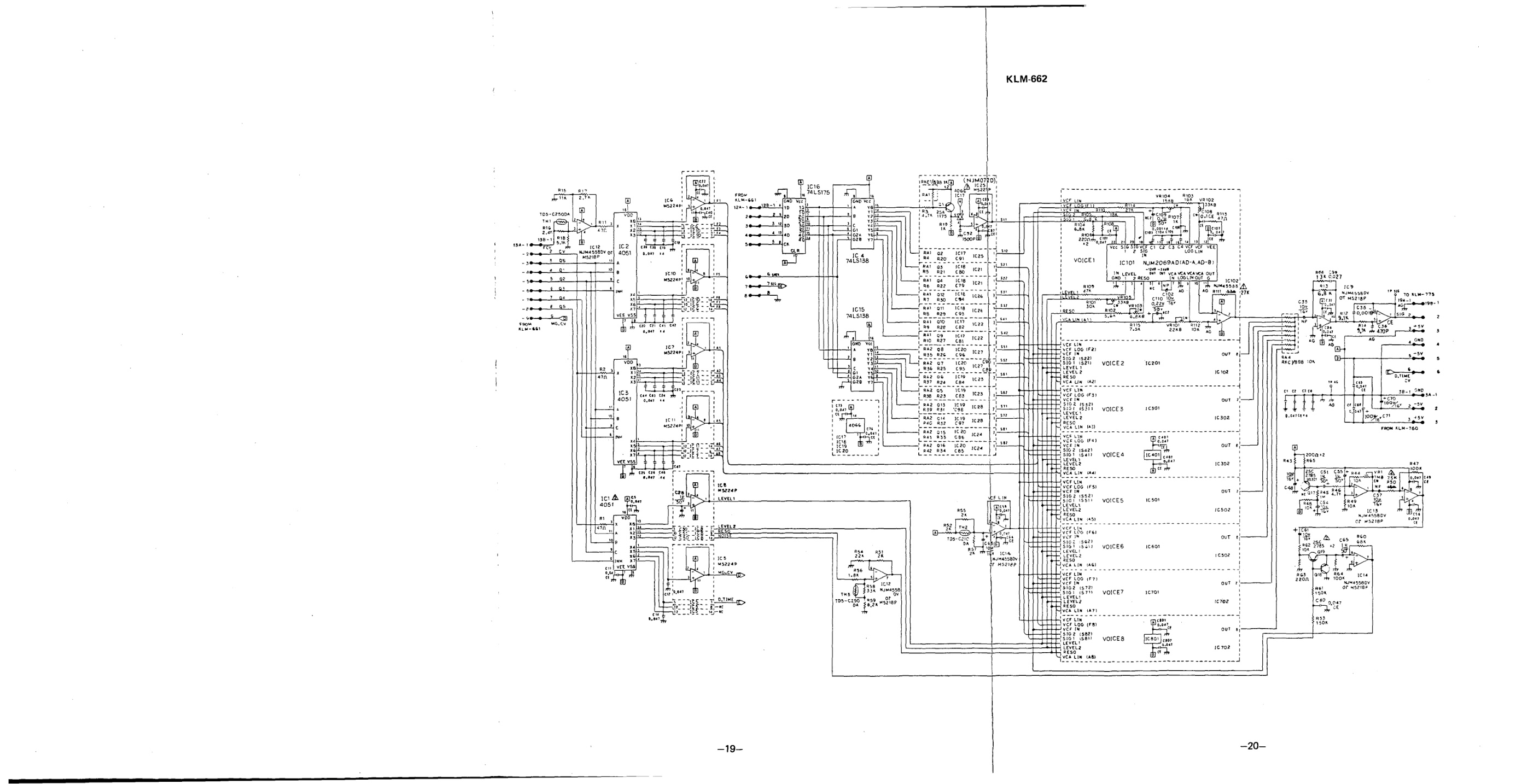

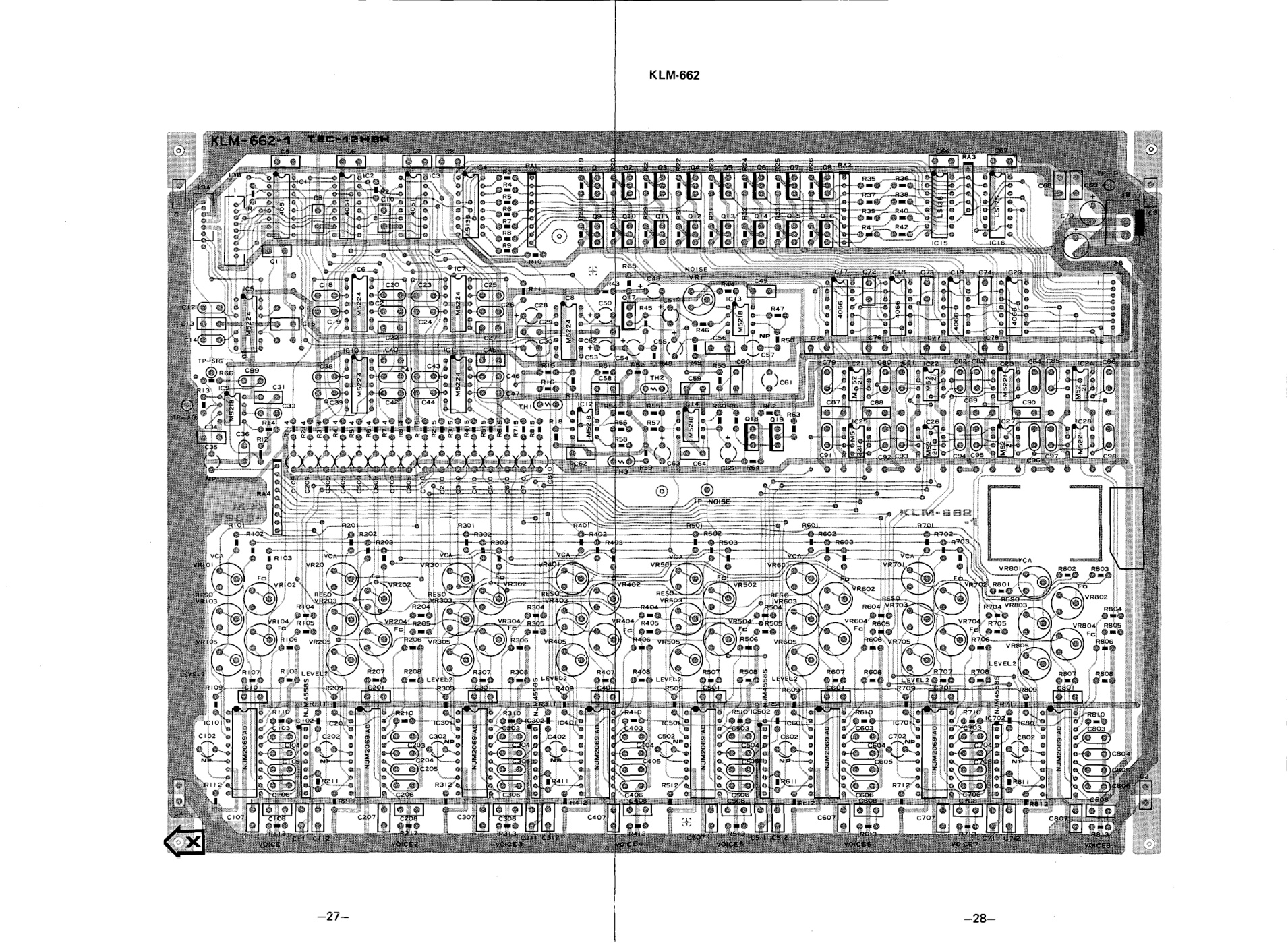

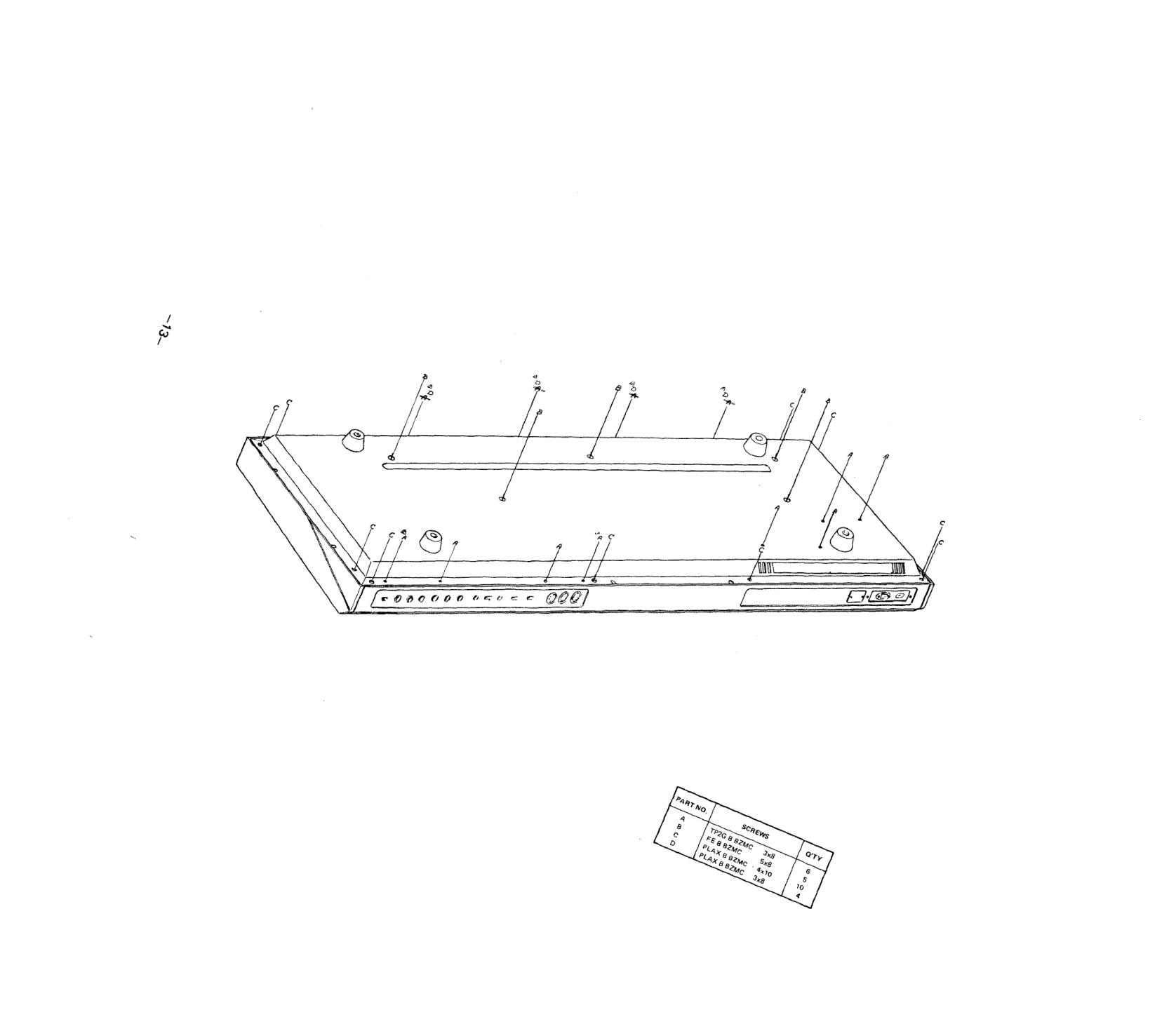

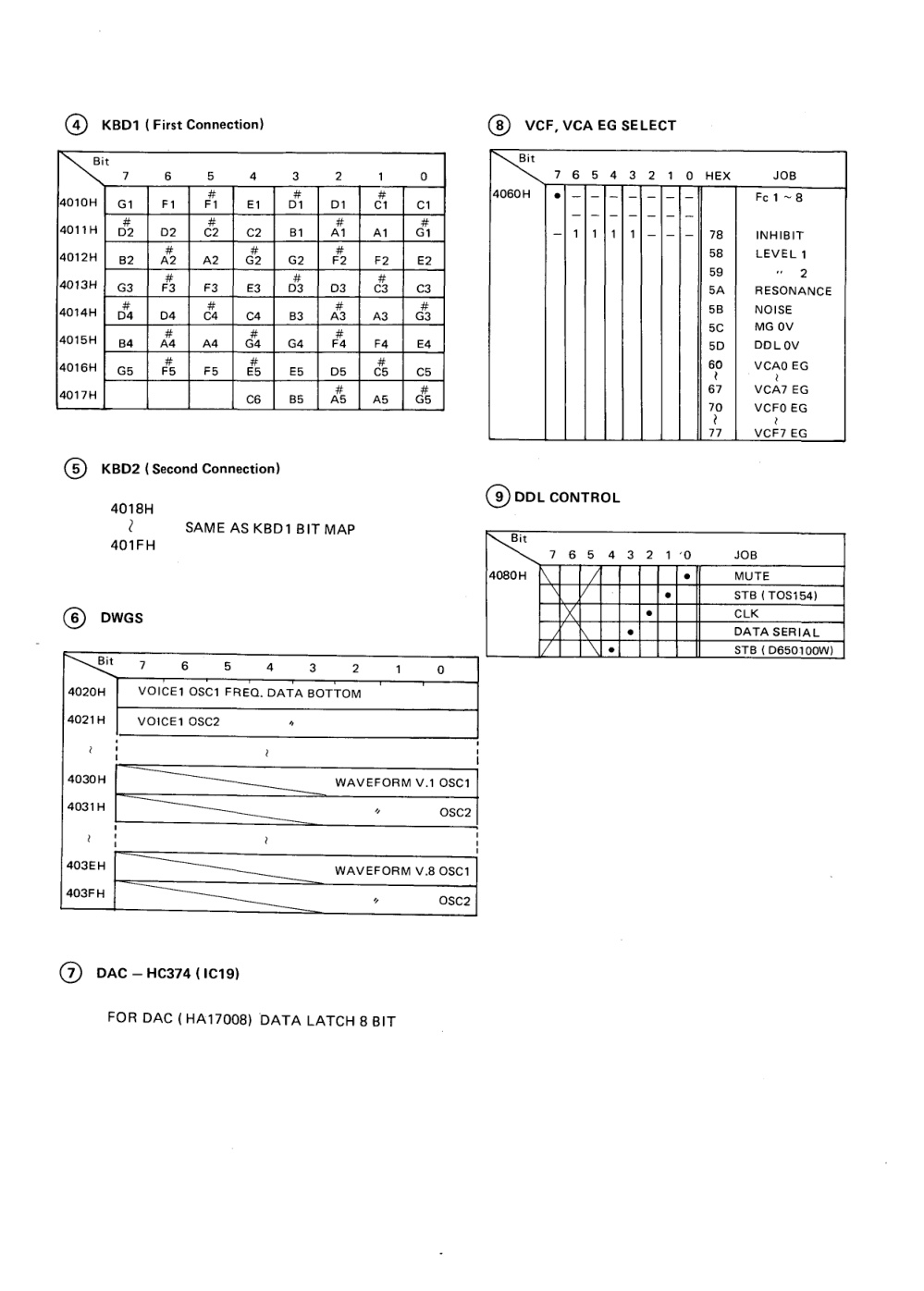

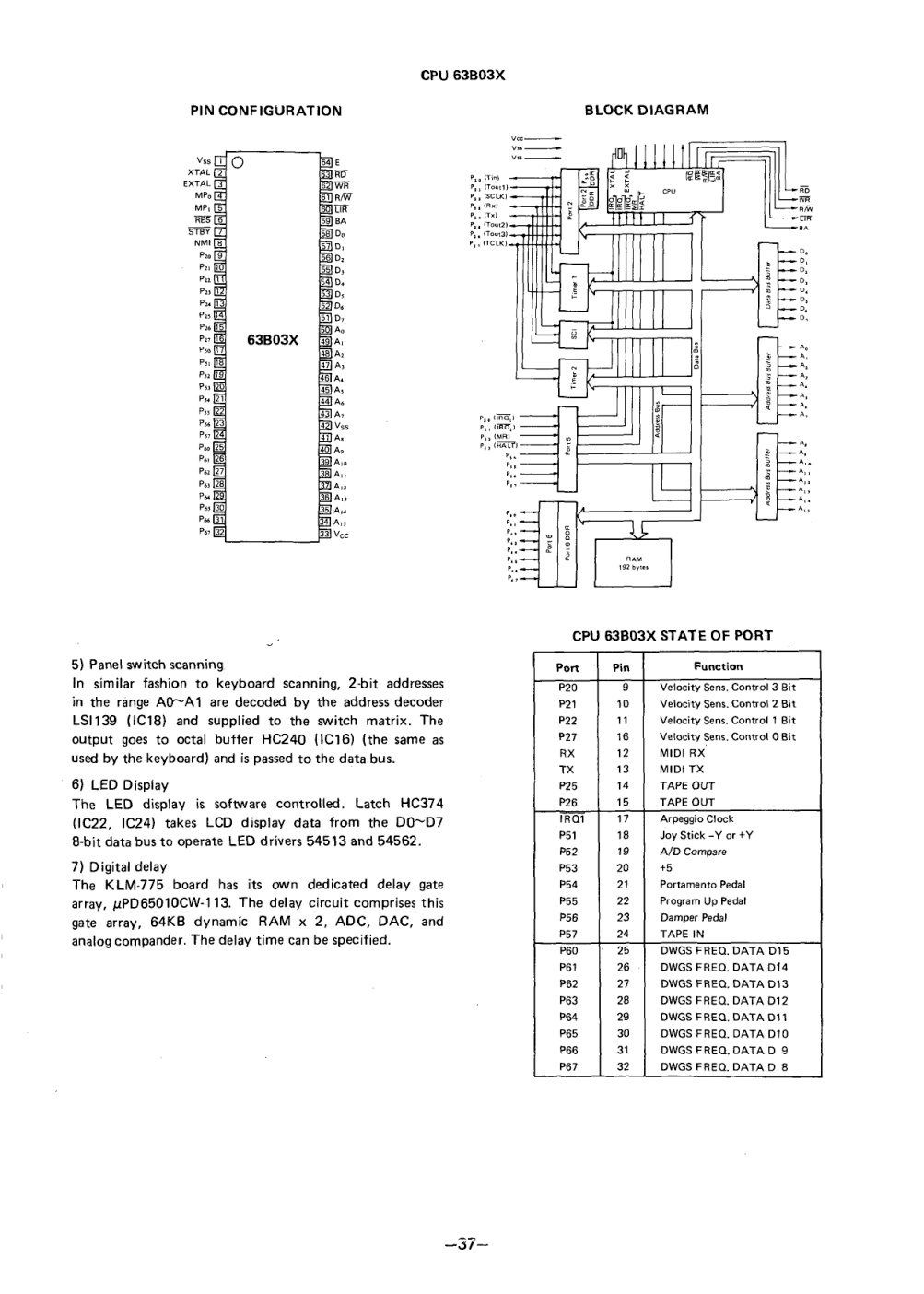

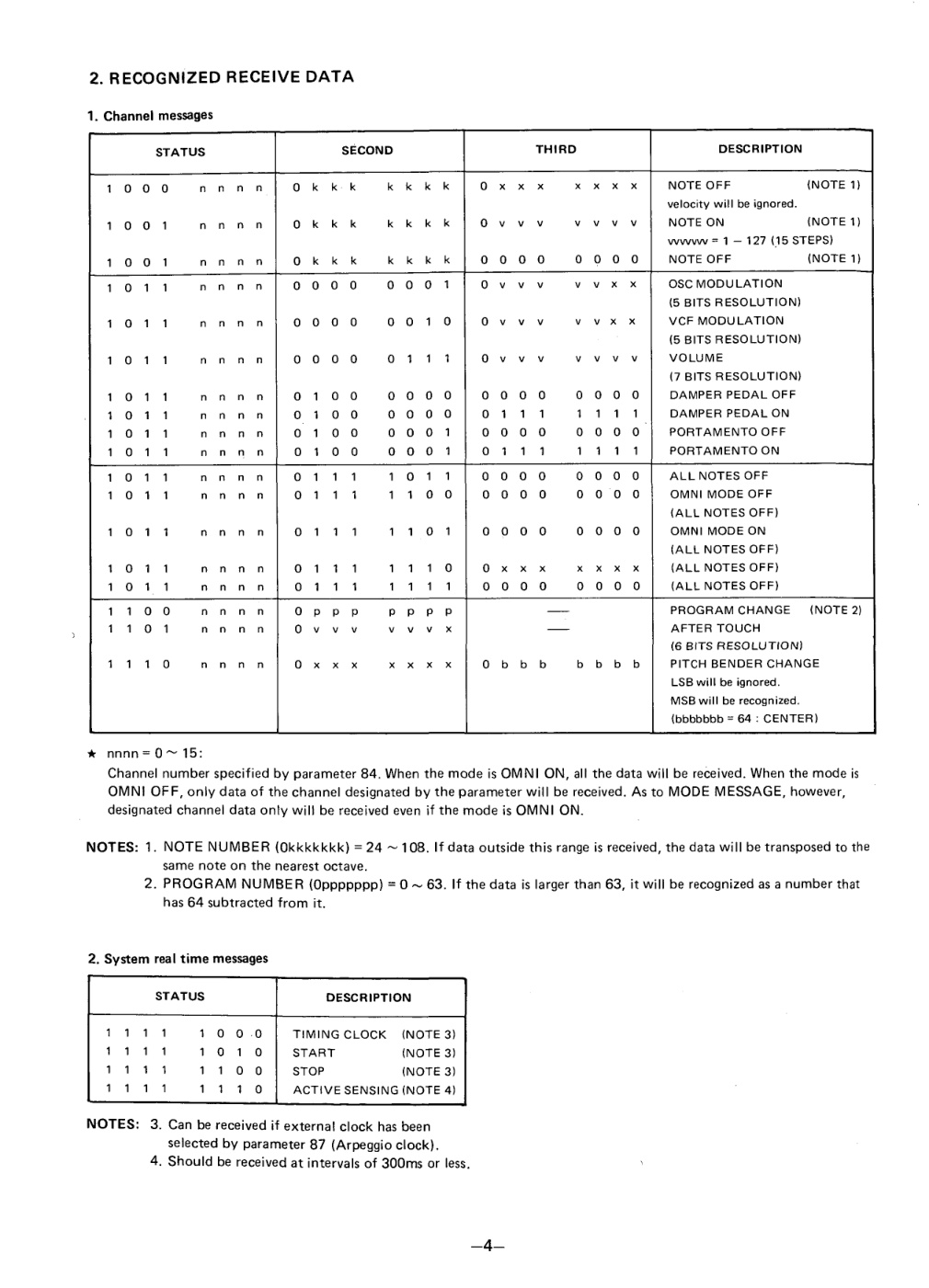

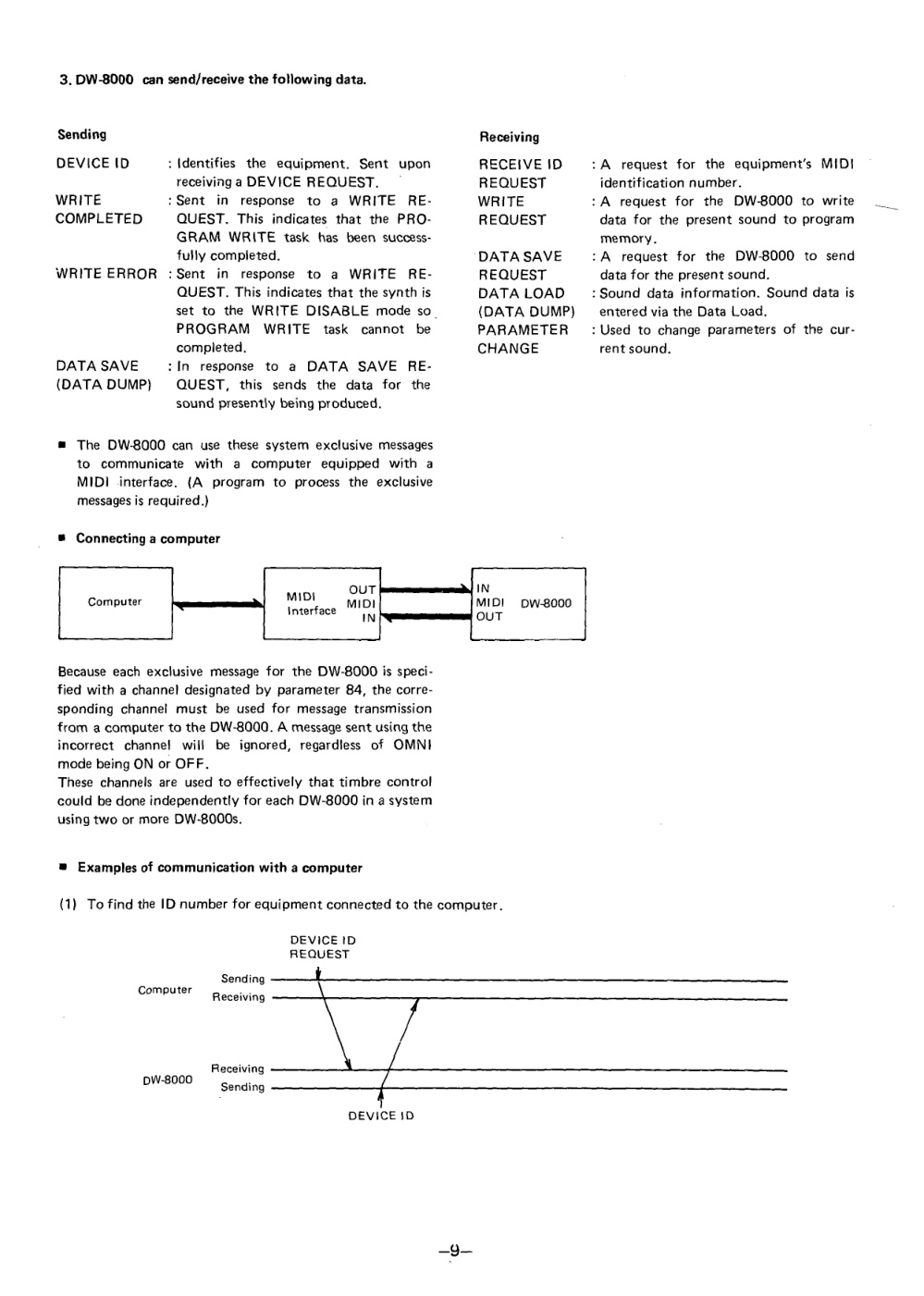

DIGITAL WAVEFORM SYNTHESIZER 1. SPECIFICATIONS................................................................................... 1 2. MIDI IMPLEMENTATION.................................................................... 2 3. STRUCTURAL D IA G R A M.................................................................... 11 4. BLOCK DIAGRAM................................................................................. 14 5. CIRCUIT DIAGRAM.............................................................................. 15 6. P.C. B O A R D............................................................................................. 24 7. CIRCUIT DESCRIPTIONS...................................................................... 31 8. ADJUSTMENT PROCEDURES............................................................ 39 9. PARTS L IS T........................................................

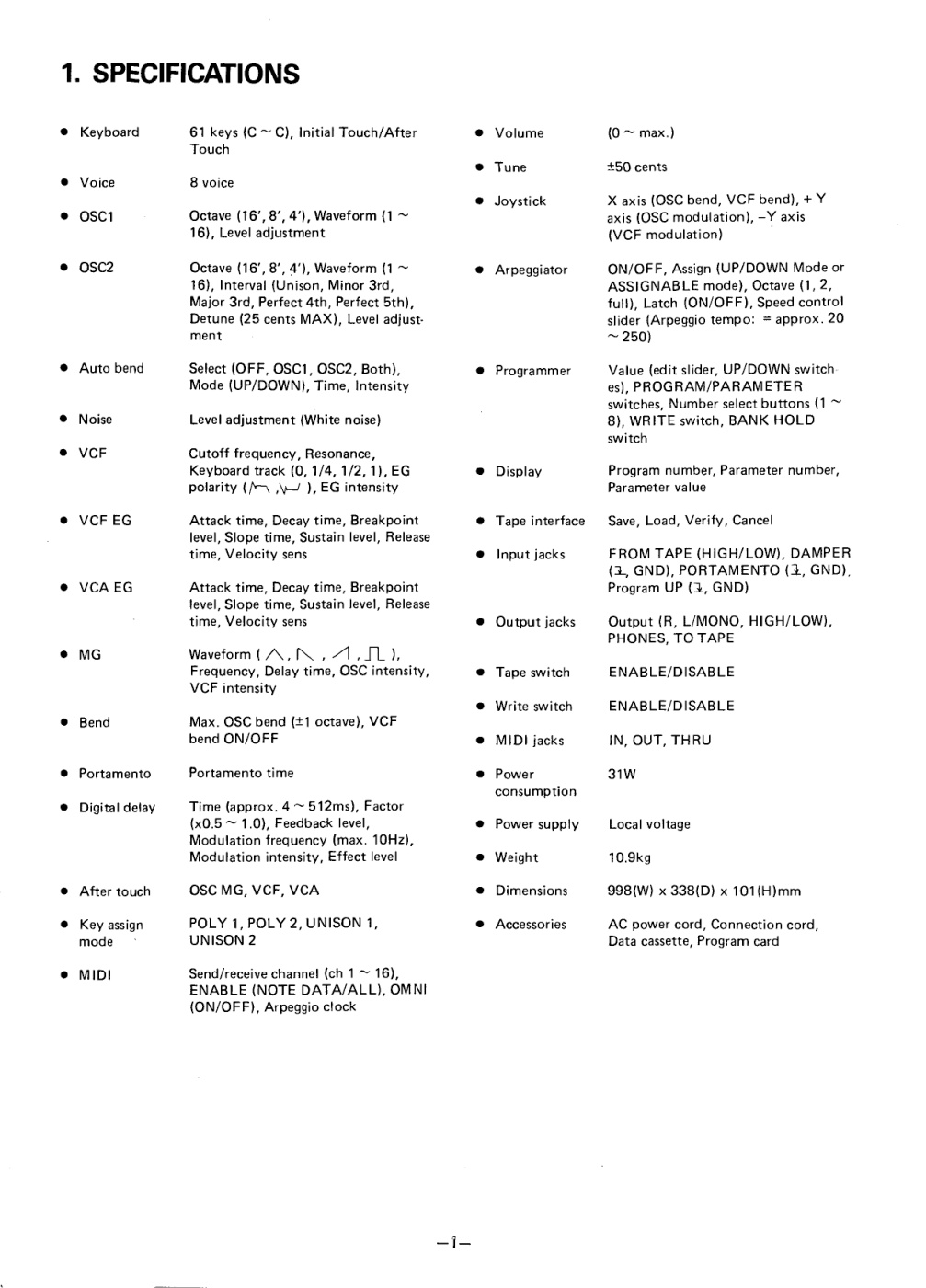

PROGRAMMABLE DIGITAL WAVEFORM SYNTHESIZER DW-8000 SERVICE MANUAL CONTENTS 1. SPECIFICATIONS................................................................................... 1 2. MIDI IMPLEMENTATION.................................................................... 2 3. STRUCTURAL D IA G R A M .................................................................... 11 4. BLOCK DIAGRAM ................................................................................. 14 5. CIRCUIT DIAGRAM .............................................................................. 15 6. P.C. B O A R D ............................................................................................. 24 7. CIRCUIT DESCRIPTIONS...................................................................... 31 8. ADJUSTMENT PROCEDURES ............................................................ 39 9. PARTS L IS T ............................................................................................. 42 KORG INC. 1. SPECIFICATIONS • Keyboard 61 keys (C — C), Initial Touch/After • Volume (0 ~ max.) Touch • Tune ±50 cents • Voice 8 voice • Joystick X axis (OSC bend, VCF bend), + Y • OSC1 Octave (16', 8', 4'),…
