ES 10-N01 ES 12-N01 ES 12-N02

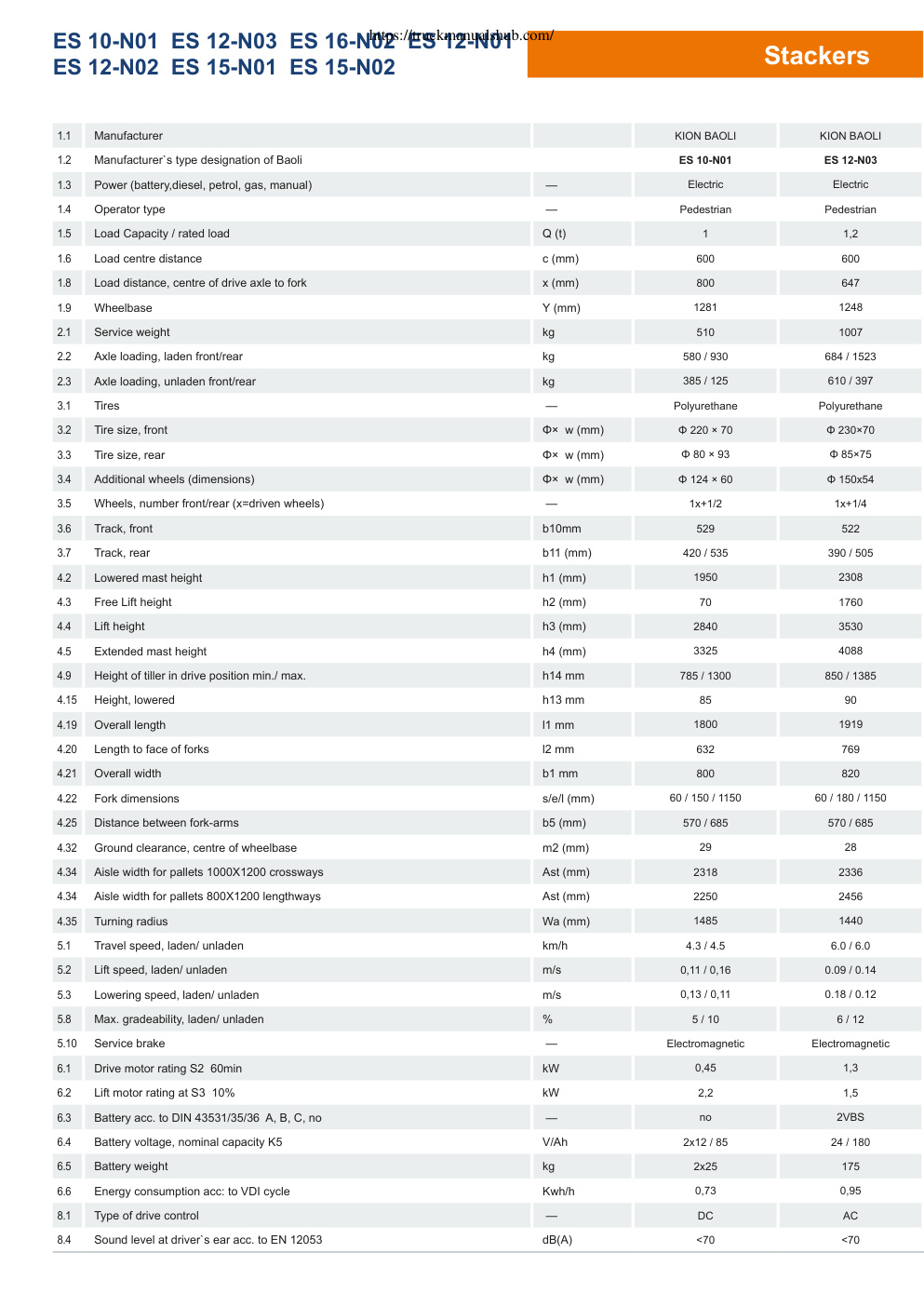

ES 15-N01 ES 15-N02 ES 12-N03 ES 10-N01 ES 12-N03 ES 16-N02https:// 12-N01 StackersES 12-N02 ES 15-N01 ES 15-N02 1.1 Manufacturer KION BAOLI KION BAOLI 1.2 Manufacturer`s type designation of Baoli ES 10-N01 ES 12-N03 1.3 Power (battery,diesel, petrol, gas, manual) — Electric Electric 1.4 Operator type — Pedestrian Pedestrian 1.5 Load Capacity / rated load Q (t) 1 1,2 1.6 Load centre distance c (mm) 600 600 1.8 Load distance, centre of drive axle to fork x (mm) 800 647 1.9 Wheelbase Y (mm) 1281 1248 2.1 Service weight kg 510 1007 2.2 Axle loading, laden front/rear kg 580 / 930 684 / 1523 2.3 Axle loading, unladen front/rear kg 385 / 125 610 / 397 3.1 Tires — Polyurethane Polyurethane 3.2 Tire size, front Φ× w (mm) Φ 220 × 70 Φ 230×70 3.3 Tire size, rear Φ× w (mm) Φ 80 × 93 Φ 85×75 3.4 Additional wheels (dimensions) Φ× w (mm) Φ 124 × 60 Φ 150x54 3.5 Wheels, number fro

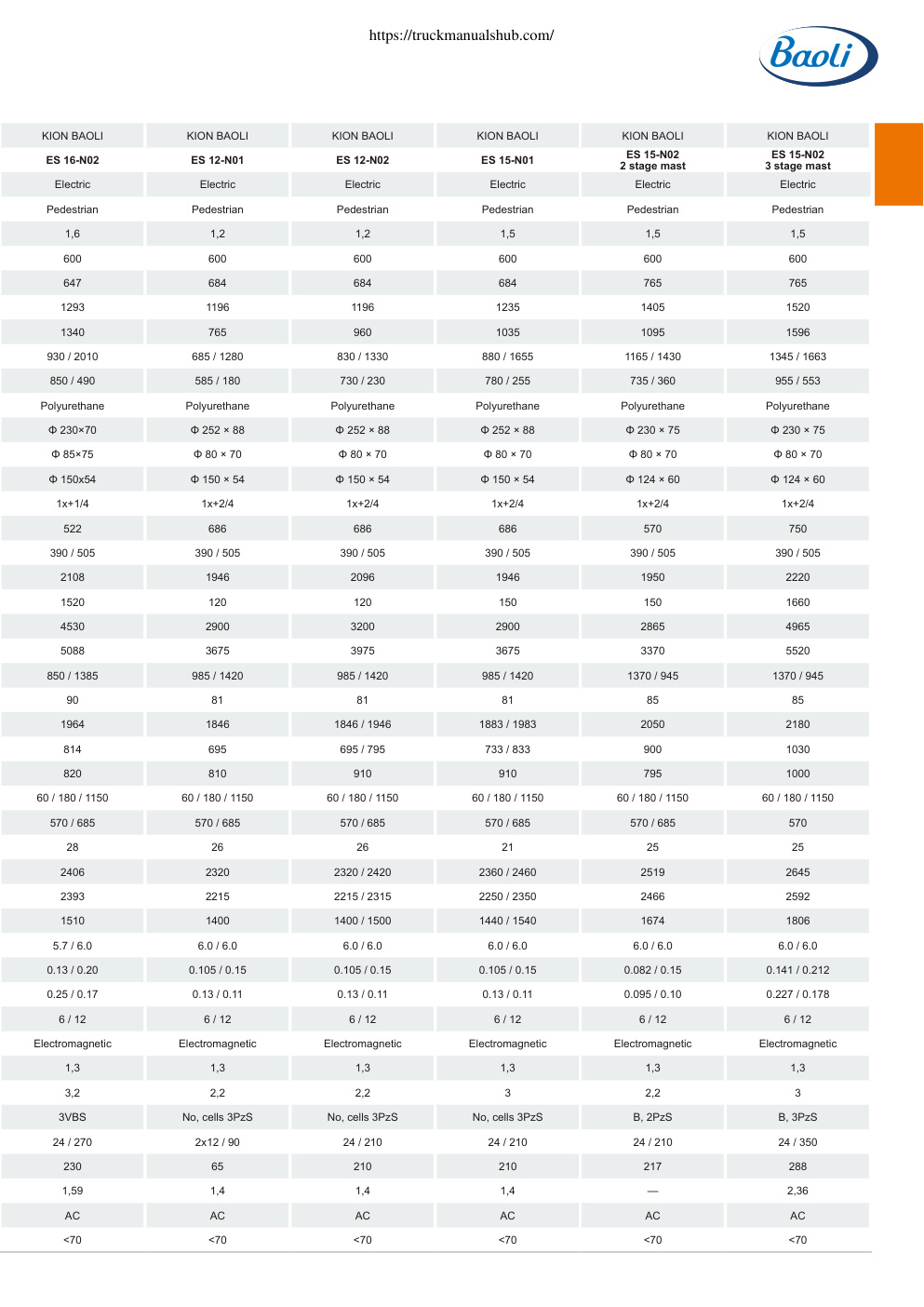

https://truckmanualshub.com/ ES 1.0-1.6 t Stackers ES 10-N01 ES 12-N01 ES 12-N02 ES 15-N01 ES 15-N02 ES 12-N03 ES 16-N02 ES 10-N01 ES 12-N03 ES 16-N02https://truckmanualshub.com/ES 12-N01 StackersES 12-N02 ES 15-N01 ES 15-N02 1.1 Manufacturer KION BAOLI KION BAOLI 1.2 Manufacturer`s type designation of Baoli ES 10-N01 ES 12-N03 1.3 Power (battery,diesel, petrol, gas, manual) — Electric Electric 1.4 Operator type — Pedestrian Pedestrian 1.5 Load Capacity / rated load Q (t) 1 1,2 1.6 Load centre distance c (mm) 600 600 1.8 Load distance, centre of drive axle to fork x (mm) 800 647 1.9 Wheelbase Y (mm) 1281 1248 2.1 Service weight kg 510 1007 2.2 Axle loading, laden front/rear kg 580 / 930 684 / 1523 2.3 Axle loading, unladen front/rear kg 385 / 125 610 / 397 3.1 Tires — Polyurethane Polyurethane 3.2 Tire size, front Φ× w (mm) Φ 220 × 70 Φ 230×70 3.3 Tire size, rear Φ× w (mm) Φ 80 × 93 Φ 85×75 3.4 Additional wheels (dimensions) Φ× w (mm) Φ 124 × 60 Φ 150x54 3.5 Wheels, number front/rear (x=driven wheels) — 1x+1/2 1x+1/4 3.6 Track, front b10mm 529 522 3.7 Track, rear b11 (mm) 420 / 535 390 / 505 4.2 Lowered mast height h1 (mm) 1950 2308 4.3 Free Lift height h2 (mm) 70 1760 4.4 Lift…
