Baoli KBG25 KBG35 Counterbalanced Forklift Truck Operation & Service Manual.pdf

Counterbalanced Forklift 5,000/7,000 Ib. Capacity D+ Series LPG Forklift Truck POS ITEM DESCRIPTION UNIT KBG25 KBG35 1.1 Manufacturer - KION Baoli KION Baoli 1.2 Manufacturer’s model designation - D+ series D+ series 1.2.1 Manufacture‘s type designation - KBG25 KBG35 1.3 Power type - LPG LPG 1.4 Operator type - Rider seated Rider seated 1.5 Load capacity Q kg(lb) 2270 (5000) 3177 (7000) Specification 1.6 Load center C mm(in) 600 (24) 600 (24) 1.8 Axle center to fork face X mm(in) 484 (19) 484 (19) 1.9 Wheel base Y mm(in) 1700 (67) 1700 (67) 2.1 Service weight kg(lb) 4320 (9524) 5080 (11199) 2.2 Axle weight with rated load front/rear kg(lb) 5100/980 (11243.5/2160.5) 7500/940 (16534/2072.5) Weight 2.3 Axle weight without load front/rear kg(lb) 2060/2240 (4541.5/4938.3) 1960/3120 (4321.1/6876.8) 3.1 Tires (SE-Super elastic PN-Pneumatic) - SE SE Tires 3.2 Tire size front - 28x9-15-14 28x9-15

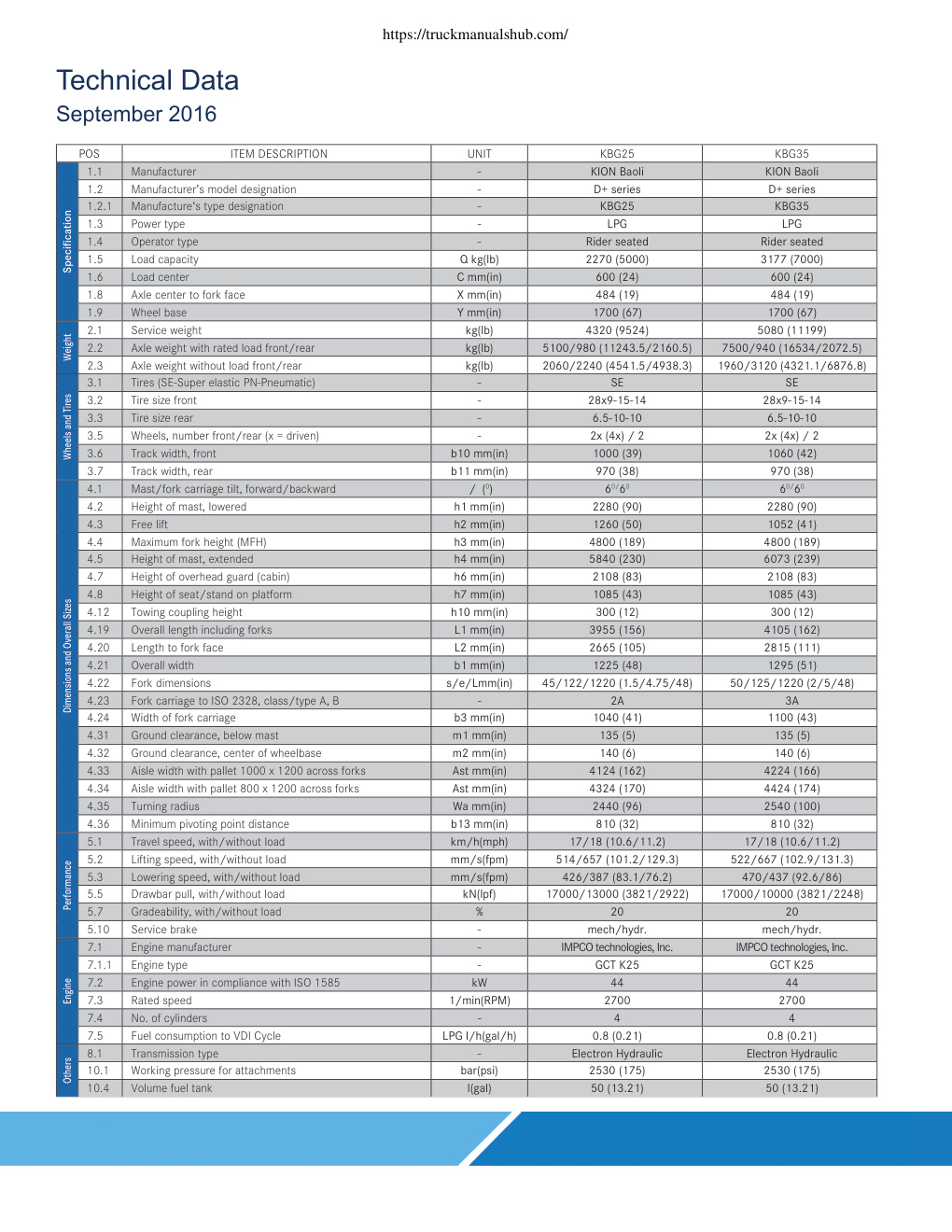

https://truckmanualshub.com/ Counterbalanced Forklift 5,000/7,000 lb. Capacity KBG25/35 D+ Series LPG Forklift Truck https://truckmanualshub.com/ Technical Data September 2016 POS ITEM DESCRIPTION UNIT KBG25 KBG35 1.1 Manufacturer - KION Baoli KION Baoli 1.2 Manufacturer’s model designation - D+ series D+ series 1.2.1 Manufacture‘s type designation - KBG25 KBG35 1.3 Power type - LPG LPG 1.4 Operator type - Rider seated Rider seated 1.5 Load capacity Q kg(lb) 2270 (5000) 3177 (7000) Specification 1.6 Load center C mm(in) 600 (24) 600 (24) 1.8 Axle center to fork face X mm(in) 484 (19) 484 (19) 1.9 Wheel base Y mm(in) 1700 (67) 1700 (67) 2.1 Service weight kg(lb) 4320 (9524) 5080 (11199) 2.2 Axle weight with rated load front/rear kg(lb) 5100/980 (11243.5/2160.5) 7500/940 (16534/2072.5) Weight 2.3 Axle weight without load front/rear kg(lb) 2060/2240 (4541.5/4938.3) 1960/3120 (4321.1/6876.8) 3.1 Tires (SE-Super elastic PN-Pneumatic) - SE SE Tires 3.2 Tire size front - 28x9-15-14 28x9-15-14 and 3.3 Tire size rear - 6.5-10-10 6.5-10-10 Wheels 3.53.6 Wheels,Track width,numberfrontfront/rear (x = driven) b10 mm(in)- 2x1000(4x)(39)/ 2 2x1060(4x)(42)/ 2 3.7 Track width, rear b11 mm(in) 970…
