Bell E-Series ADT (B35E-B60E) StageIV Tech Manual.pdf

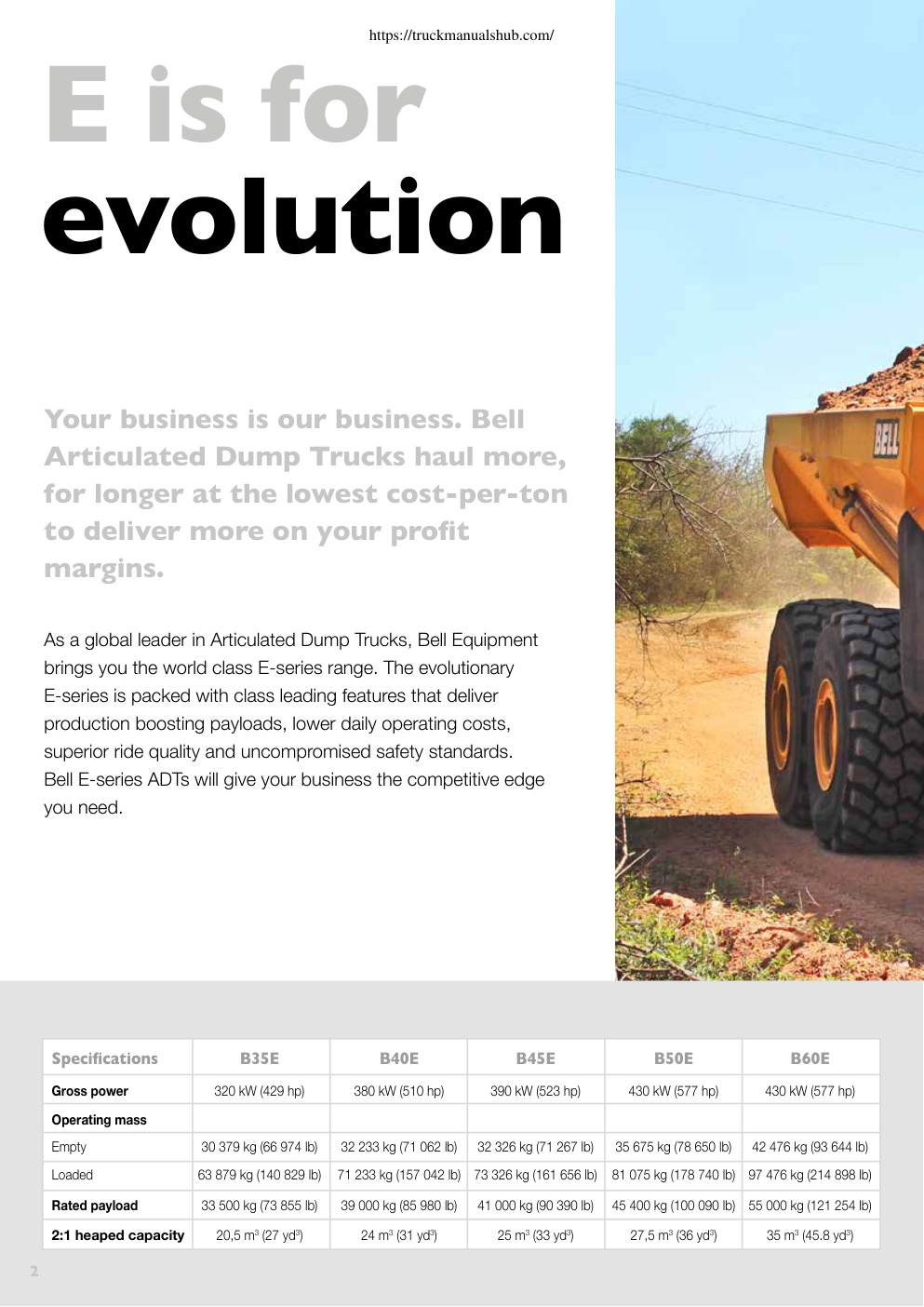

Articulated Dump Trucks Your business is our business. Bell Articulated Dump Trucks haul more, for longer at the lowest cost-per-ton to deliver more on your profit As a global leader in Articulated Dump Trucks, Bell Equipment brings you the world class E-series range. The evolutionary E-series is packed with class leading features that deliver production boosting payloads, lower daily operating costs, superior ride quality and uncompromised safety standards. Bell E-series ADTs will give your business the competitive edge Specifications B35E B40E B45E B50E B60E Gross power 320 kW (429 hp) 380 kW (510 hp) 390 kW (523 hp) 430 kW (577 hp) 430 kW (577 hp) Empty 30 379 kg (66 974 lb) 32 233 kg (71 062 lb) 32 326 kg (71 267 lb) 35 675 kg (78 650 lb) 42 476 kg (93 644 lb) Loaded 63 879 kg (140 829 lb) 71 233 kg (157 042 lb) 73 326 kg (161 656 lb) 81 075 kg (178 740 lb) 97 476 kg (214 898 lb) Rat

https://truckmanualshub.com/ Articulated Dump TrucksE-seriesB35E I B40E I B45E I B50E I B60E Stage IV/Tier 4f Certified https://truckmanualshub.com/ E is for evolution Your business is our business. Bell Articulated Dump Trucks haul more, for longer at the lowest cost-per-ton to deliver more on your profit margins. As a global leader in Articulated Dump Trucks, Bell Equipment brings you the world class E-series range. The evolutionary E-series is packed with class leading features that deliver production boosting payloads, lower daily operating costs, superior ride quality and uncompromised safety standards. Bell E-series ADTs will give your business the competitive edge you need. Specifications B35E B40E B45E B50E B60E Gross power 320 kW (429 hp) 380 kW (510 hp) 390 kW (523 hp) 430 kW (577 hp) 430 kW (577 hp) Operating mass Empty 30 379 kg (66 974 lb) 32 233 kg (71 062 lb) 32 326 kg (71 267 lb) 35 675 kg (78 650 lb) 42 476 kg (93 644 lb) Loaded 63 879 kg (140 829 lb) 71 233 kg (157 042 lb) 73 326 kg (161 656 lb) 81 075 kg (178 740 lb) 97 476 kg (214 898 lb) Rated payload 33 500 kg (73 855 lb) 39 000 kg (85 980 lb) 41 000 kg (90 390 lb) 45 400 kg (100 090 lb) 55 000 kg (121 254…
