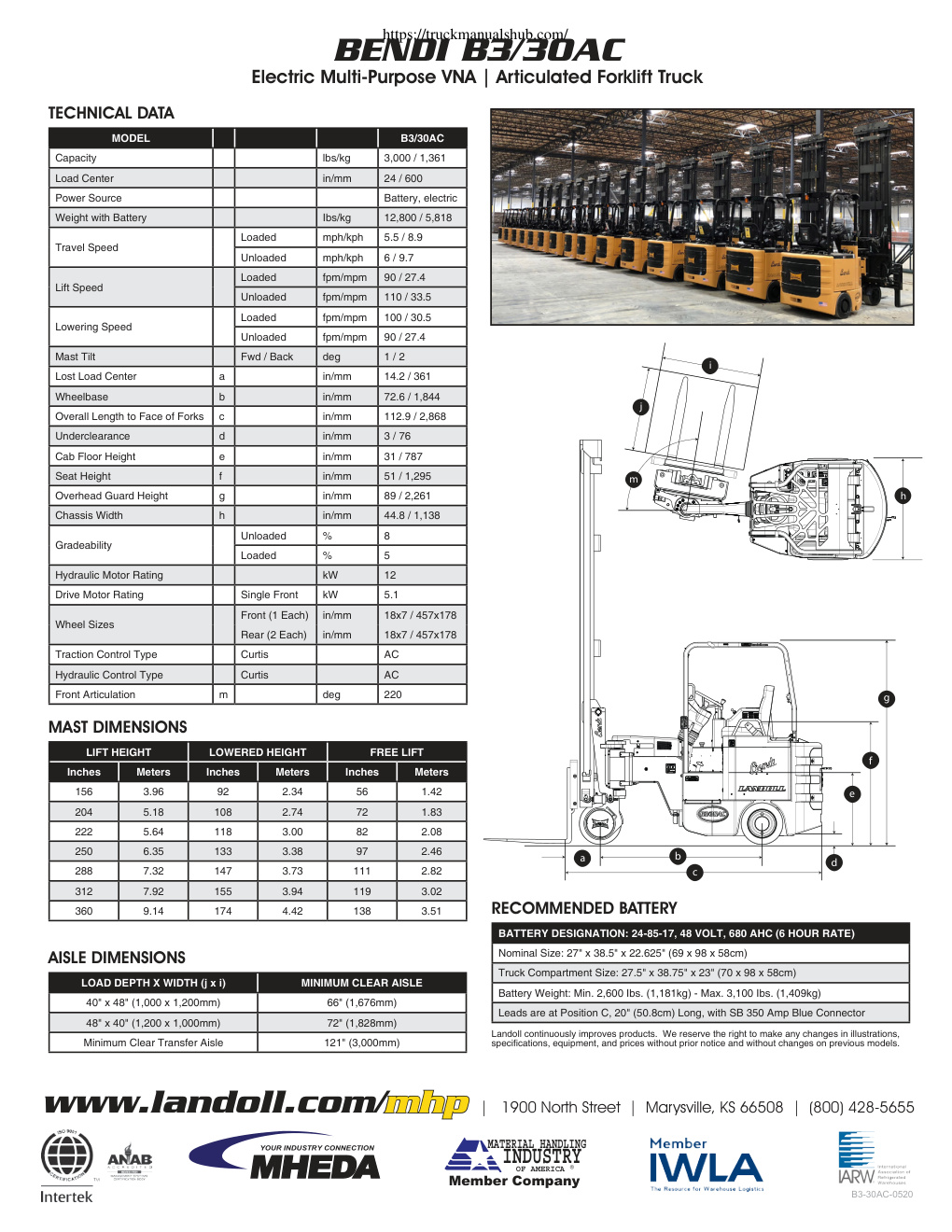

STANDARD FEATURES

800-428-5655 • Three-Wheel Design, Single Front Wheel Drive • 9.75" (248mm) Stroke Integral Side Shifter • 220˚ Front End Rotation • Adjustable Seat and Steering Wheel • DuraSteerTM Front Wheel Hydraulic Steering • AC Traction Motor Controller with LandActive Control (LandActive control provides additional control during stacking as the maximum truck speed is controlled by steering angle.) • AC Hydraulic Motor Controller • Interactive LCD Status Monitor • BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device • Hydraulic Rear Wheel Brakes • Safety Seat Switch and Seat Belts • 40" (1000mm) Tapered Tip Forks - Rear Tow Pin • Hand Actuated Parking Brake • Creep Speed Mode Selection Switch • High Visibility Mast and 36" (914mm) High Backrest • Mast Tilt 1º Forward and 2º Backward • 48 Volt Electrical System • Three Section Hydrauli

https://truckmanualshub.com/ 800-428-5655 www.landoll.com/mhp STANDARD FEATURES • Three-Wheel Design, Single Front Wheel Drive • 9.75" (248mm) Stroke Integral Side Shifter • 220˚ Front End Rotation • Adjustable Seat and Steering Wheel • DuraSteerTM Front Wheel Hydraulic Steering • AC Traction Motor Controller with LandActive Control (LandActive control provides additional control during stacking as the maximum truck speed is controlled by steering angle.) • AC Hydraulic Motor Controller • Interactive LCD Status Monitor • BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration • Hydraulic Rear Wheel Brakes • Safety Seat Switch and Seat Belts • 40" (1000mm) Tapered Tip Forks - Rear Tow Pin • Hand Actuated Parking Brake • Creep Speed Mode Selection Switch • High Visibility Mast and 36" (914mm) High Backrest • Mast Tilt 1º Forward and 2º Backward • 48 Volt Electrical System • Three Section Hydraulic Control Valve • Smooth Poly Front Drive Tire and Rubber Rear Tires • Horn, Key Switch and Hour Meter • Meets ANSI B56.1 OPTIONAL FEATURES • Non-Standard Fork Lengths • Dual Overhead Guard-Mounted LED Headlights • Dual Rear Safety LED…
