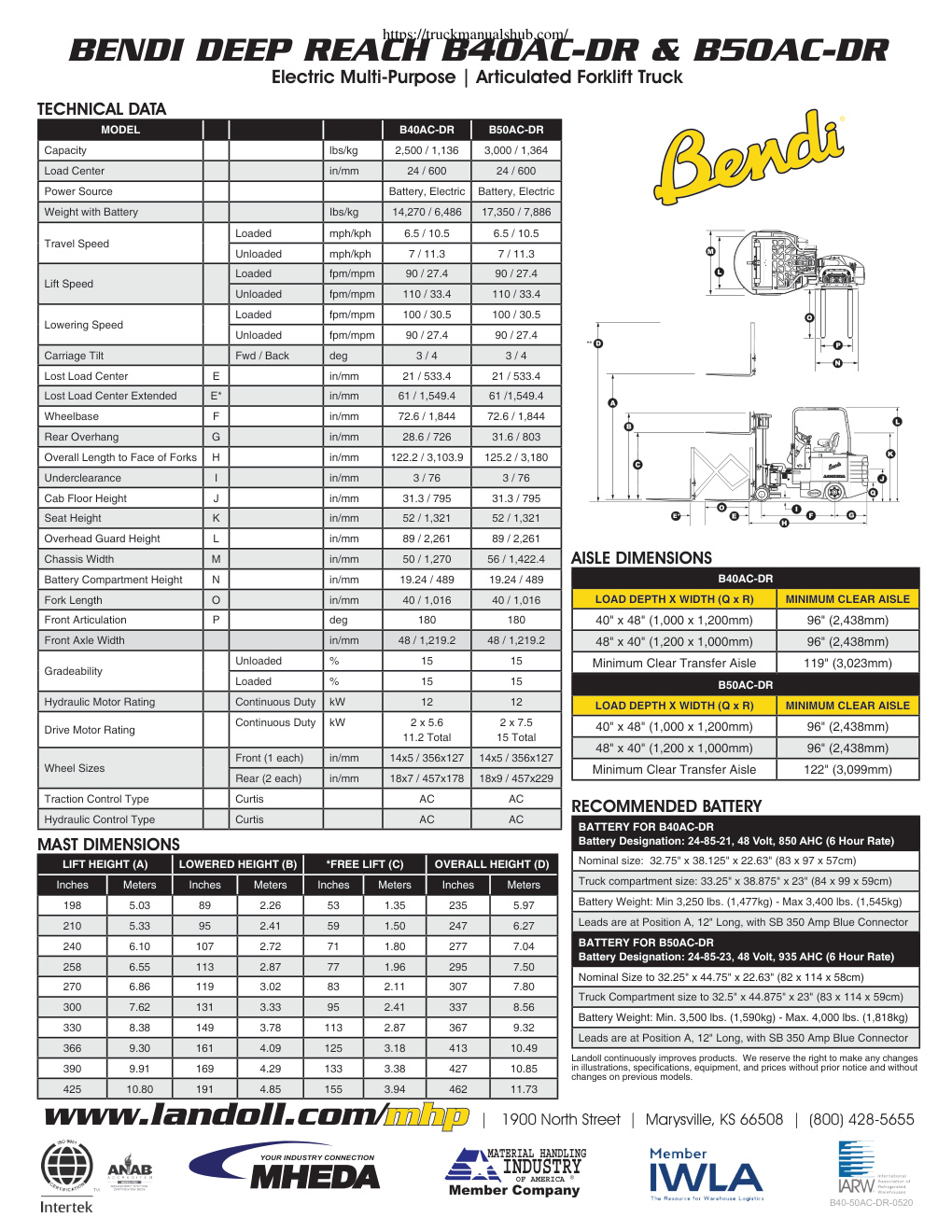

STANDARD FEATURES

800-428-5655 • Four Wheel Design, Dual Rear Wheel Drive • 8" (200 mm) Stroke Integral Side Shifter • 41" (1041 mm) Stroke Integral Pantograph Reach • 52" (1321 mm) Reach From Face of Mast • 37" (940 mm) Wide Tilting and Side Shifting Fork • Adjustable Seat and Steering Wheel • Rotation via DuraSteerTM Actuator, with 5-Year Warranty on Articulation • Dual Curtis AC Traction Motor Controllers • Curtis AC Hydraulic Motor Controller • Battery Discharge Indicator with Slow Alert • Hydraulic Disk Brakes • “Floating” Articulated Front Axle • One Parts and Operator’s Manual Included • Curtis Engage Dash Display • Hand Actuated Parking Brake • 36" (914mm) High Backrest • High Visibility Mast • 170˚ Rear View Mirror • Safety Seat Switch and Seat Belt • Fixed Mast with Carriage Tilt of 3º Fwd / 4º Rwd • 48 Volt Electrical System • Three Section Hydraulic Control Valve • Smooth R

https://truckmanualshub.com/ 800-428-5655 www.landoll.com/mhp STANDARD FEATURES • Four Wheel Design, Dual Rear Wheel Drive • 8" (200 mm) Stroke Integral Side Shifter • 41" (1041 mm) Stroke Integral Pantograph Reach • 52" (1321 mm) Reach From Face of Mast • 37" (940 mm) Wide Tilting and Side Shifting Fork Carriage • Adjustable Seat and Steering Wheel • Rotation via DuraSteerTM Actuator, with 5-Year Warranty on Articulation • Dual Curtis AC Traction Motor Controllers • Curtis AC Hydraulic Motor Controller • Battery Discharge Indicator with Slow Alert • Hydraulic Disk Brakes • “Floating” Articulated Front Axle • One Parts and Operator’s Manual Included • Curtis Engage Dash Display • Hand Actuated Parking Brake • 36" (914mm) High Backrest • High Visibility Mast • 170˚ Rear View Mirror • Safety Seat Switch and Seat Belt • Fixed Mast with Carriage Tilt of 3º Fwd / 4º Rwd • 48 Volt Electrical System • Three Section Hydraulic Control Valve • Smooth Rubber Drive Tires • Soft Polyurethane Load Wheel Tires • 40" Tapered Tip Forks - Rear Tow Hitch Pin • Meets ANSI B56.1 OPTIONAL FEATURES • Non-Standard Fork Lengths • LED Headlights, Flashing Light and Rear Safety Lights • Non-Marking Tires •…
