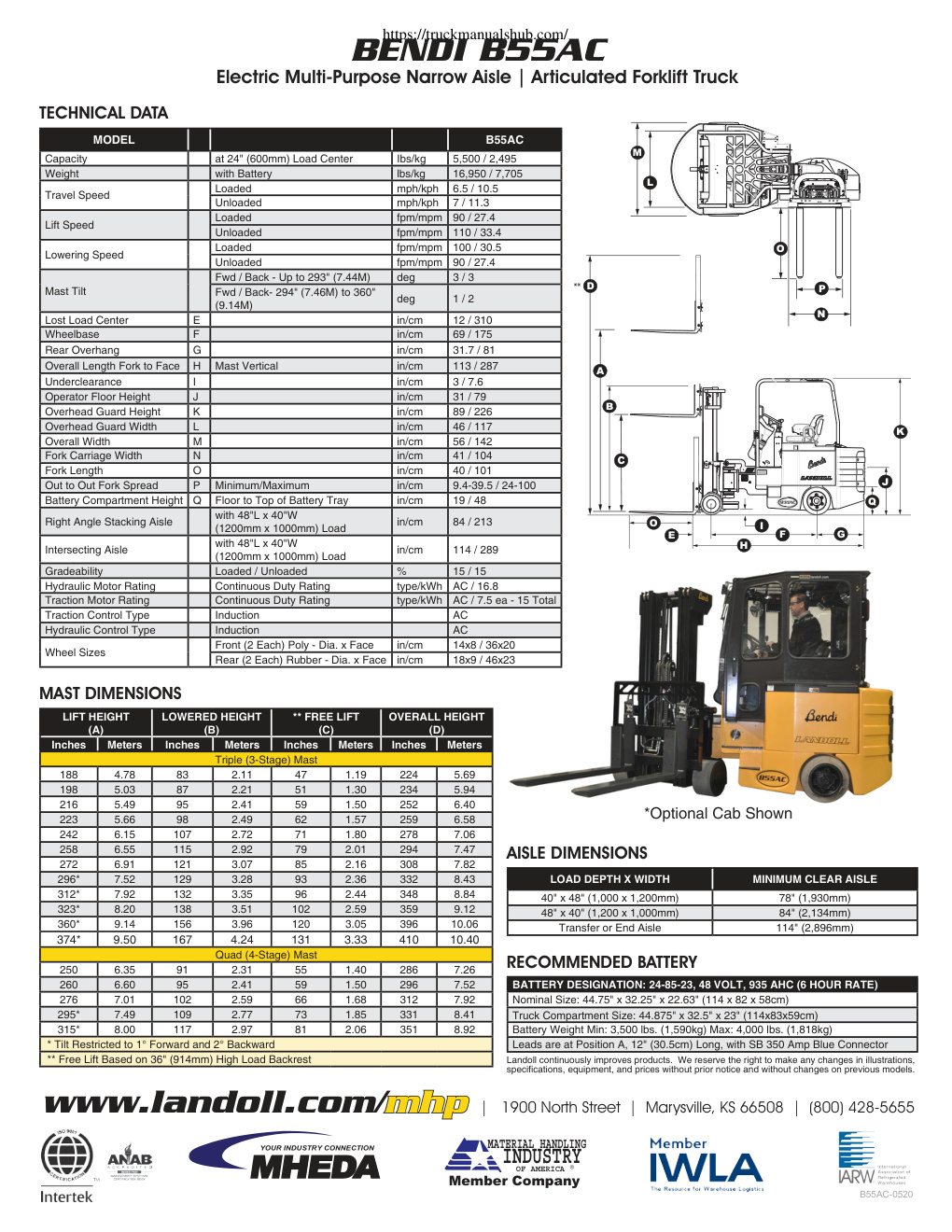

STANDARD FEATURES

800-428-5655 • 5,500 lb. (2,495kg) Capacity • Lift Heights to 360" (9.14M) • 84" (2.13M) Stacking Aisle with 48" (1,200mm) Long Load • High Visibility 3-Stage or 4-Stage Mast • Integral 11.2" (285mm) Stroke Side Shifter and 36" (914mm) High Load Backrest • Dual Inside / Outside Capability • Articulated Floating Front Axle, 48" (1,219mm) Wide • Large Diameter Smooth Rubber Drive Tires • Polyurethane Load Tires • 180° Front-End DuraSteer™ Articulation Steering Assembly with 5-Year Warranty • Heavy Duty Dual Rear Wheel Planetary Drives • AC Traction and Hydraulic Controllers • Powerful AC Drive and Hydraulic Motors • Comfortable Seated Operation with All Truck Controls in • Full Diagnostic Intelligent Display with Battery Discharge Indicator and Hour Meter • Adjustable Cloth Suspension Swivel Seat • Armrest, Adjustable Steering Column, Key Switch, Horn and • Hydraulic Po

https://truckmanualshub.com/ 800-428-5655 www.landoll.com/mhp STANDARD FEATURES • 5,500 lb. (2,495kg) Capacity • Lift Heights to 360" (9.14M) • 84" (2.13M) Stacking Aisle with 48" (1,200mm) Long Load • High Visibility 3-Stage or 4-Stage Mast • Integral 11.2" (285mm) Stroke Side Shifter and 36" (914mm) High Load Backrest • Dual Inside / Outside Capability • Articulated Floating Front Axle, 48" (1,219mm) Wide • Large Diameter Smooth Rubber Drive Tires • Polyurethane Load Tires • 180° Front-End DuraSteer™ Articulation Steering Assembly with 5-Year Warranty • Heavy Duty Dual Rear Wheel Planetary Drives • AC Traction and Hydraulic Controllers • Powerful AC Drive and Hydraulic Motors • Comfortable Seated Operation with All Truck Controls in Easy Reach • Full Diagnostic Intelligent Display with Battery Discharge Indicator and Hour Meter • Adjustable Cloth Suspension Swivel Seat • Armrest, Adjustable Steering Column, Key Switch, Horn and Seat Belt • Hydraulic Power Steering • 4-Post Heavy-Duty Overhead Guard • Safety Deadman Seat Switch • Heavy Duty Unitized Robotic Welded Chassis Design • Provisions for RF Terminals Provided • Accepts Class II Attachments • Easily Accessible Components…
